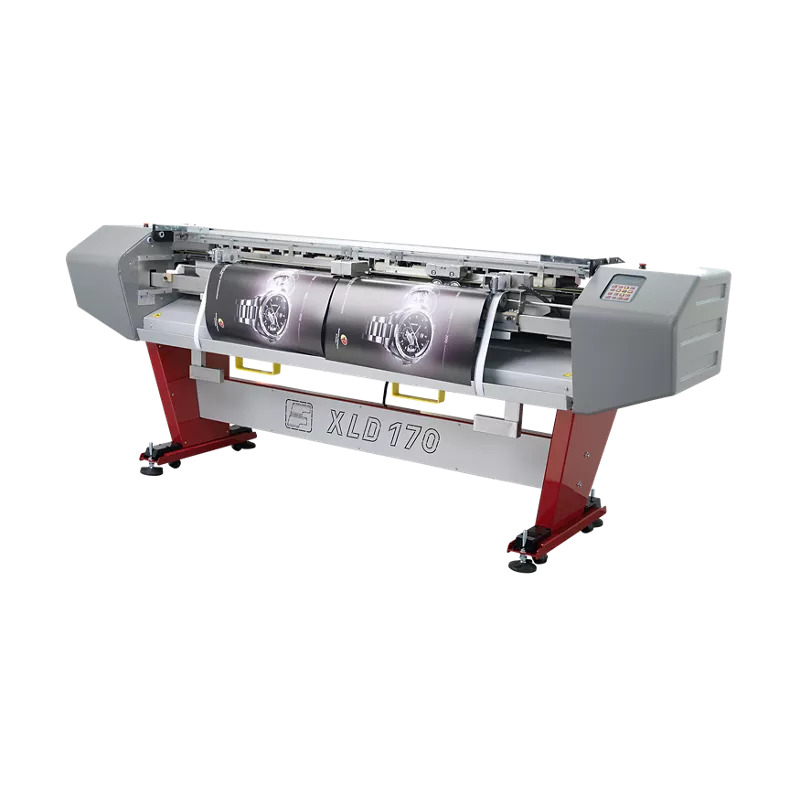

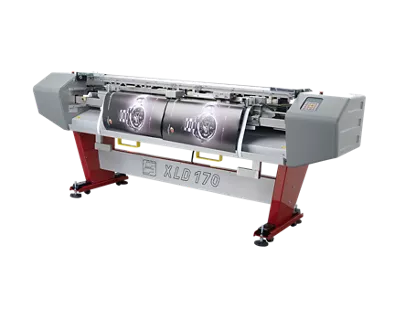

Fotoba Dreamcut XLD-170 Automatic X/Y Digital Cutter

As low as $0.10
Out Of Stock
  • Automatic X/Y cutter for rolls and sheets up to 67” wide
  • Versatile large format cutter designed to cut flexible media up to 40 mil thick
  • Automatic realignment and compensation while cutting
  • Optical detection of cut marks placed by RIP software
  • High X/Y trimming accuracy of ±0.04” (±1 mm)

Technical Specifications

Main Unit Specs

Description
Versatile X/Y cutter with high cut accuracy.
Compensation
Self-squaring to the edge of the image (X)
Sensor
Automatic tracking and realignment to the image (Y)
Automatic
Automatic scanning of cut marks made with RIP software
Versatility
Adjustable cuts of media lengths and quantity
Substrates
Up to 40 mil thick
Memory
Memory channels to store different cut marks
Blades
Self-sharpening blade system
Accuracy
±1 mm (0.04")
Loading
Auto-grip for easy loading of media
Cutting
Horizontal, vertical, left and right single slitters included
Motor
Mechanism controlled by stepper motors

Cutter Options

Double slitters
Double slitters, 0.315" (8 mm) between slitters (fixed)
Adjustable slitters
Adjustable double slitters from 0.315" (8 mm) between slitters to maximum working width
Single slitters
Extra single slitter left and right
Stacking
Optional stacking tray available

General Cutter Specifications

Media width
67" maximum media width, 11" minimum media width
Media length
4" minimum media length
Size main engine
110" W x 36" D x 44" H
Unit weight
650 lbs.
Maximum linear speed
50" per minute
Electrical requirements
110V
Air requirements
60 psi
