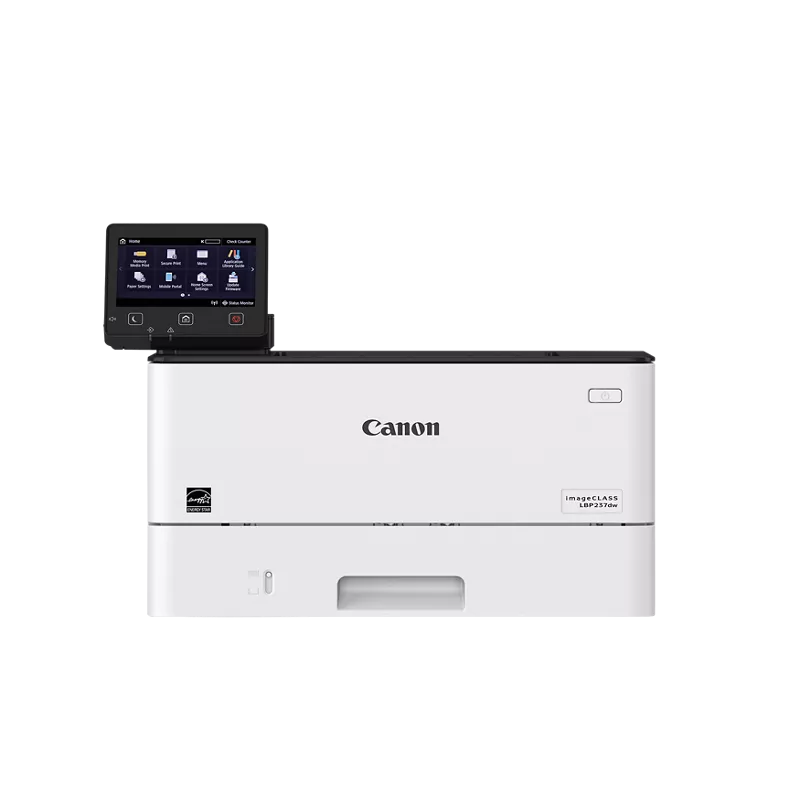

imageCLASS LBP237dw

SKU
LBP237DW
As low as $349.00
Out Of Stock
  • Print up to 40 ppm
  • Print up to 8-1/2" x 14"
  • 900-sheet maximum paper capacity
  • Standard one-year warranty
Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

Technical Specifications

imageCLASS LBP237dw Brochure

imageCLASS LBP237dw

MAIN UNIT

CORE FUNCTIONS

Standard: Print

ITEM CODE

5162C004

PROCESSOR

Canon Custom Processor

CONTROL PANEL

5" Color Touch Panel

MEMORY

1 GB

STANDARD INTERFACE CONNECTION

USB 2.0, High-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11b/g/n,Wi-Fi¿ Direct Connection

PAPER CAPACITY (LETTER, 20 LB. BOND)

Standard: 350 Sheets
Maximum: 900 Sheets

PAPER SOURCES (LETTER, 20 LB. BOND)

Standard: 250-sheet Paper Cassette, 100-sheet
Multipurpose Tray Optional: 550-sheet Paper Cassette (Cassette Unit-AH1)

PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)

Standard: 65 Sheets

SUPPORTED MEDIA TYPES

Cassettes: Thin, Plain, Recycled, Thick, Bond
Multipurpose Tray: Thin, Plain, Recycled, Thick, Bond, Label, Envelope (10 Envelopes)

SUPPORTED MEDIA SIZES

Cassettes: Letter, Legal, Statement, Executive Custom (Min. 4.1" x 5.8" to Max. 8.5" x 14")
Multipurpose Tray: Letter, Legal, Statement, Executive
Envelope: COM10, Monarch, C5, DL Custom (Min. 3" x 5" to Max. 8.5" x 14")

SUPPORTED MEDIA WEIGHTS

Cassettes: 16 lb. Bond to 32 lb. Bond (60 to 120 g/m2)
Multipurpose Tray: 16 lb. Bond to 43 lb. Bond (60 to 163 g/m2)

WARM-UP TIME

From Power On: 14 Seconds or Less
From Sleep Mode: 4 Seconds or Less

DIMENSIONS (W x D x H)

Standard (Desktop): 17.2" x 14.7" x 12.3" (438 mm x 373 mm x 312 mm)

INSTALLATION SPACE (W x D x H)

Standard (Desktop): 17.3" x 34.4" x 12.3" (438 mm x 874 mm x 312 mm)
Fully Configured: 17.3" x 34.4" x 17.4" (438 mm x 874 mm x 443 mm)

WEIGHT

Machine Only: Approx. 20.3 lb. (9.2 kg)
Boxed Weight: Approx. 28.7 lb. (13.0 kg)

OPERATING SYSTEMS

UFR II/PCL/PS: Windows¿ 10/8.1, Windows Server 2019/2016/2012 R2/2012/Mac OS X (10.11 or later)

PRINT SPECIFICATIONS

PRINTING METHOD

Laser Beam Printing

PRINT SPEED4

Up to 40 ppm (Letter); Up to 32 ppm (Legal)

FIRST PRINT OUT TIME

Approx. 5.4 Seconds

RECOMMENDED MONTHLY PAGE VOLUME

750 - 4,000 Pages

PRINT RESOLUTION (dpi)

600 x 600

STANDARD PAGE DESCRIPTION LANGUAGES

UFR II, PCL®6, PCL®5

DOUBLE-SIDED PRINTING

Automatic (Standard)

DIRECT PRINT

Available from USB Memory (JPEG, TIFF, PDF)

PRINTING FROM MOBILE AND CLOUD-BASED SERVICES

Apple® AirPrint,® Canon PRINT Business, Mopria™ Print Service1
Print documents to or from DropBox, Google Drive, or OneDrive5

FONTS

PCL: 93 Fonts

PRINT FEATURES

Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes, Orientations, Toner Reduction, Poster Printing, Print Date, Collating, Grouping, Page Border6, Booklet Printing6

SECURITY SPECIFICATIONS

AUTHENTICATION

Standard: Department ID Authentication

DATA

Standard: Verify System at Startup

NETWORK

Standard: IP/MAC Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6

DOCUMENT

Standard: Secure Print

WI-FI AUTHENTICATION METHODS

Wi-Fi Infrastructure Mode:
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
Wi-Fi Access Point: WPA2-PSK (AES)

ENVIRONMENTAL SPECIFICATIONS

OPERATING ENVIRONMENT

Temperature: 50 to 86º F Humidity: 20 to 80% RH (no condensation)

POWER REQUIREMENTS

AC 120-127 V:5.9 A, 60 Hz

POWER CONSUMPTION

Maximum: Approx. 1300 W
Standby: Approx. 8.5 W
Sleep Mode: Approx. 0.9 W
Typical Electricity Consumption (TEC) Rating: 0.33 kWh

STANDARDS

ENERGY STAR® Qualified, Currently Rated EPEAT Silver2

CONSUMABLES
TONER

Cartridge 057 Black, Standard - Yields up to 3,100 Pages
Cartridge 057 Black, High Capacity - Yields up to 10,000 Pages
