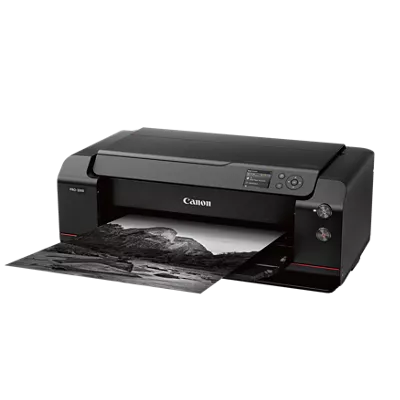

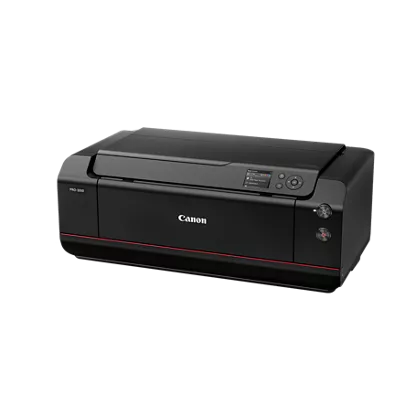

imagePROGRAF PRO-1000

SKU
0608C002

Discontinued

Sorry, this item is no longer available

The imagePROGRAF PRO-1000 is no longer available, but you can find similar products below.

Wide Format Professional Inkjet Photo Printer

In the box

Similar models to the imagePROGRAF PRO-1000

Overview

Professional photographers openly share what they need, want, and even don't want in a printer. Like stunning black and white prints with deep blacks and detailed gradations. A wide color gamut that accurately reproduces even the most difficult colors. And at Canon, we listen. Introducing the Canon imagePROGRAF PRO-1000. A 17" wide format professional printer with an 11-Color plus Chroma Optimizer ink system that does it all. Arguably one of the best printers we’ve ever engineered. Distinguished by a bold red line.

Features

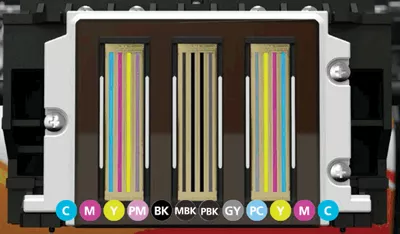

ANTI-CLOGGING TECHNOLOGY

The FINE print head institutes a tubular ink delivery system. This generates faster print speeds and reduces the possibility of clogging. Additionally, ink ejection conditions are precisely checked with sensors, and if a clog is detected, another nozzle automatically provides backup. In addition to preventing wasted prints due to clogging, this also reduces the frequency of which nozzle cleaning is required.

  • SMARTER NOZZLES - Engineered with 18,432 nozzles and sensors that continuously monitor status and deliver optimum results.

imagePROGRAF

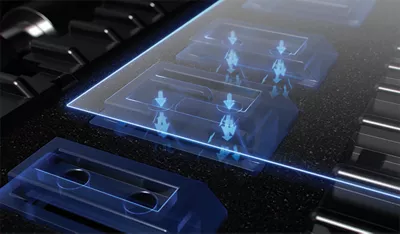

AIR FEEDING SYSTEM

The Canon Air Feeding System prevents each page from skewing for accurate ink placement, regardless of paper type. A series of openings located on top of the platen vacuum-grip the paper as it feeds through the printer. The Air Feeding system creates a printing environment that keeps a consistent height between the print head and the media being used. Variances in height can occur due to paper curl or variations in temperature and humidity. A consistent level surface leads to remarkable ink droplet accuracy and improved image quality.

  • AIR FEEDING SYSTEM - A series of openings located on top of the platen vacuum-grip the paper as it feeds through the printer.
  • SKEW CORRECTION - Skew Correction function guarantees that all types of paper, including thick fine art type papers, can be fed without the need for reprints.

Air Feeding System Example

LUCIA PRO INK SYSTEM

The LUCIA PRO 11-color plus Chroma Optimizer ink system satisfies the demands of the most critical photographer or graphic artist. Denser droplet placement provides a broader color gamut and improved gloss uniformity for superb glossiness and anti-bronzing. Incredibly accurate color reproduction, outstanding image clarity, and enhanced detail in darker areas distinguish each print. On fine art papers, higher black density renders even the finest shadow detail, for a print that becomes a work of art.

  • 11-INK SYSTEM PLUS CHROMA OPTIMIZER - Utilizing new pigment ink with modified compositions and new colors, LUCIA PRO INKS have enabled a broader color gamut and greater shadow detail reproduction in dark areas.
  • Increased density of ink on the paper improves color gamut.
  • Even light reflection contributes to improved glossiness and image clarity.
  • Contributes to anti-bronzing on glossy paper.

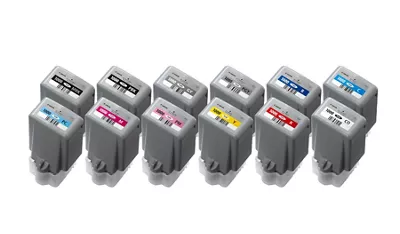

  • LUCIA PRO INKS

LUCIA 11-Color Ink Cartridges

BLACK DENSITY AND DARK SHADOW AREAS

Deep blacks, which make the image crisp, and precise gradation can be attained across all media types. On glossy media, light reflection off of a printed image is stabilized by the Chroma Optimizer and the newly formulated Photo Black ink. Overall, your images will enjoy an enhanced dynamic range.

  • CORE TECHNOLOGIES - The print head, ink and image processing engine mounted on the imagePROGRAF PRO-1000 provide high levels of image quality and productivity.

Example of Light Reflection on Printed Image

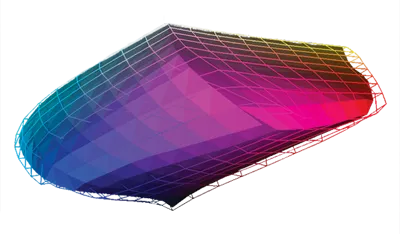

WIDE COLOR GAMUT

A new ink system adopts 11-color inks and Chroma Optimizer ink. This system helps you achieve an improvement in color-reproduction, image clarity, and enhanced darker areas. It faithfully reproduces colors and dark areas crucial for printing works of art. The newly formulated blue and magenta inks will help recreate the finest details when printing nightscapes and sunsets.

Color Gamut

NO SWITCHING OF BLACK INKS

On other printers, switching from Matte Black to Photo Black consumes a significant amount of ink and time. The imagePROGRAF PRO-1000 is designed to work seamlessly when changing media types. Matte Black and Photo Black inks have their own dedicated nozzles, so no switching is necessary. You can print on fine art paper then glossy paper with no worries, no changes, and no waste.

Black Ink Cartridges

FAST PHOTO PRINTING

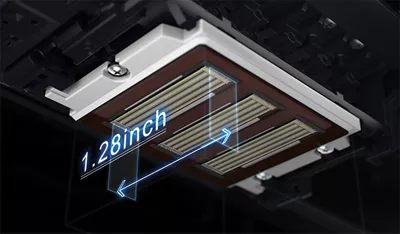

At the heart of the imagePROGRAF PRO-1000 is a 1.28" wide print head. Expanding the printing area by 50% with each movement of the print head, print speeds are drastically improved. This increases your productivity through efficient high-speed printing.

  • L-COA PRO - This high-precision control engine performs the high-speed processing of massive volumes of image data, generates the printing data, and controls the optimal ink layout for the purpose of achieving high resolution prints. It represents the brain of the imagePROGRAF PRO-1000.

Bottom of Ink Cartridge

PRINT STUDIO PRO V 2.0 PLUG-IN

This powerful plug-in software provides professional photographers with intuitive printing solutions. New functions added provide enhancements to your printing workflow.

  • CONTRAST - By using this function in combination with the Digital Lens Optimizer included in Digital Photo Professional, you can print sharp, high-definition images without losing any of the qualities present when the image was photographed.
  • SOFT PROOFING - Allows for visual proofing of the final print, taking into account for color reproduction for a specific paper type.
  • IMPROVED UI - Enjoy intuitive operation and settings such as Favorites, History, and several Color Adjustment Functions.
  • SEAMLESS INTEGRATION - Seamlessly works with leading image editing software programs.
  • 16-BIT WORKFLOW - Allows for 16-bit processing of images to dramatically improve your final output.

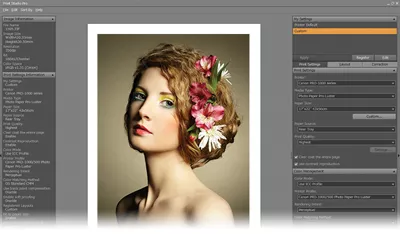

Photo in Editing Software

PRINTER MANAGEMENT SOLUTIONS

Every detail in your print must be perfect, why not have the same obsession for your workflow? The imagePROGRAF PRO-1000 is precisely managed with these powerful management tools.

  • QUICK UTILITY TOOL BOX - Provides quick access to all the Printer Management Tools.
  • MEDIA CONFIGURATION TOOL - Enables complete customization of the media menu in both the driver and the printer by re-arranging paper types, hiding unused media, and even creating a custom set of printer parameters for your preferred media. Adjustments such as print head height and vacuum strength can be manually entered and saved.
  • ACCOUNTING MANAGER - Account for every sheet of paper and the amount of ink that was used. Accounting Manager allows you to accurately assign and track the costs of every single job.
  • DEVICE MANAGEMENT CONSOLE - The Device Management Console allows you to manage multiple printers, all in one convenient place. Monitor, control and calibrate imagePROGRAF PRO-1000 printers regardless of location to ensure the consistency that you demand from your printers.
  • COLOR CALIBRATION TOOL - The Color Calibration Tool enables you to ensure the quality of each and every one of your prints, regardless of which imagePROGRAF PRO-1000 in your studio you are printing on.

Icons of Different Features

Technical Specifications

Main Unit Specs

Printer Type
Wireless Professional Inkjet Printer
Printing Method
FINE: Full-Photolithography Inkjet Nozzle Engineering
Features
AirPrint4
Mopria® Print Service*
Borderless Printing
Canon PRINT app5
Grayscale Photo Printing
Photo Printing
Wireless PictBridge6
Wireless Printing7
Pro Gallery Print8
PIXMA Cloud Link9
Print Speed (up to)
17" x 22" Bordered Photo (Color):
Approx. 4 minutes 10 seconds3
13" x 19" Bordered Photo (Color):
Approx. 2 minute 30 seconds3
Number of Nozzles
1,536 Nozzles x 12 Inks, Total: 18,432
Nozzle Pitch
600 dpi x 2
Print Resolution (Up to)
Color: Up to 2400 x 1200 dpi4
Black: Up to 2400 x 1200 dpi4
Up to 2400 x 1200 dpi
OS Compatibility
Computer Operating Systems:
Mac:16 Mac OS X v10.7.5 - 10.10.x
Windows:17 Windows® 10, Windows® 8, Windows 8.1, Windows 7, Windows 7 SP1, Windows Vista® SP1, Vista SP2, Windows Server 2012,2012 R2, 2008,2008 R2
Mobile Operating Systems: iOS®, Android
Standard Interfaces
Hi-Speed USB 2.0
Ethernet (10/100Base -T/TX)
PictBridge (Wireless LAN)6
Wireless LAN (IEEE 802.11b/g/n)7
Ink Droplet Size
Type: Pigment Based LUCIA PRO Ink Technology
Ink Capacity
80ml
Paper Sizes
17" x 22", 14" x 17", 13" x 19", 11" x 14", 10" x 12", 8.5" x 11", 8" x 10", 5" x 7", 4" x 6"
Maximum Print Length
25.5 Inches"
Media Thickness
Rear Tray: Maximum 0.3 mm
Manual Feed Slot: 0.1 mm - 0.7 mm
Paper Feed Method
Rear Tray and Manual Feed Slot
Genuine Canon Media Compatibility
Plain: Plain Paper
Super High Gloss: Photo Paper Pro Platinum
Glossy: Photo Paper Plus Glossy II, Photo Paper Glossy
Semi-Gloss: Photo Paper Plus Semi-Gloss, Photo Paper Pro Luster
Matte: Matte Photo Paper, Photo Paper Pro Premium Matte
Fine Art: Premium Fine Art Smooth, Premium Fine Art Rough
Other (non-Canon): Hagaki papers, Baryta Photo Paper, Lightweight Photo Paper, Heavyweight Photo Paper, Extra Heavyweight Photo Paper, Heavyweight Fine Art Paper, Washi, Canvas, High Density Fine Art Paper, Recycled paper and chlorine-free paper can be used
Languages
Printer Languages:Printer Language: Swift Graphic Raster
Job Control Language: IVEC
Status Reply: IVEC
Noise Level Approx
41.0 dB(A)12
Physical Dimensions
28.5" (W) x 17.1" (D) x 11.2" (H)
Weight
71.2 lbs.
Power Consumption
Maximum: 37 W13
Standby: 2.5 W
Power Off: 0.4 W
Operating Environment
Temperature: 59 - 86 F° (15 - 30 C°)
Relative Humidity: 10 - 80% (No Condensation)
Warranty
1-Year limited warranty with InstantExchange Program. 1-Year toll-free U.S.-based technical phone support.19
Software Included
Setup Software & Users Guide CD-ROM
imagePROGRAF PRO-1000 Printer Driver
Print Studio Pro v 2.018
Management Tools:
    Quick Utility Toolbox
    Media Configuration Tool
    Accounting Manager
    Device Management Console
        Color Calibration Tool
General Features
12 Individual Ink Tanks, Advanced Pattern Print, Index Print, Fine Art Paper Support, L-COA PRO Image Processing Engine, Non-Firing and Compensation Function, Real Time Control of Ink Ejection, Air Feeding System, Color Density Sensor, Calibration Link, Contrast Reproduction
Certifications
Rated EPEAT Silver
Energy Star Certified
RoHS Directive Certification
Printer Memory
1 GB (Standard)
Display
3.0" LCD
Head Configuration
12 Ink Integrated Type (4 Ink Chips x 3)
Storage Environment
Temperature: 32 - 104 F° (0 - 40 C°)
Relative Humidity: 5 - 95% (No Condensation)
