Add to Cart

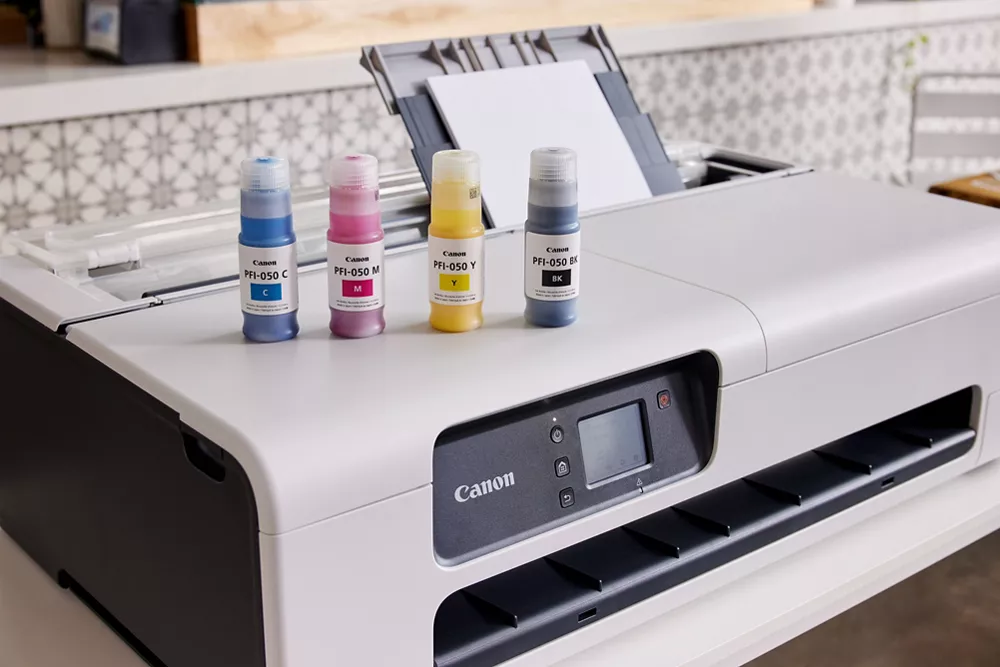

imagePROGRAF TC-20

SKU
5815C002
As low as $795.00
In Stock
  • 24" desktop roll & cut sheet printer
  • 4-Color pigment bottle ink system
  • Ships standard with 280ml of ink
  • Automatic sheet feeder
  • EPEAT Gold Certified

New

Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

Add to Wish List

Technical Specifications

Main Unit Specs

Printer Type
4-Color 24-inch Printer
Number of Nozzles
Total: 4,352
MBK: 1,280 nozzles
C, M, Y, BK: 1,024 nozzles each
Nozzle Pitch
1200 dpi
Print Resolution (Up to)
2400×1200dpi (Max)
OS Compatibility
32-bit: Windows® 7, 8.1, 10
64-bit: Windows® 7, 8.1, 10/11, Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Mac: macOS X v10.14.6-v12.x
Standard Interfaces
USB 2.0 High-Speed
10/100 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)
Ink Capacity
70 ml per color
Ink Types
Pigment Ink
Color Set
Pigment: Black, Cyan, Magenta, Yellow
Buffer Ram
1 GB (Physical)
Media Width
Cut Sheet - 8.3”- 12” / Roll Feed - 12” - 24”
Media Thickness
0.08-0.28mm
Maximum Media Roll Diameter
4.3” (110mm)
Paper Feed Method
Roll Feed: One Roll, Top-loading, Front Output
Cut Sheet: Automatic Sheet Feeder, Top Loading, Front Output
Languages
SGRaster
Noise Level Approx
Operation: 42.5 dB (A)
Standby: 35 dB (A) or less
Acoustic Power: 6 Bels
Physical Dimensions
ASF Opened: 16" x 38" x 22" (H x W x D)
ASF Closed: 10" x 38" x 22" (H x W x D)
Weight
approx. 71 lbs (no ink bottles, print head included)
Power Source
AC 100-240V (50-60Hz)
Power Consumption
Maximum: 28W or less
Standby 1.8W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items
Print Head (PF-08)
Maintenance Cartridge (MC-32)
Ink Tanks (PFI-050)

Reviews

How is your Canon product performing for you?

Product Disclaimer

This printer is designed to be used with Canon ink cartridges; not third party ink.
