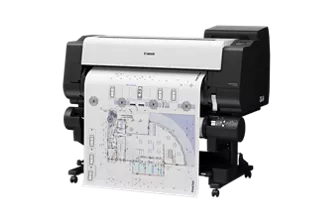

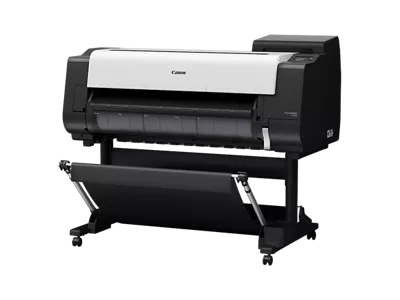

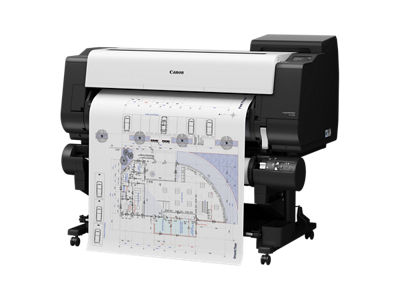

imagePROGRAF TX-3200

As low as $0.00

In Stock

36" Printer
Up to 3.3 D-size pages per min*
LUCIA TD 5-Color Pigment Ink System
Optional Multifunction Roll Unit
EPEAT Gold and Energy STAR registered

* 3.3 ANSI D prints/minute speed measured after first print in Fast Q5 mode, using plain paper. Print speed is based on internal testing. Print speed may vary depending on the number of copies selected, as well as on the settings for size, type, and orientation of paper.

Terms
The following are the terms and conditions ("Terms") for the Canon U.S.A., Inc. Auto Replenishment System (the "Service"). These Terms are between you and Canon U.S.A., Inc. ("Canon USA," "we" or "us") and govern your and our respective rights and obligations relating to the Service. Please note that your use of the Service is also governed by Canon Direct’s Terms of Use and our Privacy Statement, each of which (as changed over time) are incorporated into these Terms, and all of which govern our respective rights and obligations concerning the Service. By placing an order through, or otherwise using, the Service, you accept, and agree to be bound by, these terms, conditions, limitations and requirements. Please read these Terms carefully.

Service
We reserve the right to change the Service benefits, including discount amounts and eligibility used to determine discount amounts, at any time in our sole discretion. All such changes will apply to future orders.

When you are enrolled, the Service will automatically create a new order for Eligible Products according to the shipment schedule applicable to the frequency of the Service you have selected, until you cancel.

We may, in our sole discretion, terminate your enrollment at any time without notice. If we do so, you will only be charged for orders that have been shipped to you.

Eligible Products
The eligible products that may be ordered through the Service (the identity of which are subject to change) are set forth on the product detail page on the Canon Direct website (shop.usa.canon.com) with the option to select the Service displayed (each, an "Eligible Product"). Your participation in the Service is personal to you, and you may not assign or transfer your enrollment, or any of the benefits of the Service, to any third party without our authorization. The Service is only available to customers with shipping addresses in the 50 United States and the District of Columbia.

Offers, Orders and Returns
Discounts and any limited time promotions associated with the Service apply only to Eligible Products displaying the offer message on the product detail page on the Canon Direct website (shop.usa.canon.com). Discounts and any amounts from limited time promotions that apply to your order, if any, and which are still in effect, will be automatically deducted from your order.

Some offer details may change as you receive deliveries over time (for example, price, taxes, availability, and shipping charges). If an Eligible Product is unavailable when we plan to ship it, we will notify you that we are unable to process your order, and we will wait to process your order until the next scheduled shipping date when the Eligible Product is available. When the Eligible Product becomes available, the price will be the price when you ordered it, regardless of when it becomes available.

Returns of Eligible Products under the Service are subject to our return policy. Service enrollments are void where prohibited.

Enrollment
As part of your enrollment in the Service, you will be required to register with us so that your printer can be identified as participating in the Service. Instructions for registering your printer are contained in the introductory email sent to you after you apply for enrollment in the Service, as well as in the "My Account" section of the Canon Direct website (shop.usa.canon.com). You will be required to accept terms and conditions provided by our parent company, Canon Inc., as part of registering your printer. Canon Inc. will notify us when an ink or toner cartridge reaches a certain low ink/toner threshold, and we will fill an order for the ink or toner and ship it to you under these Terms. Information provided to us and Canon Inc. may be stored on servers outside of the United States and will be subject to our Privacy Statement. It's possible that your order for Eligible Products will not arrive prior to running out of ink or toner where your use was more than usual, particularly if such greater use occurred over 1 or 2 days.

Payment and Cancellation
The total cost charged to your payment method for each order under the Service will be the cost of the Eligible Product on the day that order is processed, less any discount offered as a percentage or dollars off at the time you registered, plus any applicable sales tax. We reserve the right to modify or cancel any discount offered at the time you registered for the Service, with notice to you, and future orders fulfilled under the Service will reflect any such change.

For each Eligible Product shipped under the Service, you authorize us to charge the payment method used when you enrolled unless otherwise directed by you. If we are unable to complete your order with the payment method you used when you enrolled, we will not fulfill the order and will notify you that your payment method needs to be updated.

Your enrollment in the Service will remain in effect until it is canceled. You can cancel or modify your enrollment at any time via the "My Account" section of the Canon Direct website (shop.usa.canon.com). If you cancel or modify your enrollment after an order has been processed, you will be charged for the order as processed. If the discount for such Eligible Product changes, the new discount will be applied to your future shipments of that Eligible Product. If, after enrollment, you are no longer in possession of your printer for any reason (e.g., due to warranty return, replacement, or exchange), the total cost for the Service will continue to be charged to your payment method until you cancel your enrollment. No refunds will be granted because of your failure to cancel your enrollment in such situation.

Your rights under these Terms will automatically terminate without notice if you fail to comply with any of its terms and conditions. In the event of such termination, we may immediately revoke your access to the Service. Our failure to insist upon or enforce your strict compliance with these Terms and will not constitute a waiver of any of our rights.

Changes to Terms
We may, in our sole discretion, change these Terms without notice to you. If any change to these Terms is found invalid, void, or for any reason unenforceable, that change is severable and does not affect the validity and enforceability of any remaining changes or conditions. YOUR CONTINUED PARTICIPATION AFTER WE CHANGE THESE TERMS CONSTITUTES YOUR ACCEPTANCE OF THE CHANGES. IF YOU DO NOT AGREE TO ANY CHANGES, YOU MUST CANCEL YOUR ENROLLMENT.

Disclaimer of Warranties and Limitation of Liability
WE DISCLAIM ALL WARRANTIES, EXPRESS OR IMPLIED, CONCERNING THE SERVICE INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT. WITHOUT LIMITING THE PRECEDING SENTENCE, UNLESS OTHERWISE REQUIRED BY APPLICABLE LAW, IN NO EVENT WILL OUR, OR OUR LICENSORS’, AGGREGATE LIABILITY UNDER THESE TERMS WITH RESPECT TO ANY CLAIM EXCEED ONE HUNDRED DOLLARS ($100.00).

Everything Large Format at your fingertips. Download the App today.

In the box

Features Overview Specs Specifications Compatibility Reviews Resources Support Software

Overview

WHERE PRECISION MEETS PRODUCTIVITY

With the capability to print both monochrome line drawings and eye-catching full-color posters, the imagePROGRAF 36” TX-3200 Large Format Printer is designed with production and versatility in mind within the aqueous inkjet market.

PRECISION
PERFORMANCE

LUCIA TD Ink System

The magenta ink in the imagePROGRAF TX-3200 is designed to deliver outstanding red color reproduction suitable for a wide range of markets and applications. The use of pigment ink for all colors helps to ensure prints are resistant to fading.

Improved Line Clarity

Image processing improvements and LUCIA TD ink help to enhance CAD drawings, blueprints, AEC documentation, and poster reproductions with a large color gamut and improved text and line quality. This makes output more crisp, defined, and clear.

Color Calibration

Available in the imagePROGRAF TX-3200, the ability to calibrate your printer helps ensure your output is color consistent over time and across multiple TX-3200/4200 devices.

Ease of Use

The imagePROGRAF TX-3200 has been built with production and efficiency in mind with a compact design, semi-translucent ink tank and media covers, an intuitive user interface screen, end-user installable printheads, maintenance cartridges, hot-swap ink tanks, and more!

PosterArtist

Easily create posters and flyers from a free, web-based, template-driven poster creation application.

Start Creating Now

Large Format Media

Canon inks and media deliver exceptional beauty and longevity to your prints. We offer a wide range of media types including matte, canvas, glossy and adhesive backings.

LEARN MORE

EPEAT® Gold Registered Product

This product is EPEAT® Gold registered in the U.S.A. EPEAT is the world’s premier ecolabel for electronics. EPEAT is owned and operated by the Global Electronics Council® (GEC), a mission-driven non-profit that seeks to create a world with only sustainable electronics. Manufacturers can register products under EPEAT based upon the device’s ability to meet required and optional EPEAT criteria that address impacts across the full product life cycle.

LEARN MORE

Technical Specifications

Main Unit Specs

Printer Type

5-Color 36-inch Printer

Technology

FINE (Photolithography Inkjet Nozzle Engineering)

Print Resolution (Max.)

2400 x 1200 dpi

Line Accuracy(1)

±0.1% or Less

Minimum Line Weight(2)

0.02 mm

Number of Nozzles

Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each

Ink Type

Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)

Ink Tank

Shipped with Printer:
M: PFI-111(160ml)
BK/C/Y: PFI-110(160ml)
MBK: PFI-310(330ml)
Replacement:
M: PFI-111(160ml)/PFI-311(330ml)/PFI-711(700ml)　
MBK/BK/C/Y: PFI-110(160ml)/PFI-310(330ml)/PFI-710(700ml)

Nozzle Recovery System

Non-firing Nozzle Detection and Compensation

Ink Supply Method

Tubing System with Sub Tanks for Continuous Ink Supply

Printer Controller

L-COA PRO

Nozzle Pitch (Head Resolution)

1200 dpi x Two Rows

Ink Droplet Size

5 picoliter

Printer RAM

128 GB (Virtual) 2 GB (Physical)

Hard Drive

500 GB

Media Width

Cut Sheet: 6"- 36" (152 mm - 917 mm)
Roll Feed: 6" - 36" (152 mm - 917 mm)

Printable Margins

Roll Feed: All Sides: 0.12" (3 mm) or 0" for Borderless

Maximum Print Length (Single Page)(3)

Roll Feed: 59' (18 m)Cut Sheet: 63" (1.6 m)

Borderless Printing Widths (Roll Media Only)

Custom roll width 6” - 36” with Micro Margin Technology

Media Cutter

Automatic horizontal rotary cutter

Media Thickness

0.07 - 0.8 mm

Media Core Sizes

2” with 3” Core Adapters Included

Maximum Roll Outer Diameter

6.7" (170 mm)

Media Output Options

TX Stacker or Multipositional Catch Basket

Media Method

Roll Feed: One Roll, Front-loading, Front Output
Front Loading Manual Feed: One Roll, Front Output

Printing Software Utilities

Accounting Manager, Canon Print Service, Canon Production Printing (CPP) Driver Select, Canon Production Printing (CPP) PRISMA Tech Suite, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist, Optimized Driver for AutoCAD, Quick Utility Toolbox

Operating System

Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit),
Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019,
2022 (64-bit), MacOS v10.15.7- MacOS 14

Print Languages

SGRaster, HP-GL/2, HP RTL, PDF, JPEG

Interface

USB B Port
Type: Built-in (Hi-speed USB)
Mode: Full Speed (12-Mbit/sec.), High Speed (480-Mbit/sec.), Bulk Transfer Connector Type: Series B (4 Pins)

USB A Port: Direct USB Thumb Drive Printing

Gigabit Ethernet
Type: Built-in
Standard: IEEE 802.3u 100Base-TX/Auto-Negotiation, IEEE 802.3ab 1000Base-T/Auto-Negotiation, IEEE 802.3x Full Duplex
Protocol: SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP

Wireless LAN
Standard: IEEE802.11n/IEEE802.11g/IEEE802.11b⁴
Security: WEP (64/128-bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)

Acoustic Noise

Operation: 51 dB (A) or Less
Standby: 35 dB (A) or Less
Acoustic Power: Approx 6.9Bels

Power Supply

AC 100 - 240 V (50 - 60 Hz)

Power Consumption

Maximum: Approx. 115 W
Standby: Approx. 2.0 W
Power Off: Approx. 0.3 W

Certifications

Electrical Safety Regulations
C TUVus (U.S.A.), C TUVus (Canada)
Electromagnetic Interface Regulations
FCC Part 15B (U.S.A.), IC (Canada)
Radio Regulations
FCC Part 15C (U.S.A.), IC (Canada)
Environmental Certifications
ENERGY STAR® (Worldwide) & EPEAT Gold

Operational Environment

Temperature: 59° F - 86° F (15° C - 30° C)
Relative Humidity: 10 - 80% (No Condensation)

Printer Dimensions (W x D x H) and Weight

With Basket Open
54.7" x 38.7" x 46"; 231.5 lb (Approx)
With Basket Closed
54.7" x 30.2" x 46"; 231.5 lb (Approx)
With Stacker Opened
54.7" x 46.8" x 46"; 258 lb (Approx)
With Stacker Closed
54.7" x 44.2" x 46"; 258 lb (Approx)

Package Dimensions (W x D x H) and Weight

Printer (Main Unit with Stand and Pallet)
64" x 35.6" x 40.7"; 337 lb (Approx.)
Basket
56" x 21.9" x 8.4"; 20 lb (Approx.)
Stacker
49.2" x 35.7" x 11.5"; 60 lb (Approx.)
Roll Unit
60" x 22.1" x 18.1"; 68.3 lb (Approx.)

Options

• Multifunction Roll System (RU-32)
• 2"/3" Roll Holder Set (RH2-34)
User-Replaceable Items
• Ink Tank (PFI-110/111, PFI-310/311, PFI-710/711)
• Print Head (PF-06)
• Maintenance Cartridge (MC-30)
• Cutter Blade (CT-07)

Disclaimers

Line accuracy repeatability is guaranteed after a user performs the necessary adjustment and under the same environmental conditions. Applies to media for line drawing (Plain Paper, Coated Paper, CAD Translucent Matte Film, and CAD Tracing Paper) only.
Theoretical value based on data resolution.
The maximum printable length varies depending on the application, OS, and RIP used.
Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.
