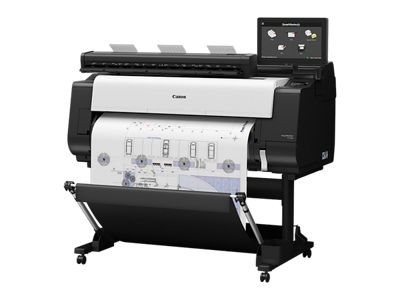

imagePROGRAF TX-3200 MFP Z36
- 36" Printer with 36" Scanner
- Up to 3.3 D-size pages per min*
- Scans up to 13” per second for monochrome prints
- Optional Multifunction Roll Unit
- EPEAT Gold and Energy Star registered
* 3.3 ANSI D prints/minute speed measured after first print in Fast Q5 mode, using plain paper. Print speed is based on internal testing. Print speed may vary depending on the number of copies selected, as well as on the settings for size, type, and orientation of paper.
In the box
Technical Specifications
Main Unit Specs
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
M: PFI-111(160ml)
BK/C/Y: PFI-110(160ml)
MBK: PFI-310(330ml)
Replacement:
M: PFI-111(160ml)/PFI-311(330ml)/PFI-711(700ml)
MBK/BK/C/Y: PFI-110(160ml)/PFI-310(330ml)/PFI-710(700ml)
Roll Feed: 6" - 36" (152 mm - 917 mm)
Cut Sheet: 63" (1.6 m)
Front Loading Manual Feed: One Roll, Front Output
Type: Built-in (Hi-speed USB)
Mode: Full Speed (12-Mbit/sec.), High Speed (480-Mbit/sec.), Bulk Transfer Connector Type: Series B (4 Pins)
USB A Port: Direct USB Thumb Drive Printing
Gigabit Ethernet
Type: Built-in
Standard: IEEE 802.3u 100Base-TX/Auto-Negotiation, IEEE 802.3ab 1000Base-T/Auto-Negotiation, IEEE 802.3x Full Duplex
Protocol: SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP
Wireless LAN
Standard: IEEE802.11n/IEEE802.11g/IEEE802.11b4
Security: WEP (64/128-bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
Standby: 35 dB (A) or Less
Acoustic Power: Approx 6.9Bels
Standby: Approx. 2.0 W
Power Off: Approx. 0.3 W
C TUVus (U.S.A.), C TUVus (Canada)
Electromagnetic Interface Regulations
FCC Part 15B (U.S.A.), IC (Canada)
Radio Regulations
FCC Part 15C (U.S.A.), IC (Canada)
Environmental Certifications
ENERGY STAR® (Worldwide) & EPEAT Gold
Relative Humidity: 10 - 80% (No Condensation)
54.7" x 38.7" x 46"; 231.5 lb (Approx)
With Basket Closed
54.7" x 30.2" x 46"; 231.5 lb (Approx)
With Stacker Opened
54.7" x 46.8" x 46"; 258 lb (Approx)
With Stacker Closed
54.7" x 44.2" x 46"; 258 lb (Approx)
64" x 35.6" x 40.7"; 337 lb (Approx.)
Basket
56" x 21.9" x 8.4"; 20 lb (Approx.)
Stacker
49.2" x 35.7" x 11.5"; 60 lb (Approx.)
Roll Unit
60" x 22.1" x 18.1"; 68.3 lb (Approx.)
• 2"/3" Roll Holder Set (RH2-34)
User-Replaceable Items
• Ink Tank (PFI-110/111, PFI-310/311, PFI-710/711)
• Print Head (PF-06)
• Maintenance Cartridge (MC-30)
• Cutter Blade (CT-07)
• 8-bit Grayscale and Monochrome @ 200 dpi: Up to 13” per second
(SingleSensor Assembly)
• 24-bit RGB
• 16-bit grayscale image capture
• Panchromatic monochrome and black and white
• Bi-directional extra long-life LED light system for
optimum object illumination and instant-on scanning
capability
• Idle: 12.4 W
• Scanning Color/Grayscale at 200 dpi: 22.7 W/23.3 W
• Controller: 35 W
50" x 17" x 19.5", 75 lb. (Approx.)
- Line accuracy repeatability is guaranteed after a user performs the necessary adjustment and under the same environmental conditions. Applies to media for line drawing (Plain Paper, Coated Paper, CAD Translucent Matte Film, and CAD Tracing Paper) only.
- Theoretical value based on data resolution.
- The maximum printable length varies depending on the application, OS, and RIP used.
- Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.
- The scan rate is proportional across the full range of resolutions supported by the scanner. Actual scan times will depend on the host system performance. Quoted top speeds may be limited by the effective bandwidth of the USB 2 and is not guaranteed for all media types.
- The quoted scan accuracy may vary depending on the operating environment and the thickness of the media.
Product Disclaimer
Recycled paper and chlorine-free paper can be used with this product.
The imagePROGRAF TX MFP Z36 system contains multiple components, some of which are manufactured by third parties. To the extent that such third-party offerings come with limited warranties, those such limited warranties are hereby passed to the purchaser, and Canon shall have no obligation.
All speed measured on Plain Paper in Fast Q5 mode.
- SingleSensor Technology Assembly means that multiple sensors are contained in one assembly device.
- Canon products offer certain security features, yet many variables can impact the security of your devices and data. Canon does not warrant that use of its features will prevent security issues. Nothing herein should be construed as legal or regulatory advice concerning applicable laws; customers must have their own qualified counsel determine the feasibility of a solution as it relates to regulatory and statutory compliance. Some security features may impact functionality/performance; you may want to test these settings in your environment.
- The 700ml ink tank is only available for service authorized partners.
- Plain Paper, Fast (Q5) mode.
- Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.
- For imagePROGRAF Printer Driver. For printing from PostScript applications such as Adobe Illustrator or QuarkXpress, please use a PostScript compatible RIP package.
