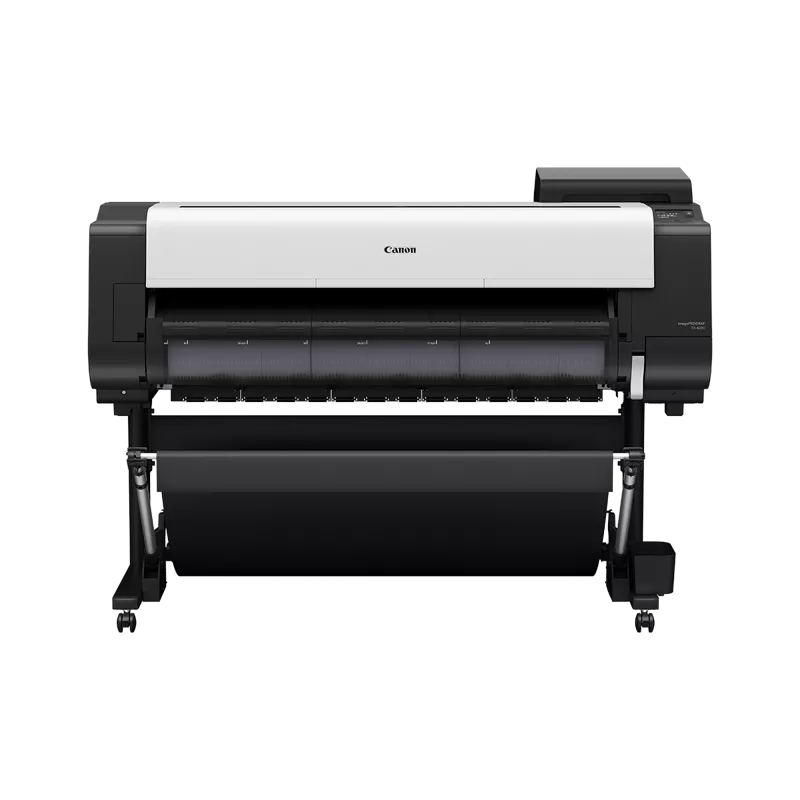

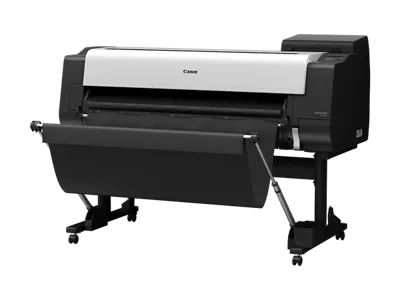

imagePROGRAF TX-4200

As low as $0.00
In Stock
  • 44" Printer
  • Up to 3.3 D-size pages per min*
  • LUCIA TD 5-Color Pigment Ink System
  • Optional Multifunction Roll Unit
  • EPEAT Gold and Energy Star registered

* 3.3 ANSI D prints/minute speed measured after first print in Fast Q5 mode, using plain paper. Print speed is based on internal testing. Print speed may vary depending on the number of copies selected, as well as on the settings for size, type, and orientation of paper.

In the box

Technical Specifications

Main Unit Specs

Printer Type
5-Color 44-inch Printer
Technology
FINE (Photolithography Inkjet Nozzle Engineering)
Print Resolution (Max.)
2400 x 1200 dpi
Line Accuracy(1)
±0.1% or Less
Minimum Line Weight(2)
0.02 mm
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Ink Type
Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)
Ink Tank
Shipped with Printer:
MBK/BK/C/Y/M: 330 ml
Replacement:
M: PFI-111(160ml)/PFI-311(330ml)/PFI-711(700ml)
MBK/BK/C/Y: PFI-110(160ml)/PFI-310(330ml)/PFI-710(700ml)
Nozzle Recovery System
Non-firing Nozzle Detection and Compensation
Ink Supply Method
Tubing System with Sub Tanks for Continuous Ink Supply
Printer Controller
L-COA PRO
Nozzle Pitch (Head Resolution)
1200 dpi x Two Rows
Ink Droplet Size
5 picoliter
Printer RAM
128 GB (Virtual) 2 GB (Physical)
Hard Drive
500 GB
Media Width
Cut Sheet: 6”-44” (152 mm - 1118 mm)
Roll Feed: 6”-44” (152 mm - 1118 mm)
Printable Margins
Roll Feed: All Sides: 0.12" (3 mm) or 0" for Borderless
Maximum Print Length (Single Page)(3)
Roll Feed: 59' (18 m)Cut Sheet: 63" (1.6 m)
Borderless Printing Widths (Roll Media Only)
Custom Roll Width 6” - 44” with Micro Margin Technology
Media Cutter
Automatic horizontal rotary cutter
Media Thickness
0.07 - 0.8 mm
Media Core Sizes
2” with 3” Core Adapters Included
Maximum Roll Outer Diameter
6.7" (170 mm)
Media Output Options
TX Stacker or Multipositional Catch Basket
Media Method
Roll Feed: One Roll, Front-loading, Front Output
Front Loading Manual Feed: One Roll, Front Output
Printing Software Utilities
Accounting Manager, Canon Print Service, Canon Production Printing (CPP) Driver Select, Canon Production Printing (CPP) PRISMA Tech Suite, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist, Optimized Driver for AutoCAD, Quick Utility Toolbox
Operating System
Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit),
Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019,
2022 (64-bit), MacOS v10.15.7- MacOS 14
Print Languages
SGRaster, HP-GL/2, HP RTL, PDF, JPEG
Interface
USB B Port
Type: Built-in (Hi-speed USB)
Mode: Full Speed (12-Mbit/sec.), High Speed (480-Mbit/sec.), Bulk Transfer Connector Type: Series B (4 Pins)

USB A Port: Direct USB Thumb Drive Printing

Gigabit Ethernet
Type: Built-in
Standard: IEEE 802.3u 100Base-TX/Auto-Negotiation, IEEE 802.3ab 1000Base-T/Auto-Negotiation, IEEE 802.3x Full Duplex
Protocol: SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP

Wireless LAN
Standard: IEEE802.11n/IEEE802.11g/IEEE802.11b4
Security: WEP (64/128-bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
Acoustic Noise
Operation: 51 dB (A) or Less
Standby: 35 dB (A) or Less
Acoustic Power: Approx 6.9Bels
Power Supply
AC 100 - 240 V (50 - 60 Hz)
Power Consumption
Maximum: Approx. 115 W
Standby:
Approx. 2.0 W
Power Off:
Approx. 0.3 W
Certifications
Electrical Safety Regulations
C TUVus (U.S.A.), C TUVus (Canada)
Electromagnetic Interface Regulations
FCC Part 15B (U.S.A.), IC (Canada)
Radio Regulations
FCC Part 15C (U.S.A.), IC (Canada)
Environmental Certifications
ENERGY STAR® (Worldwide) & EPEAT Gold
Operational Environment
Temperature: 59° F - 86° F (15° C - 30° C)
Relative Humidity: 10 - 80% (No Condensation)
Printer Dimensions (W x D x H) and Weight
With Basket Open: 54.7” x 38.7” x 46”; 231.5 lb. (Approx.)
With Basket Closed:
54.7” x 30.2” x 46”; 231.5 lb. (Approx.)
With Stacker Opened: 54.7” x 46.8” x 46”; 258 lb. (Approx.)
With Stacker Closed:
54.7” x 44.2” x 46”; 258 lb. (Approx.)
Package Dimensions (W x D x H) and Weight
Printer (Main Unit with Stand and Pallet): 64” x 35.6” x 40.7”; 337 lb. (Approx.)
Basket:
56” x 21.9” x 8.4”; 20 lb. (Approx.)
Stacker:
49.2” x 35.7” x 11.5”; 60 lb. (Approx.)
Roll Unit:
60” x 22.1” x 18.1”; 68.3 lb. (Approx.)
Options
• Multifunction Roll System (RU-42)
• 2"/3" Roll Holder Set (RH2-46)
User-Replaceable Items
• Ink Tank (PFI-110/111, PFI-310/311, PFI-710/711)
• Print Head (PF-06)
• Maintenance Cartridge (MC-30)
• Cutter Blade (CT-07)
Disclaimers
  1. Line accuracy repeatability is guaranteed after a user performs the necessary adjustment and under the same environmental conditions. Applies to media for line drawing (Plain Paper, Coated Paper, CAD Translucent Matte Film, and CAD Tracing Paper) only.
  2. Theoretical value based on data resolution.
  3. The maximum printable length varies depending on the application, OS, and RIP used.
  4. Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.

Product Disclaimer

Recycled paper and chlorine-free paper can be used with this product.

  1. The 700ml ink tank is only available for service authorized dealers.
  2. Plain Paper, Fast (Q5) mode.
  3. Canon products offer certain security features, yet many variables can impact the security of your devices and data. Canon does not warrant that use of its features will prevent security issues. Nothing herein should be construed as legal or regulatory advice concerning applicable laws; customers must have their own qualified counsel determine the feasibility of a solution as it relates to regulatory and statutory compliance. Some security features may impact functionality/performance; you may want to test these settings in your environment.
  4. Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.
  5. For imagePROGRAF Printer Driver. For printing from PostScript applications such as Adobe Illustrator or QuarkXpress, please use a PostScript compatible RIP package. For a list of Canon recommended RIP packages, please consult with Canon Alliance and Industry Market list of RIP vendors.
