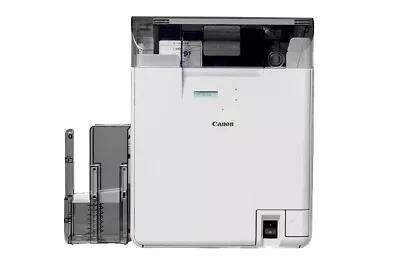

IX-R7000 ID Card & Badge Printer
SKU
IX-R7000
As low as
$5,499.00
Out Of Stock
- Thermal retransfer sublimation
- Edge to edge printing
- Supports CR80 size plastic cards
- Prints up to 145 cards (single), 72 cards (double) per hour
- Print resolution up to 600 dpi
- Encoder or laminator option available
* GSA model available
Need to order more than 10?
Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155>
Return Policy
Technical Specifications
Main Unit Spec
Printer
Printing Method
Dye-Sublimation / Retransfer
Print Speed (up to)
Single Sided: 1
Approx. 25 Seconds/Card (YMCK)
Max. Print Speed 145 Cards Per Hour (YMCK)
Dual Sided: 1
Approx. 50 Seconds/Card (YMCKK)
Max. Print Speed 72 Cards Per Hour (YMCKK)
Approx. 25 Seconds/Card (YMCK)
Max. Print Speed 145 Cards Per Hour (YMCK)
Dual Sided: 1
Approx. 50 Seconds/Card (YMCKK)
Max. Print Speed 72 Cards Per Hour (YMCKK)
Print Resolution (Up to)
600 x 600 dpi
Card Sizes
Card Size
CR-80 Size (2.1" x 3.4" / 54 x 86.5 mm)2
CR-80 Size (2.1" x 3.4" / 54 x 86.5 mm)2
Maximum Printable Area
Width: 54 mm
Length: 86.5 mm
Length: 86.5 mm
Card Thickness
Card Thickness
30 mil - 39.3 mil (0.76 - 1.0 mm)2
30 mil - 39.3 mil (0.76 - 1.0 mm)2
Card Compatibility
Card Types
PVC Plastic Cards
PVC Plastic Cards
Body Durability
100,000 Cards / 5 Years1
Card Capacity
Hopper Capacity
250 Cards (30 mil (0.76 mm) Thickness/Card)2
250 Cards (30 mil (0.76 mm) Thickness/Card)2
General
OS Compatibility
Windows 10, 11 (64/32 bit), 8.1 (64/32 bit), 7 SP1 (64/32 bit), Server 2008 R2 (64 bit)3
Standard Interface
USB 2.0
Ethernet (10/100/1000Base-T)
RS-232C
Ethernet (10/100/1000Base-T)
RS-232C
Power Source
AC 100-240V, 50/60Hz
Power Consumption (approx.)
Maximum: Approx. 300 W
Dimension (W x D x H)
11.7" (W) x 13.4" (D) x 17.2" (H)
Weight
42.8 lbs.
Operating Temperature:
Temperature: 50° - 95°F (10° - 35°C)
Operating Humidity:
Humidity: 20-80% RH (Non-Condensing)
Noise
Acoustic Information
Operating Noise (Max.): 58dB or less4
Standby Noise: 35dB or less4
Operating Noise (Max.): 58dB or less4
Standby Noise: 35dB or less4
Warranty
2 Year Warranty5
Color/Monochrome
Full Color or Monochrome Printing
Print Modes
Single Sided (Simplex) / Dual Sided (Duplex)
Removable Card Hopper
Yes
Consumable Types
Ink Ribbons: IXR-YMCKK or IXR-YMCK
Retransfer Film: IXR-RFILM
Retransfer Film: IXR-RFILM
Print Mode Detail
Single Sided (Simplex): Color / Monochrome
Dual Sided (Duplex): Side 1: Color (YMCK) / Side 2: Monochrome (YMCKK)
Dual Sided (Duplex): Side 1: Color (YMCK) / Side 2: Monochrome (YMCKK)
Print Yields
IXR-YMCK: 500 Cards (Single Sided: Color1)
IXR-YMCKK: 400 Cards (Double Sided: 1st Side Color, 2nd Side Monochrome)1
IXR-Film (Transfer Film): 500 Cards (Single Sided)1
IXR-YMCKK: 400 Cards (Double Sided: 1st Side Color, 2nd Side Monochrome)1
IXR-Film (Transfer Film): 500 Cards (Single Sided)1
Operational Method
LCD: Yes (2 Line LCD - 16 Character)
Buttons/LEDs: 4 Buttons / 1 LEDs
Buttons/LEDs: 4 Buttons / 1 LEDs
Anti-Theft Wire Lock Security Slot
Built-in
Product Support
Get started with these quick links.
Product Disclaimer
- Based upon standard print condition print size of 2.1"x3.4" inkjet coated CR80 PVC card at 30 mil (0.76mm) thickness, 80 cards/day. Print speed based on click to drop, average print coverage, with USB connectivity, Cards Per Hour (CPH).
- Card material compatibility may vary. Supported card materials include; PVC,PET-G, PET, composite PVC and PC cards, CR-80 size, measured at 30 mil (0.76 mm) thickness, in regards to ISO 7810. Certain restrictions may apply.
- Operation can only be guaranteed on a PC with pre-installed Windows® 11 (64/32-bit), Windows® 10 (64/32-bit), Windows 8.1 (64/32-bit), Windows 7 (64/32-bit).
- Acoustic noise is based off the measurement following ISO7779, and the display number shall follow ISO9296.
- Warranty and Support programs are subject to certain conditions and restrictions. See www.usa.canon.com/support for details.
- Printer weight measured excluding IXR-YMCK, IXR-YMCKK, or IXR-RFILM installed.
- A separate Installation service package is required for the installation of the IX-R7000 encoder and/or laminator.
