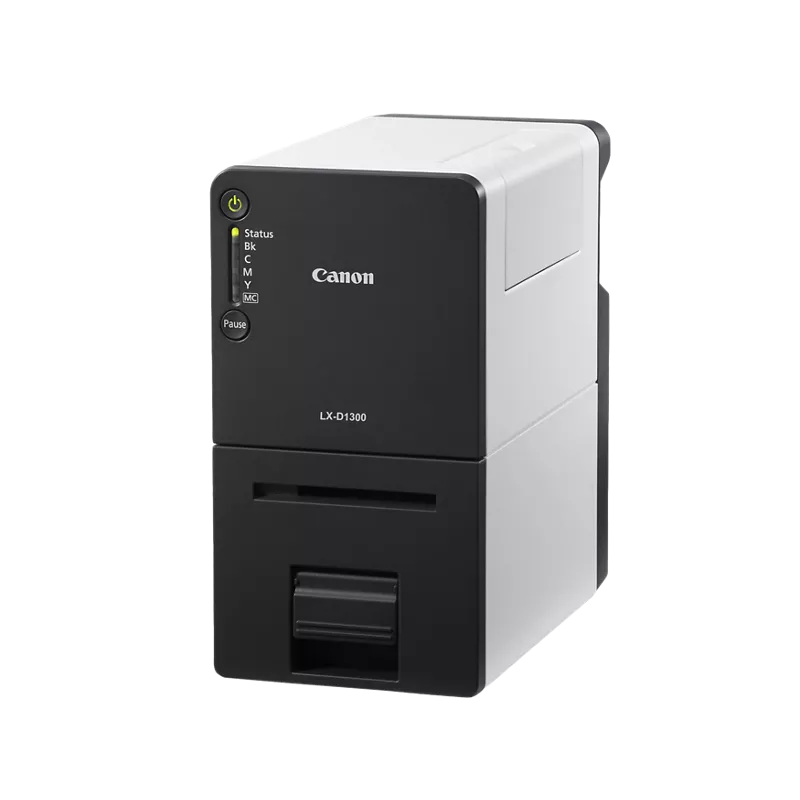

LX-D1300 Dye-Based Inkjet Label Printer

SKU
LX-D1300
As low as $3,699.00
Out Of Stock
  • Dye-based ink for colorful and vivid graphics
  • Prints up to 2" wide
  • Fast first print out time: 10 seconds or less
  • Print resolution up to 1200 dpi
  • Built-in auto cutter unit
  • USB and Ethernet connectivity
Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

Technical Specifications

View Full Technical Specs PDF

Main Unit Spec

Printer

Printing Method
Dye-based Inkjet
Print Speed (up to)
First Print Out Time: 2" x 3" Label: 8 seconds or less1
Default Print Speed: 120 mm/second (4.7 inches/second)1
Range: 50 - 120 mm/s1
Preset Options: 120, 80, 70, 60, 50 mm/s
Number of Nozzles
2,816 dots
Print Resolution (Up to)
1200x1200 dpi
Ink Compatibility
4 (1 x Black, 1 x Cyan, 1 x Magenta, 1 x Yellow)

Shop Compatible Ink
Paper Sizes
Width: 28.4 - 63.0 mm
Length: 25.4 - 400.0 mm
Maximum Printable Area
Width: Up to 56 mm
Length: Up to 397 mm
Minimum Margin
Top/Bottom Margin: 1.5 mm
Left/Right Margin: 3.5 mm
Paper Thickness
0.145 - 0.255 mm
Paper Compatibility
Label Roll Media with Roll Holder (IJ Coated: Matte or Glossy)
Roll Paper Maximum Outer Diameter
Outer Diameter: Up to 75 mm, Core/Inner Diameter: Up to 25.4 m
Body Durability
300,000 Sheets / 5 Years2
Estimated Output Number
Approx. 4,000 Sheets per cartridge set2

General

OS Compatibility
Windows 10 (64/32 bit), 8.1 (64/32 bit), 7 SP1 (64/32 bit)3
Standard Interface
USB 2.0
Ethernet (10/100/1000Base-T)
Power Source
AC 100-240v, 50/60 Hz
Power Consumption (approx.)
Maximum: Approx. 85.0 W
Operating: Approx. 22.0 W (Average)
Sleep Mode: Approx. 6.0 W or Less
Dimension (W x D x H)
5.3" (W) x 9.8" (D) x 9.8" (H)
Weight
11.02 lbs.
Operating Temperature:
Temperature: 41° - 95°F (5° - 35°C)
Operating Humidity:
Humidity: 10-90% RH (Non-Condensing)
Noise
Acoustic Information
Operating Noise (Max.): 50dB or less4
Standby Noise: 30dB or less4
Warranty
1 Year Warranty5
Auto Cutter Unit
Built-In
Cartridge Fill Volume
Black / Cyan / Magenta / Yellow: 14.5 ml
Maintenance Cartridge Info & Fill Volume
WT-X201 Maintenance Cartridge2Approx. 45,000 Sheets2
Operational Method
LCD: No
Buttons/LEDs: 2 Buttons / 7 LEDs
Optional Hardware Module
RH-L02 Roll Holder

Brochures

File Name

Canon LX-D1300 Dye-based Inkjet Printer Brochure

Date

09.14.22

File Size

0.2 MB

File Name

Canon LX-D1300 Dye-Based Label Printer Consumables Accessories Brochure

Date

11.29.22

File Size

0.1 MB

File Name

Canon LX-D1300 Service and Support Brochure

Date

11.29.22

File Size

3.3 MB

Product Disclaimer

  1. ZPL is a trademark of Zebra Technologies Corp., registered in many jurisdictions worldwide. All other trademarks are the property of their respective owners.
