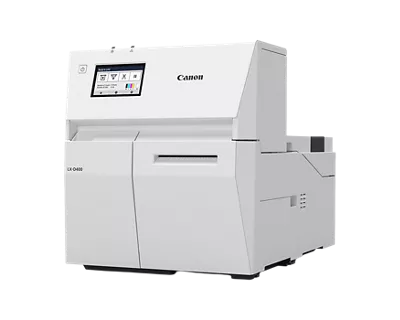

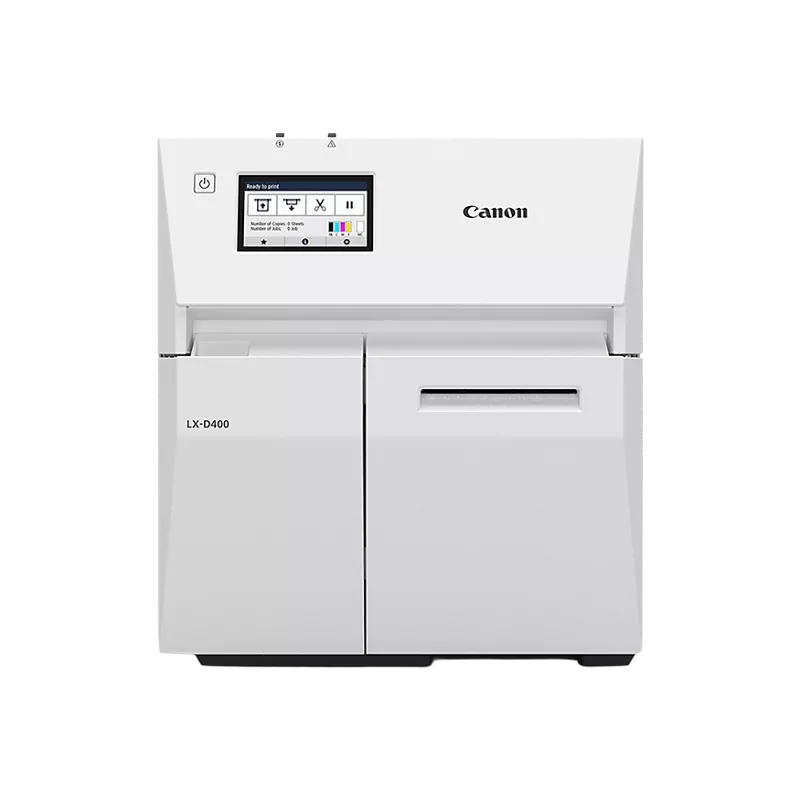

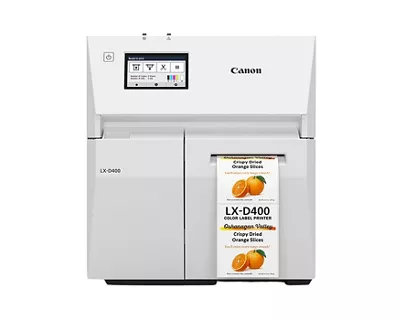

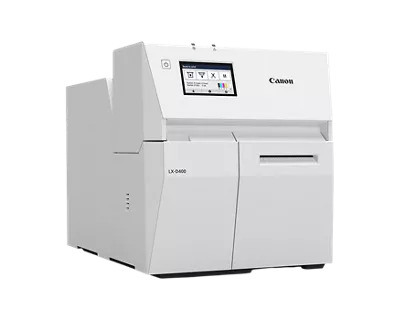

LX-D400 Dye-Based Inkjet Label Printer

As low as $9,299.00
Out Of Stock
  • Color inkjet dye-based label printer is designed for printing vibrant high-quality labels
  • Prints full bleed labels up to 4” wide on a range of matte, gloss, and poly inkjet-compatible media
  • Up to 1200 x 1200 dpi resolution
  • Print speeds of up to 13.0 inches per second
  • Equipped with a 4.3-inch LCD touch panel
  • Optional UHF-band RFID unit available for purchase
Show more

Overview

Fast, Reliable, High-Resolution Label Printing

Canon’s LX-D400 dye-based label printer is a compact and high-speed labeling solution designed to support fast-paced operational environments. With a fixed line-head print system, high-resolution output, an intuitive touch-screen interface, and full edge-to-edge label printing. This printer is designed to help streamline label production in applications such as product manufacturing, distribution, logistics, retail, and warehouse inventory management.

Features

Wide Variety of Uses

Designed to deliver high-quality labels at every stage of your workflow. From attention-grabbing product labels to crisp barcodes and QR codes, this printer can limit the need for costly pre-printed inventory, giving you the flexibility to print on demand—whether for fast short runs or demanding long runs.

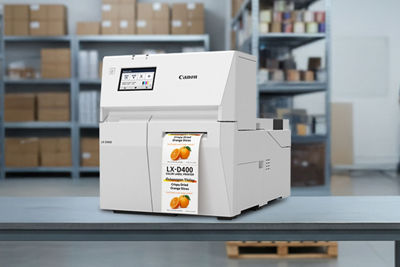

LX-D400 on a Table in a Warehouse

High Performance

Equipped with a 4.32-inch fixed line head, the LX-D400 can achieve fast print speeds up to 13 inch per secondFootnote4,Footnote7 to help keep your workflow moving. Labels are produced continuously as they pass under the printhead, allowing for quick first-label output and efficient turnaround of everyday labeling tasks.  To help reduce downtime, the LX-D400 incorporates reliability features such as a paper-dust suction mechanism, non-jetting nozzle compensation, and an enhanced wiping system. These features are designed to help maintain steady operation while limiting the need for manual adjustments.

High-Quality Output And Easy Operation

With 1200 × 1200 dpi resolution, the LX-D400 brings your labels to life with sharp text and rich, vibrant graphics. It supports a wide range of matte, gloss, and poly inkjet compatible media from 0.5” to 4.0” wide, making it a versatile solution for countless labeling applications. The LX-D400 also handles die-cut media with ease and can produce GS1 Standard labels—including GS1-128, ITF-14, GS1 EAN/UPC, GS1 DataBar, GS1 2D barcodes, and EPC/RFID—when paired with third-party software.Footnote1 The 4.3-inch LCD touch panel puts control at your fingertips, offering an intuitive interface for monitoring printer status, adjusting settings, and receiving alerts. This streamlined, user-friendly design can help keep daily operations running smoothly.

Optional UHF RFID Accessory

An optional UHF (Ultra High Frequency) RFID moduleFootnote2 enables simultaneous printing and RFID data encoding of passive labels without halting label production. RFID labels help enhance tracking, supports inventory management in real-time, and improves overall operational efficiencies.

Customer Care

For investment protection, eCarePAK extended service planFootnote3 options are available beyond the initial one year on-site limited warranty period. An eCarePAK can help save on costs associated with post-purchase maintenance and help maximize uptime throughout the product life.

Two Customer Service Representatives Back to Back

Technical Specifications

Main Unit Spec

Type
Inkjet Label Printer
Print Method
Dye-based Inkjet

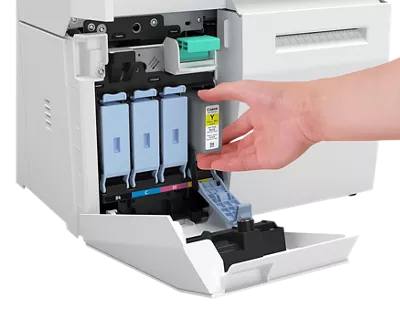

Ink Cartridges
4 (1 x Black, 1 x Cyan, 1 x Magenta, 1 x Yellow)
Print Resolution
1200 x 1200 dpi
Number of Nozzles
5184 dots

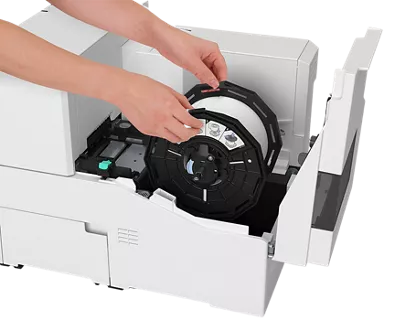

Supported Media Types
Label Roll Media (with Roll Holder) & Label Fanfold Media (IJ Coated: Matte or Glossy)
Media Size
Width: 14.7 mm to 115.0 mm (0.58” to 4.53” including liner)
Length: 6.0 mm to 1346.2 mm (0.24” t0 53.0”)
Media Thickness
0.145 - 0.254 mm
Ink Cartridge Fill Volume
Black / Cyan / Magenta / Yellow: 240ml
Maintenance Cartridge
WT-X404 Maintenance Cartridge

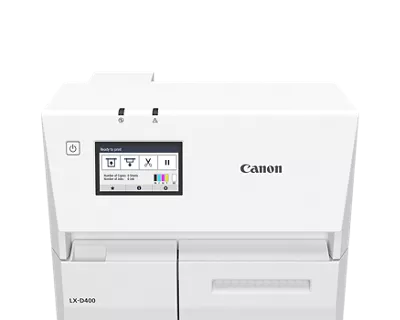

Control Panel
4.3-inch full color touch LCD
Connectivity / Interface
USB2.0 Hi-speed, USB2.0 typeB, 1000BASE-T/100BASE-TX/10BASE-T, RS-232C and External I/O (For External Devices)
Supported OS
Windows 11, Windows Server 2016, 2019, 2022, 2025Footnote5
Operating Environment Temperature
41° - 95°F (5° - 35°C)
Operating Environment Humidity
10 - 90% RH (Non-Condensing)
Chemical Safety
TSCA, OSHA HCS
Power Consumption
Approx. 230W (max. with RFID unit), approx. 87W (operating, average), approx. 24W (standby, average), approx. 5W (sleep mode, average), 0.3W or less (power off, average)
Electrical
AC 100-240V, 50/60Hz
Max. Operating Noise
55dB or lessFootnote6
Standby Noise
35dB or lessFootnote6
Warranty
1 Year Warranty including printheadFootnote3
Dimensions
15.2”(W) x 22.2”(D) x 16.9”(H) (386mm(W) x 565mm(D) x 430mm(H))
Weight
48.9lbs. (22.2kg) excluding printhead and ink tanks

Brochures

File Name

LX-D400 Dye-Based Label Printer Service & Support Brochure

Date

05.13.26

File Size

0.8 MB

File Name

LX-D400 Dye-Based Inkjet Label Printer Brochure

Date

07.16.26

File Size

7.7 MB

Product Disclaimer

  1. Subscription to a third-party service required. Subject to third-party service providers terms and conditions. Neither Canon Inc. nor Canon U.S.A., Inc. represents or warrant any third-party product or feature referenced hereunder.
  2. Use of encoding labels will affect the speed of printing out the label. Optional UHF RFID Accessory will only be compatible with limited media at launch. Please contact your Canon Authorized Partner for compatibility details.
  3. Warranty and Support programs are subject to certain conditions and restrictions. See www.usa.canon.com/support for details.
  4. Print speeds may vary depending on system configuration, interface, software, print complexity, print mode, page coverage, type of paper used, etc. Excludes pre-cleaning.
  5. Operation on PC with pre-installed Windows 11 (64 bit), Windows Server 2016, 2019, 2022, 2025.
  6. Acoustic noise is based off the measurement following ISO7779, and the display number shall follow ISO9296.
  7. Based upon standard print conditions and print size of 4”x3” inkjet coated matte label, 7.5% Duty/Color, 100 labels x 50 jobs/day, excluding manual cleaning and printhead.
