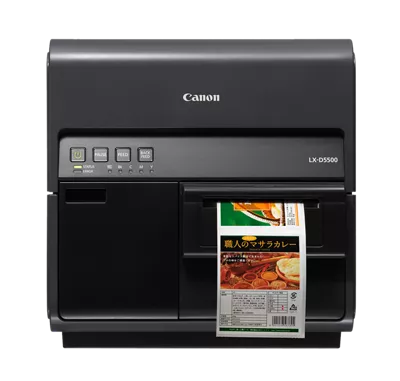

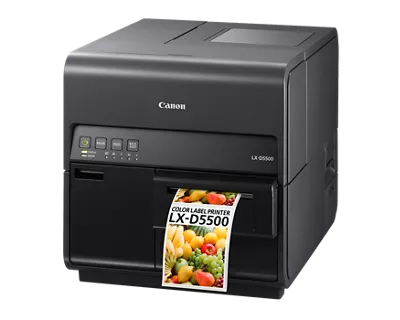

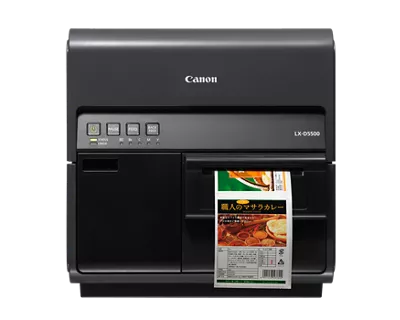

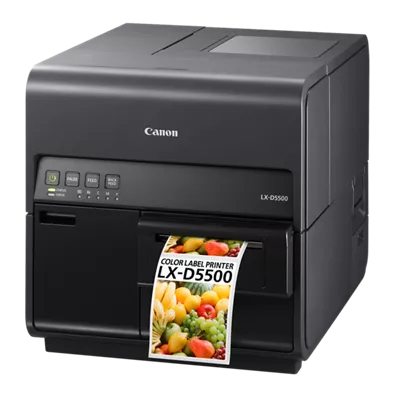

LX-D5500 Inkjet Label Printer

SKU
LX-D5500
As low as $9,499.00
Out Of Stock
  • Dye-based ink for colorful and vivid graphics
  • Prints up to 4" wide on roll or fan folded media
  • Optional rewinder accessory available
  • First print out time: 10 seconds or less
  • Print resolution up to 1200 dpi
  • Roll capacity up to 200mm
  • USB and Ethernet connectivity
Have a MyCanon Account? We’ll add registration details for this product. Learn More
Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

OVERVIEW

The Canon LX-D5500 inkjet label printer is a reliable, flexible, and high-performance dye-based color label printing solution to deliver clear and vibrant labels, and can help improve efficiency and productivity.

LX-D5500

ABOUT THE LX-D5500 INKJET LABEL PRINTER

WIDE VARIETY OF USES

The LX-D5500 printer is ideal for printing vibrant, high-quality color labels on-demand. Manufacturing (food and beverage, health and beauty packaging), retail (price tags, pharmacy prescription instructions), transportation and warehousing (shipping and logistics labels), and administrative services (asset tags) are just some of the sectors and applications that can benefit from on-demand short run length label printing. Printing labels on-demand rather than printing large volumes in advance can save on storage space and label costs. Other uses include printing items such as tickets, temporary ID tags or badges, decals and stickers.


HIGH PERFORMANCE

The LX-D5500 printer is capable of fast print speeds up to 200 mm / 7.9 inches per second1, with a first print out time of 10 seconds or less. These features can help contribute to improved productivity.



RELIABLE AND FLEXIBLE

The LX-D5500 printer can print labels on media up to four inches wide. It can handle both roll or fanfold paper, and matte or glossy paper, for maximum flexibility. It also has nine pre-set speed options. The durable, solid-body design contributes to the printer’s reliability, with a product life of six million sheets / five years3, and an estimated output per cartridge set of approximately 45,000 sheets.


HIGH-QUALITY PRINT IMAGES

For outstanding image quality, the LX-D5500 printer produces high-resolution 1200 x 1200 dpi output, allowing for the sharp imagery of high-density bar codes and small text. It also utilizes dye-based inks for colorful and vivid prints, ideal for creating brilliant and expressive labels that can capture a customer’s attention and make products stand out.



OPTIONAL REWINDER

The optional rewinder accessory allows users to rewind printed labels that come out from the LX-D5500 printer for later use, and is ideal for higher-volume production label printing environments.  This item is sold separately.



ENVIRONMENT IN MIND

The LX-D5500 printer complies with both the EU RoHS and WEEE directives for the reduction of hazardous substances and waste products. In addition, on-demand label printing can assist with sustainability efforts since it eliminates the overprint of excess labels that might become obsolete and need to be disposed of.



LABEL PRINT LANGUAGE EMULATOR

The Canon Label Print Language Emulator is designed to enhance the compatibility and integration of Canon label printers. This downloadable software enables Canon label printers to support existing ZPL®7 applications seamlessly. The Canon Label Print Language Emulator also enables users to register color background images and use them behind the rendered image from ZPL commands. This free software is available via download from www.usa.canon.com/support.



CUSTOMER CARE

For investment protection, eCarePAK extended service plan5 options are available beyond the initial one-year advanced exchange limited warranty period. An eCarePAK plan can help save on costs associated with post-purchase maintenance and help maximize uptime throughout the product life.



BarTender
image icon
Download Your 30-Day Free Trial
TEKLYNX
image icon
Download Your 30-Day Free Trial

Technical Specifications

Main Unit Spec

Printer

Printing Method
Dye-based Inkjet
Print Speed (up to)
First Print Out Time: 4" x 3" Label: 10 seconds or less
Default Print Speed: 200 mm/second (7.9 inches/second)
Range: 50 - 200 mm/s
Preset Options: 200 mm/s, 160 mm/s, 120 mm/s, 100 mm/s, 90 mm/s, 80 mm/s, 70 mm/s, 60 mm/s, 50 mm/s
Number of Nozzles
5,184 dots
Print Resolution (Up to)
1200x1200 dpi
Ink Compatibility
4 (1 x Black, 1 x Cyan, 1 x Magenta, 1 x Yellow)

Shop Compatible Ink
Paper Sizes
Width: 25.4 - 120.0 mm (Including Liner)
Length: 6.0 - 500 mm (Including Liner)
Maximum Printable Area
Width: Up to 105.9 mm (with AIS "On")
Length: 3.0 - 397 mm (with AIS "On")
Minimum Margin
Top/Bottom: 1.5 mm (with AIS "On")
Left/Right: 2.7 mm (with AIS "On")
Paper Thickness
0.145 - 0.255 mm
Paper Compatibility
Label Roll Media (with Roll Holder) & Label Fanfold Media (IJ Coated: Matte or Glossy)
Roll Paper Maximum Outer Diameter
Up to 200 mm, Core/Inner Diameter: Up to 76.2 mm
Fanfold Media: Media Height: Up to 850 mm
Body Durability
6 Million Sheets / 5 Years2
Estimated Output Number
Approx. 45,000 Cards per cartridge2

General

OS Compatibility
Windows 10 (64/32 bit), 8.1 (64/32 bit), 7 SP1 (64/32 bit)3
Standard Interface
USB 2.0
Ethernet (10/100/1000Base-T)
RS-232C (For External Devices)
Power Source
AC 100-240v, 50/60 Hz
Power Consumption (approx.)
Maximum: Approx. 233 W
Operating: Approx. 21 W
Sleep Mode: Approx. 8 W or Less
Dimension (W x D x H)
15.2" (W) x 22.2" (D) x 15.5" (H)
Weight
55.1 lbs.6
Operating Temperature:
Temperature: 41° - 95°F (5° - 35°C)
Operating Humidity:
Humidity: 10-90% RH (Non-Condensing)
Noise
Acoustic Information
Operating Noise (Max.): 55dB or less4
Standby Noise: 35dB or less4
Warranty
1 Year Warranty5
Cartridge Fill Volume
Black / Cyan / Magenta / Yellow: 240 ml
Maintenance Cartridge Info & Fill Volume
WT-X401 Maintenance Cartridge1Approx. 210,000 Sheets1
Operational Method
LCD: No
Buttons/LEDs: 4 Buttons / 8 LEDs
Optional Hardware Module
CU-L02 Auto Cutter Unit
RH-L03 Roll Holder

Brochures

File Name

Canon LX-D5500 Inkjet Label Printer Consumables And Accessories Brochure

Date

11.29.22

File Size

0.1 MB

File Name

Canon LX-D5500 Label Printer Brochure

Date

09.14.22

File Size

0.3 MB

File Name

Canon LX-D5500 Service and Support Brochure

Date

11.29.22

File Size

3.4 MB

Product Disclaimer

  1. Print speeds may vary depending on system configuration, interface, software, print complexity, print mode, page coverage, type of paper used, etc. Excludes pre-cleaning.
  2. Based upon standard print conditions and print size of 4"x3" inkjet coated matte label, 7.5% Duty/Color, 100 sheets x 50 jobs/day, excluding manual cleaning.
  3. Operation can only be guaranteed on a PC with pre-installed Windows® 10 (64/32-bit), Windows 8.1 (64/32-bit), Windows 7 (64/32-bit), or Windows Server 2012 (64-bit)/2008 (64-bit).
  4. Acoustic noise is based off the measurement following ISO7779, and the display number shall follow ISO9296.
  5. Warranty and Support programs are subject to certain conditions and restrictions. See www.usa.canon.com/support for details.
  6. Printer weight measured excluding print head or ink cartridges installed.
  7. ZPL is a trademark of Zebra Technologies Corp., registered in many jurisdictions worldwide. All other trademarks are the property of their respective owners.
