LX-MU500Z

SKU
LX-MU500Z
As low as $1,499.00 Regular Price $2,999.00
In Stock
  • Native WUXGA Resolution (1920 x 1200)
  • 5000 Lumens and 50,000:1*2 Contrast Ratio Deliver Bright, Engaging Images
  • Laser Light Source Provides Longevity, Versatile Installation and a Wide Color Range
  • 1-chip DLP® Technology
  • Multiple Image Modes including DICOM Simulation Mode**3;for Optimal Image Quality Reproduction
  • Advanced Image Adjustment Options for Customizable Image Characteristics
Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

Technical Specifications



Main Unit Spec

Projector Specifications


Imaging Device
.48" / 1-chip DLP
Aspect Ratio
16:10
Native Resolution
1920 x 1200 (WUXGA)
Brightness
5000/3750lm (Normal/Eco)*1*2
Uniformity
80%
Contrast Ratio
50,000:1*3
Digital Keystone
V: ±30°, H: ±30°



Optics


F Number, Focal Length
F1.81 - F2.10, f=14.3mm - 22.9mm
Zoom
1.6x
Focus
Manual
Image Size
Wide: 60" - 300", Tele: 60" - 200"
Throw Distance
Wide: 1.75 - 8.74m, Tele: 2.80 - 9.32m
Throw Ratio
1.36 - 2.18:1
Lens Shift
V:±50%, H:±23%



Image Adjustments


Image Modes
Presentation, Standard, sRGB, Movie, DICOM, User 1, User 2
Color Adjustment
Color Temperature, Color, Tint, 6-Axis Color Adjustment, BrilliantColor
Screen Color Correction
Off, Light Yellow, Pink, Light Green, Blackboard
Mounting
360°
Adjustable Feet
4



Image Signals


Scanning Frequency
V: 24Hz - 119.989Hz, H: 15.63kHz - 101.563kHz
Analog PC Input
WUXGA, WSXGA+, UXGA, SXGA+, WXGA+, FWXGA, XGA, SXGA, SVGA, VGA, MAC
Digital PC Input
WUXGA, WSXGA+, UXGA, SXGA+, WXGA+, FWXGA, XGA, SXGA, SVGA, VGA
Component Video Input
1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Digital Video Input
1080p, 1080i, 720p, 576p, 480p (supports audio input)
Dot Clock
162 MHz (Maximum)
Video Input/ S-video Input
NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL-60

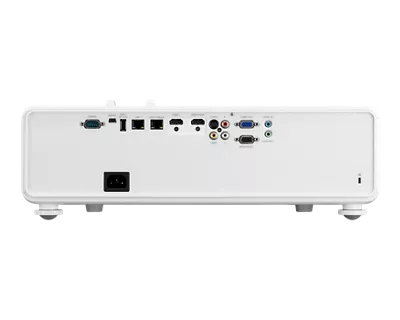

Terminals


Mini Dsub15
Input Analog PC, Output Component Video
HDMI
Digital PC / Digital Video Input
HDMI/MHL
Digital PC / Digital Video Input
Mini DIN4
S-Video
RCA x3
Video Input / Audio-L / Audio-R
RJ-45 (HDBaseT)
Network Connection (100BASE-TX/10BASE-T)(HDBaseT and normal network switched automatically)
Dsub9 (Control)
RS-232
USB Type A
Power Out (5V)
USB Mini B
Service Port
Mini Jack
Input Analog PC/Component, Output Audio



Remote Control


Wireless Remote
IR



Built-In Sound


Internal Speaker
10W, Monaural



Light Source


Type
Blue Laser Diode/ Yellow Phosphor Wheel
Life
20,000 hours*5



Ratings


Fan Noise
37/35dB (Normal / Eco)
Power Consumption
530W/415W (100 -~ 120V) (Normal / Eco), 490W/395 (220 ~240V) (Normal/Eco)*4
Standby Power Consumption
0.4/1.5W (100 -~ 120V), 0.5/2.0W (220 ~ 240V)(Network Settings OFF/ON)
Power Voltage
AC 100 - 240V: 50/60Hz
Operating Temperature
32°F - 104°F (10% RH - 90% RH)
Weight
19.6 lbs.
Dimensions (W x H x D)
17.7" x 6" x 14.9"



Notes


*1: Brightness other than Normal is a calculated value and is not guaranteed as a specification
*2: For protection of product, light emission from light source may be decreased when external temperature rises
*3: Full white, full black, Image mode set to presentation. Light source turns off when full black is projected. Dynamic contrast ratio.
*4: Eco value is calculated only and is not guaranteed as specification
*5: Calculated value, not a guaranteed value



Reviews

How is your Canon product performing for you?

Product Disclaimer

*1 This is an estimated value, actual hours may vary depending on usage and environment. This is not a guarantee of the life span of individual laser diodes.

*2 Full white, full black, Image mode set to presentation. Light source turns off when full black is projected. Dynamic contrast ratio

*3 This projector includes a DICOM Simulation Mode. It has not been cleared or approved for medical diagnosis and should not be used for these purposes.

This product has not been tested for compliance with the performance standards for laser products under 21 CFR Part 1040. The product is not, and may not be, offered for sale or sold or leased in the United States until performance standard certifications have been completed.
