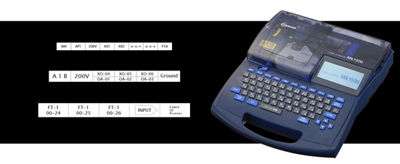

Mk1500 Cable & Wire Marker Printer
SKU
3230B020
Special Price
$440.00
Regular Price
$600.00
In Stock
$160 Instant Savings
- Lightweight and portable
- Thermal transfer printing on tubes, labels, and tape
- Three print speeds: 25, 18.5, 12.5 mm per second
- Print resolution up to 300 dpi
Need to order more than 10?
Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155>
In the box
Return Policy
Technical Specifications
Main Unit Spec
Printing Method
Thermal Transfer Method
Resolution
300 dpi
Printing Speed
Tube:
High speed mode: 25 mm/sec
Standard speed mode: 18.5 mm/sec
Low speed mode: 12.5 mm/sec
Label:
High speed mode: 25 mm/sec
Standard/Low speed mode: 12.5 mm/sec
High speed mode: 25 mm/sec
Standard speed mode: 18.5 mm/sec
Low speed mode: 12.5 mm/sec
Label:
High speed mode: 25 mm/sec
Standard/Low speed mode: 12.5 mm/sec
Processing Speed
High speed mode: about 35 pieces/min
Standard speed mode: about 30 pieces/min
Low speed mode: about 21 pieces/min
Conditions for printing and cutting - tube cut length: 20 mm, number of characters: 5 (two-byte characters of 3 mm wide), half cutting: on, cut strength: standard
Standard speed mode: about 30 pieces/min
Low speed mode: about 21 pieces/min
Conditions for printing and cutting - tube cut length: 20 mm, number of characters: 5 (two-byte characters of 3 mm wide), half cutting: on, cut strength: standard
Ink Ribbon
Ribbon IC cassette (black, white)
Length - black: 100 m, white: 85 m
Length - black: 100 m, white: 85 m
Size of Characters
2 mm (Kanji characters not supported for this size), 3 mm, 6 mm (both one-byte and two-byte characters supported)
Types of Characters
JIS First-Level Kanji, JIS Second-Level Kanji, symbols
Data Entering
Rubber keyboard, alphanumeric input, area code input, symbol input
Vocabulary of Dictionary
About 5,000 words
Display
LCD graphic display (160 x 64 dots)
Number of Characters Displayed
Input data: 10 characters × 2 lines (two-byte characters),
or 20 characters x 2 lines (one-byte characters)
Memory Capacity
Storage for character data: about 2,500 characters*2
Storage for files: about 7,500 characters*2
Folder hierarchy: none
Cutting Method
Automatic half cut, automatic full cut
Power
AC adapter (100 VAC - 240 VAC, 50/60 Hz)
Interface
-
Operating Environment
Temperature: 15°C to 32.5°C, Humidity: 10% to 85%
Maximum Power Consumption
12.5 W
Storage Environment
Temperature: 5°C to 35°C, Humidity: 10% to 90%
Main Body Dimensions
Width: 250 mm x Depth: 300 mm x Height: 85 mm
Main Body Weight
2 kg
Media Types
Tube:
Commercially available PVC round tube*3
(Inner diameter: 2.5 mm to 5.2 mm, thickness: 0.5 mm)
Label Tape
Cassette (white, yellow, silver) - width: 6 mm, 9 mm, 12 mm, length: 30 m (27 m for silver)*4
Adjustable range of cut length: 8 mm to 150 mm*4
Wrap Around Tape:
Cassette (white in the areas to be printed, transparent in other areas)
Winding length: 8 m, length: 33 mm, width: 8 mm to 150 mm (adjustable by the cut length setting)
Commercially available PVC round tube*3
(Inner diameter: 2.5 mm to 5.2 mm, thickness: 0.5 mm)
Label Tape
Cassette (white, yellow, silver) - width: 6 mm, 9 mm, 12 mm, length: 30 m (27 m for silver)*4
Adjustable range of cut length: 8 mm to 150 mm*4
Wrap Around Tape:
Cassette (white in the areas to be printed, transparent in other areas)
Winding length: 8 m, length: 33 mm, width: 8 mm to 150 mm (adjustable by the cut length setting)
