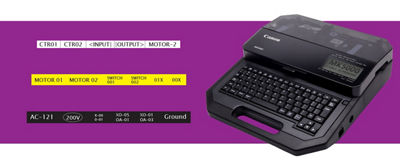

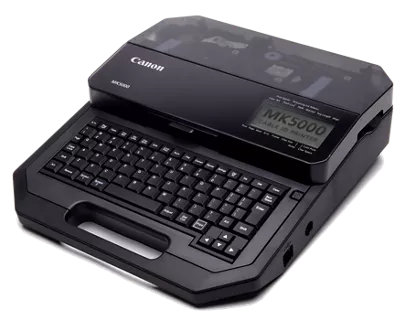

MK5000 Cable & Wire Marker Printer

SKU
5059C009
Special Price $1,207.00 Regular Price $1,695.00
In Stock
$488 Instant Savings
  • Dual power options
  • Lightweight and portable
  • Thermal transfer printing on tubes, labels, tape, and plastic plate strips
  • Backlit LCD display for easy viewing
  • Three print speeds: 40, 25, 18.5 mm per second
  • Print resolution up to 300 dpi
Add an eCarePAK Extended Service Plan for added coverage. Learn More
I acknowledge that I have read and understood the

Please accept the Terms & Conditions for CarePAK before adding the item to cart.

Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

In the box

Return Policy

Technical Specifications

Main Unit Spec

Type
Cable & Wire Marker Printer
Replaces
Successor model for Mk2600
Print Method
Thermal Transfer
Ink Ribbon
For tube and label: Cassette (black, white) Length - black: 150m, 40m white: 85m
Print Resolution
300 dpi
Print Speed
Tube: High speed- 40 mm/sec , Medium speed- 25 mm/sec, Low speed- 18.5 mm/sec
Output Rate
High speed approx. 55 pcs/min (ø1.5 - 6.5) 45 pcs/min (ø7.0 - 10) Medium speed approx. 35 pcs/min Low speed approx. 30 pcs/min 1
Character sizes
1.3 mm (full-width only) 2 mm, 2.6 mm, 3 mm, 4 mm, 6 mm (full width, half width)
Input Modes
Alphanumeric, Symbol input
Display
LCD Graphic (160 x 64 dots) with backlight
Display Capacity
10 characters / line x 2 lines (full width)
Built In Memory
Print data: Approx 5,000 characters Files: Approx 250,000 characters, 10 folders (up to 99 files / folder)
Media Cutting Function
Automatic full-cutting, Automatic half-cutting
Power Supply
AC Adapter (input voltage: AC 100V-240V 50/60 Hz, 0.74A) or Panasonic eneloop rechargeable batteries (model: BK-3MCCA)2
Power Consumption
Maximum 25 W
PC Interface
USB 2.0, PC connection Kit included; Bluetooth
Operating Environment Temperature
59° - 90.5°F (15° - 32.5°C)
Storage Environment Temperature
41° - 90.5°F (5° - 32.5°C)
Operating Environment Humidity
10 - 85% RH
Storage Environment Humidity
10 - 85% RH
Warranty
2 Years3
Dimensions
10.7” (W) x 12.5” (D) x 3.8” (H)
Weight
6.0 lbs.

Reviews

How is your Canon product performing for you?

Product Disclaimer

  1. Printing 20 mm tubes, 5 full- size characters, consecutive print mode, half-cutting
  2. Batteries are not included with the printer. Only Panasonic eneloop rechargeable batteries (model: BK-3MCCA) should be used to avoid printer safety and warranty issues. "Panasonic" and "eneloop" are registered trademarks of Panasonic Group.
  3. Warranty and support programs are subject to certain conditions and restrictions. See www.usa.canon.com/support for details.
  4. Optional plate and flat tube attachment required for printing on plate or flat tube
