ML-100

As low as $14,999.00
Out Of Stock
  • Exceptional Low Light Sensor
  • M58 and EF Mount Option
  • Compact Form Factor

Overview

Get Higher Sensitivity and Image Quality With the ML-100

The Canon ML100 provides you with high sensitivity, top-of-the-line image quality, and reduced form factor. However, despite its smaller size, the camera’s functionality remains exceptionally robust. Select either the EF or M58 lens mount. This high-end, industry-focused camera comes standard with a CoaXPress interface.

Extremely Compact Without Sacrificing Functionality

Compared to the ME20F-SH, the ML-100 is 50 percent smaller, with a 76 x 76 x 112 mm compact form factor. This camera produces 2152 x 1272 video at 73 fps (12-bit approx.), or 97 fps (8-bit approx.)*. It offers a 35mm full-frame CMOS sensor, minimum illumination of 0.0005 lux (or less), over 2.7 million pixels, and meets MIL Standard equivalents.

Features

Exceptional Low Light Sensor

The ML-100 Machine Vision Camera features a Canon full frame 35mm CMOS sensor with an equivalent sensitivity in excess of 4,000,000 ISO.

This innovative 35mm full frame CMOS sensor has photosites measuring 19 micrometers square. The large photosites allow for exceptional low light performance, with a minimum subject illumination of 0.0005 or below (at maximum 75 dB gain).

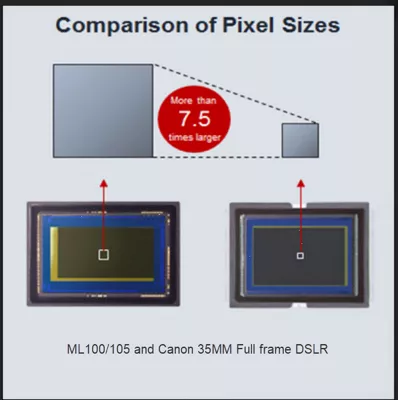

ML-100 Pixel Comparison

CoaXPress Output

  • 2152 x 1272
  • RAW data output
  • 16 Bit 54 fps, 8 bit 97 fps (at max resolution)
    Frame rate may vary depending on PC and frame grabber board

RAW data allows for more flexible user processing, bringing out the full potential of the ultra-high sensitivity CMOS sensor.

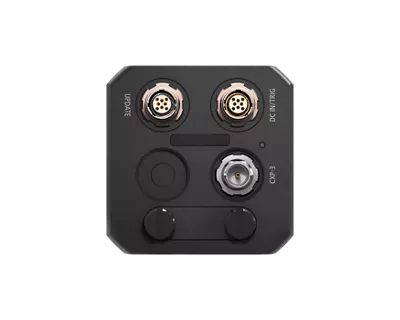

ML-100 Inputs and Outputs

Size Reduction

The ML-100 M58 comes in a box-style design which allows the camera to be easily configured with a wide range of system devices. The ML-100 M58 is more than 50% smaller while maintaining the sensitivity performance of the ME20F-SH. Its modularity allows it to be used in Industrial Machine Vision applications.

ML-100 Size Comparison to ME20F-SH

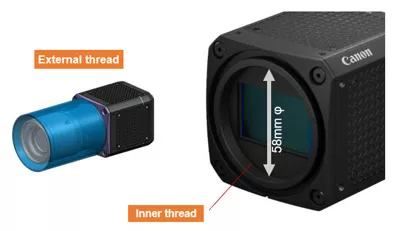

M58 Mount Option

M58 Inner Thread (for lenses)

A variety of lenses can be attached using adapters. No electrical interface for lens control.

M65 External Thread (for accessories)

The outer threads around the mount are provided for use with accessories such as the example below.

Supported Lenses (commercial)

Lenses below are supported when used with adapters.

  • M58 mount lens
  • F mount lens
  • C mount lens

ML-100 Mount Options

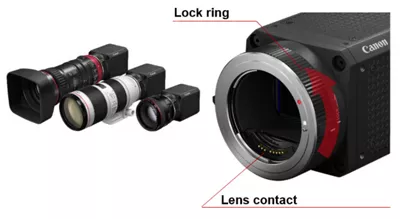

EF Mount Option

Lock Ring

The EF mount's lock ring makes attaching and detaching lenses easier even when multiple accessories are attached.

Lens Contact

This enables lens data transmission such as One Shot AF* through EF Lenses.

Supported Lenses (Canon)

  • EF Lenses
  • EF Cinema Lenses (Excluding Cine-Servo lenses)

ML-100 EF Mount Option

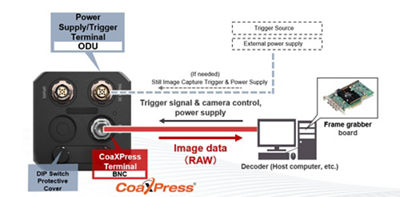

ML100 CoaXPress System Example

ML-100 CoaXPress Example

Region of Interest

  • 2152 x 1272 (full view)
    • Approx. 97 fps 8-bit to 54 fps 16-bit
  • 1920 x 1080 (center-cropped ROI)
    • Approx. 114 fps 8-bit to 72 fps 16-bit
  • 1280 x 720 (center-cropped ROI)
    • Approx. 164 fps 8-bit to 162 fps 16-bit
  • Capable of higher frame rates as frame height decreases (1/10 height capable of 10x frame rate)
  • 128x128 minimum pixel count
  • Selectable X and Y axis offset

ML-100 Pixel Comparison

Accessories

Item Code

Accessory Name

     Description

3976V615

DB9 Serial Cable

15' Cable for ML100/ML105 NU Protocol Control (NDA Required) and Firmware Updates

3976V616

XLR Power + GPIO Cable

15' Cable for ML100 XLR Power and DB9 GPIO (Required XLR Power Supply not included)

3976V618

XLR Power Cable

15' Cable for ML100/ML105 XLR Power (required XLR Power Supply not included)

Accessories sold seperately

Technical Specifications

Technical Specifications

Informational Documents

File Name

ML-100 Series Data Sheet

Date

10.25.22

File Size

1.9 MB
