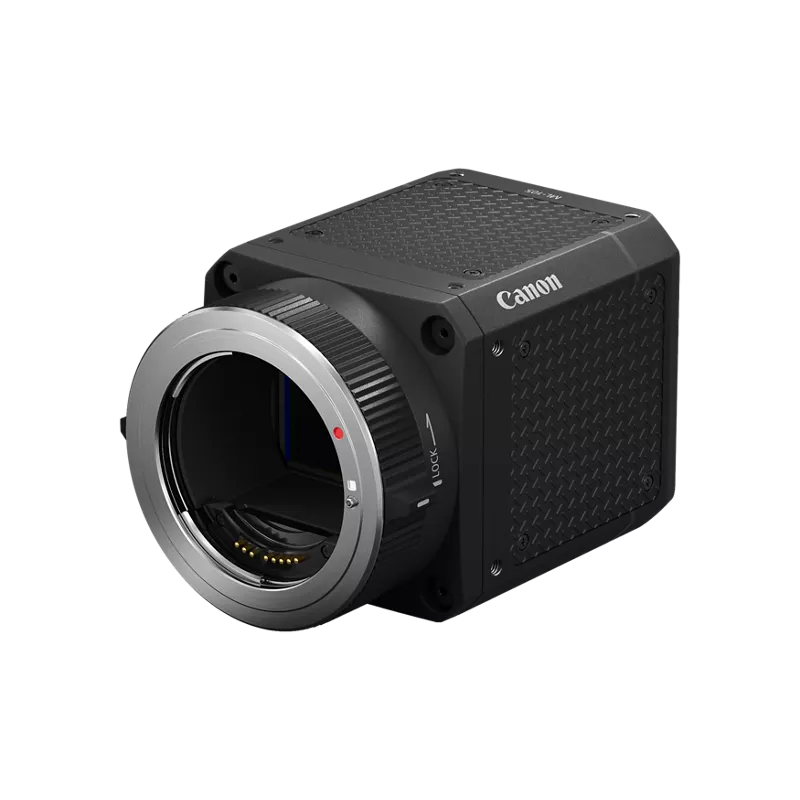

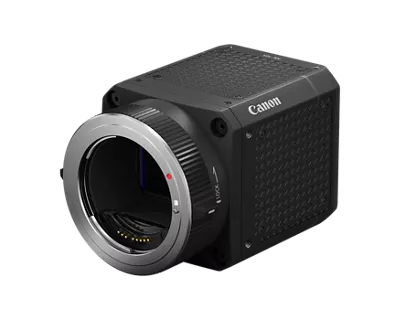

ML-105

As low as $14,999.00
Out Of Stock
  • Exceptional Low Light Sensor
  • M58 and EF Mount Option
  • Compact Form Factor

Overview

The Perfect Choice for Your Video Applications

The Canon ML-105 comes equipped with either the EF or M58 lens mount paired with an SDI interface to produce this video application-focused camera. This camera offers high sensitivity, high image quality, and reduced form factor while remaining extremely robust.

Extremely Compact Without Sacrificing Functionality

With a 35mm full-frame CMOS sensor, DIGIC DV4 processor, minimum illumination of 0.0005 lux (or less), and over two million pixels, the ML-105 delivers 1920 x 1080 video. Despite offering all these features, the ML-105 is 50% smaller (than ME20F-SH) with a compact form factor of 76 x 76 x 83 mm. While extremely compact, the ML-105 is still very robust meeting MIL standard equivalents.

Features

Exceptional Low Light Sensor

The ML-105 Machine Vision Camera features a Canon full frame 35mm CMOS sensor with an equivalent sensitivity in excess of 4,000,000 ISO.

This innovative 35mm full frame CMOS sensor has photosites measuring 19 micrometers square. The large photosites allow for exceptional low light performance, with a minimum subject illumination of 0.0005 or below (at maximum 75 dB gain).

ML-105 Pixel Comparison

Size Reduction

The ML-105 comes in a box-style design which allows the camera to be easily configured with a wide range of system devices. The ML-105 is more than 50% smaller while maintaining the sensitivity performance of the ME20F-SH. Its modularity allows it to be used on multi-sensor optical systems, surveillance systems for defense, systems for research and surveying, and more.

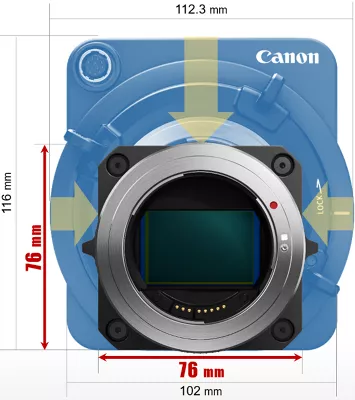

ML-105 Size Comparison to ME20F-SH

SDI Output

3G/HD-SDI Terminal (BNC)

  • 1920 x 1080
  • YCC 4:2:2 10 bit output (8 bit effective)
  • 59.94P/i, 50P/i
  • GenLock compatible

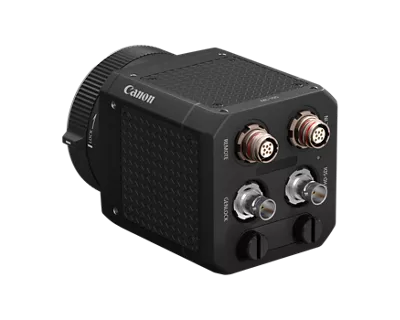

ML-105 Inputs and Outputs

M58 Mount Option

M58 Inner Thread (for lenses)

A variety of lenses can be attached using adapters. No electrical interface for lens control.

M65 External Thread (for accessories)

The outer threads around the mount are provided for use with accessories such as the example below.

Supported Lenses (commercial)

Lenses below are supported when used with adapters.

  • M58 mount lens
  • F mount lens
  • C mount lens

ML-105 Mount Options

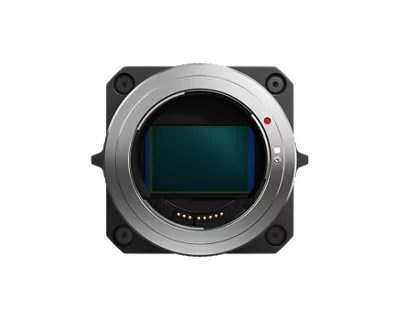

EF Mount Option

Lock Ring

The EF mount's lock ring makes attaching and detaching lenses easier even when multiple accessories are attached.

Lens Contact

This enables lens data transmission such as One Shot AF* through EF Lenses.

Supported Lenses (Canon)

  • EF Lenses
  • EF Cinema Lenses (Excluding Cine-Servo lenses)

ML-105 EF Mount Option

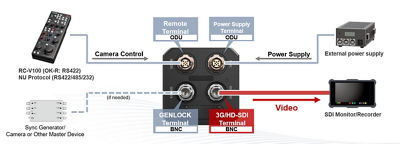

ML105 System Example

ML-105 System Example

Accessories

Item Code

Accessory Name

     Description

3976V615

DB9 Serial Cable

15' Cable for ML100/ML105 NU Protocol Control (NDA Required) and Firmware Updates

3976V617

RC-V100 Control Cable

15' Cable for ML105 to Hirose Connector for RC-V100 Camera Control

3976V618

XLR Power Cable

15' Cable for ML100/ML105 XLR Power (required XLR Power Supply not included)

Accessories sold seperately

Technical Specifications

Technical Specifications

Informational Documents

File Name

ML-100 Series Data Sheet

Date

10.25.22

File Size

1.9 MB
