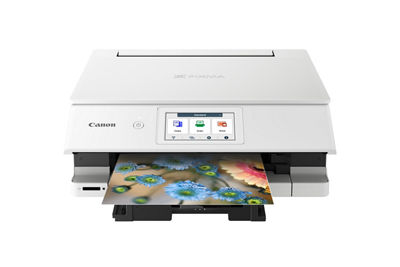

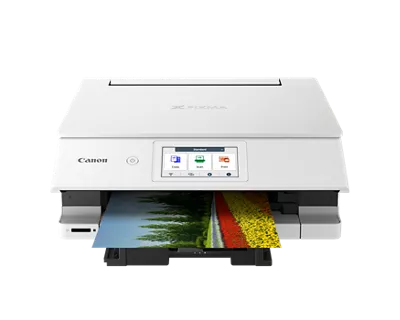

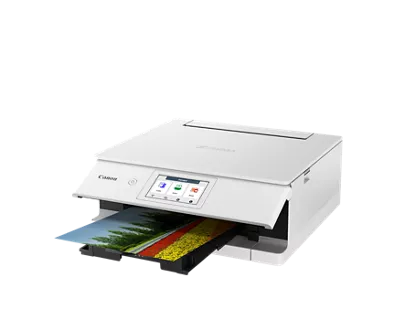

PIXMA TS8820
SKU
6793C022
Special Price
$199.99
Regular Price
$299.99
In Stock
$100 Instant Savings
- Wireless 3-in-1 (Print | Copy | Scan)
- 15 (black) / 10 (color) images per minute
- 100-Sheet Paper Cassette + 100-Sheet Rear Tray
- 1-Sheet Multipurpose Tray (Manual Bypass)
- 6 Individual Inks System

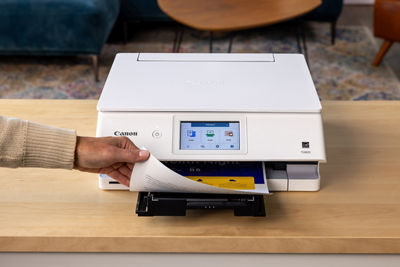

- Auto 2-sided Printing

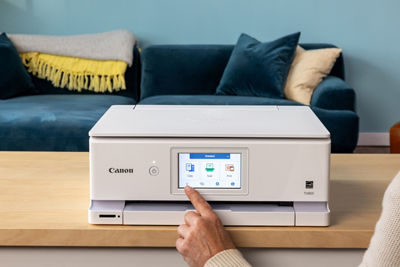

- 4.3" Color LCD Touchscreen
- Chromebook compatible
- ENERGY STAR®, EPEAT Silver
- 1 Year Warranty
Need to order more than 10?
Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155>
In the box
Return Policy
Technical Specifications
Main Unit Spec
Print Functions
Print, Copy, Scan
Print Features
Document Printing, Photo Printing, Wireless Printing2, Mobile Device Printing3, Business Card Printing, Greeting Card
Printing, Label Printing, Double-sided Matte Paper Support, Auto Duplex Printing
Printing Capability
Single Sided (Simplex/Duplex) Printing
Print Speed (ESAT)
Black Document (Letter) Simplex: Approx. 15.0 ipm10
Color Document (Letter) Simplex: Approx. 10.0 ipm10
Color Document (Letter) Simplex: Approx. 10.0 ipm10
Print Resolution
Up to 4800 x 1200 dpi11
Number of Nozzles
Color (C/M): 1536 x 2 Y: 512 / Black (PGBK/BK/GY): 1024 x 3 / Total: 6,656
Media Handling

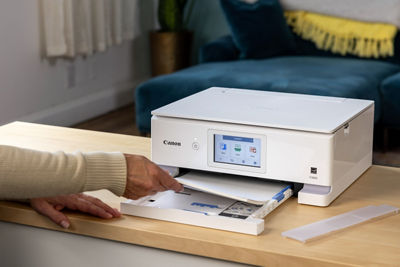

Cassette: 100 sheets

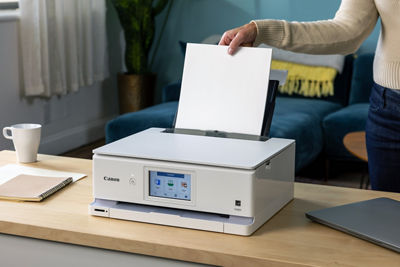

Rear Tray: 100 sheets
Multi-purpose Tray: 1 sheet (Manual Bypass)
Rear Tray: 100 sheets
Multi-purpose Tray: 1 sheet (Manual Bypass)
Supported Paper / Media Sizes
Rear Tray: LTR, Legal, A4, A5, B5, 4” x 6”, 5” x 7”, 7” x 10”, 8” x 10”, Square 3.5” x 3.5”, 5” x 5”
Custom Size: 2.2” - 8.5” / Length: 3.5” - 26.6”
Cassette: LTR, A4, A5, B5
Custom Size: 2.2” - 8.5” / Length: 3.5” - 26.6”
Cassette: LTR, A4, A5, B5
Supported Borderless Printing
A4, B5, LTR, 4" x 6", 5" x 7", 7" x 10", 8" x 10", Card Size (3.6" x 2.2"), Square (3.5" x 3.5"), Square (5" x 5")8
Canon Paper / Media Compatibility
Plain: Plain Paper, Canon High Resolution Paper; Glossy: Photo Paper Plus Glossy II, Photo Paper Glossy, Photo Paper
Pro Platinum; Semi-Gloss: Photo Paper Plus Semi-Gloss, Photo Paper Pro Luster; Matte: Matte Photo Paper, Doublesided
Matte Paper; Magnetic Photo Paper, Restickable Photo Paper; Other (non-Canon): Cardstock, Greeting Card,
U.S. #10 Envelopes, Recycled paper and Chlorine-free paper can be used
Supported Media Thickness / Weight
Cassette: Plain Paper: 64 - 105 g/m2
Rear Tray: Plain Paper: 64 - 105 g/m2 OR Canon Paper: Max. approx. 265g/m2 (Canon Photo Paper Plus Glossy II)
Rear Tray: Plain Paper: 64 - 105 g/m2 OR Canon Paper: Max. approx. 265g/m2 (Canon Photo Paper Plus Glossy II)
Copy
Copy Features
4-on-1 / 2-on-1 Copy, Borderless3 Copy, Document Copy, Fit-to-Page, Frame Erase Copy (Flatbed Only), ID Card Copy,
Auto Exposure Copy, Multiple Copy (Up To 99 Pages), Photo Copy, Preset Copy Ratios, Reduction / Zoom Copy (25%
- 400%), Standard Copy
Copy Speed (ESAT)
ESAT approx 7.0 ipm / FCOT approx 14.0 sec10
Maximum Document Size
Flatbed: Letter / A4
Scan
Scan Features
Save to PC, Attach to E-mail, Multi-Page PDF
Scanner Type
Flatbed
Scanning Method
Contact Image Sensor (CIS)
Scanning Resolution
2400 x 4800 dpi (Optical)12
Maximum Color Scanning Bit Depth
Grayscale: 8-bit
Color: 8-bit Per Color
Color: 8-bit Per Color
Maximum Document Size
Flatbed: 8.5” x 11.7” (Letter / A4)

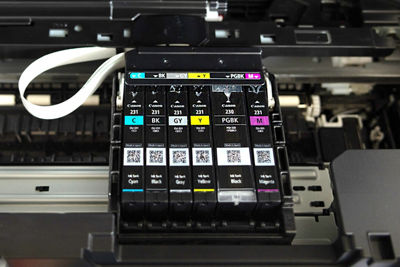

Ink Information
Ink Type

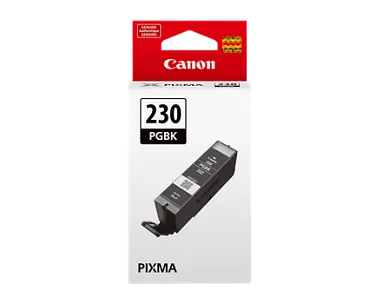

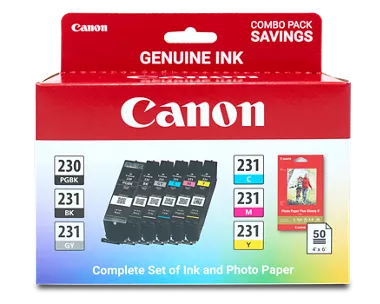

PG-230 Pigment Black Ink, CL-231 Color Ink
Ink Cartridges & Fill Volume
18.5 (Black) / 8.2 ML (Color)
Page Yield
400 (Black) / 500 (Color)
Connectivity & Software / Apps
Connectivity Options
Hi-Speed USB
Wi-Fi® (Wireless LAN, 2.4/5 GHz, IIEEE 802.11b/g/n/a/ac)2
Wireless Information
Standard: IEEE 802.11b/g/n/a/ac
Security: WPA-PSK (AES), WPA2-PSK (AES), WPA3-SAE (AES)
Wireless LAN Frequency Band(s): 2.4 GHz / 5 GHz
Wireless Direct Connection Capable/ Wireless Connect1,2 Capable: Yes
Security: WPA-PSK (AES), WPA2-PSK (AES), WPA3-SAE (AES)
Wireless LAN Frequency Band(s): 2.4 GHz / 5 GHz
Wireless Direct Connection Capable/ Wireless Connect1,2 Capable: Yes
OS Compatibility
Windows13 Windows® 11, Windows® 10, Windows® 8.1, Windows® 7 SP1
Mac14 macOS v11.7.6 - 14
Mobile Operating Systems15 iOS, iPadOS, Android
Chromebook Compatible16 Yes
Smart Assistant Support Amazon Alexa
Mobile Printing Solutions and Apps (iOS / Android)
AirPrint®3, Mopria® Print Service4, Canon PRINT app6, EasyPhotoPrint Editor App17, Canon Print Service(Android)18, PIXMA Cloud Link4, Creative Park App19, Easy Layout Editor
Software (Windows / Mac)13,14
PIXMA TS8820 Driver, Easy-PhotoPrint Editor Software17, PosterArtist Online Version7, Canon Inkjet Smart Connect
Mac14 macOS v11.7.6 - 14
Mobile Operating Systems15 iOS, iPadOS, Android
Chromebook Compatible16 Yes
Smart Assistant Support Amazon Alexa
Mobile Printing Solutions and Apps (iOS / Android)
AirPrint®3, Mopria® Print Service4, Canon PRINT app6, EasyPhotoPrint Editor App17, Canon Print Service(Android)18, PIXMA Cloud Link4, Creative Park App19, Easy Layout Editor
Software (Windows / Mac)13,14
PIXMA TS8820 Driver, Easy-PhotoPrint Editor Software17, PosterArtist Online Version7, Canon Inkjet Smart Connect
General
General Features
Auto Power On/Off, Print/Scan/Copy, Quiet Mode, Wireless Direct Connection, Wireless Connect2, Auto Paper Width Detection
Display
4.3” Color Touch LCD
Supported Languages
33 Supported Languages: Japanese, English (mm & inch), German, French, Italian, Spanish,
Portuguese, Dutch, Danish, Norwegian, Swedish, Finnish, Russian, Ukrainian, Polish, Czech,
Slovenian, Hungarian, Slovakian, Croatian, Romanian, Bulgarian, Turkey, Greek, Estonian, Latvian,
Lithuanian, Simplified Chinese, Korean, Traditional Chinese, Thai, Indonesia, Vietnamese
Power Information
Energy Efficiency: Rated EPEAT Silver, ENERGY STAR® Certified20
Auto Power On / Off Capable: Yes
Input Voltage: AC 100 – 240 V, 50 / 60 Hz
Power Consumption: 27W (1.1W Standby / 0.1W Off)
TEC (Typical Electricity Consumption): N/A
Auto Power On / Off Capable: Yes
Input Voltage: AC 100 – 240 V, 50 / 60 Hz
Power Consumption: 27W (1.1W Standby / 0.1W Off)
TEC (Typical Electricity Consumption): N/A
Sound Management
Quiet Mode: Available
Noise Level: Approx. 44.5 dB(A) (Plain Paper)
Noise Level: Approx. 44.5 dB(A) (Plain Paper)
Operating Environment
Operating Temperature: 41° - 95° F (5° - 35° C)
Operating Humidity: 10 - 90% RH
Operating Humidity: 10 - 90% RH
Printer Dimensions (Closed)
14.7” x 13.6” x 5.6” (WxDxH)
Printer Dimensions (Trays open)
14.7” x 25.7” x 11.9” (WxDxH)
Printer Weight
Approx. 14.5 lbs
Printer Box Dimensions@999sup>20@999/sup>
17.6” (L) x 8.4” (W) x 19.1” (H)
Printer Box Weight
19.8 lbs.
Reviews
Product Support
Get started with these quick links.
Product Disclaimer
Specifications are subject to change without notice. All viewscreen and output images are simulated.
- Requires a smart device with the Canon PRINT app installed and connected to the desired active wireless network to complete cableless setup.
- Wireless printing and scanning requires a working network with wireless 802.11b/g/n/a/ac capability, operating at 2.4GHz or 5.0GHz. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.
- AirPrint functionality requires a compatible iPad, iPhone, or iPod Touch device running iOS 7.0 or later, and an AirPrint-enabled printer connected to the same network as your iOS device. A printer connected to the USB port of your Mac, PC, AirPort Base station, or Time Capsule is not supported.
- Requires AndroidTM mobile device with Android 4.4 operating system or later with the Mopria Print Service pre-loaded with that device and the compatible PIXMA printer on the same wireless network. The Mopria experience is also available on Android 4.4 or later mobile devices with a download of the Mopria Print Service from Google Play.

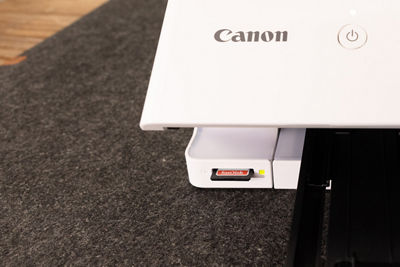

- Compatible memory cards include SD Card and SDHC Card. The following can be used with the addition of a special adapter sold separately: miniSD Card, miniSDHC Card, microSD Card, microSDHC Card and microSDXC Card. Supported File Formats include: JPEG and TIFF (Exif-compliant) taken by DCF(Ver.1.0/2.0) compliant digital cameras. (Exif ver2.2/2.21/2.3 compliant).
- Requires an Internet connection and the Canon PRINT app, available for free on the App Store and at Google Play. Compatible with iPad, iPhone 3GS or later, and iPod touch 3rd generation or later devices running iOS 12.0 or later, and Android™ mobile devices running Android 4.4 or later. Your device must be connected to the same working network with wireless 802.11 b/g/n/a/ac capability as your printer. Requires a compatible social media account and is subject to that social media account’s Terms of Service. Certain exceptions may apply.
- PosterArtist online version requires a personal computer with Internet access and a compatible Canon printer. The service is not available on some operating systems or browsers. See usa.canon.com/ PosterArtist for details.
- Paper types NOT supported for borderless printing are as follows: Envelope, High Resolution Paper, T-Shirt Transfer and Photo Stickers. The maximum borderless printing size is 8.5”x11”.
- Warranty programs are subject to certain conditions and restrictions. See www.usa.canon.com/support for details.
- Document print speeds are the averages of ESAT in Office Category Test for the default simplex mode, ISO/IEC 24734. Photo print speed is based on the default setting using ISO/JIS-SCID N2 on Photo Paper Plus Glossy II and does not take into account data processing time on host computer. Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc. Copy speeds are the average of sFCOT and sESAT, ISO/IEC 29183. Copy speed may vary depending on document complexity, copy mode, page coverage, type of paper used etc. and does not take into account warming up time. See www.usa.canon.com/ipm for additional details.
- Resolution may vary based on printer driver setting. Color ink droplets can be placed with a horizontal pitch of 1/4800 inch at minimum.
- Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard.
- Operation can only be guaranteed on a PC with pre-installed Windows 11, Windows 8.1, Windows 7 SP1.
- Internet Connection required during software installation. For full compatibility macOS v10.12.1 or later is recommended.
- Some functions may not be available with these Operating Systems. Please refer to manual or Canon website for details.
- Functions and features may vary by printer model. Scanning requires Chrome OS 89 or later.
- The Easy-PhotoPrint Editor software requires an Internet connection and is compatible with the following operating systems; Microsoft Windows 10 (64-bit/32-bit), Microsoft Windows 8.1 (64-bit/32-bit), Microsoft Windows 7 SP1 (64-bit/32-bit), macOS High Sierra v10.13, macOS Sierra v10.12, Mac OS X El Capitan v10.11 and Mac OS X El Capitan v10.10.5. Minimum Windows and macOS/Mac OS X requirements are: 2GB of RAM and a monitor with 1024x768 resolution. The Easy-PhotoPrint Editor mobile application requires an Internet connection and the Easy-PhotoPrint Editor app v1.1.0, available for free on the App Store and at Google Play. Compatible with iPad Air2 (2nd Generation), iPad Mini 4 and iPhone 6s or later devices running iOS 10 or later, and Android mobile devices running Android 5.x or later. Certain exceptions may apply. The following file formats are supported: JPEG, PNG, HEIF (devices running iOS 11 and mac OS v10.13 or later), DLP save data, Poster Artist export data, EasyPhoto+ export data, Easy- PhotoPrint Editor export data.
- Canon Print Service is a print plug-in for Android smart devices, which enables printing from Android v4.4 - v5.0 devices to many Canon printers via a Wi-Fi network. The plug-in does not work as a standalone app. Available for free at Google Play.
- Requires an Internet connection and the Creative Park app, available for free on the App Store and at Google Play. Requires an active ‘Canon ID’ available for free, and subject to ‘Canon ID’ Terms of Service. Visit myid.canon for more information. Certain exceptions may apply.
- As an ENERGY STAR® Partner, Canon U.S.A., Inc. has certified this printer as meeting the ENERGY STAR energy efficiency criteria through an EPA-recognized certification body.
- Product box dimensions measured in horizontal box configuration.
