PRISMAelevate XL Pro
- Integrated software for high-quality elevated prints

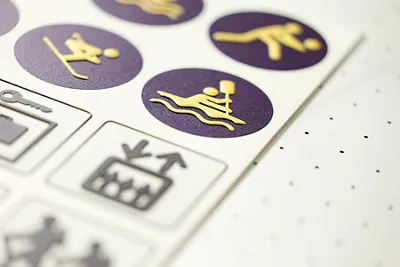

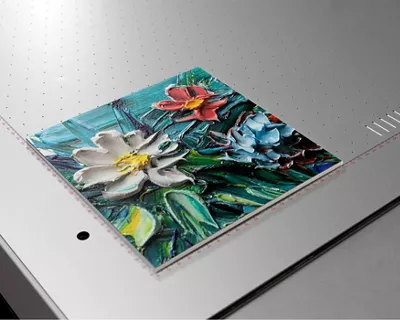

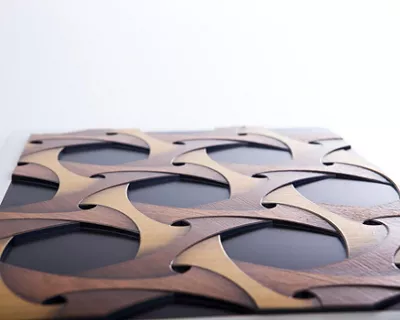

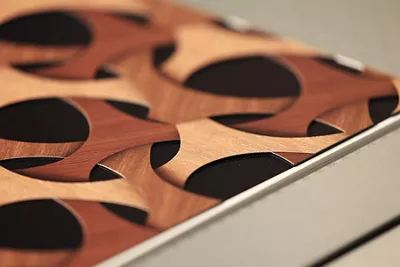

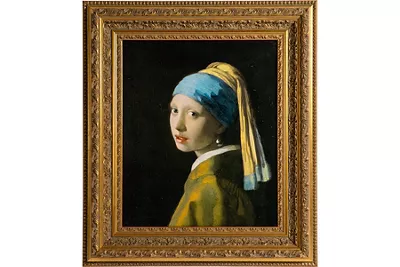

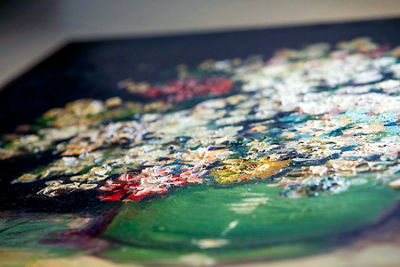

- Create textured applications like metallic embossing, raised lettering (ADA/wayfinding), fine art, fine art reproduction, premium packaging, décor, and signage
- HeightIQ: Canon’s AI-powered tool generates 2D images into height maps for 3D printing
- Supports elevations up to 4 mm
- Works with rigid substrates such as aluminum composite and foil boards
- Helps Print Service Providers enter new markets
- 3D previews show accurate onscreen test prints to minimize media waste
From Flat to Expressive
Advanced Elevated Printing for Arizona Printers

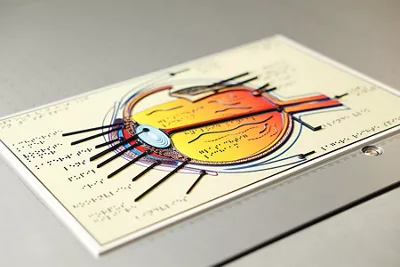

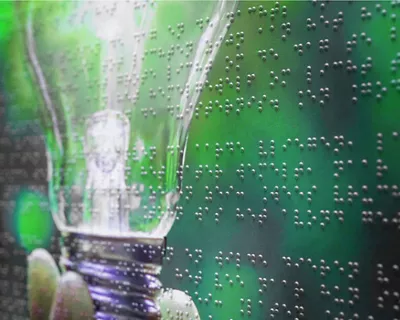

Take your prints beyond flat with PRISMAelevate XL, the ultimate solution for creating elevated print effects up to 4 mm. Perfect for textured graphics, metallic embossing, raised lettering for ADA and wayfinding signage, and fine art reproductions, this software unlocks premium possibilities for luxury packaging, interior décor and high-value signage. Pair with rigid substrates like aluminum composite and foil-faced boards for unmatched depth and durability. Elevate your creativity—explore limitless design potential with PRISMAelevate XL.
HeightIQ
AI-Powered Height Map Creation for Elevated Printing

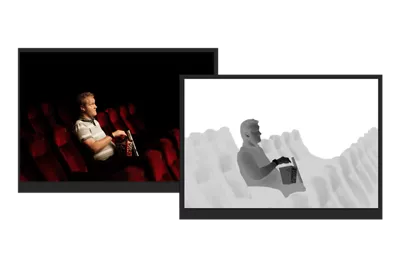

HeightIQ is Canon’s innovative, AI-powered software utility designed to transform 2D images into precise height maps for 3D print applications using PRISMAelevate XL. This breakthrough solution helps designers and Print Service Providers (PSPs) streamline workflows, reduce production time, and simplify the creation of elevated print projects.
Download the brochure to learn more about HeightIQ.
What is Elevated Print?
Transform 2D Designs into 3D Experiences

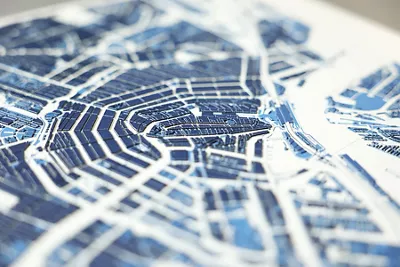

Elevated Printing is an advanced printing technology that adds depth, texture, and layered detail to your projects, turning flat designs into dynamic, multi-dimensional creations. Techniques such as tactile printing, textured printing, and micro-textured printing deliver visually stunning, touchable results that make your prints stand out. With Canon’s industry-leading Colorado and Arizona printers, Print Service Providers can achieve exceptional elevated printing for signage, fine art, and premium décor applications.
Explore Elevated Printing today and take your designs and applications to the next level!
Features
Here’s what PRISMAelevate XL workflow can provide:
- Create tactile, textured effects up to 4 mm using color and/or UV-curable varnish inks
- Design with ease using Adobe Illustrator and Photoshop extensions in a familiar workflow
- HeightIQ: Canon’s AI-powered tool converts 2D images into precise height maps for 3D printing
- Preview in 3D to ensure accuracy and reduce media waste—viewable by both PSPs and designers
- Export a single, print-ready PDF containing the graphic image and height map
- Seamless printing—RIP with ONYX Thrive and print directly on Arizona series devices
- No manual file manipulation—ALPS Engine auto-generates multi-layer batch files with correct print sequence
- Sharp, vibrant results—colors printed at optimal elevation for each layer
- Automatic Z-axis adjustment for consistent image quality without operator intervention

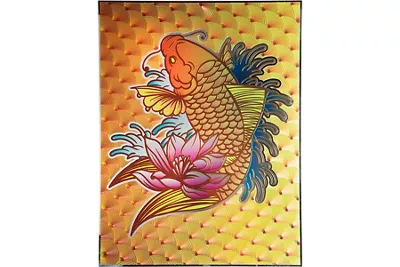

- Create lenticular effects easily—use Photoshop scripts for Image Flip applications (1–1.5 mm height) without a lens
- Differentiate your business—PRISMAelevate XL unlocks high-value applications
