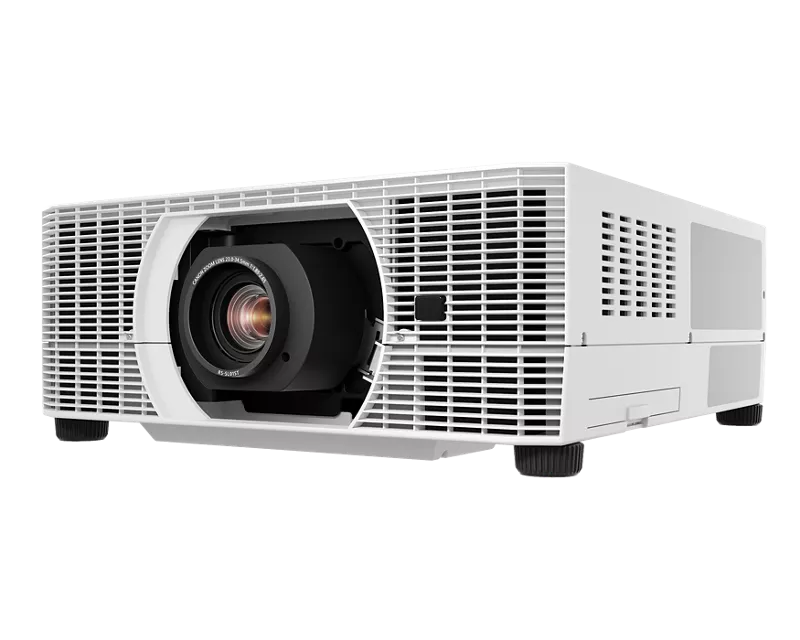

REALiS WUX5800Z

SKU
WUX5800Z
As low as $0.00
Out Of Stock
  • Up to 5800 Lumens and 4000:1*3 Contrast Ratio Delivers Bright, Engaging Images
  • Native WUXGA Resolution (1920 x 1200)
  • LCOS Technology with AISYS-enhancement
  • Multiple Image Modes including DICOM Simulation Mode*
  • Image Adjustment and Advanced Adjustment Options for Optimal Image Quality Reproduction
  • Motion Blur Reduction*
Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

Add to Wish List

Technical Specifications



Main Unit Spec

Projector Specifications


Imaging Device
0.71", LCOS Panel x3
Native Aspect Ratio
16:10
Native Resolution
1920 x 1200 (WUXGA)
Brightness
5800/4060/2900 lm *1*2*3*4
Uniformity
90% *3
Contrast Ratio
4000:1 *3*8 (all white: all black)
Digital Keystone
V: ±20°, H: ±20°
Image Size
40" - 600" *3



Optics


F Number, Focal Length
F1.89 - F2.65 *3
Zoom
1.5x *3
Focus
Powered *3
Throw Ratio
1.49 - 2.24:1 *3
Lens Shift
V:55% / -15%, H:10% / -10% *3*6



Image Adjustments


Image Modes
Standard, Presentation, Dynamic, Vivid Photo, Video, Cinema, Photo/sRGB, DICOM SIM, User 1 ~ 5
Color Adjustment
Color Level, Color Balance, Color Temperature, Gain (R,G,B), Offset (R,G,B)
Screen Color Correction
Normal / Greenboard / Adjust (custom)
Mounting
360°
Adjustable Feet
4x, Extension Length: 14.6 mm, Maximum angle of inclination: ± 1.8°



Image Signals


Scanning Frequency
H: 15.625kHz ~ 75kHz, V: 24Hz ~ 60Hz
HDMI (Digital PC Input)
WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
HDMI (Digital Video Input)
1080P, 1080i, 720P, 576p
DVI-I (Digital PC Input)
WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
DVI-I (Analog PC Input)
WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
Display Port
1080P, 1080I, 720P, 576p, 576i, 480p, 480i *9
Mini Dsub15 (Analog PC Input)
WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
Mini Dsub15 (Component Video Input)
1080P, 1080I, 720P, 576p, 576i, 480p, 480i
RJ-45 (HDBaseT Input)
Image, Audio, Control, Network; Equivalent to image and audio of HDMI/DP
RJ-45 (Network Connection)
100BASE-TX, NMPJ screen transfer
USB Type A
JPEG still image (10912x8640)(Maximum pixels)
Dot Clock
162MHz (maximum)



Terminals


DVI-I
Digital PC/ Analog PC Input
HDMI
Digital PC/Digital Video Input
Display Port
Digital PC/Digital Video Input
Mini Dsub15
Analog PC2/Component Video Input
Mini Jack
Stereo Audio
Stereo Audio
Wired Remote Control Connection
Dsub9
RS-232 Connection
USB Type A
USB Connection
WiFi
IEEE 802.11b/g/n
RJ-45
HDBaseT/Network



Remote Control


Wireless Remote
Infrared



Built-In Sound


Internal Speaker
1W



Light Source


Type
Blue Laser Diode, Yellow Phosphor
Life
Aprox. 20,000 *5



Ratings


Fan Noise
35/32/29 dB *1
Power Consumption
485 W
Standby Power Consumption
1.6 ~.28 W *5
Power Voltage
AC100 - 240V : 50/60 Hz
Heat Dissipation
Up to 1655 BTU/h
Operating Temperature
32°F - 104°F (0°C - 40°C), 20%RH - 85%RH
Storage Temperature
-4°F - 140°F (-20°C - 60°C)
Weight
37.4 lbs. (17kg) approx.
Dimensions (W x H x D)
W: 19" (480mm), H: 7.7" (196mm), D: 21.4" (545 mm)



Notes


*1: Normal / Quiet 1 / Quiet 2
*2: The luminance values for modes other than Normal are calculated and are not guaranteed as specification
*3: When standard RS-SL01ST projection lens used
*4: When image mode is set to Presentation
*5: This value does not guarantee the service life
*6: When lens shift mode set to "NORMAL"
*7: Varies when network and other settings applied
*8: When the iris function is set to "Close 9"
*9: Supports image signals equivalent to the HDMI terminal



Product Disclaimer

*1 This is an estimated value, actual hours may vary depending on usage and environment. This is not a guarantee of the life span of individual laser diodes.

*2 Air vents should not be blocked. See User Manual for recommended installation.

*3 All white: all black. When standard RS-SL01ST projection lens used. When the iris function is set to "Close 9."

*4 This projector includes a DICOM Simulation Mode. It has not been cleared or approved for medical diagnosis and should not be used for these purposes.

*5 When motion blur reduction is activated, brightness will be affected.

*6 Programs and service offerings subject to change without notice. For complete details, including terms and conditions for each program, or to learn more about Service and Support offerings for Canon professional projectors, please contact a Canon sales rep or call 1-800-OK-CANON.
