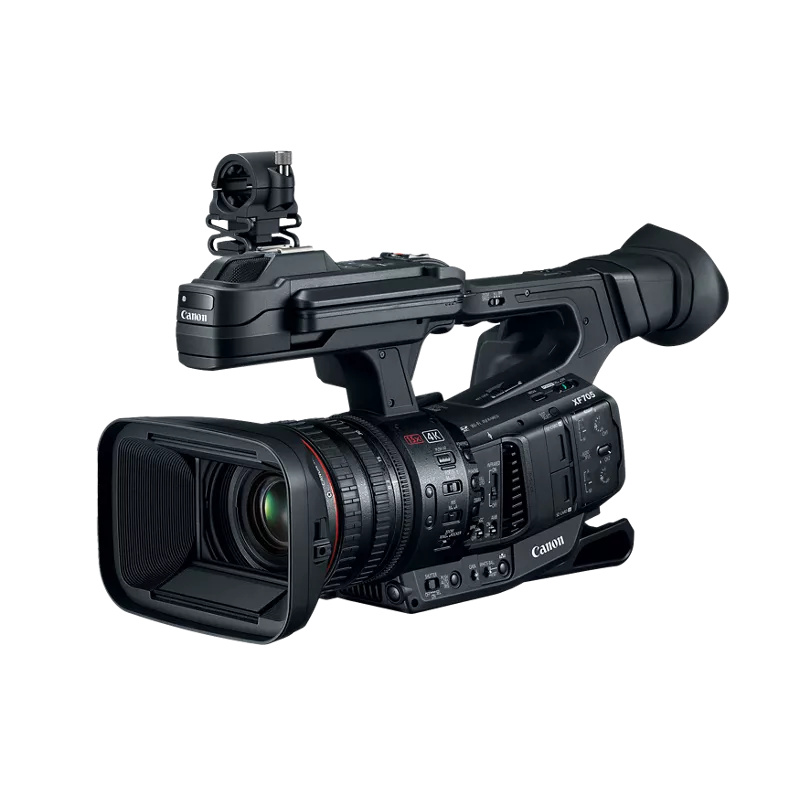

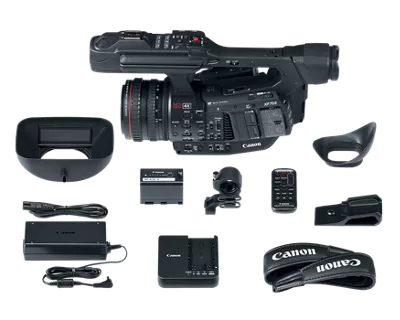

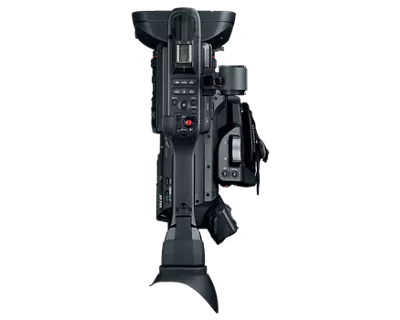

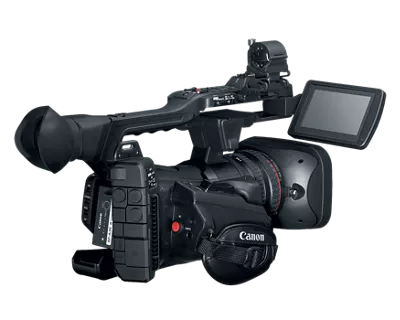

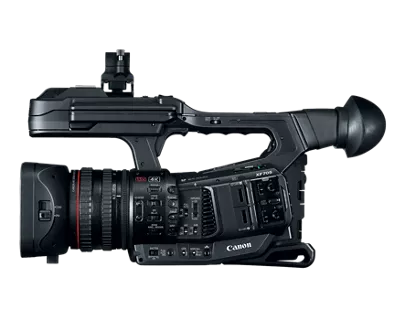

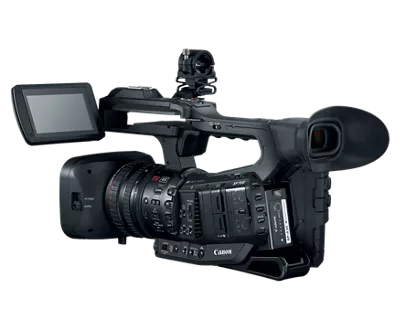

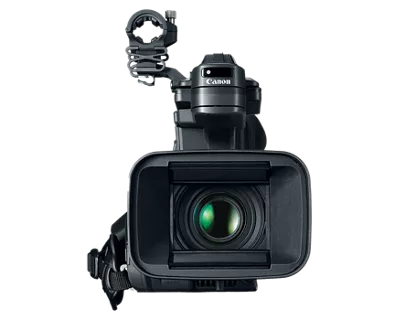

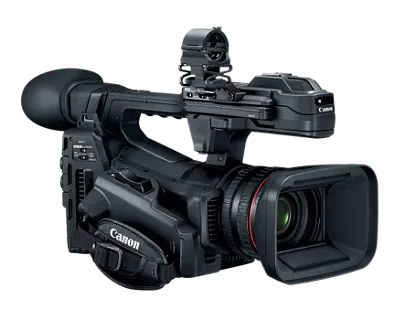

Refurbished XF705

SKU
XF705RFD
As low as $5,999.00
In Stock
  • 1.0-inch 4K UHD CMOS Image Sensor
  • 15x Optical 4K UHD Zoom Lens with 5-Axis Optical Image Stabilization
  • Dual DIGIC DV 6 Image Processors
  • 4K UHD 59.94p 4:2:2 10-bit Recording
  • Dual Pixel CMOS AF
  • HDR Recording with HLG/PQ Shooting Assist
  • Canon Log 3
  • 4.0-inch Rotating Touch Panel LCD and 0.46-inch OLED Electronic Viewfinder
Need to order more than 10? Learn More
Need help making a purchase? Contact a Sales Expert at 800-385-2155

Return Policy

OVERVIEW

The XF705 Professional Camcorder offers an outstanding combination of 4K UHD image quality, features and functionality in a compact, portable design ideally suited for news gathering, outdoor events, sports and documentary production.

Featuring a 1.0-inch 4K UHD CMOS image sensor and dual DIGIC DV 6 Image Processors, the XF705 can record 4K UHD video up to 60p, as well as slow motion recording up to 120fps in Full HD. The XF705 is also the first Canon camcorder to adopt the H.265/HEVC codec, which improves the efficiency of 4K data handling. The XF705 supports the Hybrid Log Gamma (HLG) and Perceptual Quantization (PQ) HDR formats, which offer a much greater range from black to pure white, and an HLG/PQ shooting assist mode helps users record HDR video using their usual shooting methods. A 15x optical zoom lens incorporates a 5-axis optical image stabilization system and maintains 4K UHD quality throughout the entire zoom range, while the camcorder's Dual Pixel CMOS AF helps facilitate fast and accurate autofocus.

The XF705 includes an HDMI 2.0 terminal with 4K UHD output support, two XLR terminals with independent audio level control and a 12G-SDI output - which features four times the transmission speed of 3G-SDI - helping to facilitate seamless integration into professional 4K UHD workflows. An adjustable 4.0-inch touch panel LCD monitor and a built-in 0.46-inch electronic viewfinder enhance usability, helping you to shoot in a variety of shooting situations. Canon Log 3 provides post-production flexibility while Live IP Streaming capability furthers broadcast possibilities. Designed to meet the needs of professionals, the XF705 offers a wide range of recording opportunities.

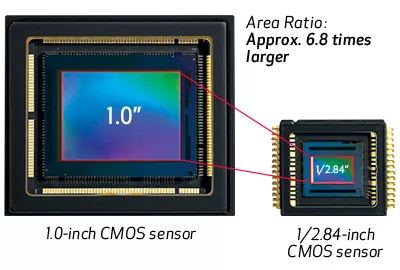

1.0-inch 4K UHD CMOS Image Sensor

The XF705 Professional Camcorder features a Canon 1.0-inch 4K UHD CMOS image sensor capable of 4K UHD video capture at 60p and slow motion recording up to 120fps in Full HD, making the camcorder a strong contender for professional productions, ENG applications and more.

1.0-inch 4K UHD CMOS Image Sensor

High Sensitivity / Low Noise

The XF705 camcorder's 1.0-inch sensor allows for larger photosites compared to smaller-sized sensors, resulting in improved images with less noise in low-light situations. The larger sensor also exhibits a shallower depth of field at large apertures, providing greater depth of field control and creative options. The camcorder's DIGIC DV 6 imaging engine further enhances the high sensitivity and low noise performance of the camcorder.

XF705 camcorder example of child looking at cake

*With Custom Picture Preset Normal 1: BT.709, full auto mode, shutter speed 1/30 sec.

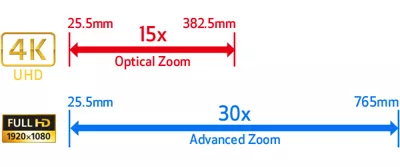

15x Optical 4K UHD Zoom Lens

The XF705 Professional Camcorder incorporates a Canon 4K video lens that leverages proprietary Canon optical technologies derived from years of experience in developing Cinema, Broadcast and EF-series lenses.

Inspired by the same high level of optical precision used in Canon broadcast and photographic lenses, the Canon XF705 camcorder incorporates a Genuine Canon 15x optical zoom lens that maintains 4K UHD quality throughout the entire zoom range, and offers a focal length range of 25.5 to 382.5mm (35mm film equivalent). Users can get up to 30x Advanced Zoom when shooting in Full HD, which utilizes the XF705 camcorder's full 4K UHD sensor to extend the zoom range while maintaining image quality.

15x Optical 4K UHD Zoom Lens with 5-Axis Optical Image Stabilization Example

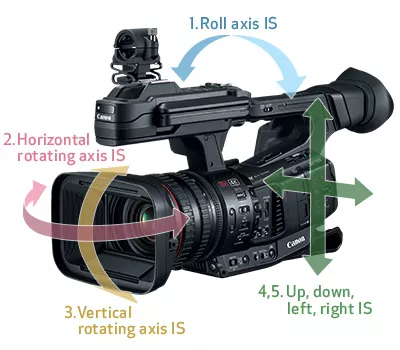

5-Axis Optical Image Stabilization

The XF705 camcorder also incorporates a 5-axis Optical Image Stabilization (IS) system, featuring three modes of image stabilization: Standard, Dynamic and Powered. In Standard IS mode, the stabilizing angle is made constant, independent of the zoom magnification. Dynamic IS mode extends the stabilizing range at the wide end of the focal length, allowing for image stabilization when shooting while walking. Powered IS mode helps facilitate stabilization in the low frequency range at the tele end, and should be used exclusively for fixed-point shooting which does not involve panning.

5-Axis Optical Image Stabilization camera example

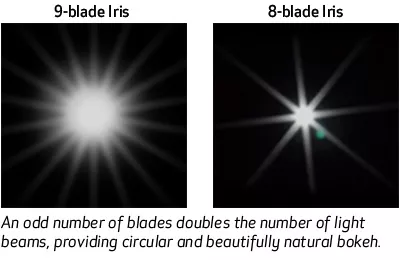

9-blade Iris

For enhanced versatility and durability, the lens features a 9-blade iris, producing artistic and beautiful out-of-focus areas or "bokeh." The 9 blades allow for attractive circular blurring in out-of-focus regions, while the use of an odd number of blades helps reduce flaring of specular highlights.

9-blade Iris example

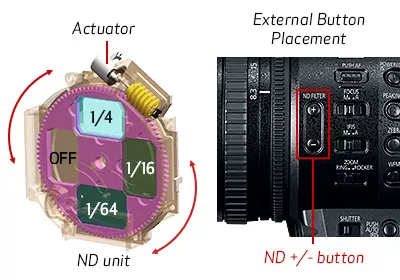

Independent 3-Density ND Filter

A compact and independent internal 3-density ND filter, using a turret (circular) mechanism, allows the user to select from three densities (ND 1/4, ND 1/16 and ND 1/64) or turn the feature off if needed. Density can be adjusted using the dedicated external buttons.

Independent 3-Density ND Filter example

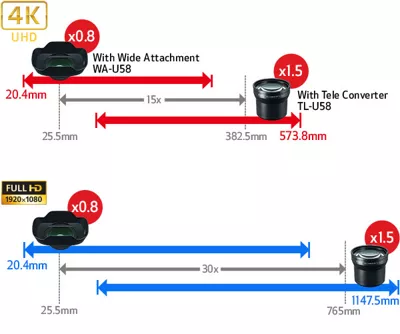

Optional Wide and Tele Accessories

The optional Wide Attachment WA-U58 and the Tele Converter TL-U58 accessories expand the creative capabilities of the XF705 camcorder.

The Wide Attachment WA-U58 offers a 0.8x wider angle of view that enables users to capture more of a scene, especially when indoors or in tight spaces, to lend better perspective to your video narrative. The Tele Converter TL-U58 provides extended 1.5x longer telephoto range for the XF705 camcorder's fixed lens, allowing distant subjects to be captured with brilliant clarity.

Optional Wide and Tele Accessories example

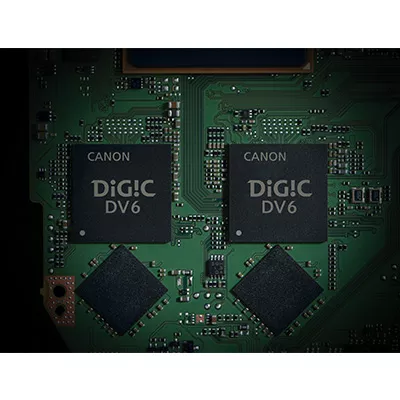

Dual DIGIC DV 6 Image Processors

The XF705 Professional Camcorder incorporates Canon's dual DIGIC DV 6 Image Processors, which are integral in providing high image quality, advanced performance and convenient operability. This advanced core technology component provides the image-processing power and speed that enables features such as 4K UHD video acquisition, image stabilization, slow and fast motion recording and precise Dual Pixel CMOS AF.

Dual DIGIC DV 6 Image Processors example

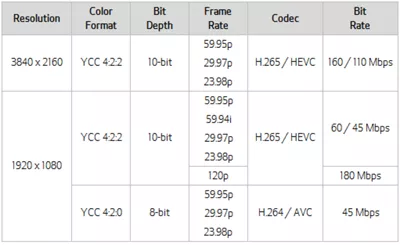

4K UHD 59.94p 4:2:2 10-bit Recording

The XF705 Professional Camcorder supports 4K UHD 59.94p 4:2:2 10-bit recording to support natural and realistic 4K video production.

4K UHD 59.94p 4:2:2 10-bit Recording

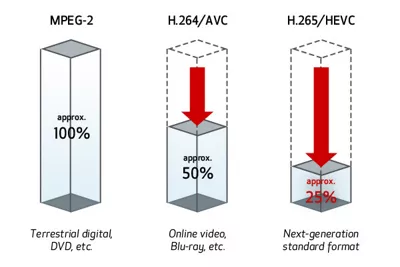

H.265/HEVC

The XF705 Professional Camcorder is the first Canon video camera that can record in H.265/HEVC, which offers a compression ratio of about 2x the mainstream coding technology of H.264/AVC – improving the efficiency of 4K data handling. By using XF-HEVC, which combines 4K UHD image quality with an extremely efficient compression standard, the XF705 can record many hours of content on versatile SD cards.

H.265/HEVC example

Internal Recording of Two HDR Formats

The XF705 Professional Camcorder records in the two most commonly used HDR formats, Hybrid Log Gamma (HLG) and Perceptual Quantization (PQ), which help ensure full color rendition and wide latitude with a much greater range from black to pure white.

HLG is best suited to live broadcast and live streaming events due to its internal gamma curve compatibility with conventional TVs, which helps to better handle relative luminance values. PQ is used for the color grading and mastering of content. This is a relatively new gamma curve based on human vision characteristics that handles luminance values of up to 10,000 cd/m2 with absolute luminance.

Internal Recording of Two HDR Formats Logos

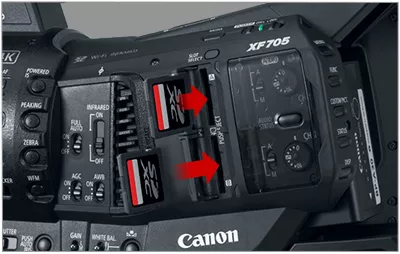

Dual SD Card Slots

Dual SD card slots allow for simultaneous or relay recording. Simultaneous recording allows you to record on both SD cards at the same time, so that you can use one as a backup. Relay recording allows uninterrupted recording from one card to the other when the first memory card becomes full.

Dual SD Card Slots Camera Example

Slow and Fast Motion Recording up to 120fps

The XF705 Professional Camcorder supports slow and fast motion recording, and can record in a different frame rate from playback for slow and fast motion effects. Slow motion recording of up to 120 fps (x0.2) in Full HD is supported, helping to create an emotionally moving and exciting style of video.

Slow and Fast Motion Recording up to 120fps Frame Rates Graph

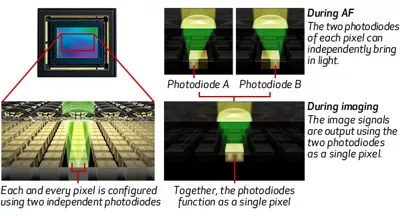

Dual Pixel CMOS AF

The XF705 Professional Camcorder features Dual Pixel CMOS AF, Canon's exclusively developed high-speed, high-precision autofocus technology. Dual Pixel CMOS AF assists not only with standard shooting, but also with 4K UHD 60p, Full HD 120p and other high-frame rate applications that require crisp frame-by-frame accuracy.

Each pixel in the camcorder's CMOS sensor is configured with two photodiodes. Two independent image signals can then be detected at each photosite. By implementing phase-difference AF, smooth focusing is accomplished with much higher speed and accuracy than was possible with previous technologies.

CMOS sensor example

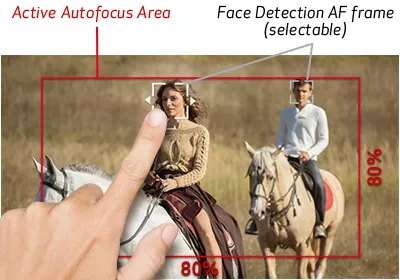

Dual Pixel CMOS AF with Touch Focus

The XF705 camcorder's 4.0-inch touch panel LCD enables smooth, intuitive operation of Dual Pixel CMOS AF. This autofocus technology can be employed when shooting a scene by tapping a finger on the desired area of the scene you want the lens to focus on. Dual Pixel CMOS AF offers continuous AF within a horizontal and vertical range of the screen of approximately 80%. It also provides highly accurate Face Detection AF, which assists during single-operator shooting. Users can also use the touch panel to move the autofocus target manually.

Dual Pixel CMOS AF with Touch Focus Frame Example

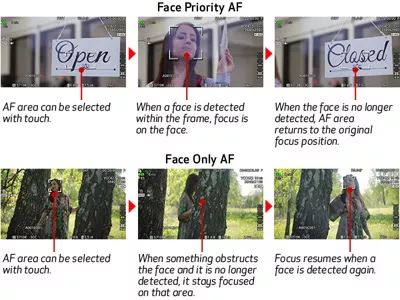

Face Detection AF

The Face Detection AF feature has two modes – Face Priority AF and Face Only AF – that offer users flexibility in how they choose their autofocus for a subject or scene.

Face Detection AF Example

Dual Pixel Focus Guide

Utilizing information from Dual Pixel CMOS AF, Dual Pixel Focus Guide helps achieve precise focus by displaying focus assist information on the screen. It employs a truly innovative user interface that enables the user to see if they are focused in front of or behind the subject through visual observation, and allows quick and accurate manual focus to be achieved. This helps simplify the focusing process when shooting in 4K UHD, which requires strict focus accuracy.

HDR Recording with HLG/PQ Shooting Assist

The XF705 Professional Camcorder supports HDR recording in Hybrid Log Gamma (HLG) and Perceptual Quantization (PQ) formats. This helps ensure full color rendition and wide latitude with a much greater range from black to pure white – ideal for the delivery of live streams, broadcasts and post-production projects.

The XF705 also features a variety of assist functions to support auto/manual exposure control during HDR shooting, allowing users to record HDR video using their usual shooting methods.

LCD Display

A built-in, high-luminance LCD display offers the ability to closely monitor HDR video capture during shooting. A viewing assist function lets users check images recorded in HLG and PQ on the SDR viewfinder.

Auto Iris / Auto Exposure

An Auto Iris feature controls the iris based on spotlight metering or standard metering (metering at the center of the screen), and automatically makes adjustments so that bright areas are not too bright. Shift adjustment with the proper exposure standard is also possible with the camcorder's Auto Exposure (AE) shift mode.

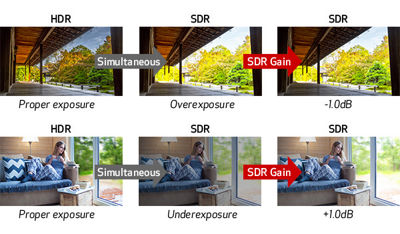

HDR->SDR Gain

The XF705 Professional Camcorder includes a helpful feature to allow shooters to adjust exposure levels (gain) during simultaneous HDR and SDR recording. SDR gain difference vs. HDR can be fine-tuned from -7.5dB to +7.5dB.

XF705 Exposure Example

When HDR video is shot at proper exposure outdoors, SDR may become too bright, so the brightness level can be adjusted using a negative gain. When HDR video is shot at the proper exposure indoors, SDR images may become too dark, so the brightness can be set to a positive gain.

HDR Video Example

Canon Log 3

Designed with creative post-processing in mind, Canon Log 3 is a gamma designed for simple grading at a deep level for toning up dark areas and adjusting color tone/gradation to make noise less noticeable. By shooting in Canon Log 3, users can manipulate the information that's recorded, from dark areas to highlights. This makes the range for color grading wider and enables video to be produced with generous latitude that couldn't be reproduced with video gammas. Simple previews can also be performed on-site with Look-Up Table (LUT) accuracy.

Canon Log 3 shooting can be especially effective for documentaries and other settings with drastic changes, along with outdoor and other locations where light conditions change frequently, or where monitoring setups may be insufficient.

Canon Log 3 Graph Example

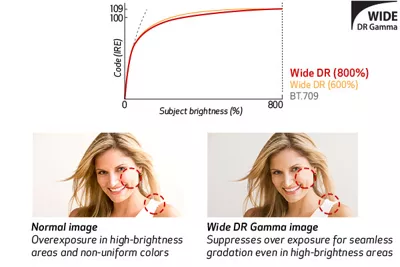

Wide DR Gamma (800%) Support

The XF705 Professional Camcorder supports Wide DR Gamma. For natural and realistic-looking image capture that faithfully represents the scene at hand, Wide DR Gamma achieves a wide dynamic range of 800% to produce almost seamless tone gradations, resulting in smooth detail and virtually no blown-out highlights.

Wide DR Gramma (800%) Support Example

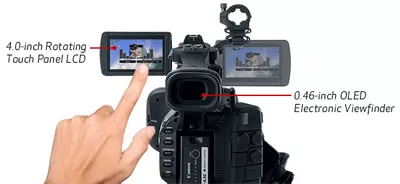

Rotating Touch Panel LCD and OLED Electronic Viewfinder

An adjustable 4.0-inch rotating touchscreen LCD monitor and a built-in 0.46-inch OLED electronic viewfinder enhance usability.

The monitor allows for on-camera monitoring of footage in real time and features a rotating design that brings flexibility and user preference to support 4K shooting, which demands strict focus accuracy. It rotates both left and right to support various shooting scenes, including walls and narrow spaces. The screen can be opened an additional 35° forward from the usual set position to prevent accidental shock or to allow the director to check a scene in the camcorder during shooting.

The OLED viewfinder displays approx. 1.23 million dots, allowing shooters to see bright parts in the image and dark shadow detail. The EVF can then be used to adjust parameters and camcorder settings accordingly.

4.0-inch Rotating Touch Panel LCD and 0.46-inch OLED Electronic Viewfinder Graph Example

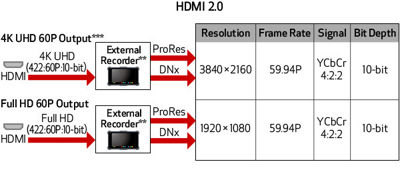

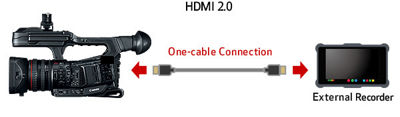

HDMI 2.0 Terminal with 4K UHD 60p Output Support


The XF705 Professional Camcorder features an HDMI 2.0 terminal that supports 4K UHD 60p output. The HDMI 2.0 terminal allows the camcorder to be connected to a standard external SSD/HDD recorder, enabling conversion to ProRes and DNx formats for efficient editing and storage.

HDMI 2.0 terminal example
HDMI 2.0 One cable connection example

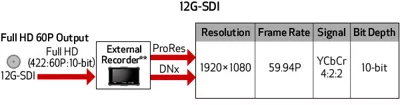

12G-SDI, Genlock SMPTE Time Code and Other Terminals

The XF705 Professional Camcorder features a 12G-SDI terminal with four times the transmission speed of 3G-SDI. Leveraging XF-HEVC (4:2:2 10-bit) and XF-AVC (4:2:0 8-bit) compression, the camcorder's 4K 59.94p output – which used to require four cables in 3G-SDI – can be delivered with just one cable. This means 4K can be handled with the same number of transmission cables as Full HD.

A 12G-SDI feed directly out of the XF705 and an external HDMI output facilitate easy connection to a 4K UHD-compatible or standard HD interlace video monitor.

12G-SDI Graph Example

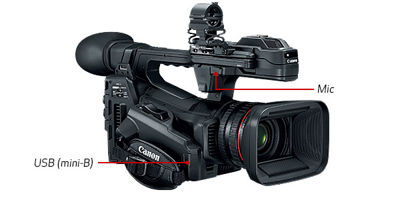

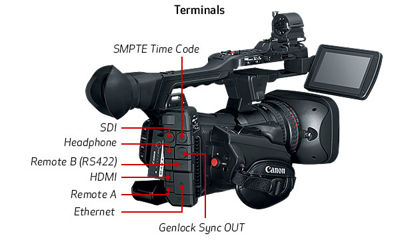

Other terminal connections that help streamline workflows include dedicated jacks for: headphone, mic, USB (mini-B), Remote A, Remote B (RS422), Ethernet, Genlock/Sync OUT and SMPTE Time Code.

Terminals Example
Continued Terminals Example

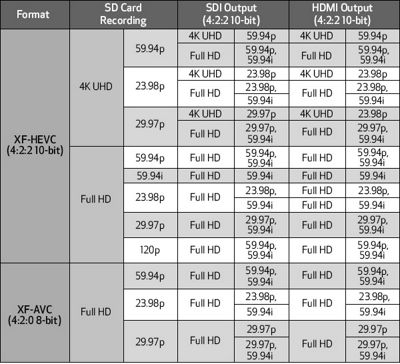

Terminals Graph Example

Live IP Streaming

The XF705 Professional Camcorder offers the ability to stream video live online using IP transmission in either the H.265/HEVC or H.264/AVC encoding format. Live H.265 streams (16Mbps at 59.94p) can be used to reliably distribute either 4K UHD or Full HD data efficiently to a variety of TV and social media platforms.

The livestream can be viewed directly from the camcorder using the on-board LCD monitor, sent to a standalone HEVC IP encoder or redirected to a 4K UHD monitor for a confidence check and public viewing. In addition, Live HDR data (Message/Mastering Display Color Volume) can be added in the H.265 stream if required to help improve picture quality.

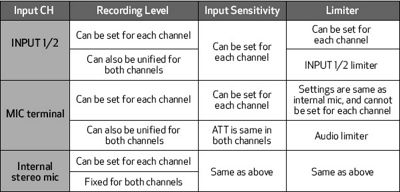

Flexible Audio Inputs with Linear PCM 4-channel Support

The XF705 Professional Camcorder offers a variety of ways to record high-quality linear PCM 4ch audio: through two XLR terminals, an internal stereo mini-jack mic terminal or from the camcorder's internal stereo mic. The on-board 4ch audio independent settings let users set recording levels, input sensitivity and limiters for each channel.

Flexible Audio Inputs Chart

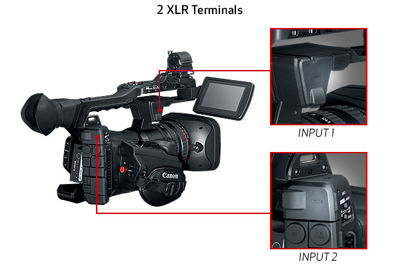

2 XLR Terminals

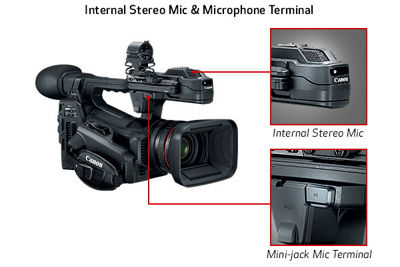

Internal Mic Terminals

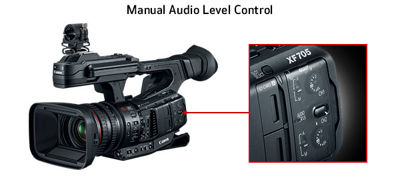

Maual Audio Level Control

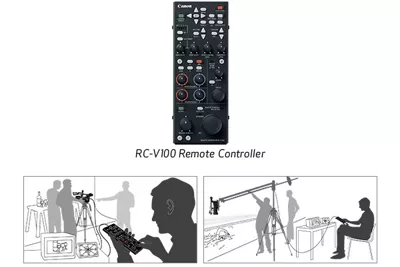

RC-V100 Remote Controller Support

The XF705 Professional Camcorder is compatible with Canon's optional RC-V100 Remote Controller, enabling image quality adjustments and other important operations to be set from a distance. The RC-V100 plugs into the XF705 through the remote terminal on the rear panel.

RC-V100 Remote Controller Example

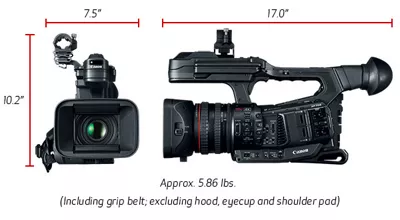

Compact, Lightweight and Ergonomic Design

The XF705 Professional Camcorder is compact and lightweight, making it especially useful for on-the-go Electronic News Gathering (ENG) and documentary production applications.

XF705 Prodcut Example of Design

Network Connections for FTP and Browser Remote

The XF705 Professional Camcorder offers both wired and wireless connectivity to enable recorded files to be shared and transmitted back to the station or home base via FTP for editing or live streaming.

The camcorder can also be accessed remotely from a typical web browser running on a laptop or a compatible smart device to control functions such as record start/stop, record mode and frame rate, AF/MF switching, focus/zoom settings and white balance mode*. Background transfer of video files via FTP links is also possible, enabling the latest news images, for example, to be distributed quickly over the Internet.

* Compatible with iOS® versions 9/10, Android™ smartphone and tablet versions 4.4/5.0/5.1/6.0.

Technical Specifications

Main Unit Specs

Reviews

How is your Canon product performing for you?

White Papers

File Name

White Paper XF705 FK UHD

Date

12.21.22

File Size

6.6 MB

File Name

XF705 IP Streaming Guide

Date

12.21.22

File Size

6.2 MB

File Name

Canon Log Gamma Curves

Date

12.21.22

File Size

0.8 MB

Brochures

File Name

Professional Camcorder Comparison Sheet 2023

Date

03.14.23

File Size

1.8 MB

File Name

XF705 Product Page

Date

12.21.22

File Size

4.9 MB

File Name

Professional_Camcorder_Comparison_Sheet 0821_110321.pdf

Date

12.21.22

File Size

3.9 MB

File Name

Anticounterfeit Brochure.pdf

Date

12.21.22

File Size

1.3 MB

Videos

Sort By:

Untitle Video

At a time when a global pandemic brought the entertainment industry to a screeching halt, a group of 5 companies came together with one goal in mind...THE SHOW MUST GO ON! They created Social Sanctuary: a large covid-safe venue for all kinds of live (and live-to-tape) content. Social Sanctuary started with a few simple objectives: to create work for those who were left jobless in the entertainment industry, to give artists a Covid-19 safe platform to share their gifts with the world, and to create thrilling shows designed to entertain a public that has been robbed from those experiences.

Untitle Video

JOIN Productions provides video production services for businesses and corporations, no matter the size. In this video, learn how JOIN Productions utilizes Canon Cameras and Lenses to provide their customers with cinematic videos for the web, social media, or television.

Untitle Video

Get to know Canon’s new XF705 Professional Camcorder which puts impressive 4K UHD recording capabilities into a compact and portable design. It is the first Canon camcorder to adopt the H.265/HEVC codec, which improves the efficiency of 4K data handling. The XF705 delivers the power professionals need to capture news, documentaries, sports and other events.

Untitle Video

Watch and discover the beautiful imagery captured on the versatile new XF705 Professional Camcorder. Our new flagship pro camcorder internally records 4K UHD 60p 4:2:2 10-bit video to an SD card, and is Canon's first camcorder to incorporate the H.265/HEVC codec. It is ideal for documentary, event/concert production, and news.

Untitle Video

Watch a behind the scene feature of the making of ‘Wonderland’ – a short movie featuring the versatile new XF705 Professional Camcorder. The movie showcases many features including HDR recording directly to SD cards, 12G-SDI connection, image stabilization and so much more.

Refurbished XF705 Compatible Products

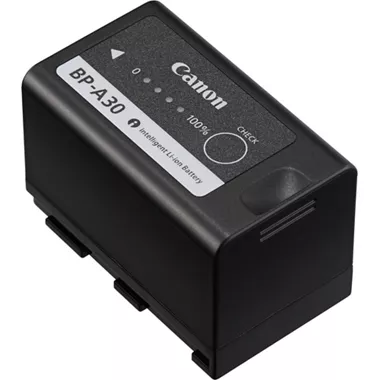

Batteries & Grips
