Speedlite EL-1
- Maximum Guide Number of 197 Ft./60m at ISO 100 Zoom Flash Head with Wide Range of 24-200mm.
- New Rechargeable Li-Ion Battery Utilizing LC-E6 Battery Charger.
- Improved Recycling Time (0.9 Sec.)* and Number Of Flashes (335 Times)**
- New Active Cooling System Enabling Longer Operation and Improved Thermal Management.
- More Versatility with Minimal Power Output Range 1/8192
- Improved User Interface with New Joystick, Display and Control Layout
Terms
The following are the terms and conditions ("Terms") for the Canon U.S.A., Inc. Auto Replenishment System (the "Service"). These Terms are between you and Canon U.S.A., Inc. ("Canon USA," "we" or "us") and govern your and our respective rights and obligations relating to the Service. Please note that your use of the Service is also governed by Canon Direct’s Terms of Use and our Privacy Statement, each of which (as changed over time) are incorporated into these Terms, and all of which govern our respective rights and obligations concerning the Service. By placing an order through, or otherwise using, the Service, you accept, and agree to be bound by, these terms, conditions, limitations and requirements. Please read these Terms carefully.
Service
We reserve the right to change the Service benefits, including discount amounts and eligibility used to determine discount amounts, at any time in our sole discretion. All such changes will apply to future orders.
When you are enrolled, the Service will automatically create a new order for Eligible Products according to the shipment schedule applicable to the frequency of the Service you have selected, until you cancel.
We may, in our sole discretion, terminate your enrollment at any time without notice. If we do so, you will only be charged for orders that have been shipped to you.
Eligible Products
The eligible products that may be ordered through the Service (the identity of which are subject to change) are set forth on the product detail page on the Canon Direct website (shop.usa.canon.com) with the option to select the Service displayed (each, an "Eligible Product"). Your participation in the Service is personal to you, and you may not assign or transfer your enrollment, or any of the benefits of the Service, to any third party without our authorization. The Service is only available to customers with shipping addresses in the 50 United States and the District of Columbia.
Offers, Orders and Returns
Discounts and any limited time promotions associated with the Service apply only to Eligible Products displaying the offer message on the product detail page on the Canon Direct website (shop.usa.canon.com). Discounts and any amounts from limited time promotions that apply to your order, if any, and which are still in effect, will be automatically deducted from your order.
Some offer details may change as you receive deliveries over time (for example, price, taxes, availability, and shipping charges). If an Eligible Product is unavailable when we plan to ship it, we will notify you that we are unable to process your order, and we will wait to process your order until the next scheduled shipping date when the Eligible Product is available. When the Eligible Product becomes available, the price will be the price when you ordered it, regardless of when it becomes available.
Returns of Eligible Products under the Service are subject to our return policy. Service enrollments are void where prohibited.
Enrollment
As part of your enrollment in the Service, you will be required to register with us so that your printer can be identified as participating in the Service. Instructions for registering your printer are contained in the introductory email sent to you after you apply for enrollment in the Service, as well as in the "My Account" section of the Canon Direct website (shop.usa.canon.com). You will be required to accept terms and conditions provided by our parent company, Canon Inc., as part of registering your printer. Canon Inc. will notify us when an ink or toner cartridge reaches a certain low ink/toner threshold, and we will fill an order for the ink or toner and ship it to you under these Terms. Information provided to us and Canon Inc. may be stored on servers outside of the United States and will be subject to our Privacy Statement. It's possible that your order for Eligible Products will not arrive prior to running out of ink or toner where your use was more than usual, particularly if such greater use occurred over 1 or 2 days.
Payment and Cancellation
The total cost charged to your payment method for each order under the Service will be the cost of the Eligible Product on the day that order is processed, less any discount offered as a percentage or dollars off at the time you registered, plus any applicable sales tax. We reserve the right to modify or cancel any discount offered at the time you registered for the Service, with notice to you, and future orders fulfilled under the Service will reflect any such change.
For each Eligible Product shipped under the Service, you authorize us to charge the payment method used when you enrolled unless otherwise directed by you. If we are unable to complete your order with the payment method you used when you enrolled, we will not fulfill the order and will notify you that your payment method needs to be updated.
Your enrollment in the Service will remain in effect until it is canceled. You can cancel or modify your enrollment at any time via the "My Account" section of the Canon Direct website (shop.usa.canon.com). If you cancel or modify your enrollment after an order has been processed, you will be charged for the order as processed. If the discount for such Eligible Product changes, the new discount will be applied to your future shipments of that Eligible Product. If, after enrollment, you are no longer in possession of your printer for any reason (e.g., due to warranty return, replacement, or exchange), the total cost for the Service will continue to be charged to your payment method until you cancel your enrollment. No refunds will be granted because of your failure to cancel your enrollment in such situation.
Your rights under these Terms will automatically terminate without notice if you fail to comply with any of its terms and conditions. In the event of such termination, we may immediately revoke your access to the Service. Our failure to insist upon or enforce your strict compliance with these Terms and will not constitute a waiver of any of our rights.
Changes to Terms
We may, in our sole discretion, change these Terms without notice to you. If any change to these Terms is found invalid, void, or for any reason unenforceable, that change is severable and does not affect the validity and enforceability of any remaining changes or conditions. YOUR CONTINUED PARTICIPATION AFTER WE CHANGE THESE TERMS CONSTITUTES YOUR ACCEPTANCE OF THE CHANGES. IF YOU DO NOT AGREE TO ANY CHANGES, YOU MUST CANCEL YOUR ENROLLMENT.
Disclaimer of Warranties and Limitation of Liability
WE DISCLAIM ALL WARRANTIES, EXPRESS OR IMPLIED, CONCERNING THE SERVICE INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT. WITHOUT LIMITING THE PRECEDING SENTENCE, UNLESS OTHERWISE REQUIRED BY APPLICABLE LAW, IN NO EVENT WILL OUR, OR OUR LICENSORS’, AGGREGATE LIABILITY UNDER THESE TERMS WITH RESPECT TO ANY CLAIM EXCEED ONE HUNDRED DOLLARS ($100.00).
Return Policy
The Canon Online Store will accept, for return or exchange, defective or unopened merchandise purchased at the Canon Online Store, subject to the exceptions and timeframe for returns listed below: All merchandise returned to the Canon Online Store must be in the original packaging with all original items (such as manuals, cables, etc.) accompanying the merchandise and a copy of the invoice/packing slip included to be eligible for return or exchange. Shipping and handling fees from your original order will not be refunded, unless the merchandise is determined by the Canon Online Store, in its sole discretion, to be defective.
See Return Policy for complete information.
Overview
The Speedlite EL-1 is the next generation, all-purpose flash that professionals and advanced amateurs have been seeking, providing durability, reliability and a range of power that opens up a number of possibilities. The new Xenon flash tube offers increased stability for flash output and 14 f-stops of total flash exposure range allowing you to shoot anywhere from a bright 1/1 to a dim, low power 1/8192 to precisely sculpt your scene with light. The new rechargeable Li-ion Battery Pack LP-EL supplies a shorter recovery between flashes as well as an impressive number of continuous flash opportunities, and conveniently lets you recharge when needed. The Speedlite EL-1 is designed with the same robust dust and water resistance as our EOS 1D series cameras, has an internal active cooling system for longer and more efficient shooting, simple and accessible controls so its ready to go when you are, comes bundled with accessories to increase versatility in different lighting situations, and much, much more. Its not just an extension of your camera, its an extension of your vision.
Technical Specifications
View Full Technical Specs PDF
Flash
| 14mm | Wide Panel: Manual * Not compatible with EF15mm f/2.8 Fisheye or EF8-15mm f/4L Fisheye USM shoot-ing angles of view |
| 24mm |
Zoom • A: Auto |
| 28mm | |
| 35mm | |
| 50mm | |
| 70mm | |
| 80mm | |
| 105mm | |
| 135mm | |
| 200mm |
• The Guide No. is approximately 46.3 ft./14m at ISO 100.
- When the extendable wide panel is pulled out, the flash coverage is 14mm.
• The maximum Guide No. is approximately 196.9 ft./60m at ISO 100 and 200mm flash coverage.
- When the extendable wide panel is pulled out, the flash coverage is 14mm.
76Ws
| Flash Mode | Flash ExposureCompensation | FEB | FE Lock | Wireless | |
| Radio Transmission |
Optical Transmission |
||||
| Yes | Yes | Yes | Yes | Yes | |
| Yes | Yes | ||||
| Yes | Yes | ||||
| Yes | Yes | Yes*² | |||
| Yes | Yes | Yes | |||
| Yes | Yes | Yes* | Yes | ||
* 1: Set automatically when the camera shooting mode is set to Basic Zone modes.
* 2: Only Group firing is available.
* 3: Can only be set when the Speedlite is used as a sender in radio transmission wireless operation.
* 4: Only groups set to E-TTL II / E-TTL autoflash.
±3 stops, in 1/3-stop or 1/2-stop*¹ increments.
* The Speedlites flash exposure compensation takes precedence if flash exposure compensation is performed by both the Speedlite and the camera. Users who prefer to enable flash exposure compensation by the camera should set flash exposure compensation by the Speedlite to 0.
* 1: Corresponds to exposure level increments on the camera.
±3 stops, in 1/3-stop or 1/2-stop*¹ increments.
* FEB is automatically deactivated after three shots.
* Can be used with flash exposure compensation and FE lock.
* 1: Corresponds to exposure level increments on the camera.
Supported
Supported
• Stores the flash output of E-TTL II / E-TTL autoflash and automatically sets the stored output level if users switch the flash mode to manual flash.
* Flash output may vary slightly between E-TTL autoflash and manual flash.
• Colors may vary between E-TTL autoflash and manual flash under the following conditions:
* When the color temperature of the Speedlite light differs greatly from that of ambient lighting and flash exposure compensation is set toward the negative end.
* When E-TTL balance is set to (Ambience priority).
• Differences in colors between E-TTL autoflash and manual flash may be reduced by taking one of the follow steps:

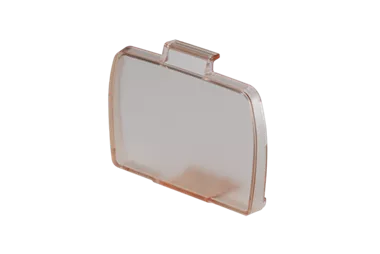

* Using the provided color filter.
* Setting white balance to an option other than AWB.
| 0: Off | Disabled |
| 1: On | Enabled |
| 2: On / Mode ETTL - M | Enabled/ One-touch switching between E-TTL autoflash and manual flash |
Approx. 335–2,345 flashes.
* With a fully charged Battery Pack LP-EL.
* Based on Canon Testing Standards.
| Power Supply | Recharge Time (approx.) | Flash count (approx.) |
||||
| Normal Flash | Quick Flash | |||||
| Flash Power | Min. | Max. | Min. | Max. | Min. | Max. |
| Speedlite EL-1 | 0.1 sec. | 0.9 sec. | 01. sec. | 0.8 sec. | 335 | 2345 |
| Speedlite EL-1 + CP-E4N (AA/LR6 Alkaline batteries) |
0.1 sec. | 0.6 sec. | 01. sec. | 0.5 sec. | 560 | 3920 |
| Speedlite EL-1 + CP-E4N (AA/LR6 Ni-MH batteries) |
0.1 sec. | 0.4 sec. | 01. sec. | 0.35 sec. | 680 | 4760 |
Effective flash range with EF 50mm f/1.4 lens at ISO 100 (Light distibution: Standard)
- Normal Flash: Approx. 1.6–85.6 ft./0.5–26.1m
- Quick Flash (Flash-ready lamp: blinking): Approx. 1.6–52.5 ft./0.5–16.0m
- High-speed Sync (at 1/250 sec. shutter speed): Approx. 1.6–45.3 ft./0.5–13.8m
System:
Infrared AF-assist beam
Compatible AF System:-
TTL second image formation phase-difference AF
Supporting 1–191 AF points (28mm or longer focal length)
• Phase-difference AF during viewfinder shooting
Effective Range (Approx.):
At center: 2.0–32.8 ft./0.6–10.0m
At periphery: 2.0–16.4 ft./0.6–5.0m
Modeling Lamp
| Brightness*¹ | Manual setting: 1 (Low) to 5 (High) *Default setting: 5 (High) |
| Color temperatue*¹ | Manual setting: 1 (Orange) to 5 (White) *Default setting: 1 (Orange) |
| On | Illuminated in response to the following operations • Pressing the • Pressing the shutter button halfway twice (with C.Fn-18 set to 1). |
| Off | Off under the following conditions • Releasing the shutter button • Pressing the • Pressing the shutter button halfway twice (with C.Fn-18 set to 1) • Timer: 5 min. / 30 min. / Unlimited (can be changed in P.Fn-09) |
Higher LED temperatue from prolonged illumination triggers the following safety functions
| Temperature in-crease | LCD Panel | Modeling Lamp Operation | |
| Icon display | Illumination | ||
| Level 1 |  |
On | Modeling lamp brightness is lowered one level, if at the maximum level |
| Level 2 |  |
Blinking (2 Hz) |
Modeling lamp is turned off |
Wireless Functions for Radio Transmission
| Sender | Supported *Secondary and additional units serve as sub-senders and display a "SUB SENDER" icon. * Sub-senders cannot be remotely controlled by a receiver unit |
| Receiver | Supported |
| Compliance standards | IEEE 802.15.4, ARIB STD-T66 |
| Communication method | Primary modulation: OQPAK Secondary modulation: DS-SS |
| Transmission frequency | 2405-2475 MHz |
| Channel | Channel 1-15 Setting: Auto / Manual |
| Wireless radio ID | 0000 to 9999 Setting: Manual |
| Transmission range*¹*² | Approx. 98.4 ft. / 30 m |
| Groups | Up to 5 groups (A-E) * Sender units are set to Group A |
| Number of possible units for communication | Up to 16 units of senders and receivers in total |
| Max. sender units | Up to 15 * Secondary and additional units serve as sub-senders |
| Max. receiver units | Up to 15 |
* 2: Transmission range may be shorter depending on factors such as how units are arranged, the surrounding environment, and weather conditions.
| Transmission status | Display | lamp | LCD Panel | |
| Sender | Receiver | |||
| Connected | Yes | Yes | On (in green) | Sender, Receiver |
| Not Connected | 0.1 sec. | 0.9 sec. | Off | Sender, Receiver |
| Too many units/Error | 0.1-0.6 sec. |
Blinking at 2 Hz (green) |
Sender, Receiver |
|
| Sub-sender | 0.1-0.4 sec. |
On (in green) | Sub Sender | |
| Confirmation of linked shooting | Yes | On (in green) | RELEASE | |
Wireless firing control via radio transmission
| Flash Mode | E-TTL II / E-TTL autoflash | |
| Manual flash | ||
| Stroboscopic flash | ||
| Group firing | E-TTL II / E-TTL autoflash | |
| Manual flash | ||
| Auto external flash metering | ||
| ALL |
| A:B |
| A:B+C |
| ALL | Flash ratio seting: 1/8192*¹*² to 1/1 |
| A+B | Flash output seting: 1/8192*¹*² to 1/1 |
| A+B+C | Flash output seting: 1/8192*¹*² to 1/1 |
* 1: Minimum of 1/128 for high-speed sync.
* 2: Speedlites that do not support a minimum flash output of 1/8192 use their minimum flash output instead.
| Flash count | 1-100 |
| Flash frequency | 1-500 Hz |
| ALL | Flash ratio seting: 1/8192 to 1/4 |
| A+B | Flash output seting: 1/8192 to 1/4 |
| A+B+C | Flash output seting: 1/8192 to 1/4 |
Enables separate configuration of flash firing control conditions 1-3 below for each groups (A, B, C, D, E), to combine multiple methods of flash firing control.
- E-TTL II / E-TTL autoflash
- Manual flash
- Auto external flash metering
* Flash exposure compensation ±3 stops
Available (Sender/Receiver)
Available (Sender/Receiver)
Available (Sender only)
Functions on sender units that can be controlled remotely from receiver units:
• Remote release
• Test flash
• Modeling flash
* Sub-senders cannot be controlled remotely
Wireless functions for Optical Transmission
| Compliance method | Optical pulses |
| Channel | Channel 1-4 |
| Transmission range (approx.) | From front of flash head • Indoors: 2.3 - 49.2 ft. / 0.7 - 15 m. • Outdoors: 2.3 - 32.8 ft. / 0.7 - 10 m. |
| Reception angle (approx.) | • Horizontally: 45° • Upward: 27°, Downward: 20° |
| Groups | Up to 3 groups (A-C) |
| Max. sender units | Unlimited |
| Max. receiver units | Unlimited |
| Sender | Supported |
| Receiver | Supported |
| Individual receiver | Supported |
Overview of optical wireless firing control
| Sender flash firing | On: Fires as Group A |
| Channel 1-4 | |
| OFF: Does not fire. * Firing (optical transmission) to control receivers may be visible in shots. |
|
| Flash mode | E-TTL II / E-TTL autoflash |
| Manual flash | |
| Stroboscopic flash |
| ALL | Flash metering control of all groups (A, B, C) as if they were a single flash unit. Flash exposure compensation: ±3 stops |
| A:B | Flash metering control to obtain the flash ratio set for groups A and B. • Flash ratio setting: 8:1 to 1:8 • Flash exposure compensation: ±3 stops |
| A:B+C | (1) Flash metering control to obtainv the flash ratio set for groups A and B Flash ratio setting: 8:1 to 1:8 (2) Flash metering control of group C as if it were a single flash unit • Flash exposure compensation: ±3 stops The same flash exposure compensation can be set for (1) and (2) above • Flash exposure compensation: ±3 stops |
| ALL | Flash ratio seting: 1/8192*¹*² to 1/1 |
| A+B | Flash ratio seting: 1/8192*¹*² to 1/1 |
| A+B+C | Flash ratio seting: 1/8192*¹*² to 1/1 |
* 1: Minimum of 1/128 for high-speed sync.
* 2: Speedlites that do not support a minimum flash output of 1/8192 use their minimum flash output instead.
| Flash count | 1-100 |
| Flash frequency | 1-500 Hz |
| ALL | Flash ratio seting: 1/8192 to 1/4 |
| A+B | Flash output seting: 1/8192 to 1/4 |
| A+B+C | Flash output seting: 1/8192 to 1/4 |
| Manual Flash | Flash output setting: 1/8192 to 1/1 |
| Stroboscopic flash |
•Flash output setting: 1/8192 to 1/4 •Flash count: 1-100 •Flash frequencey: 1-199Hz |
Available (Sender/Receiver)
Available (Sender/Receiver)
Available (Sender only)
Linked Shootting via Radio Transmission
Supports linked shooting with automatic shutter release of up to 16 cameras (sender:1, receivers:15) linked to shutter release on the sender camaera.
*Shooting is not simultaneous, because receiver cameras shoot slightly afterthe sender camera shutter release timing.
Information Display
Reflective memory LCD (normally black)
Approx. 1.89(H) x 1.04(V) in.
Dot-matrix display
Approx. 56,000 dots (320x176)
General
Battery Pack LP-EL
*AA/LR6 Alkaline Batteries and Ni-MH batteries cannot be used.
Battery Charger LC-E6/LC-E6E
Car Battery Charger CBC-E6
Supported
*Optional - Supports CP-E4N Battery Pack
Supported
Approx. 3 hr 20 min. Continously
*With P.Rn-09 set to [2], and using a fully charged Battery Pack LP-EL
Supported
*Water-resistant performance to EOS-1D series
Approx. 3.32" x 5.87" x 5.37"
20.18 oz (Body Only)
24.23 oz (Body and Battery)
Functions
Set in C.Fn-21
| 0: Standard | A light distribution setting that balances light distribution and the guide number. |
| 1: Guide number priority | Prioritizes illumination at the center of the screen, the periphery may be dark. |
| 2: Light distribution priority | Light distribution that reduces peripheral darkness. |
| Function | Number | Setting |
| C.Fn-00: Distance indicator display | 0 | m (display in meters) |
| 1 | ft. (display in feet) | |
| C.Fn-01: Auto power off | 0 | ON (90 sec.) |
| 1 | OFF | |
| C.Fn-02: Modeling flash | 0 | Depth-of-field preview button |
| 1 | Test flash button | |
| 2 | DOF/Test flash button | |
| 3 | OFF | |
| C.Fn-03: FEB auto cancel | 0 | ON |
| 1 | OFF | |
| C.Fn-04: FEB sequence | 0 | 0 -> - -> + |
| 1 | _->0-> + | |
| C.Fn-08: AF-assist beam firing | 0 | ON |
| 1 | OFF | |
| C.Fn-10: Receiver auto power off timer | 0 | 60 min. |
| 1 | 10 min. | |
| C.Fn-11: Receiver auto power off timer | 0 | Within 8 hours |
| 1 | Within 1 hour | |
| C.Fn-12: Flash recycle with external power | 0 | External and internal pwer |
| 1 | External power only | |
| C.Fn-13: Flash exposure compensation setting | 0 | Button and dial |
| 1 | Direct setting with the dial | |
| C.Fn-18: Modeling lamp lit | 0 | with lamp button |
| 1 | Press the shutter button halfway twice *Lamp button can also be used |
|
| C.Fn-21: Light distribution | 0 | Standard |
| 1 | Guide number priority | |
| 2 | Even coverage | |
| C.Fn-22: LCD panel illumination | 0 | Stay on for 12 sec. after operation |
| 1 | Disable panel illumination | |
| 2 | Illumination always on | |
| C.Fn-23: Receiver charge confirmation | 0 | AF-assist beam blinking and flash-ready lamp |
| 1 | Flash-ready lamp |
9 Functions
| Function | Number | Setting |
| P.Fn-01: AF-assist beam emission method | 0 | Infrared |
| 1 | Emmitting small series of flashes | |
| P.Fn-02: Quick flash | 0 | ON |
| 1 | OFF | |
| P.Fn-03: Flash firing during linked shooting | 0 | OFF |
| 1 | ON | |
| P.Fn-04: Change settings with the direct dial operation | 0 | OFF |
| 1 | ON | |
| P.Fn-05: FE memory | 0 | OFF |
| 1 | ON | |
| 2 | ON / MODE: ETTL<-> M | |
| P.Fn-06: Beep | 0 | ON |
| 1 | OFF | |
| P.Fn-07: Fan | 0 | ON |
| 1 | OFF | |
| P.Fn-08: Modeling lamp (brightness, color) | Brightness: 5 levels | |
| Color: 5 levels | ||
| P.Fn-09: Modeling lamp (lit time) | 0 | 5 min. |
| 1 | 30 min. | |
| 2 | Unlimited |
Reviews
How is your Canon product performing for you?
Speedlite EL-1 Compatible Products
Product Disclaimer
* 0.9 sec: recycling time when flash is set to Manual Mode, 1/1, Full-power flash.
** 335 cycles when flash is set to Manual Mode, 1/1 Full-power flash.
*1 At 73°F, with the fan set to ON, and before reaching flash firing restriction Level 1, with no flash adapters fitted (bursts up to 160 full power flashes with the flash zoomed from 150-200mm).
$200 Instant Savings - Offer valid July 04, 2022 12:00 a.m. through July 31, 2022 11:59 p.m. ET. Offer valid in U.S.A. only, and void where prohibited, taxed or restricted. Availability of certain items may be limited. Limit of ten of any one item per order, subject to availability. Order will be shipped to a street address in the 50 United States or the District of Columbia only. Dealers, distributors and other resellers are not eligible for this offer. Offer subject to Terms of Sale.
