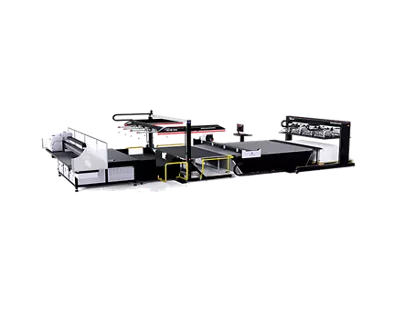

Straight-line Print to Cut Configuration

As low as $0.00
Out Of Stock
  • Fully automated print to cut production workflow when integrated with the Texas flatbed printer
  • Hands-free material handling
  • Pallet of raw material in / pallet of printed and cut product out
  • Saves valuable floorspace by providing smallest footprint for printing and cutting production
  • No need to wait if the printer is faster than the cutter

Overview

IMC automation components are integrated with the Texas flatbed printer and Kongsberg finishing table to create the fully automated print to cut production workflow. A seamless print to cut and stack workflow which starts with unprinted boards and ends with the finished pieces stacked on a palette, removing most of the user interaction usually required to produce final products enabling users to enhance both speed and capabilities.

Texas Inline Print-Cut-Automate-Sell

Canon offers the Straight-line Print to Cut Configuration

The Texas prints material that is then stored in the accumulator tray and is monitored by the board detection sensor. The integrated vector 3200 feeder picks up the material from the accumulator tray using suction cups and feeds it to the Kongsberg C64 cutter. After cutting is complete, the iMS60 Cutter Stacker unloads the finished product from the Kongsberg C64 cutter to a pallet.

Features

Accumulator Tray

  • 18" of board accumulation
  • Adjustable for 4’ x 8’ to 5’ x 10’ board sizes
  • Moveable in/out of position between the printer and the feeder
  • Provides access to printer electronics
  • Includes board detection sensor
  • Integrated to vector feeder

Vector 3200 Feeder

  • Feeds boards at two boards per minute feed rate, tray to cutter
  • Four suction cup arms with four suction cups per arm
  • Includes integration to iMS60 cutter stacker

iMS60 Cutter Stacker

  • Unloads cut product from a Kongsberg C64 Cutter to a pallet
  • Includes integration to cutting table and Vector 3200 Feeder

Technical Specifications

Accumulator Tray
Maximum Board Size 5’ x 10’ landscape
Maximum Board Accumulation 18”
Vector 3200 Feeder
Maximum Board Size 5’ x 10’ landscape
Maximum Board Weight 50 lbs.
Speed 2 boards/minute feed rate, tray to cutter.
Electrical 208-240 V, 1-phase, 15 Amp, 50/60 Hz
Compressed Air 10 SCFM @ 90-125 psi, Air quick connect Type M
Machine Weight 2,100 lbs.
iMS60 Cutter Stacker
Maximum Board Size 5’ x 10’
Plenum Coverage 63” x 126”
Vacuum Zones (16) vacuum zones, each controlled by a ball valve
Stack Height 51”
Electrical 208-240 V, 1-phase, 40 amp, 50/60 Hz
Compressed Air Supplied from Vector Feeder
Machine Weight 2,775 lbs.
