VB-M46
- 20x Optical Zoom with Fast and Precise Pan/Tilt Mechanism
- 1.3 Megapixel Sensor (Native 1280 x 960 Resolution) up to 60 FPS
- Updated 1/2.8" type CMOS type CMOS Sensor with Superb Low Light Performance
- Enhanced Presets That Include PTZ Positioning and Video Settings
- Advanced New Image Processor Helps Maximize Image Quality and Minimize Power Consumption
- Area Specific Data Size Reduction and Motion Adaptive Noise Reduction
- Wide Dynamic Range (WDR)
- Simultaneous Streaming of H.265. H.264, and M-JPEG Codecs in Multiple Resolutions
- 2-way Audio supporting both AAC-LC and G-711 Audio formats
- On-Board Video Analytics and Versatile Functions
- ONVIF Profile T Conformant
- Built-in SD Card Slot with Enhanced SD Card Functionality
- Various Power Options (12 V DC and PoE IEEE 802.3af)
Terms
The following are the terms and conditions ("Terms") for the Canon U.S.A., Inc. Auto Replenishment System (the "Service"). These Terms are between you and Canon U.S.A., Inc. ("Canon USA," "we" or "us") and govern your and our respective rights and obligations relating to the Service. Please note that your use of the Service is also governed by Canon Direct’s Terms of Use and our Privacy Statement, each of which (as changed over time) are incorporated into these Terms, and all of which govern our respective rights and obligations concerning the Service. By placing an order through, or otherwise using, the Service, you accept, and agree to be bound by, these terms, conditions, limitations and requirements. Please read these Terms carefully.
Service
We reserve the right to change the Service benefits, including discount amounts and eligibility used to determine discount amounts, at any time in our sole discretion. All such changes will apply to future orders.
When you are enrolled, the Service will automatically create a new order for Eligible Products according to the shipment schedule applicable to the frequency of the Service you have selected, until you cancel.
We may, in our sole discretion, terminate your enrollment at any time without notice. If we do so, you will only be charged for orders that have been shipped to you.
Eligible Products
The eligible products that may be ordered through the Service (the identity of which are subject to change) are set forth on the product detail page on the Canon Direct website (shop.usa.canon.com) with the option to select the Service displayed (each, an "Eligible Product"). Your participation in the Service is personal to you, and you may not assign or transfer your enrollment, or any of the benefits of the Service, to any third party without our authorization. The Service is only available to customers with shipping addresses in the 50 United States and the District of Columbia.
Offers, Orders and Returns
Discounts and any limited time promotions associated with the Service apply only to Eligible Products displaying the offer message on the product detail page on the Canon Direct website (shop.usa.canon.com). Discounts and any amounts from limited time promotions that apply to your order, if any, and which are still in effect, will be automatically deducted from your order.
Some offer details may change as you receive deliveries over time (for example, price, taxes, availability, and shipping charges). If an Eligible Product is unavailable when we plan to ship it, we will notify you that we are unable to process your order, and we will wait to process your order until the next scheduled shipping date when the Eligible Product is available. When the Eligible Product becomes available, the price will be the price when you ordered it, regardless of when it becomes available.
Returns of Eligible Products under the Service are subject to our return policy. Service enrollments are void where prohibited.
Enrollment
As part of your enrollment in the Service, you will be required to register with us so that your printer can be identified as participating in the Service. Instructions for registering your printer are contained in the introductory email sent to you after you apply for enrollment in the Service, as well as in the "My Account" section of the Canon Direct website (shop.usa.canon.com). You will be required to accept terms and conditions provided by our parent company, Canon Inc., as part of registering your printer. Canon Inc. will notify us when an ink or toner cartridge reaches a certain low ink/toner threshold, and we will fill an order for the ink or toner and ship it to you under these Terms. Information provided to us and Canon Inc. may be stored on servers outside of the United States and will be subject to our Privacy Statement. It's possible that your order for Eligible Products will not arrive prior to running out of ink or toner where your use was more than usual, particularly if such greater use occurred over 1 or 2 days.
Payment and Cancellation
The total cost charged to your payment method for each order under the Service will be the cost of the Eligible Product on the day that order is processed, less any discount offered as a percentage or dollars off at the time you registered, plus any applicable sales tax. We reserve the right to modify or cancel any discount offered at the time you registered for the Service, with notice to you, and future orders fulfilled under the Service will reflect any such change.
For each Eligible Product shipped under the Service, you authorize us to charge the payment method used when you enrolled unless otherwise directed by you. If we are unable to complete your order with the payment method you used when you enrolled, we will not fulfill the order and will notify you that your payment method needs to be updated.
Your enrollment in the Service will remain in effect until it is canceled. You can cancel or modify your enrollment at any time via the "My Account" section of the Canon Direct website (shop.usa.canon.com). If you cancel or modify your enrollment after an order has been processed, you will be charged for the order as processed. If the discount for such Eligible Product changes, the new discount will be applied to your future shipments of that Eligible Product. If, after enrollment, you are no longer in possession of your printer for any reason (e.g., due to warranty return, replacement, or exchange), the total cost for the Service will continue to be charged to your payment method until you cancel your enrollment. No refunds will be granted because of your failure to cancel your enrollment in such situation.
Your rights under these Terms will automatically terminate without notice if you fail to comply with any of its terms and conditions. In the event of such termination, we may immediately revoke your access to the Service. Our failure to insist upon or enforce your strict compliance with these Terms and will not constitute a waiver of any of our rights.
Changes to Terms
We may, in our sole discretion, change these Terms without notice to you. If any change to these Terms is found invalid, void, or for any reason unenforceable, that change is severable and does not affect the validity and enforceability of any remaining changes or conditions. YOUR CONTINUED PARTICIPATION AFTER WE CHANGE THESE TERMS CONSTITUTES YOUR ACCEPTANCE OF THE CHANGES. IF YOU DO NOT AGREE TO ANY CHANGES, YOU MUST CANCEL YOUR ENROLLMENT.
Disclaimer of Warranties and Limitation of Liability
WE DISCLAIM ALL WARRANTIES, EXPRESS OR IMPLIED, CONCERNING THE SERVICE INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT. WITHOUT LIMITING THE PRECEDING SENTENCE, UNLESS OTHERWISE REQUIRED BY APPLICABLE LAW, IN NO EVENT WILL OUR, OR OUR LICENSORS’, AGGREGATE LIABILITY UNDER THESE TERMS WITH RESPECT TO ANY CLAIM EXCEED ONE HUNDRED DOLLARS ($100.00).
Return Policy
The Canon Online Store will accept, for return or exchange, defective or unopened merchandise purchased at the Canon Online Store, subject to the exceptions and timeframe for returns listed below: All merchandise returned to the Canon Online Store must be in the original packaging with all original items (such as manuals, cables, etc.) accompanying the merchandise and a copy of the invoice/packing slip included to be eligible for return or exchange. Shipping and handling fees from your original order will not be refunded, unless the merchandise is determined by the Canon Online Store, in its sole discretion, to be defective.
See Return Policy for complete information.
Overview

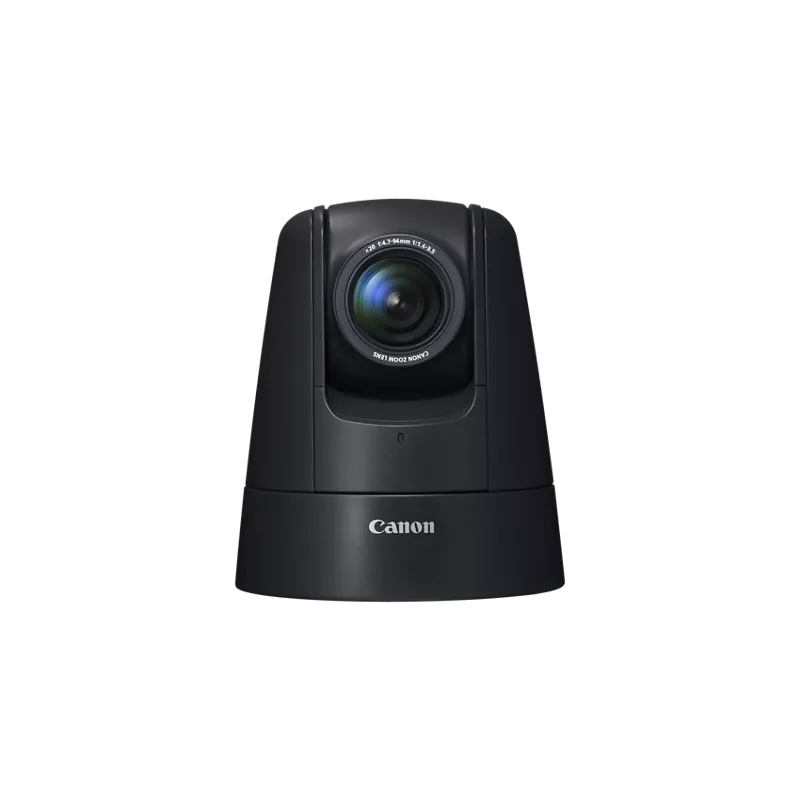

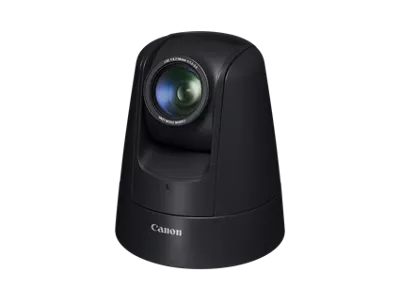

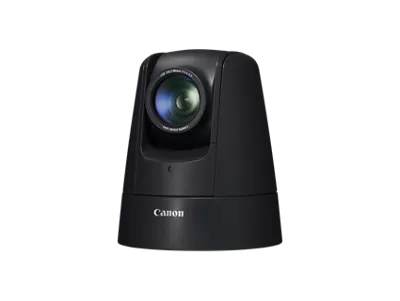

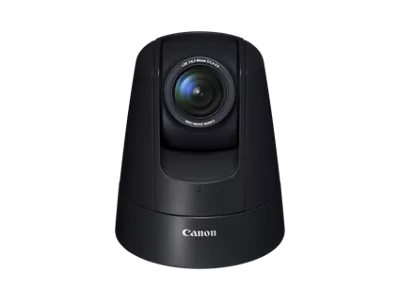

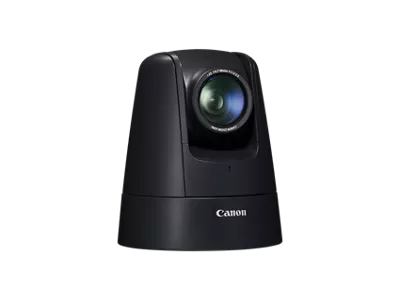

The VB-M46 inherits the high performance features of previous Canon PTZ (Pan-Tilt-Zoom) cameras, but includes significant improvements with a new image sensor and processor. Ideal for the security and surveillance markets, the VB-M46 contains a new 1.3 megapixel high sensitivity image sensor (1280 x 960) and 20x optical zoom lens which provides exceptional low light performance with a minimum subject illumination level of just 0.02 lux at 1/30 shutter speed. The new image processor provides high quality video streaming, including H.265, H.264, and MJPEG video formats up to 60 fps.
Other improvements include High Dynamic Range (HDR) that combines frames of different exposure, giving the user even exposure over the camera's field of view. Along with improved video, the VB-M46 also now supports the AAC-LC audio standard for improved audio quality up to 48 kHz at 128 kbps.
An available simple camera setting allows users to instantly set their camera up to fit their application such as Motion Priority, Low Light Visibility, Depth Priority, and Data size reductions.
Various power sources include Power over Ethernet (PoE), 12V DC, as well as the optional PA-V18 ac adapter. The VB-M46 also supports ONVIF profile T to allow for quick integration with 3rd party video management solutions. With all the new features and performance enhancements, the Canon VB-M46 continues the Canon tradition of exceeding the demands of the security and surveillance market.
Features
Remarkable Low Light Performance
The VB-M46 features a new 1/2.8 CMOS sensor. With this high sensitivity sensor, minimum subject illumination performance has been drastically improved from previous generation model, to 0.02 lux (VB-M46) from 0.05 lux (VB-M44). As a result of improved minimum subject illumination performance, even in dark scenes, images can be recognized clearly in detail with less noise.
- Monitoring Illuminescence: .02 lux
- Maximum Wide Angle
VB-M44
VB-M46
New Engine Dramatically Enhances Video Streaming
- The VB-M46 features a new video and network engine that enables delivering videos at maximum 60 fps for Full HD video.
- In addition to the new support for H.265 with compression efficiency higher than H.264, the compression efficiency has also been greatly improved for H.264, compared to current models resulting in a significant reduction in the delivery bit rate.

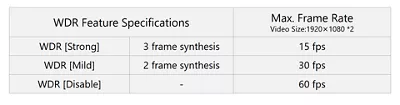

New Engine Dramatically Enhances WDR Performance
- The new engine of the VB-M46 has been utilized to install the new WDR function which uses multiple frame synthesis.
- In scenes where there is a large difference in brightness within the angle of view, it is possible to shoot from high brightness areas to low with higher visibility than the previous generation models, which is effective in improving the accuracy when analyzing video.
VB-M44
VB-M46
20x Optical Zoom Auto Focus Lens
Features 20x optical zoom lens and enhanced digital zoom function. Can digitally zoom up to 40x while maintaining image clarity.
Full Wide
20x Optical
20x Optical + 2x Digital
New ONVIF Profile G and Profile T Support
AAC-LC High Quality Audio Coding Support
In addition to the G.711 μ-law used in current models, the new models support the international standard AAC-LC for higher quality speech coding. AAC stands for Advanced Audio Coding. It has a higher compression efficiency than G.711 and enables the conversion of wide frequency and the rise and decay in the original sound into high quality digital audio signals with greater fidelity.
Intelligent Functions
- Moving Object Detection
- Abandoned Object Detection
- Removed Object Detection
- Camera Tampering Detection
- Passing Detection
- Intrusion Detection
- Volume Detection
- Face Detection
Technical Specifications
CAMERA
Night Mode: 1.0 m (3.3 ft.) – infinity (W), 1.5 m (4.9 ft.) – infinity (T)
SERVER
System frequency 50 Hz: 1, 2.5, 5, 6.25, 10, 12.5, 25, 50 fps
– H.264: Max. 10 Clients
– H.265: Max. 10 Clients

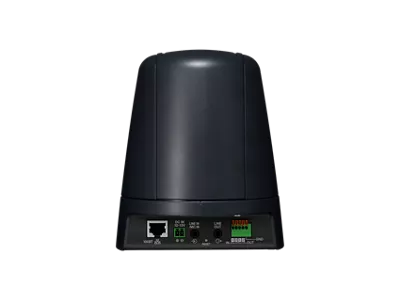

INTERFACE
– Class 10 recommended.
OPERATING ENVIRONMENT
STORAGE ENVIRONMENT
POWER SUPPLY
POWER CONSUMPTION
Max. approx. 9.7 W (240 V AC)
