EOS Ra
Mirrorless
Canon Store: $
CarePAK PLUS offers protection from accidental damage such as drops, spills, power surges, and more.
EOS R Silent Shutter - Now with continuous shooting support. Download free firmware now!
Go in-depth with Technical Advisor Rudy Winston about Canon’s first full-frame, mirrorless astrophotography camera.
EOS Ra
Capture the intricacies of a starry night sky with the new EOS Ra camera – Canon's first full-frame mirrorless camera dedicated to deep sky and night sky photography. Building on the success of the EOS R, the EOS Ra offers 30x magnification in both the viewfinder and in Live View shooting for more accurate focus and roughly 4x more transmission sensitivity of hydrogen-alpha (Hα) rays (656.3 nm) for more vivid, deep-red hues of nebulae, making it ideal for astrophotography enthusiasts. Sharing many of the same advanced features of the EOS R, including a 30.3 megapixel CMOS sensor, a high-precision electronic viewfinder (EVF) and Dual Pixel CMOS AF with 5,655 manually selectable AF positions**, the EOS Ra is capable of capturing and pinpointing dim stars that are difficult to see with the naked eye. A Vari-angle LCD touchscreen allows for comfortable composition at any angle and easier framing when shooting vertically, especially when the camera is mounted to a telescope. Featuring 4K video recording at up to 30 fps, along with 4K time-lapse capabilities, the movement of stars across the night sky can be recorded in brilliant clarity and detail. With a trusted design that's been specifically enhanced for astrophotography^, the EOS Ra proves the age-old adage is true: the sky's the limit!
Features
Modified Filter for Enhanced Night Sky Recording
Positioned in front of the CMOS imaging sensor, The EOS Ra's infrared-cutting filter is modified to permit approximately 4x as much transmission of hydrogen alpha rays at the 656nm wavelength, vs. standard EOS R cameras. This allows for a higher transmission of deep red infrared rays emitted by nebulae, without requiring any other specialized optics or accessories.
*The EOS Ra is a dedicated camera for astrophotography subjects, and is not recommended for everyday photographic use.

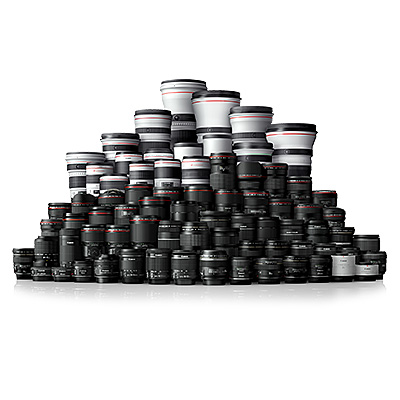

Compatible with EF/EF-S Lenses*
The EOS Ra camera is designed to integrate smoothly into existing EOS systems. Engineered to work seamlessly with RF lenses, it maintains complete compatibility with EF and EF-S lenses by using one of three optional Mount Adapters. When using EF-S lenses, the EOS Ra even crops automatically to reflect the APS-C sized sensor the lenses are designed for.
* Optional Mount Adapter EF-EOS R is required when using EF/EF-S lenses with an EOS R camera.

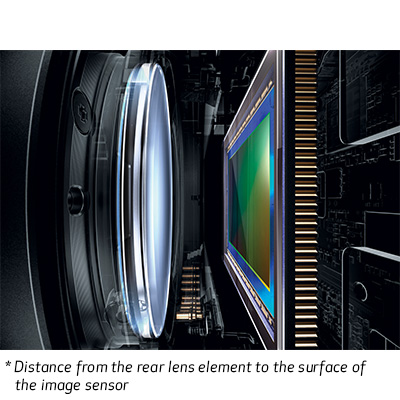

54mm Large Diameter and Short Back Focus
The RF mount on the EOS Ra camera has a large, 54mm internal diameter that enables impressive handling and provides increased flexibility for lens design. And thanks to the camera's mirrorless design, the lens's rear element can be much closer to the image plane. This reduced back focus distance, combined with the RF mount's 54mm diameter, helps facilitate lenses of stellar optical quality and stunning performance while enabling innovative compact camera and lens designs.
20mm Flange Focal Distance with Robustness for Professional Use
All RF lenses feature a 20mm flange focal distance, which is the distance from the lens mount to the surface of the image sensor. This flange focal distance balances the benefits of short back focus with the engineering requirements necessary for mount stability. Accordingly, the RF mount's flange focal distance ensures excellent optical performance while maintaining the mount rigidity and camera durability necessary for real-world operation.
Certain images and effects are simulated.

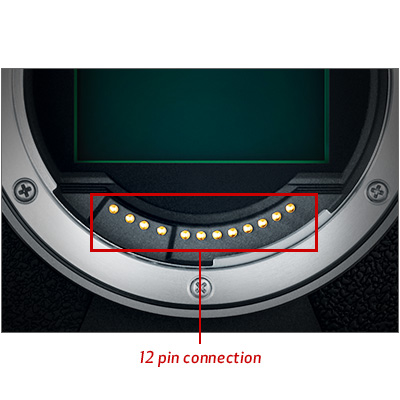

12 Pins for Quickly Communicating Large Amounts of Information
With a robust 12 pin connection between the camera and the lens, the EOS Ra camera and RF lenses are able to communicate at a higher speed, transmitting a larger amount of data and information for incredibly fast AF, plus enhanced image stabilization and optimization.

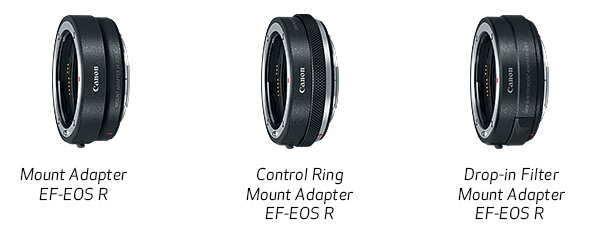

Variety of Mount Adapter Options for Expanded Compatibility with EF/EF-S Lenses
Mount adapters, such as the Mount Adapter EF-EOS R, deliver seamless connections between the EOS Ra camera and EF and EF-S lenses with all functions intact. Offering L series level weather and dust sealing, the Mount Adapter EF-EOS R is even compatible with EF extenders like the Extender EF 1.4x III to extend your camera's optical reach. With an entire arsenal of EF and EF-S lenses at your disposal, the Mount Adapter EF-EOS R and other mount adapters ensure endless creative possibilities for the EOS Ra camera.
Beyond enabling use of EF and EF-S lenses on the EOS Ra camera, the Control Ring Mount Adapter EF-EOS R and the Drop-in Filter Mount Adapter EF-EOS R add functions that open up a number of new possibilities for creative image capture. The Control Ring Mount Adapter EF-EOS R adds a control ring like those found on RF lenses, providing the same level of control to your EF and EF-S lenses and supporting the same setting configuration regardless of lens. The Drop-in Filter Mount Adapter EF-EOS R enables compatibility with EF and EF-S lenses and includes drop-in filter capability for use with circular polarizing filters or variable ND filters. This enhancement enables compatibility with numerous lenses regardless of their front diameter, and makes filter use possible with lenses like the ultra-wide EF 11-24mm f/4L USM lens or the tilt-shift TS-E 17mm f/4L lens which cannot accept a filter on the front.

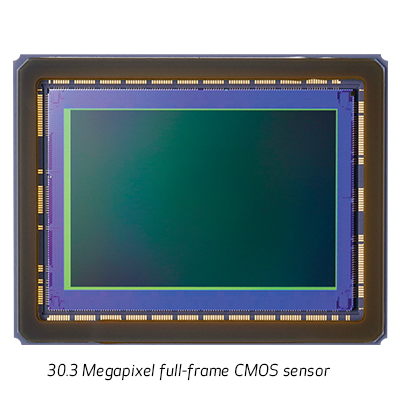

30.3 Megapixel Full-frame CMOS Sensor
The EOS Ra is Canon's first astro-dedicated mirrorless camera that features a Canon-developed and produced 35mm full-frame CMOS sensor with approx. 30.3 effective megapixels. It employs the DIGIC 8 Image Processor to enhance the speed of operations across the board. This means fast, efficient performance and phenomenal image quality for big prints, impressive 4K video and more.
ISO 40000
The EOS Ra camera has a standard ISO sensitivity range of 100-40000 for stills and 100-25600 for video (100-12800 for 4K video shooting). Combined with the EOS Ra camera's remarkable low-light AF performance, still and video shooting is possible even in dark situations in a variety of places and occasions.
Digital Lens Optimizer
The EOS Ra camera has an in-camera Digital Lens Optimizer that works with RF lenses (and EF/EF-S lenses with a Mount Adapter) to provide a substantial improvement in image quality. The Digital Lens Optimizer limits deterioration in image quality caused by low-pass filters or wide-aperture lens designs. It is particularly effective at correcting peripheral aberration, providing a high amount of detail for beautifully natural results. It's usable both during shooting and when developing RAW data, and does not affect continuous shooting speeds. Data from compatible EF and EF-S lenses is built into the camera, and data information from RF lenses is transferred near instantly through the EOS R's 12 pin communication system.
High-speed Focusing in Approx. 0.05 sec.***
The EOS Ra camera's highly responsive Dual Pixel CMOS AF system features an incredible 5,655 manually selectable AF positions** and can deliver sharp focus within approximately 0.05 seconds***. This means fast action can be captured and focus can be maintained with speed, accuracy and ease.
*** Based on the results of AF speed tests in accordance with CIPA guidelines. Results may vary depending on shooting conditions and lens in use. Relies on internal measurement method. Test conditions:
- Brightness at time of distance measurement: EV12 (regular temperature, ISO 100)
- Shooting mode: M
- Lens in use: RF 24-105mm F4 L IS USM, with a focal distance of 24mm
- Live-view mode: On (with manual shutter button operation)
- AF mode: Live single-point AF (central)
- AF operation: One-shot AF
AF Area Coverage of Approx. 88% x 100%^
The EOS Ra camera features an expansive focus area of approx. 88% horizontal and 100% vertical^ not only with RF lenses, but also when working with select EF lenses. With older EF lenses, or with Extender types I and II, the EOS Ra focuses approx. 80% horizontally and 80% vertically - This means fast and impressive focusing.
^ When shooting still photos. Actual coverage varies depending on the lens in use.
AF Points and AF Area
The EOS Ra camera features a sophisticated AF system with a maximum of 5,655 manually selectable AF positions**, which covers almost the entire image sensing area. The EOS Ra can also be configured to focus on specific areas, using an extended range of selectable modes that include 1-point AF, Expand AF Area, Zone AF and Large Zone AF in addition to the conventional Face+ Tracking AF.
EV -6^ Low-light Autofocus
Amazing for nighttime photography or in very low light, the EOS Ra camera's brilliant AF can operate in light as dim as a light rating of EV -6^ where other AF systems may fail or search. Phenomenal AF is achieved even when using lenses with high F numbers. This ultra-sensitive AF works in concert with the EOS R's EVF to clearly capture subjects even when there's limited light.
^ When using RF 50mm F1.2 L USM, with central AF point.
f/8 and f/11 Compatible in All AF Areas
The EOS Ra camera's brilliant AF system doesn't just work with bright lenses. With the EOS Ra, autofocus will operate over nearly the entire image area even when used with compatible f/8 and f/11 lenses. For example, users can take ultra-telescopic 800mm shots using a compact EF 100-400mm f/4-5.6 IS II lens together with an EF 2x III extender, and AF will function properly over the entire field. When used with a III-type extender, the effective AF range is limited to an area roughly 88% x 100% of the total image frame, or 80% x 80% if combined with a I/II type extender.
Variety of AF Modes including Eye Detection AF
The EOS Ra camera's Face+ Tracking mode helps enhance reliability for tracking moving subjects. When the camera detects a human face, it uses the subject's eye as the AF point, choosing the eye closest to the camera by default. Photographers can also select which eye to focus on by touching the screen or using the camera's AF point selection button and cross keys.

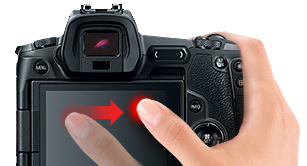

Touch and Drag AF
Touch and Drag AF makes it fast and easy to select a focus point without taking your eye away from the viewfinder. Using the Touchscreen LCD, it's as simple as pointing to the desired area of focus. The chosen AF point is then displayed in the camera's EVF for quick confirmation.
Certain images and effects are simulated.
Focus Peaking
Among the EOS Ra camera's manual focus aids, Focus Peaking helps establish the focus area quickly and clearly. With manual focus peaking, the outline of the area in focus is indicated by a colored line. Focus Peaking is usable in conjunction with the EOS R's Focus Guide feature, and can be customized with peaking color and detection level specifications that fit the project at hand.
Dual Pixel Focus Guide
For help when using manual focus while recording videos and shooting still images, the EOS Ra camera's Dual Pixel Focus Guide not only indicates when subjects are in focus, but also displays where the position of focus is relative to the subject. This function can be combined with Zone AF or Face Detection AF as well.
4K 30p, Full HD 60p, HD 120p
The EOS Ra camera offers advanced recording features such as 4K at 29.97 fps, Full HD at 59.94 fps and HD at 119.9 fps. Helpful functions include distortion correction during recording and Movie Digital IS. Additionally, video can be recorded during still photo shooting by simply pressing the Movie Shooting button. Beautiful time-lapse videos can also be created in 4K simply and easily with the dedicated Time-lapse Movie mode – ideal for capturing movement of the stars across the night sky.
Canon Log
Canon Log is included in the EOS movie gamma selections. This feature reduces heavy shadows and blown out highlights, delivering movie images with approximately 12 stops of dynamic range (at ISO 400) for excellent shadow and highlight detail. Especially useful for moviemakers and videographers planning on using video clips in post-production and integrating EOS Ra footage with clips from other cameras, Canon Log is an indispensable tool that helps make the EOS R a serious movie camera.
10-bit 4:2:2 HDMI Output
For advanced video capture and for generating video that can be incorporated with footage shot on other cameras in post-production, the EOS Ra camera has an HDMI port that can output 4K video directly to an external drive. The camera can also output 10-bit movie footage in ITU-R BT.2020 color when Canon Log setting is activated.
Headphone Jack
To help confirm the clarity and levels of sound being recorded, the EOS Ra camera is equipped with a 3.5mm diameter stereo mini jack for use of compatible headphones when recording video. It has a maximum output level of -14dBV, helping deliver audible and high-quality audio to wired headphones.
Microphone Input
For use with an external microphone, the EOS Ra camera has a 3.5mm diameter stereo mini jack in addition to its built-in stereo microphone. Particularly useful in situations with specific sound recording needs, the EOS Ra's compatibility with external microphones helps ensure that sound recordings complement the quality of the captured footage.
4K IPB/ALL-I MP4 H.264
The EOS Ra camera can record 4K video using IPB or ALL-I compression and save them as MP4 files. This helps provide further flexibility with both file size, image quality and integration with video clips recorded with other cameras.

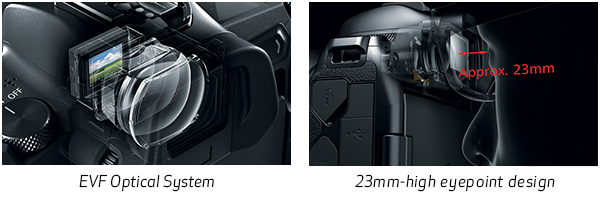

0.5-type OLED EVF with Approx. 3.69 Million Dots
The EOS Ra camera features a high-precision 0.5-inch OLED (Organic Light-Emitting Diode) EVF with approx. 3.69 million dots and a 23mm eyepoint. Displaying a bright image and extensive shooting information that rotates with the camera, the viewfinder excels in bright conditions where viewing the camera's LCD may prove difficult.
The EOS Ra's electronic viewfinder has been created to provide a bright, sharp and colorful 100% view of the subject at hand. Equipped with an aspherical lens, the EVF shows a crisp and vivid image with minimal aberration or distortion, even when the eye moves off the center of the visual field.
The EOS Ra's EVF has a bright, 23mm-high eyepoint design that creates a generous 30mm space between your nose and the rear of the viewfinder. This makes it easy to compose and view images in the viewfinder with or without glasses. A dioptric adjustment of -4 - +2 means it's simple to change as needed to suit various users.
The EVF's 0.5-inch OLED based display features approximately 3.69 million dots for an incredibly sharp and detailed image that makes it easy to check focus and view the extensive image data that's displayed.
Vari-angle Touchscreen LCD
The EOS Ra camera features a 3.15-inch, 2.1 Megapixel Clear View LCD II Vari-angle Touchscreen LCD. Brightness is adjustable in seven levels and four types of color adjustment are supported, including warm and cool tones. Its extensive flexibility makes it easy to compose and shoot from virtually any angle, making selfies simple and enabling the LCD to fold away when not in use. The brightness of the EVF and the LCD monitor can even be adjusted individually - a first for an EOS camera. Touchscreen features include settings, review and even AF point selection.

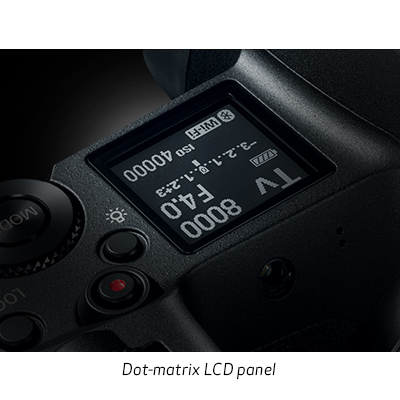

Dot-matrix LCD Panel
An LCD panel on the top of the camera features a dot-matrix display that shows information on the camera's status, recording mode and more. It gives real-time setting information both when the camera is in use or on standby, and can be inverted from black to white to suit viewing preferences or the ambient light source. For convenience, the LCD remains on even when the camera is powered down.

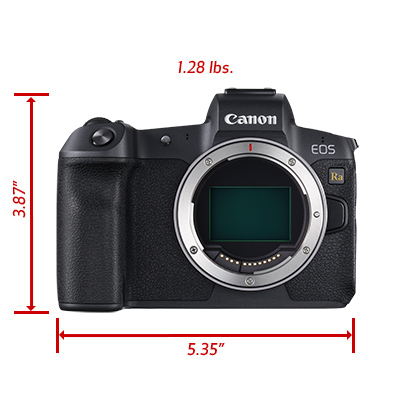

Lightweight and Compact
With a compact, lightweight and comfortable design, the EOS Ra camera reflects Canon's decades of experience designing and manufacturing cameras. With an intelligent layout of buttons, dials and screens, the EOS Ra is intuitive for new users and feels familiar to EOS users, offering the advanced features and nimble operation EOS users demand.
Certain images and effects are simulated.

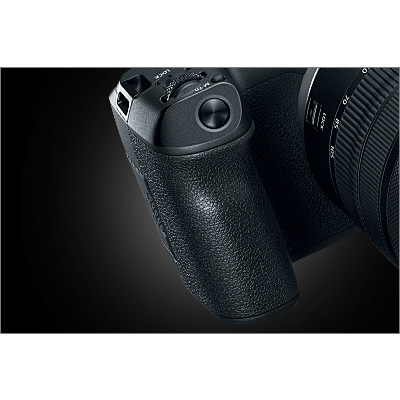

Deep Grip with Convenient Shutter Button Position
Although relatively compact in size, the EOS Ra camera features a large, ergonomic grip that makes the camera easy and comfortable to hold, even for long stretches of time. The EOS R's shutter button is even positioned atop the camera grip in a way that's easy to access and will feel familiar to any EOS user. With the EOS Ra's thoughtfully designed grip, shutter position and button layout, switching between the EOS Ra and other EOS cameras can be both comfortable and intuitive.
Lens Balance
The EOS Ra camera is designed and engineered to create a balanced and reliable user experience. Whether shooting with the impressive RF 28-70mm F2 L USM's zoom, with the compact RF 35mm F1.8 Macro IS STM or with an EF lens with adapter and extender attached, the EOS Ra's deep grip, even weight and shallow body reflect a thoughtful design that’s ideal for extended use.
High Magnification Ratio of 30x in Live View
The EOS Ra camera gives you the choice of standard, full-frame viewing in 5x or 30x magnification - this is the first Canon EOS camera with 30x capability. This feature provides you with a tool for extremely precise focusing upon small stars and other astrophotography subjects. The EOS Ra camera is also able to display the 30x magnification through the electronic viewfinder, along with its LCD screen for Live View operation.
*For remote operation via EOS Utility software, viewing on computer or mobile device screens, the 30x magnification feature is not possible.

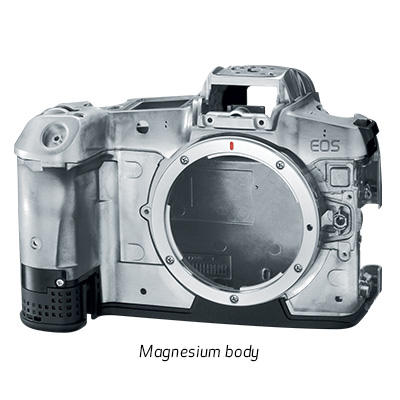

Magnesium Body
Comfortable and solid in the hand, the EOS Ra camera features a rigid yet lightweight magnesium alloy chassis that enhances body durability while shielding the camera from electromagnetic radiation and heat. It also has a tempered front panel for internal rigidity.

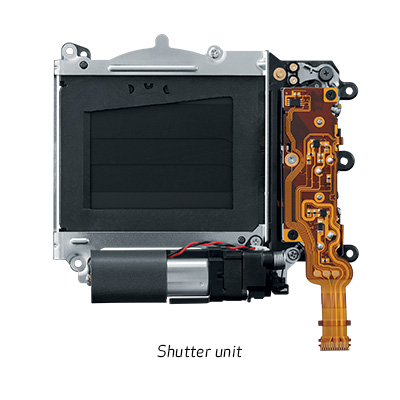

Shutter Durability
The EOS Ra camera has a robust, electronically controlled focal-plane shutter that's rated to approx. 200,000 cycles for consistent and reliable use. It shoots as fast as 1/8000 sec. at up to 8 fps, and up to 5 fps with Servo AV.

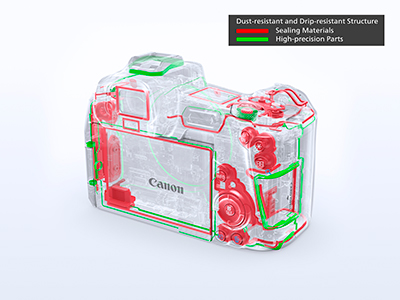

Dust- & Water-resistant Sealing
The EOS Ra camera is designed for use in a variety of weather conditions. Sealing materials are used in critical areas like the buttons, terminal covers, the battery compartment and the card slot cover. Precise design and construction help to minimize accidental penetration of dust and moisture in the rest of the camera body. Combined with an RF lens, or any other weather-sealed EF/EF-S lens, the EOS Ra proves to be a reliable partner in virtually any climate.

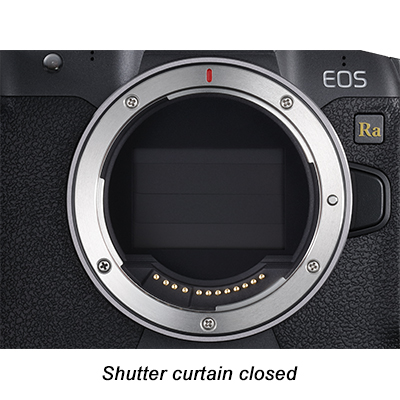

Shutter Closes if Powered Off without Lens
The EOS Ra camera has a mechanism to close the shutter when the camera is powered down. A mechanical shutter sound is audible when the camera is turned on or off. To protect the shutter curtain, focus is moved to infinity for RF and EF lenses and the minimum aperture is set for RF lenses when the camera is turned off.
Silent Shutter.
The EOS Ra camera has a silent shutter feature that uses an inaudible electronic shutter instead of the camera's focal-plane shutter.
USB Charge Compatible
The EOS Ra camera is compatible with the USB Power Adapter PD-E1 for in-camera charging via USB. Featuring an industry standard USB-C connector, the USB Power Adapter PD-E1 makes for easy charging without the necessity to remove the battery from the camera.
Battery Pack LP-E6N
For power and the convenience of compatibility among multiple cameras, the EOS Ra camera uses Battery Packs LP-E6N, the same batteries used on the EOS 5D Mark IV and others. Especially helpful for photographers with multiple EOS cameras, the Battery Pack LP-E6N is a robust, long-lasting battery that helps deliver power, shot after shot, recording after recording.

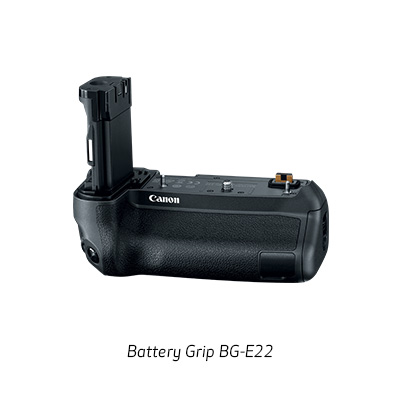

Battery Grip BG-E22
The EOS Ra camera's dedicated Battery Grip BG-E22 holds 2 Battery Packs LP-E6N, while enabling virtually seamless vertical operation and additional functions with all buttons similarly configured in a comfortable and dedicated grip. Designed to maintain an optimal balance between the weight of the camera body and lens, the Battery Grip BG-E22 also adds a flash sync terminal for use in the studio. It also has a useful battery charging function (with optional USB power delivery adapter attached) that's particularly helpful for power-hungry operations like video recording or shooting over an extended period of time with the EVF.
Specifications
Type
Recording Media
- SD card speed class-compatible.
- UHS-I and II supported.
- Use of UHS-II microSDHC/SDXC cards with a microSD to SD adapter is not recommended. When using UHS-II supported cards, use SDHC/SDXC cards compatible with UHS-II.
- Eye-Fi cards not supported.
- Multimedia cards (MMC) cannot be used.
Image Format
Compatible Lenses
When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)
Lens Mount
Image Processor
Type
Effective Pixels
Pixel Unit
Total Pixels
Aspect Ratio
Color Filter System
Low Pass Filter
Transmission Sensitivity for Hα Rays
Dust Deletion Feature
- Self Cleaning Sensor Unit
- Removes dust adhering to the low-pass filter.
- At power off only / Enable / Disable. Performed automatically (taking about 3.0 sec. as indicated on the screen) or manually (taking about 9.0 sec. as indicated on the screen).
- After manually activated cleaning, the camera will automatically restart (Power OFF to ON).
- When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected.
- Dust Delete Data acquisition and appending
- The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
- The dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots.
- Not available with EF-S lenses, in cropped shooting or when distortion correction is applied.
- Manual cleaning (by hand)
Recording Format
Supports time difference information in Exif 2.31.
Image Format
Movies: ALL-I, IPB
File Size
Large/RAW/C-RAW: 6720 x 4480
Medium: 4464 x 2976
Small 1: 3360 x 2240
Small 2: 2400 x 1600
1.6x (Crop)
Large/RAW/C-RAW: 4176 x 2784
Small 2: 2400 x 1600
4:3 Aspect Ratio
Large/RAW/C-RAW: 5952 x 4480*
Medium: 3968 x 2976
Small 1: 2976 x 2240*
Small 2: 2112 x 1600*
16:9 Aspect Ratio*
Large/RAW/C-RAW: 6720 x 3776
Medium: 4464 x 2512
Small 1: 3360 x 1888
Small 2: 2400 x 1344
1:1 Aspect Ratio
Large/RAW/C-RAW: 4480 x 4480
Medium: 2976 x 2976
Small 1: 2240 x 2240
Small 2: 1600 x 1600
• Values for Recording Pixels are rounded to the nearest 100,000 or 10,000.
• For RAW and JPEG images, information outside the cropping area is not retained.
• JPEG images are generated in the set aspect ratio.
• RAW images are generated in [3:2], and the set aspect ratio is appended.
* Indicate an inexact proportion.
File Numbering
- File numbering methods
- Continuous numbering
- The numbering of captured images continues even after you replace the card.
- Auto reset
- When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.
- Continuous numbering
- Manual reset
- Resets the file number to 0001, and creates a new folder automatically.
RAW + JPEG Simultaneous Recording
Color Space
Picture Style
- Auto
- Standard
- Portrait
- Landscape
- Fine Detail
- Neutral
- Faithful
- Monochrome
- User Defined 1-3
- In Scene Intelligent Auto, [Auto] will be set automatically.
- [Standard] is the default setting for [User Def. 1–3].
Settings
- Auto (Ambience priority/White priority)
- Daylight
- Shade
- Cloudy*
- Tungsten light
- White fluorescent light
- Flash
- Custom (Custom WB)
- Color temperature
* Effective also in twilight and sunset.
Auto White Balance
Color Temperature Compensation
Magenta/green bias: ±9 levels
Corrected in reference to the current WB mode’s color temperature.
Type
Coverage
| Approx. 100% | Approx. 100% | Approx. 100% | Approx. 100% | Approx. 100%*1 | ||
| Approx. 100% *1 | Approx. 100% *1 | Approx. 100%*1 | Approx. 100%*1 | |||
| Approx. 100% | Approx. 100% | Approx. 100% | Approx. 100% | |||
| Approx. 100% | Approx. 100%*1 | *2 | Approx. 100% | Approx. 100% | Approx. 100% | |
*1 Viewfinder coverage may become more than 100% (up to 100.36%).
*2 Viewfinder coverage may become more than 100% (up to 100.5% of viewfinder coverage).
Magnification
Eye Point
Dioptric Adjustment Range
Viewfinder Information
- AF point information
- Number of remaining multiple exposures
- HDR shooting
- Multiple-exposure shooting
- Dual Pixel RAW shooting
- Multi Shot Noise Reduction
- Digital Lens Optimizer
- AF method
- AF operation
- Drive mode
- Metering mode
- Anti-flicker shooting
- Shooting mode
- Scene icons
- AE lock
- Flash-ready
- Flash off
- FE lock
- High-speed sync
- Shutter speed
- Multi-function lock warning
- Aperture
- Lens information
- Exposure level indicator
- Exposure compensation
- Highlight tone priority
- ISO speed
- Possible shots
- Number of self-timer shooting
- Maximum burst
- Battery level
- Exposure simulation
- AEB
- FEB
- Still photo cropping
- Aspect ratio
- Auto Lighting Optimizer
- Picture Style
- White balance
- White balance correction
- Image Quality
- Bluetooth® function
- Wi-Fi® function
- Histogram
- Electronic level
Type
AF Points
When selected with cross keys.
AF Working Range
Focusing Modes
- One-Shot AF
- Servo AF
- Manual (Manual focus)*
* Images can be magnified by approx. 5x or 30x for manual focusing.
* For more exact focusing, magnified view must be used with manual focusing.
AF Point Selection and AF Operation
| Face+Tracking AF | Automatic selection (auto detection), or AF points can be set manually and freely in the AF area. | AF prioritizing subjects targeted by Face+Tracking. If no Face+Tracking subject is detected, the entire AF area is used for auto selection AF. |
| 1-point AF ([AF frame size] can be set to [Small]) | AF points can be set manually and freely in the AF area. | AF targeting specified AF points. (If there are faces in the area, they take precedence.) |
| Expand AF Area (Above, below, left and right/Around) | AF points can be set manually and freely in the AF area. | AF prioritizing specified AF points, supplemented by AF points above, below, left and right or around in the expansion area. (If there are faces in the area, they take precedence.) |
| Zone AF Large Zone AF (Vertical/Horizontal) | Zones covering specific areas can be set manually and freely in the AF area. | Automatic AF point selection in the specified zone. (Prioritizes subjects at close range, but any faces in the area take precedence.) |
• AF points can be moved by touching the screen or using the Main Dial, Quick Control Dial or cross keys.
AF Assist Beam
- Enable
- Disable
- LED AF assist beam only
- Focus range with the AF-assist beam is generally no more than 13.1 ft. / 4m (at f/5.6).
Lens Compatibility based on AF area
| AF area | Horizonatal: Approx. 88% Vertical: Approx. 100% | Horizontal: Approx. 80% Vertical: Approx. 80% |
| Summary of compatible lenses | RF Lenses EF lenses (current products)* When using Extender EF (III) Depends on master lens mode | EF lenses (other than current products)* When using Extender (I or II) Depends on master lens mode |
* Some exceptions apply.
Eye Detection AF
MF Peaking Settings
Focus Guide
Metering Modes
- Evaluative metering (AF point-linked)
- Partial metering (approx. 6.1% of the area at the center of the screen)
- Spot metering (approx. 2.7% of the area at the center of the screen)
- AF point-linked spot metering not provided.
- Center-weighted average metering
Metering Range
Exposure Control Systems
- Scene Intelligent Auto
- Flexible-priority AE
- Program AE (shiftable)
- Shutter-priority AE (Safety shift possible)
- Aperture-priority AE (Safety shift possible)
- Manual exposure
- Bulb exposure (BULB) - Shooting in a special sequence is possible with compatible lenses.
- Custom shooting mode C1, C2, C3
ISO Speed Range
| ISO 100 to 40000 (in 1/3-stop or whole-stop increments) | |
| L: equivalent to ISO 50, H1: 51200, H2: 102400 |
• For [Highlight tone priority], the settable ISO speed range will be ISO 200 to 40000.
• ISO speed safety shift possible with Custom Function.
• All the expanded ISO speeds, even for movies, are only equivalent speeds.
Auto
| ISO 100-12800 | ISO 100-1600 | |
| ISO 100-40000*1 | ISO 100-1600*1 | |
| ISO 400 fixed | ISO 400 fixed | |
*1 It depends on [Minimum] and [Maximum] of [ISO speed settings][Range for stills].
Exposure Compensation
| ±3 stops in 1/3- or 1/2-stop increments | |
| ±3 stops in 1/3- or 1/2-stop increments |
Anti-flicker Shooting
AE Lock
- Auto AE lock
- The metering mode for AE lock after focus can be customized.
- Manual AE lock
- In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
- Enabled in all metering modes.
Type
- Electronic first curtain, mechanical second curtain
- Electronic shutter (slit rolling read out)
- Mechanical first and second curtain
Shutter Speeds
X-sync at 1/200 sec.
Silent Shutter
Self Timer
Shutter Lag Time
With the aperture stopped down by 3 stops or less from the open aperture.
Without flash.
If the SW-1 and SW-2 are pressed simultaneously, release time lag will be long.
The release time lag may become further longer depending on shooting conditions, such as when shooting in a dark environment.
Flash Metering
Flash Exposure Compensation
FE Lock
External Flash Settings
- External flash control
- Flash firing, E-TTL II Flash metering, Slow synchro, Safety FE, Flash mode, Wireless function, Flash zoom, Shutter synchronization and Flash exposure compensation
- Flash Custom Function setting
- The setting options for both (1) and (2) will differ depending on the Speedlite used.
Drive Modes and Continuous Shooting Speed
- Single shooting
- High-speed continuous shooting
- Max. approx. 8.0 fps
- The conditions are attaining the maximum continuous shooting speed are as follows:
- Shooting with a fully charged battery in One-Shot AF mode at a 1/1000 sec. or faster shutter speed and maximum aperture (depending on the lens), at room temperature (73°F/23°C), with flicker reduction, Dual Pixel RAW shooting and Digital Lens Optimizer disabled.
- In One-Shot AF mode with Image Stabilizer off when using these lenses: EF 300mm f/4L IS USM, EF 28-135mm f/3.5-5.6 IS USM, EF 75-300mm f/4-5.6 IS USM, EF 100-400mm f/4.5-5.6L IS USM.
- The continuous shooting speed for high-speed continuous shooting may be lower, depending on conditions such as these: battery level, temperature, flicker reduction, Dual Pixel RAW shooting, shutter speed, aperture, subject conditions, brightness, AF operation, type of lens, use of flash and shooting settings.
- The maximum continuous shooting speed may be lower when using a cold battery in cold environments or when the battery level is low, at approx. 6.0 shots/sec.
- With Servo AF: Max. approx. 5.0 fps (shooting speed priority)
[Silent LV shooting: Mode 1]- With Servo AF, the maximum continuous shooting speed may become slower depending on subject conditions or the lens used. Also, the maximum continuous shooting speed will become slower when setting the [LV silent shooting] to [Disable].
- Max. approx. 8.0 fps
- Low-speed continuous shooting (Tracking priority)
- Max. approx. 3.0 fps
- With Dual Pixel RAW: Max. approx. 2.2 fps
- High-speed continuous shooting not possible.
- Self-timer: 10 sec./remote control
- Self-timer: 2 sec./remote control
Maximum Burst
| Large (Fine) | 8.4 | 3570 | 100 | 100 |
| Large (Normal) | 4.4 | 6770 | 100 | 100 |
| Medium (Fine) | 4.7 | 6460 | 100 | 100 |
| Medium (Normal) | 2.6 | 11510 | 100 | 100 |
| Small 1 (Fine) | 3.1 | 9700 | 100 | 110 |
| Small 1 (Normal) | 1.8 | 16040 | 100 | 110 |
| Small 2 | 1.6 | 18830 | 100 | 110 |
| RAW | 31.3 | 970 | 34 | 47 |
| RAW:Dual Pixel RAW | 55.2 | 520 | 17 | Full |
| C-RAW | 17.3 | 1770 | 61 | 78 |
| C-RAW: Dual Pixel RAW | 27.8 | 1000 | 150 | Full |
| RAW + Large (Fine) | 31.3 + 8.4 | 760 | 34 | 39 |
| C-RAW + Large (Fine) | 17.3 + 8.4 | 1180 | 55 | 56 |
• The number of possible shots and maximum burst (standard) apply to a 32 GB card based on Canon's testing standards. The maximum burst (High-speed) apply to a 32 GB card based on Canon's testing standards.
• The file size, number of possible shots and maximum burst vary depending on shooting conditions (aspect ratio of 3:2, subject, memory card brand, ISO speed, Picture Style, Custom Function, etc.)
• Full indicates that shooting is possible until the card becomes full.
Shooting Modes
Focusing
- Dual Pixel CMOS AF
- Manual focus
- Magnified view possible by approx. 5x or 10x for manual focusing (not possible during movie shooting).
Metering Modes
- Center-weighted average metering
- Metering brightness range: EV -1 - 20 (at 73°F/23°C, ISO 100)
- AF point-linked evaluative metering
- For face detection with Face detection + Tracking AF.
Metering Range
Grid Display
- Off
- 3x3
- 6x4
- 3x3+diag
File Format
Video: MPEG-4 AVC / H.264
- Variable (averaged) bit rate
ALL-I: Linear PCM
IPB: AAC
Video Recording Size and Frame Rates
3840 x 2160 | 24.00 fps 23.98 fps | ALL-I | UHS-II, Video Speed Class 60* or higher |
| IPB | UHS-I, UHS Speed Class 3 or higher | ||
1920 x 1080 | ALL-I | UHS-I, UHS Speed Class 3 or higher | |
| IPB | SD Speed Class 10 or higher | ||
24.00 fps 23.98 fps HDR Movies | ALL-I | UHS-I, UHS Speed Class 3 or higher | |
| IPB | SD Speed Class 4 or higher | ||
| IPB (Light) | SD Speed Class 4 or higher | ||
1280 x 720 | ALL-I | UHS-I, UHS Speed Class 3 or higher | |
| ALL-I | Speed Class 10 or higher | ||
| IPB | SD Speed Class 4 or higher | ||
HDR Movies | IPB | Speed Class 4 or higher | |
* With Movie crop set to [Disable]. Movie digital IS set to [Disable].
• Full HD 59.94 fps not available during EF-S cropped shooting.
Continuous Shooting Time
3840 x 2160 | 24.00 fps 23.98 fps | 2 min. | 8 min. | 35 min. | 480 Mbps 3444 MB/min. | |
| 8 min. | 35 min. | 2 hr. 21 min. | 120 Mbps 860 MB/min. | |||
1920 x 1080 | 5 min. | 23 min. | 1 hr. 34 min. | 180 Mbps 1298 MB/min. | ||
| 17 min. | 1 hr. 10 min. | 4 hr. 43 min. | 60 Mbps 431 MB/min. | |||
24.00 fps 23.98 fps HDR Movies | 11 min. | 46 min. | 3 hr. 6 min. | 90 Mbps 654 MB/min. | ||
| 35 min. | 2 hr. 20 min. | 9 hr. 23 min. | 30 Mbps 216 MB/min. | |||
| 1 hr. 26 min. | 5 hr. 47 min. | 23 hr. 11 min. | 12 Mbps 87 MB/min. | |||
1280 x 720 | 6 min. | 26 min. | 1 hr. 46 min. | 160 Mbps 1144 MB/min. | ||
| 13 min. | 52 min. | 3 hr. 29 min. | 80 Mbps 583 MB/min. | |||
| 40 min. | 2 hr. 42 min. | 10 hr. 49 min. | 26 Mbps 187 MB/min. | |||
HDR Movies | 1 hr. 20 min. | 5 hr. 21 min. | 21 hr. 26 min. | 13 Mbps 94 MB/min. | ||
• Bit rate indicates video output only, audio is not included.
• If the recording time reaches 29 min. 59 sec. (or 7 min. 29 sec. for a HD High Frame Rate Movie), the movie shooting will stop automatically.
• There is no restriction to automatically stop movie shooting even when the file size reaches 4 GB.
• When the compression method for movie recording quality is IPB or IPB (Light) (audio: AAC), sound will not be recorded for approx. the last two frames.
• When you play back movies on Windows, movie images and sound may become slightly out of synchronization.
Focusing
- Dual Pixel CMOS AF
- Manual focus
- Magnified view possible by approx. 5x or 10x for manual focusing (not possible during movie shooting).
Range
Exposure Control
| Yes | — | Yes | — | ||
| — | Yes | Yes | — | ||
| Yes | — | — | Yes | ||
| — | Yes | — | Yes | ||
Shutter Speed
| — | |||
| — | |||
ISO Speed (Recommended Exposure Index)
| 100 to 25600 | 100 to 12800 | ||||
Speed Range | 100 to 25600 | 100 to 12800 | |||
Speed Range | H2 (102400) | H2 (102400) | |||
Speed Range | 100 to 25600 | 100 to 25600 1/3-stop increments | 100 to 12800 | 100 to 12800 1/3-stop increments | |
Speed Range | H2 (102400) | H2 (102400) | H2 (102400) | H2 (102400) | |
• Auto setting of ISO speed
• Even if ISO speed range is altered with [ISO speed settings], the setting is not effective for the normal ISO speed range.
• [ISO speed settings] is effective to set the maximum ISO speed for the ISO expansion.
• Manual setting of ISO speed
• Normal ISO speed range and Maximum ISO speed with the ISO expansion can be manually set within the range set with [ISO speed settings].
• Expanded ISO speeds: H1 (ISO 51200 equivalent), H2 (ISO 102400 equivalent). Note that L (ISO 50) cannot be set.
• The expanded ISO speeds are only equivalent ISO speeds.
• For HDR movie shooting, an expanded ISO speed cannot be set. The maximum will be ISO 25600.
Exposure Compensation
Type
Monitor Size
3.15 in./8.01cm diagonal (2.63 in./6.67cm width, 1.75 in./4.44cm height)
Dots
Coverage
Brightness Control
Coating
- Anti-smudge coating applied.
- Anti-reflection coating not applied.
Interface Languages
Display Format
- Single image display
- No information display
- Basic information display
- Detailed shooting information display
- Detailed information
- Lens/Histogram information
- White balance information
- Picture Style information 1
- Picture Style information 2
- Color space/Noise reduction information
- Lens aberration correction information 1
- Lens aberration correction information 2
- Record of sent images
- GPS information
- IPTC information
- Index display
- 4-image index
- 9-image index
- 36-image index
- 100-image index
Highlight Alert
Histogram
Items
Protection
- Single image (select image)
- Select range
- All images in folder
- All images on card
- Image browsing and image search can be based on ratings.
- Ratings-based image selections also possible with DPP.
- All found images (only during image search)
Erase
- Select images to erase
- Select range
- All images in folder
- All images on card
- All found images (only during image search)
Compatible Printers
DPOF
Standards Compliance
Transmission Method
OFDM modulation (IEEE 802.11g/n)
Transition Frequency (Central Frequency)
Channels: 1 to 11 channels
Connection Method
- Camera access point mode
- Infrastructure mode
Security
| AES | • ASCII 8 characters | ||
| Disable | |||
| WEP | • Hexadecimal 10 digits • Hexadecimal 26 digits • ASCII 5 characters • ASCII 13 characters | ||
| Disable | |||
| WEP | Same as WEP above | ||
| TKIP AES | • Hexadecimal 64 digits • ASCII 8-63 characters | ||
Communication with a Smartphone
Remote control of the camera using a smartphone is possible depending on the Camera Connect specifications.
Images can be sent to a smartphone.
Remote Operation Using EOS Utility
Print from Wi-Fi® Printers
Send Images to a Web Service
With the CiG service, images can be sent to social media or a photo album link can be sent (by the CiG specifications).
A link to a CiG album can be emailed.
Standards Compliance
Transmission Method
Custom Functions
Custom Controls
Customizable Dials
Customizable M-Fn Bar
Types of actions: four types (left, right, slide, press completely)
My Menu Registration
• Up to five My Menu tabs can be added.
| My Menu tab overall operations | • Adding a tab • Deleting tabs in a batch • Deleting all tab items • Setting the menu display |
| My Menu tab detailed operations | • Selecting a registered item • Sorting registered items • Deleting selected registered items • Deleting registered items in a batch • Deleting tabs • Changing a tab name (16 ASCII characters) |
USB Terminal
- For PC communication
- For WFT-E7 (Ver. 2) connection
- Shared with terminal for in-camera charging with the USB Power Adapter PD-E1.
- In-camera charging: although it is compatible with USB Type-C (5V/1.5A) equivalent, do not charge the camera other than with the USB Power Adapter PD-E1.
Remote Control Terminal
Wireless Remote Control
Video Out Terminal
- Images can be displayed through the HDMI output and on screen at the same time.
- Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.
Extension System Terminal
Battery
- With the AC Adapter + DC Coupler, AC power is possible.
- When the Battery Grip BG-E22 is used, two battery packs (LP-E6N or LP-E6) can be installed.
- With the USB Power Adapter PD-E1, in-camera charging of LP-E6N is possible but LP-E6 cannot be charged. The USB Power Adapter PD-E1 is not compatible with powering the camera.
Battery Check
Displayed in 6 levels.
- Battery level can be checked on the LCD panel and in the viewfinder.
- One of six levels displayed for LP-E6N and LP-E6. The display for other power sources is different.
Battery Life (Approx. number of shots)
Time Available for Bulb Exposure
Power Saving
Display off
Available time options: 15 sec. / 30 sec. / 1 min. / 3 min. / 5 min. / 10 min. / 30 min.
Auto power off
Available time options: 30 sec. / 1 min. / 3 min. / 5 min. / 10 min.
Disable
Viewfinder off
Available time options: 1 min. / 3 min. / Disable
- At least approx. 6 min. until auto power off while the [Date/Time/Zone] screen is displayed.
Date/Time Battery
When fully-charged, the date/time can be maintained for approx. 3 months.
- Recharge time: approx. 8 hrs.
- The recharge time required to provide the above number of months with no battery pack installed.
Start-up Time
- Based on CIPA testing standards.
Dimensions (W x H x D)
- Based on CIPA standards.
Approx. 5.35 x 3.87 x 2.67 in. / 135.8 x 98.3 x 67.7mm (from grip to monitor)
Weight
Approx. 1.28 lbs. / 580g (body only; without battery, card or body cap)
Working Temperature Range
Working Humidity Range
85% or less
USB Tethered SDK
EOS Ra
Compatible Supplies & Accessories
Canon offers a wide range of compatible supplies and accessories that can enhance your user experience with you EOS Ra that you can purchase direct. Scroll down to easily select items to add to your shopping cart for a faster, easier checkout. Visit the Canon Online Store
AC Adapter AC-E6N
An AC adapter for use with DC coupler DR-E6 when using household outlets to power the EOS 80D Digital SLR.
MSRP: 110.0
AC Adapter Kit ACK-E6
Provides AC power to the camera.
MSRP: 180.0
Battery Charger LC-E6
Battery Charger for NP-E6 Li-ion Batteries.
MSRP: 80.0
Battery Grip BG-E22
This large capacity battery grip is powered by two Battery Pack LP-E6N/LP-E6 batteries. It features a variety of operating controls, and is ideal for high volume and vertical shooting.
MSRP: 490.0
Battery Pack LP-E6N
Rechargeable lithium-ion battery. Compatible with Canon LC-E6 and Canon LC-E6E battery chargers.
MSRP: 100.0
Battery Pack LP-E6NH
Rechargeable lithium-ion battery. Compatible with Canon LC-E6 and Canon LC-E6E battery chargers. Not compatible with in-camera charging using the EOS R camera, EOS Ra camera, or Battery Grip BG-E22.
Camera Backpack EDC-1
The camera Backpack EDC-1 is an all-purpose bag designed to hold a combination of cameras, lenses and accessories for your needs. It can accommodate your mirrorless, DSLR camera or PowerShot camera along with a variety of additional resources, and even multiple cameras and lenses in some cases, depending on their size. Its padding protects against falls to keep your equipment safe, while its adjustable padded shoulder straps provide comfort for extended periods of time. The EDC-1 also features a rain cover to further protect your equipment from outside weather conditions such as rain and snow, as well as protect your bag from wear and tear.
Car Battery Charger CBC-E6
Car battery charger for Canon 5D Mark II Digital SLR LP-E6 battery.
MSRP: 270.0
DC Coupler DR-E6
When shooting indoors, in a studio or on a tabletop, use this DC coupler to provide uninterrupted power to your Canon 5D Mark II Digital SLR.
MSRP: 70.0
GPS Receiver GP-E2
Rugged and lightweight design Records location as EXIF information to images when shooting Can act as a stand-alone GPS logger Camera time can be synched by the built-in atomic clock
MSRP: 390.0
HTC-100
Mini-HDMI Cable: connects Canon HD Camcorders/select PowerShot Cameras to HDMI compatible TV.
MSRP: 80.0
Hand Strap E2
The Canon Hand Strap E2 is designed to add support and comfort to hand-holding a Canon SLR camera. The strap attaches to the eyelets at the sides of the camera.
MSRP: 60.0
Interface Cable IFC-100U
USB interface cable to connect to a computer or other USB device. Approx. 3.3 ft.
Interface Cable IFC-150AB III
USB interface cable for connecting to the WFT-E7. Approx. 4.9 ft.
Interface Cable IFC-400U
USB interface cable to connect to a computer or other USB device. Approx. 13.1 ft.
Interface Cable IFC-40AB III
USB interface cable for connecting to the WFT-E7. Approx. 1.3 ft.
Remote Controller Adapter RA-E3
A conversion adapter that is used with the Timer Remote Controller TC-80N3. For use with cameras with a remote control terminal which is other than N3 type, such as EOS70D.The adapter allows use of Canon Timer Remote Controller TC80-N3.
MSRP: 45.0
Sling Backpack 100S
The Sling Backpack 100S is an all-purpose camera bag designed to hold one DSLR camera, and at least one to two lenses and accessories, depending on their size.
MSRP: 29.99
Sling Backpack EDC-10
The Sling Backpack EDC-10 is a rugged, all-purpose bag designed to hold a combination of cameras, lenses and accessories for your needs.
MSRP: 39.99
Timer Remote Controller TC-80N3
Remote switch for EOS cameras with the N3-type socket. This remote switch has a self-timer, interval timer, long exposure timer and exposure-count setting feature. The timer can be set from 1 second to 99 hours. A new dial enables you to easily enter the numeric settings with a single thumb. It has an illuminated LCD panel and a 2.6ft/80cm cord.
MSRP: 210.0
USB Cable IFC-500U
The Canon IFC-500U USB Interface Cable enables you to transfer your camera pictures to a computer fast. The cable connects to your camera and to the USB port on your PC or MAC Computer. Please see Compatibility tab for compatible models.
MSRP: 50.0
USB Power Adapter PD-E1
Wireless Transmitter WFT-E7A (VER.2)
MSRP: 849.99
Brochures
Sample Images
More Details
More Details
More Details
*ISO speed is based on recommended exposure index.
Sample image taken with the Canon EOS Ra and edited using Canon Digital Photo Professional (DPP) software.
Software Development Kit
The Canon EOS Digital Camera Software Development Kit (EDSDK) enables developers to integrate select Canon cameras directly into their software application solutions, giving them access to remote camera control and communication functionality of the camera. There are two versions of the EDSDK compatible with Windows or Macintosh.
The Software Developer Kit is provided free of charge and can be found at DeveloperCommunity.usa.canon.com. To learn more please visit the Canon Developer Community site and register to download Canon’s SDKs.
DISCLAIMERS
* Optional Mount Adapter EF-EOS R is required when using EF/EF-S lenses with an EOS R camera.
** Available AF positions may decrease when shooting with AF cropping or in movie mode, or depending on camera settings or lens attached.
^ The EOS Ra camera is not recommended for general photography, since the camera cannot achieve normal color balance when shooting subjects that emit or reflect infrared radiation.
† Prices and specifications subject to change without notice. Actual prices are determined by individual dealers and may vary.
