How to Activate

ars logo AUTO REPLENISHMENT SERVICE

Before following the steps below, please make sure you have gone through the standard setup process for your new printer, which includes installing your ink cartridges and connecting to the internet



< Back

Step 1: Update to Latest Firmware

 Select Menu from Home Screen, then select Management Settings

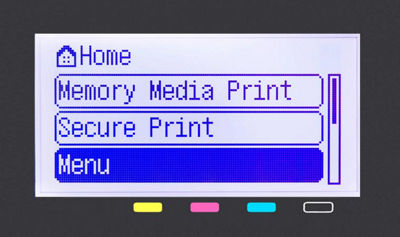

Homescreen with menu button highlighted







arrow right

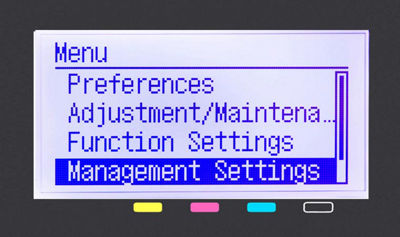

"Menu" manu with management setting highlighted

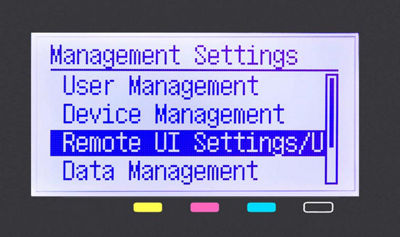

  •  Select Remote UI Settings/Update Firmware
Management settings menu with remote UI settings / update firmware highlighted

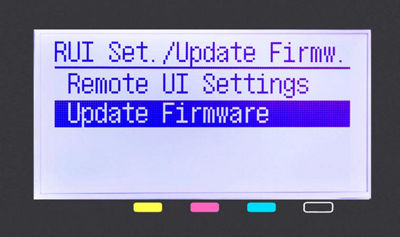

• Select Update Firmware



RUI Set. / Update Firmware menu with update firmware highlighted

• Select Via Internet
• Install firmware update (if applicable)
• You will see a notification confirming that your firmware version is latest available
• If firmware update is needed, turn off printer once completed
• Turn printer on by pressing the Power Button

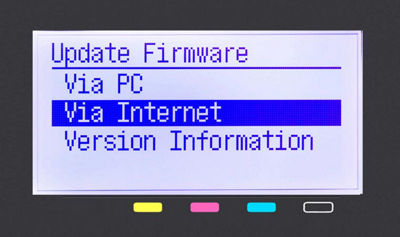

Update firmware menu with via internet highlighted

Note: This step is necessary for online enrollment

Step 2: How to Retrieve Serial Number, Check Digits / Verification Code

• Select Menu from Home Screen, then select Toner Delivery Settings

Homescreen with menu button highlighted





arrow right

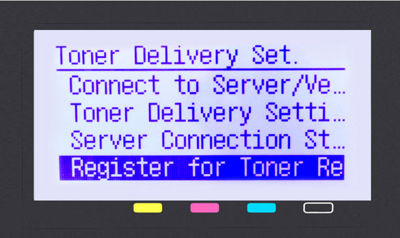

•  Select Register for Toner Replenishment

Toner delivery settings menu with register for toner replenishment highlighted

• Select OK button to print serial number and check digits / verification code

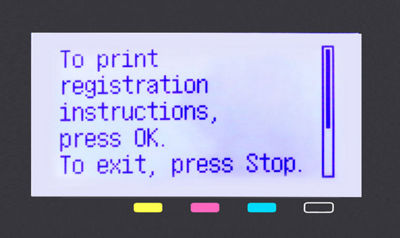

Print instructions page







arrow right

• Select <Close> to continue or <Close> to stop printing

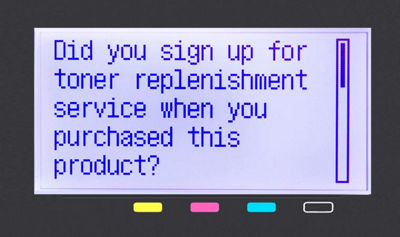

Question screen

Step 3: Activate Auto Replenishment Service



• Follow on-screen instructions, if prompted. If a prompt does not appear, follow instructions below.

• Select Toner Delivery Set from the Home Screen

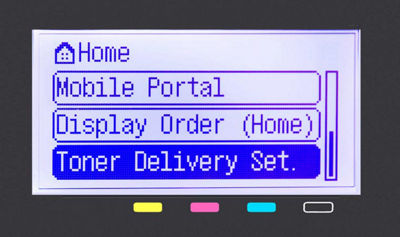

Homescreen with Toner Delivery Settings button highlighted







arrow right

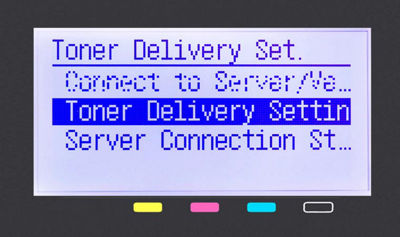

• Select Toner Delivery Settings

Toner delivery set menu with toner delivery settings highlighted

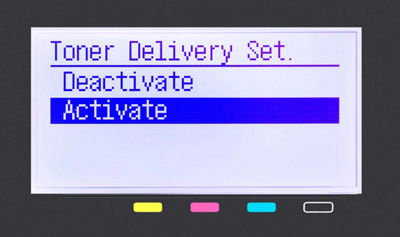

• Select Activate to begin setup

Toner delivery setting activation menu with "activate" highlighted







arrow right

• Select OK button after reading first confirmation screen

Question screen

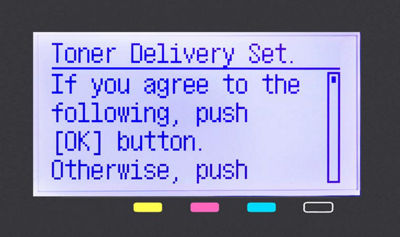

• Select OK button to accept and continue setup

Toner delivery setting agreement screen

Step 4: Final Validation Steps



Next, you should see the following validation screen

• Select OK button

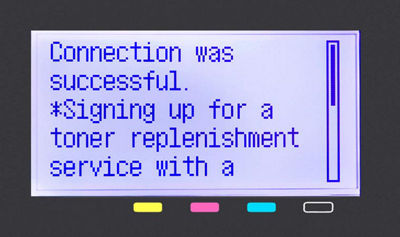

successful connection screen











arrow right

• If an error message occurs, follow on-screen instructions

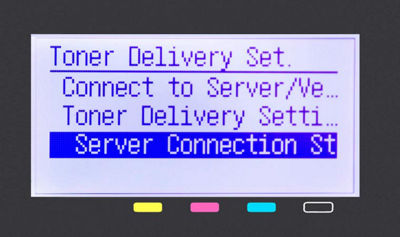

• Check server connection status by selecting
Server Connection Status

toner delivery setting menu with server connection status highlighted

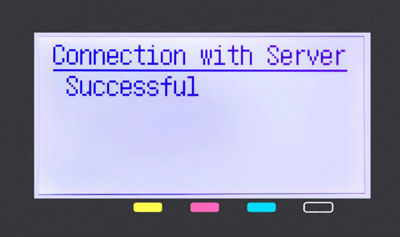

You should see the following Successful screen

successful connection with server screen
