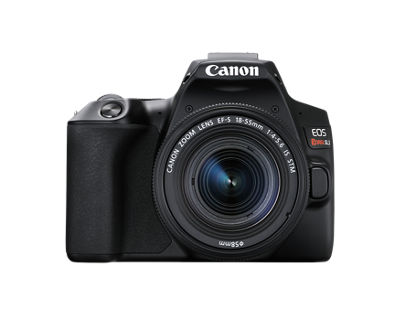

Canon Support for EOS Rebel SL3 EF-S 18-55mm IS STM Lens Kit | Canon U.S.A., Inc.

DOWNLOADS

Filter & Sort
Download Type
<p><b>Find Software &amp; Drivers</b></p> <p>Software &amp; drivers are specific to your operating system. Not all software &amp; drivers are compatible with operating systems and versions.</p>
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above

SETUP & TROUBLESHOOTING

PRODUCT INFO

Type
Digital AF/AE single-lens reflex camera with built-in flash
Recording Media
SD/SDHC/SDXC memory cards
  • SD speed class-compatible
  • UHS-I compatible
  • High-speed writing is supported when a UHS-I compatible SD card is used.
  • Compatible with Eye-Fi cards.
  • Multimedia cards (MMC) cannot be used (card error will be displayed).
Image Format
Approx. 22.3 x 14.9mm (APS-C)
Compatible Lenses
Canon EF lenses (including EF-S lenses, excluding EF-M lenses)
Lens Mount
Canon EF mount
Type
CMOS sensor (supporting Dual Pixel CMOS AF)
Pixels
Approx. 24.1 megapixels
Pixel Unit
Approx. 3.72 &micro;m square
Total Pixels
Approx. 25.8 megapixels
Aspect Ratio
3:2 (Horizontal : Vertical)
Color Filter System
RGB primary color filters
Low Pass Filter
Installed in front of the image sensor, non-detachable
Dust Deletion Feature
  1. Self Cleaning Sensor Unit
    • Removes dust adhering to the low-pass filter.
    • Self-cleaning activated automatically (taking approx. 2 sec.) when power is turned on or off. Manual operation also possible (taking approx. 8 sec.).
    • After the cleaning is performed, the camera will automatically restart (Power OFF to ON).
    • When you use Multi Shot Noise Reduction, Clean now cannot be selected.

  2. Dust Delete Data acquisition and appending
    • The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
    • The dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots.

  3. Manual cleaning (by hand)
Recording Format
Compliant to Design rule for Camera File system 2.0 and Exif 2.31*
* Supports time difference information
Image Format
JPEG, RAW (14-bit Canon original), C-RAW (Canon original)
File Size
3:2 Aspect Ratio
Large: 6000 x 4000
Medium: 3984 x 2656
Small 1: 2976 x 1984
Small 2: 2400 x 1600
RAW: 6000 x 4000

4:3 Aspect Ratio
Large: 5328 x 4000*
Medium: 3552 x 2664
Small 1: 2656 x 1992
Small 2: 2112 x 1600*
RAW: 6000 x 4000

16:9 Aspect Ratio
Large: 6000 x 3368*
Medium: 3984 x 2240*
Small 1: 2976 x 1680*
Small 2: 2400 x 1344*
RAW: 6000 x 4000

1:1 Aspect Ratio
Large: 4000 x 4000
Medium: 2656 x 2656
Small 1: 1984 x 1984
Small 2: 1600 x 1600
RAW: 6000 x 4000

* Indicate an inexact proportion.
  • Multiple aspect ratios (1:1, 4:3, and 16:9) can be specified in Live View Shooting.
  • Values for Recording Pixels are rounded off to the nearest 100,000th.
  • JPEG images are generated in the set aspect ratio.
  • RAW/C-RAW images are generated in [3:2], and the set aspect ratio is appended.
File Numbering
  1. File numbering methods
    • Continuous numbering
      • The numbering of captured images continues even after you replace the card.
    • Auto reset
      • When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.
  2. Manual reset
    • Resets the file number to 0001, and creates a new folder automatically.
RAW + JPEG Simultaneous Recording
Simultaneous recording is possible using a combination of RAW and JPEG/Large(Fine).
Color Space
sRGB/Adobe RGB
Picture Style
  1. Auto
  2. Standard
  3. Portrait
  4. Landscape
  5. Fine Detail
  6. Neutral
  7. Faithful
  8. Monochrome
  9. User Defined 1-3
    • In Basic Zone modes, [Auto] will be set for and of the mode, and [Standard] will be set for other modes.
    • In Creative Zone modes, you can select or set the Picture Style.
    • [Auto] is the default setting for [User Def. 1-3].
Settings
  1. Auto (Ambience priority/White priority)
  2. Daylight
  3. Shade
  4. Cloudy*
  5. Tungsten light
  6. White fluorescent light
  7. Flash
  8. Custom (Custom WB)
* Effective also in twilight and sunset.
Auto White Balance
Option between ambience priority and white priority settings
Color Temperature Compensation
Blue/amber bias: &plusmn;9 levels
Magenta/green bias: &plusmn;9 levels
* Corrected in reference to the current WB modes color temperature.
* Blue/amber and magenta/green correction can be set at the same time.
Type
Eye-level SLR (with fixed pentaprism)
Coverage
Approx. 95% vertical/horizontal coverage (at approx. 19mm eye point and Large image size)
Magnification
Approx. 0.87x/24.5&deg; (with 50mm lens at infinity, -1 m-1)
Eye Point
Approx. 19mm (At -1m-1 from the eyepiece lens center)
Dioptric Adjustment Correction
Adjustable from approx. -3.0 to +1.0 m-1 (dpt)
Focusing Screen
Fixed
Mirror
Quick-return half mirror
Viewfinder Information
Spot metering circle, AF point activation indicator, AF point, ISO speed indicator, Focus indicator, Maximum burst, ISO speed, Highlight tone priority, Exposure level indicator, Exposure compensation amount, AEB range, Red-eye reduction lamp ON, Exposure compensation, Aperture, Shutter speed, Bulb exposure, FE lock, Busy, Built-in flash recharging, No card warning, Card error, Card full warning, error code, Flash exposure compensation, High-speed sync, FE lock / FEB in-progress, Flash-ready, Improper FE lock warning, AE lock, AEB in-progress, Warning icon
Depth of Field Preview
Provided with customized DISP button settings.
Type
TTL secondary image-forming phase-difference detection system with AF-dedicated sensor
AF Points
9 points
Center AF point is AF cross-type supporting f/5.6.
Center AF point is vertical line-sensitive supporting f/2.8.
Other AF points is vertical line-sensitive or horizontal line-sensitive AF supporting f/5.6.
AF Working Range
With One-Shot AF, at 73°F/23°C, ISO 100
EV -0.518 (center AF point)
EV 0.518 (other AF points)
(Based on Canon&rsquo;s testing standards and environment)
Focusing Modes
  1. Autofocus
    1. One-Shot AF
    2. AI Servo AF
    3. AI Focus AF
      • Switches between One-Shot AF and AI Servo AF automatically.
  2. Manual focus
AF Point Selection
  1. Manual selection
  2. Auto selection
    • Manually selectable in Basic Zone modes (except Special Scene Candlelight and Creative Filters Fish-eye effect and Miniature effect)
AF Assist Beam
  1. Built-in Flash
    • Not supported
  2. External Flash
    • Infrared
    • Intermittent firing
Metering Modes
63-zone metering sensor
  1. Evaluative metering (linked to all AF points)
  2. Partial metering (center, approx. 9.0% of viewfinder)
  3. Spot metering (center, approx. 4.0% of viewfinder)
  4. Center-weighted average metering
Metering Range
EV 1 - 20 (at 73&deg;F/23&deg;C, ISO 100, evaluative metering)
Exposure Control Systems
  1. Creative Zone
    1. Program AE (shiftable)
    2. Shutter-priority AE
    3. Aperture-priority AE
    4. Manual exposure (including bulb)

  2. Basic Zone
    1. Scene Intelligent Auto (Program AE/ non-shiftable)
    2. Special Scene
      1. Portrait
      2. Group Photo
      3. Landscape
      4. Sports
      5. Kids
      6. Close-up
      7. Food
      8. Candlelight
      9. Night Portrait
      10. Handheld Night Scene
      11. HDR Backlight Control

    3. Creative Filters
      1. Grainy B/W
      2. Soft Focus
      3. Fish-eye effect
      4. Water painting effect
      5. Toy camera effect
      6. Miniature effect
      7. HDR art standard
      8. HDR art vivid
      9. HDR art bold
      10. HDR art embossed

    4. Self Portrait
ISO Speed Range
Manual Setting

Normal ISO 10025600 (in whole-stop increments)
Expanded ISO 51200
  • When Highlight tone priority is set to [Enable] or [Enhanced], minimum ISO speed is ISO 200.
  • Maximum ISO speed cannot be set to H (equivalent to ISO 51200).


Auto ISO Speed Settings

Shooting Mode No Flash Built-in Flash External Flash
P Program AE ISO 100* 125600* 2 ISO 100* 11600* 2 ISO 100* 11600* 2
Tv Shutter-priority AE
Av Aperture-priority AE
M Manual Exposure
Bulb Exposure ISO 400 ISO 400 ISO 400
Scene Intelligent Auto ISO 1006400 ISO 100-3200 ISO 4001600
Special Scene Portrait ISO 1006400 ISO 1001600 ISO 100-1600
Smooth skin
Group Photo ISO 100-3200
Landscape ISO 1001600 Does not fire Does not fire* 3
Sports ISO 1006400 ISO 4001600
Kids ISO 4001600
Close-up
Food
Candlelight Does not fire Does not fire* 3
Night Portrait ISO 100-800 ISO 100-800 ISO 100-800
Handheld Night Scene ISO 100-12800 ISO 1006400 ISO 100-6400
HDR Backlight Control ISO 100-6400 Does not fire Does not fire* 3
Creative Filters Grainy B/W ISO 100-6400 ISO 100-1600 ISO 100-1600
Soft Focus
Fish-eye Effect
Water Painting Effect
Toy Camera Effect
Miniature Effect ISO 100-6400
HDR Art Standard ISO 100-6400 Does not fire Does not fire* 3
HDR Art Vivid
HDR Art Bold
HDR Art Embossed
  1. ISO 200 when [Highlight tone priority] is set to [Enable] or [Enhanced].
  2. Varies depending on the maximum of [Max for Auto].
  3. Only the AF-assist beam fires.
Exposure Compensation
Manual ±5 stops* in 1/3- or 1/2-stop increments*
AEB ±2 stops in 1/3- or 1/2-stop increments
* Up to ±3 stops when [Shooting screen: Guided] is set.
AE Lock
  1. Auto AE lock
    • In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved.

  2. Manual AE lock
    • In the P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
    • Possible with all metering modes.
Type
Vertical-travel, mechanical, focal-plane shutter with all speeds electronically-controlled
  • Electronic 1st curtain and mechanical 2nd curtain
Shutter Speeds
Creative Zone: 1/4000 to 30 sec., bulb
* X-sync at 1/200 sec.

Basic Zone: 1/4000 to 1 sec.
Shutter Release
Soft-touch electromagnetic release
Self Timer
10-sec. delay, 2-sec. delay, continuous shooting after 10 sec. (2 to 10 shots)
Shutter Lag Time
With SW-1 ON, time lag between SW-2 ON and start of exposure: approx. 0.075 sec.
  • Based on Canon testing standards.
  • Time lag with the aperture stopped down by 3 stops or less from the open aperture.
  • Release time lag will become longer for Live View shooting, Silent single shooting or Silent continuous shooting.
Flash Metering
E-TTL II autoflash (Evaluative, Average), FE Lock
Flash Exposure Compensation
&plusmn;2 stops in 1/3- or 1/2-stop increments
  • Flash exposure compensation for built-in flash and external Speedlite can be set from the camera.
FE Lock
Provided
External Flash Settings
The camera can set the following with EX series Speedlites:
  • The actual setting options will differ depending on the Speedlite used.
  1. External flash control
    • Flash firing, E-TTL II metering, Flash mode, Wireless functions, Flash zoom, Shutter synchronization, Flash exposure compensation, Flash exposure bracketing and Clear settings.
    • The radio wireless flash functions can be set from the camera.
  2. External flash Custom Function setting
    • The setting options for both (1) and (2) will differ depending on the Speedlite used.
Drive Modes and Continuous Shooting Speed during Viewfinder Shooting
  1. Single shooting
  2. High-speed continuous shooting
    • Max. approx. 5.0 shots/sec. (One-Shot AF and AI Servo AF)
    • Maximum continuous shooting speed with 1/500 sec. or faster shutter speed, maximum aperture (varies depending on the lens), with a fully-charged Battery Pack LP-E17 and at room temperature (73°F/23°C).
    • With the AF mode set to One-Shot AF and the Image Stabilizer turned off when using the following lenses: EF 300mm f/4L IS USM, EF 28135mm f/3.55.6 IS USM, EF 75300mm f/45.6 IS USM, EF 100400mm f/4.55.6L IS USM.

  3. Silent single shooting
  4. Silent continuous shooting
    • Max. approx. 2.5 shots/sec.

  5. Self-timer: 10 sec./remote control
    • Compatible with Wireless Remote Controller BR-E1.
    • Countdown is shown on the screen.
    • Incompatible with accessories using the infrared transmission system as Remote Controller RC-6.

  6. 2 sec. self-timer
  7. Continuous shooting after 10 sec. self-timer (2 to 10 shots)
Maximum Burst
Image Recording Image File Size (approx. MB) Possible Shots(approx.) Maximum Burst (approx.)
Standard High-speed (UHS-I)
Large (Fine) 8.4 3601 Full Full
Large (Normal) 4.5 6618 Full Full
Medium (Fine) 4.6 6484 Full Full
Medium 2.6 11401 Full Full
Small 1 (Fine) 3.1 9691 Full Full
Small 1 (Normal) 1.8 16015 Full Full
Small 2 1.8 16343 Full Full
RAW 27.2 1123 10 10
C-RAW 15.8 1931 37 37
RAW + Large 35.6 855 9 9
C-RAW + Large (Fine) 24.2 1256 17 17
  • The number of possible shots and maximum burst (standard) apply to a UHS-I compliant 32GB card base on Canon testing standards.
  • The file size, number of possible shots and maximum burst vary depending on shooting conditions (aspect ratio of 3:2, subject, memory card brand, ISO speed, Picture Style, etc.)
  • "Full" indicates that shooting is possible until the card becomes full.
Shooting Modes
Still photo shooting and video shooting
Focusing
  1. Dual Pixel CMOS AF
    • Dual Pixel CMOS AF is possible with all EF and EF-S lenses.
    • Contrast AF is not provided.
    • Contrast detection*
      * When recording 4K movies or 4K Time-lapse movies.

  2. Manual focus
    • Magnifying the image by 5x or 10x for manual focus possible.
Metering Modes
Real-time metering with image sensor
  • AE lock possible. The metering timer setting can be changed.
  1. Evaluative metering (315-zone)
  2. Partial metering (center, approx. 6.0% of Live View screen)
  3. Spot metering (center, approx. 2.6% of Live View screen)
  4. Center-weighted average metering
    • AE lock possible. The metering timer setting can be changed.
Metering Range
EV -220 (at 73&deg;F/23&deg;C, ISO 100, evaluative metering)
Grid Display
  1. Off
  2. 3x3
  3. 6x4
  4. 3x3+diag
File Format
MP4
Video: MPEG-4 AVC / H.264
  • Variable (averaged) bit rate
Audio: AAC
Video Recording Size and Frame Rates
Video Recording Size and Frame Rates

NTSC NTSC Compression Method Recording Format
4K*
3840 x 2160
23.98 fps IPB (Standard) MP4
Full HD
1920 x 1080
59.94 fps IPB (Standard)
29.97 fps IPB (Standard)
IPB (Light)
HD
1280 x 720
59.94 fps IPB (Standard)
HDR movie
1920 x 1080
29.97 fps IPB (Standard)
4K* Time-lapse movie
3840 x 2160
29.97 fps ALL-I
Full HD Time-lapse movie 29.97 fps ALL-I

* The image is cropped around the center of the image sensor.


Time-lapse movie (MP4)

Item Setting
Time-lapse Disable/ Scene 1 / Scene 2 / Scene 3 /
Interval* Minimum: 1 sec.
Maximum: 60 min.
Number of shots* Minimum: 2 shots
Maximum: 3600 shots
Movie Recording Size 4K / Full HD
Auto Exposure Fixed 1st frame
Each frame
Screen Auto Off Enable/ Disable
Beep as image taken Enable/ Disable

* Some limitations apply when Scene 1, Scene 2, or Scene 3 is used.


Continuous Shooting Time

Video Recording Size Total Recording Time on Card (approx.) File Size (approx.) Bit Rate (approx.)
8GB 32GB 128GB
4K
3840 x 2160
23.98 fps
25.00 fps
IPB (Standard) 8 min. 35 min. 2 hr. 21 min. Approx.
860 MB/min.
Approx.
120 Mbps
Full HD
1920 X 1080
59.94 fps
50.00 fps
IPB (Standard) 17 min. 1 hr. 10 min. 4 hr. 43 min. Approx.
431 MB/min.
Approx.
60 Mbps
29.97 fps
25.00 fps
IPB (Standard) 35 min. 2 hr. 20 min. 9 hr. 23 min. Approx.
216 MB/min.
Approx.
30 Mbps
IPB (Light) 1 hr. 26 min. 5 hr. 47 min. 23 hr. 11 min. Approx.
87 MB/min.
Approx.
12 Mbps
HD
1280 x 720
59.94 fps
50.00 fps
IPB (Standard) 40 min. 2 hr. 42 min. 10 hr. 49 min. Approx.
187 MB/min.
Approx.
26 Mbps

  • Bit rate indicates video output only, audio is not included.
  • File size and time indicates video output + audio.
  • With [Digital IS: Disable] set.
Focusing
  1. Dual Pixel CMOS AF
    • Dual Pixel CMOS AF is possible with all EF and EF-S lenses.
    • Contrast AF is not possible.
  2. Manual focus
    • Magnifying the image by 5x or 10x for manual focus possible (not possible during movie shooting).
Exposure Control
Shooting Mode Frame Rate Shutter Speed (sec.) Aperture Setting ISO Speed
Setting Range (sec.) Setting Range (sec.)
Program AE
(P / Tv / Av)
59.94 fps Auto 1/40001/60*1 Auto Auto ISO 10012800
Conditions that affect the minimum ISO speed
  • Highlight tone priority: ISO 200 Conditions that affect the maximum ISO speed
  • 4K movie recording: ISO 6400
  • Movie digital zoom: ISO 6400
  • Setting for [Max for Auto]
  • Expanded ISO speeds: H (ISO 25600 equivalent)
50.00 fps 1/40001/60*2
29.97 fps 1/40001/30
25.00 fps 1/40001/25
23.98 fps
Manual Exposure (M) 59.94 fps Manual 1/40001/8 Manual Manual
Auto
50.00 fps
29.97 fps
25.00 fps
23.98 fps
Scene Intelligent Auto 59.94 fps Auto 1/40001/30 Auto Auto ISO 10012800
Conditions that affect the maximum ISO speed
  • 4K movie recording: ISO 6400
  • Movie digital zoom: ISO 6400
50.00 fps 1/40001/25
29.97 fps 1/40001/30
25.00 fps 1/40001/25
23.98 fps
HDR Movies (SCN) 29.97 fps Auto 1/40001/60 Auto Auto ISO 10012800
25.00 fps 1/40001/25
Creative Filters 29.97 fps Auto 1/40001/30 Auto Auto ISO 10012800
25.00 fps 1/40001/25
  • 1/30 when [Auto slow shutter] is set to [Enable].
  • 1/25 when [Auto slow shutter] is set to [Enable].
Range
Full range (0-255)
Exposure Control
* In Basic Zone modes, exposure control is exerted as appropriate for the detected scene.
Exposure Compensation
Up to &plusmn;3 stops in 1/3- or 1/2-stop increments
Type
TFT color, liquid-crystal monitor
Monitor Size
3.0-inch (screen aspect ratio of 3:2)
Approx. 2.95 in./7.50cm diagonal (approx. 2.46 in./6.24cm width, approx. 1.64 in/4.16cm height)
Pixels
Approx. 1.04 million dots
Coverage
Approx. 170&deg; vertically and horizontally
Brightness Control
Adjustable to one of seven brightness levels
Coating
Clear View LCD II
  • Anti-smudge coating not applied.
  • Anti-reflection coating not applied.
Interface Languages
29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, and Japanese)
Display Format
  1. Single-image display
    • No information display
    • Basic information display
    • Detailed shooting information display
      • Basic shooting information
      • Lens information and RGB histogram
      • White balance
      • Picture Style and sharpness
      • Contrast, color saturation and color tone
      • Color space and noise reduction
      • Lens aberration correction
      • GPS information (when GPS Receiver is used)
  2. Index display
    • 4-image
    • 9-image
    • 36-image
    • 100-image
Highlight Alert
With detailed information display, overexposed highlight areas with no image data will blink.
Histogram
Brightness and RGB
Items
Pressing the Quick Control button displays the Quick Control screen during viewfinder shooting, Live View shooting, movie shooting and playback.

After selecting an item, you can select contents by operating the Main Dial.
Protection
  1. Single image (select image)
  2. Select range
  3. All images in a folder
  4. All images in a card
  5. All found images (only during image search)
    • RAW/C-RAW images and movies cannot be specified for printing.
Erase
Except protected images
  1. Select image to erase
  2. Select range
  3. All images in a folder
  4. All images in a card
  5. All found images (only during image search)
Compatible Printers
Images can be sent via Wi-Fi&reg; to a PictBridge-compatible (Wireless LAN) printer and printed.
DPOF
Complies to DPOF Version 1.1
Standards Compliance
IEEE 802.11b/g/n
Transmission Method
DS-SS modulation (IEEE 802.11b)
OFDM modulation (IEEE 802.11g/n)
Transmission Range
Approx. 10 m/32.8 ft.
*When communicating with a smartphone or tablet
*With no obstructions between the transmitting and receiving antennas and no radio interference
Transition Frequency (Central Frequency)
Frequency: 24122462 MHz
Channels: 111 channels
Connection Method
Camera Access Point Mode and Infrastructure mode
Security
Authentication method: Open system, Shared key, WPA/WPA2-PSK
Encryption: WEP, TKIP, AES
Communication with a Smartphone
Images can be viewed, controlled, and received using a smartphone.
Remote control of the camera using a smartphone is possible.
Images can be sent to a smartphone.
Transfer Images Between Cameras
Not supported.
Connect to Connect Station
Images can be sent to and saved on Connect Station.
Remote Operation Using EOS Utility
Remote control functions and image viewing functions of EOS Utility can be used wirelessly.
Print from Wi-Fi® Printers
Images can be sent to a Wi-Fi® printer.
Send Images to a Web Service
Images in the camera or links to images can be sent to registered Web services.
Standards Compliance
Not supported.
Standards Compliance
Bluetooth® Specification Version 4.1 compliant (Bluetooth® low energy technology)
Transmission Method
GFSK modulation
Custom Functions
11 Custom Functions settable with the camera
Custom Controls
Functions can be assigned to the following control parts:
  • Shutter button (halfway pressing)
  • AE lock button
  • SET button
  • DISP button
During still photo shooting or movie recording:
  • [AF point selection / Magnify button] and [AE Lock / Reduce / Index button] can be switched.
During movie recording:
  • Shutter button functions during movie recording can be set.
My Menu Registration
Up to six items from the menu items and the top-tier items of Custom Functions can be registered to each tab.
Up to five My Menu tabs can be added.

My Menu tab overall operations
  • Adding a tab
  • Deleting tabs in a batch
  • Deleting all tab items
  • Menu display
My Menu tab detailed operations
  • Selecting item to register
  • Sorting registered items
  • Deleting selected registered items
  • Deleting registered items in a batch
  • Deleting tabs
  • Changing a tab name (16 ASCII characters)
USB Terminal
Hi-Speed USB (USB 2.0)
  • For PC communication
  • For Connect Station connection
Video Out Terminal
Type C (Resolution switches automatically)
  • Video is not displayed unless the video system is correctly set for the connected TV set, [NTSC] or [PAL].
Extension System Terminal
3.5mm diameter stereo mini jack
  • Directional Stereo Microphone DM-E1 connection
Battery
Battery Pack LP-E17 x 1
  • With the AC Adapter AC-E6N and DC Coupler DR-E18, AC power operation is possible.
Battery Life
Mode Shooting Method Battery Temperature Possible Shots (Approx.)
AE 100% AE 50% / FA 50%
Camera Body Only Viewfinder Shooting LP-E17 At 73°F/23°C 1630 1070
At 32°F/0°C 1520 1020
Live View Shooting At 73°F/23°C 350 320
At 32°F/0°C 330 300

  • Using a fully charged LP-E17.
  • Based on CIPA testing standards.

Battery Check
Automatic battery check when the power switch is turned ON. Displayed in 4 levels.
Power Saving
Power turns off after the set time (10/30* or 30 sec., 1, 2, 4, 8 or 15 min.) of non-operation elapses.
* Normally 10 sec. is set. 30 sec. will be set for function setting, Live View shooting, image playback, etc.
Date/Time Battery
Built-in secondary battery When fully-charged, the date/time can be maintained for approx. 3 months
  • Recharge time: approx. 8 hrs.
    • To become capable to maintain the right date/time for 3 months after main battery power depletion.
Start-up Time
Approx. 0.2 sec. (based on CIPA testing standards)
Dimensions (W x H x D)
Approx. 4.82 x 3.65 x 2.75 in. (122.4 x 92.6 x 69.8mm)
  • CIPA compliant.
Weight
Black
Approx. 15.84 oz. / 449g (Including battery and card)
Approx. 14.18 oz. / 402g (Body only)

White Approx. 15.91 oz. / 451g (Including battery and card)
Approx. 14.25 oz. / 404g (Body only)
Working Temperature Range
32-104&deg;F/0-40&deg;C
Working Humidity Range

85% or less


USB Tethered SDK Are a developer and want to control select Canon cameras within your application? The Canon EDSDK allows you to set various camera settings, take a picture, and the retrieving of images remotely using a USB connection. The EDSDK is available at the Canon Developer Community website. Go to https://developercommunity.usa.canon.com for more information.
Wireless API Are a developer and want to control select Canon cameras within your application? The Canon CCAPI allows you to set various camera settings, take a picture, and the retrieving of images remotely using a Wi-Fi connection. The CCAPI is available at the Canon Developer Community website. Go to https://developercommunity.usa.canon.com for more information.

SUPPLIES & ACCESSORIES

ADDITIONAL SUPPORT

CONTACT US

Still need some help?  In order to get more personalized and faster support, we recommend registering your product in your Canon Account

GET SUPPORT
Need help with your product? Let us help you find what you need.
Product Support
NEED IT FIRST
Sign up for up-to-the-minute Canon News, Sales and Deals.
LEARN WITH CANON
Discover great new ways to enjoy your products with exclusive articles, training and events.
Learn more
