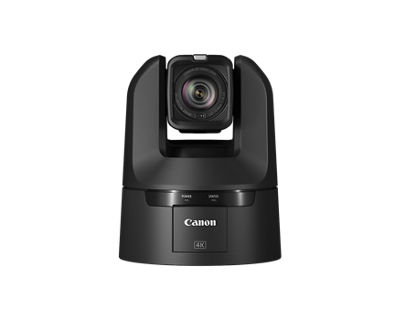

CR-N350
Get started with these quick links.
DOWNLOADS
Firmware Results
0 of 0
Results will appear after selecting an Operating System and Version above.
2. Select the Version
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Tahoe v26
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- SAP
- Windows Server 2025
- Windows NT
- Linux
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above.
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
| Tech. Specs. Detailed PDF | View Full Details of Technical Specifications |
| Color Options | Satin Black / Titanium White |
| Image Sensor | 1/2.3-inch, CMOS (single board) Total pixels: approx. 21.14 megapixels 29.97/25.00/23.98 Hz - Effective pixels: Approx. 8.29 megapixels (3840 x 2160) 59.94/50.00 Hz - Effective pixels: Approx. 7.88 megapixels (3744 x 2104) |
| Lens | f=3.67 73.4 mm, F/1.8 2.8, 20x optical zoom, 8-bladed iris diaphragm 59.94/50 Hz - 35mm equivalent focal length: Approx. 30mm (W) 616 mm (T) 29.97/25.00/23.98 Hz - 35mm equivalent focal length: Approx. 29.3mm (W) 601 mm (T) |
| Zoom | Optical: 20x Digital: 20x Advanced Zooom (Full HD): 40x |
| Lens Configuration | 10 groups of 12 lenses (two aspherical lenses used) |
| Minimum Focusing Distance | 1 cm at wide end, 60 cm across entire zooming range |
| Angle of View | 59.94/50.00 Hz - Horizontal: 63.3 (W) 3.5° (T) - Vertical: 38.9° (W) 2.0° (T) 29/97/25.00/23.98 Hz - Horizontal: 65.6 (W) 3.6° (T) - Vertical: 39.8° (W) 2.0° (T) |
| Shutter Speed | 1/3 1/2000 sec. (specific values depend on the frame frequency) |
| Iris | Manual/Automatic aperture |
| Gain | 0.0 db - 36.0 db |
| ND Filter | Built-in (1/8 at maximum, gradation ND), motor operated |
| White Balance | AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K 15,000 K), Manual |
| Focus | Focus mode: Manual, Continuous AF, Face Detection & Tracking, Face only AF, Eye Detection. AF type: Hybrid AF, Contrast AF |
| Gamma | BT.709 Wide DR, BT.709 Standard, Canon Log 3, Canon 709, HDR (PQ), HDR(HLG) |
| Image Stabilizer | Optical |
| Min. Subject Illumination | Frame frequency 59.94/29.97 Hz: Approx. 3 lux (at shutter speed 1/60 sec, frame rate 59.94P, gain 30.0 dB) Approx. 1.5 (at shutter speed 1/30 sec, frame rate 59.94P, gain 30.0 dB) Frame frequency 50.00/25.00 Hz: Approx. 2.5 lux (at shutter speed 1/50 sec, frame rate 50.00P, gain 30 dB) Approx. 1.3 lux (at shutter speed 1/25 sec, frame rate 50.00P, gain 21 dB) *All of the above are when high sensitivity mode is set to "On" |
| Pan and Tilt | Pan operation range: Horizontal ±170° Pan operation speed: 0.1° 100°/sec. (Up to 200°/sec. using presets) Tilt operation range: Vertical -30° +90° Tilt operation speed: 0.1° 100°/sec. (Up to 180°/sec. using presets) |
| 3G-SDI | 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit) 1280 x 720: 59.94p/50.00P (4:2:2 10bit) |
| HDMI | 3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit) 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit) 1280 x 720: 59.94p/50.00P (4:2:2 10bit) 720x576: 50.00P (4:2:2 10bit) 720x480: 59.94P (4:2:2 10bit) |
| IP | 3840 x 2160: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit) |
| Supported Video and Control Protocols | Protocol: XC Protocol, RTSP/RTP, NDI HX2, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), FreeD, SRT |
| Number of Presets | Max. 100 (including home position) |
| Communication Control | LAN, Wi-Fi, Serial, IR, USB |
| Network Terminal | LAN x 1, RJ45, 1000Base-T |
| 3G-SDI OUT Terminal | BNC jack x1 3G-SDI, 0.8 Vp-p/75 SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST 272, SMPTE ST 299 compliant Embedded audio, Time code (VITC/LTC) |
| HDMI OUT Terminal | HDMI connector x 1, output only |
| RS-422 Terminal | RJ45 connector x 1 |
| Mic Terminal | 3.5 mm stereo mini jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k or more/Att.: 20 dB Sensitivity (LINE): -12 dBV (Manual volume center, full scale -18 dB)/1 k or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k) |
| Operating Environment | Temperature: 0°C +40°C (+32°F +104°F) Humidity: 10% 90% (without condensation) |
| Storage Environment | Temperature: 0°C +40°C (+32°F +104°F) Humidity: 10% 90% (without condensation) |
| Power Supply | PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant) External power source: 12 V DC Terminal |
| Power Consumption | PoE++ Input: Approx. 26.1 W max. (body only) DC Input: Approx. 23.6 W max. (body only) |
| Quietness | NC35 or lower |
| Dimensions (W x H x D) | Approx. 176 x 220 x 194 mm (6.93 x 8.66 x 7.64 in.) (excluding protrusions) |
| Weight | Approx. 3.0 kg (6.6 lb.) (body only) |
| Supported Controllers | Hardware: RC-IP100, RC-IP1000 Software: Remote Camera Control Application, Mulit-Camera Control Application, Multi-Camera Management Application, Camera Search tool |
