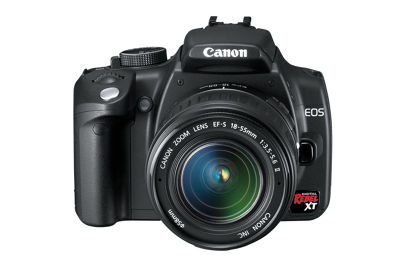

EOS Digital Rebel XT
Get started with these quick links.
Protect your product with CarePAK PLUS. Learn More
Purchase this product's accessories and more. Shop Now
Looking for help with your order? Order help
DOWNLOADS
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows NT
- Linux
Locating and installing your download
 |
Chrome |
- A grey bar will appear at the bottom of your browser window which will contain your download. To install your download click on the name of the downloaded file. Alternatively you can click 'Show all downloads...' to view the list of all recently downloaded files
- If the grey bar is not visible you can also access the list of recently downloaded files by clicking the 3 small horizontal lines
located on the right of the address bar - Select 'Downloads' from the menu and the list of recently downloaded files will open
- From this list you can also install the download by clicking on the file name
- To open the folder on your computer that contains your downloaded files please select the 'Open downloads folder' link on the right of the page
- The folder that contains your download will now be open
 |
Safari |
- Mac Users - Click the down arrow
in the top right of the browser - Windows Users - Click the gear wheel
in the top right of the browser - Click the small image of the magnifying glass
next to your download - The folder that contains your download will now be opened
 |
Firefox |
- Click the down arrow in the top right of the browser
- Windows Users - Click the small image of the folder
next to your download - Mac Users - Click the small image of the magnifying glass next to your download
- The folder that contains your download will now be opened
 |
Internet Explorer |
- Click the gear wheel in the top right of the browser
- Select 'View Download' from the menu
- Select 'Location' next to your download
- The folder that contains your download will now be opened
 |
Microsoft Edge |
- Click the three dots icon in the top right of the browser
- Select 'Downloads' from the menu
- Select 'Open folder' next to your download
- The folder that contains your download will now be opened
There are no copying instructions for this browser
Software Development Kit
The Canon EOS Digital Camera Software Development Kit (EDSDK) enables developers to integrate select Canon cameras directly into their software application solutions, giving them access to remote camera control and communication functionality of the camera. There are two versions of the EDSDK compatible with Windows or Macintosh.
The Software Developer Kit is provided free of charge and can be found at https://www.usa.canon.com/support/sdk. To learn more please visit the Canon Developer Community site and register to download Canon’s SDKs.
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
Type
| Type | Digital AF/AE SLR |
| Recording Media | CF card Type I and II |
| Image Format | 0.87 x 0.58 in./22.2 x 14.8mm |
| Compatible Lenses | Canon EF Lenses including EF-S Lenses (Focal length conversion factor: Equivalent to approx. 1.6x indicated focal length compared to 35mm format) |
| Lens Mount | Canon EF mount |
Image Sensor
| Type | High-sensitivity, high-resolution, single-plate color CMOS sensor |
| Pixels | Approx. 8.0 Megapixels |
| Total Pixels | Approx. 8.2 Megapixels |
| Aspect Ratio | 2:3 (Vertical:Horizontal) |
| Color Filter System | RGB primary color filter |
| Low Pass Filter | Fixed position in front of the image sensor |
Recording System
| Recording Format | Design rule for Camera File System 2.0 |
| Image Format | JPEG, RAW (12bit) Simultaneous Recording: Possible |
| File Size | JPEG: (1) Large/Fine: Approx. 3.3 MB (3456 x 2304), (2) Large/Normal: Approx. 1.7 MB (3456 x 2304), (3) Medium/Fine: Approx. 2.0 MB (2496 x 1664), (4) Medium/Normal Approx. 1.0 MB (2496 x 1664), (5) Small/Fine: Approx. 1.2 MB (1728 x 1152), (6) Small/Normal: Approx. 0.6 MB (1728 x 1152); RAW: Approx. 8.3 MB (3456 x 2304) |
| Folders | Automatic setting |
| File Numbering | (1) Continuous numbering, (2) Auto reset |
| Interface | USB 2.0 Hi-Speed |
White Balance
| Settings | Auto, Preset (Daylight, Shade, Cloudy/Twilight/Sunset, Tungsten light, White fluorescent light, Flash), Manual (Custom: read off photo quality gray card or white subject) |
Viewfinder
| Type | Eye-level SLR (with fixed pentamirror) |
| Coverage | Approx. 95% vertically and horizontally (against JPEG Large) |
| Magnification | 0.8x (-1 diopter with 50mm lens at infinity) |
| Eye Point | 21mm |
| Dioptric Adjustment Correction | -3.0 - +1.0 diopters |
| Focusing Screen | Fixed |
| Mirror | Quick-return half mirror (Transmittance: reflection ratio of 40:60, no mirror cut-off with lenses up to EF 600mm f/4) |
| Viewfinder Information | AF points, AE lock, FE lock, AEB in progress, Flash ready, Improper FE lock warning, High-speed Sync, Flash exposure compensation, Red-Eye reduction, Shutter speed, Bulb, FE lock, Processing data, Built-in flash recycling, Aperture, Exposure level display (Exposure compensation, Manual exposure level, AEB level, Flash exposure compensation, Red-Eye Reduction lamp on time display), Max burst during continuous shooting, AF/MF focus confirmation, CF card full, CF card error, no CF card |
| Depth Of Field Preview | Enabled with depth-of-field preview button |
| Eyepiece Shutter | None (provided on strap) |
Autofocus
| Type | TTL-CT-SIR with AF-dedicated CMOS sensor |
| AF Points | 7 |
| AF Working Range | EV 0.5 - 18 (at ISO 100) |
| Focusing Modes | One-Shot AF, Predictive AI Servo AF, AI Focus AF (Automatically selects One-Shot AF or AI Servo AF selected according to shooting mode), Manual Focusing (MF) |
| AF Point Selection | Automatic selection, manual selection |
| Selected AF Point Display | Superimposed in viewfinder and indicated on LCD panel |
| AF Assist Beam | Intermittent firing of built-in flash, effective range: approx. 13.1 ft./4m at center, approx. 11.5 ft./3.5m at periphery |
Exposure Control
| Metering Modes | Max. aperture TTL metering with 35-zone SPC. (1) Evaluative metering, (2) Partial metering at center (approx. 9% of viewfinder), (3) Center-weighted average metering |
| Metering Range | EV 1-20 (at 68° F/20° C with 50mm f/1.4 lens at ISO 100) |
| ISO Speed Range | Equivalent to ISO 100-1600 |
| Exposure Compensation | Up to +/-2 stops in 1/2- or 1/3-stop increments (1) Manual exposure compensation (2) AEB (Auto Exposure Bracketing) |
| AE Lock | Auto: Operates in One-Shot AF mode evaluative metering when focus is achieved; Manual: Enabled with AE lock button (No AE lock in Basic Zone modes) |
| Shutter | Vertical-travel, mechanical, focal-plane shutter with all speeds electronically-controlled1/4000 to 30 sec. in 1/2- or 1/3-stop increments, bulb, X-Sync at 1/200 sec.Soft-touch electromagnetic release10-sec. delayRemote control with RS-60E3 Terminal or Wireless remote controllers RC-1/RC-5 |
| Type | Vertical-travel, mechanical, focal-plane shutter with all speeds electronically-controlled |
| Shutter Speeds | 1/4000 to 30 sec. in 1/2- or 1/3-stop increments, bulb, X-Sync at 1/200 sec. |
| Shutter Release | Soft-touch electromagnetic release |
| Self Timer | 10-sec. delay |
| Remote Control | Remote control with RS-60E3 Terminal or Wireless remote controllers RC-1/RC-5 |
Built in Flash
| Type | Auto pop-up, retractable, built-in flash in the pentaprism |
| Guide Number | 13 (at ISO 100 in meters) |
| Recycling Time | Approx. 3 sec. |
| Flash Ready Indicator | Flash-ready indicator lights on in viewfinder |
| Flash Coverage | Up to 17mm focal length (equivalent to 27mm in 35mm format) |
External Speedlite
| EOS Dedicated Speedlite | E-TTL II autoflash |
Drive System
| Drive Modes | (1) Single, (2) Continuous, (3) Self-timer/Remote Control |
| Continuous Shooting Speed | Approx. 3.0 fps (with Battery Pack NB-2LH, at Tv=1/250 sec. for all recording qualities) |
| Maximum Burst | 14 shots (Large/Fine) |
LCD Monitor
| Type | TFT color LCD monitor |
| Monitor Size | 1.8 inches |
| Pixels | Approx. 115,000 pixels (Displayed pixels) |
| Coverage | Approx. 100% (for JPEG images) |
| Brightness Control | 5 levels (settable with menu's "LCD brightness") |
Playback
| Display Format | (1) Single image, (2) 9-image Index, (3) Magnified Zoom, (4) Auto Play, (5) Auto Play right after shooting |
| Highlight Alert | In the single image with information display mode, the highlighted portions containing no image information with blink |
Image Protection and Erase
| Protection | A single image can be protected or unprotected |
| Erase | A single image or all images stored in a CompactFlash card can be erased if they are unprotected |
Menus
| Menu Categories | (1) Shooting 1 [6 items], (2) Shooting 2 [7 items], (3) Playback [5 items], (4) Setup 1 [7 items], (5) Setup 2 [7 items] |
| LCD Monitor Language | Any of the following 15 languages can be selected: English, German, French, Dutch, Danish, Italian, Finnish, Norwegian, Swedish, Spanish, Simplified/Traditional Chinese, Korean, Russian, and Japanese |
| Firmware Update | Enabled by the user |
Power Source
| Battery | Battery Pack NB-2LH (x1) |
Dimensions and Weight
| Dimensions (W x H x D) | 4.98 x 3.71 x 2.63 in./126.5 x 94.2 x 64mm |
| Weight | 17.1 oz./485g |
Operating Environment
| Working Temperature Range | 32-104° F/0-40° C |
| Working Humidity Range | 85% or less |
