Date 02.14.19
File Size 4.68 MB


Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.

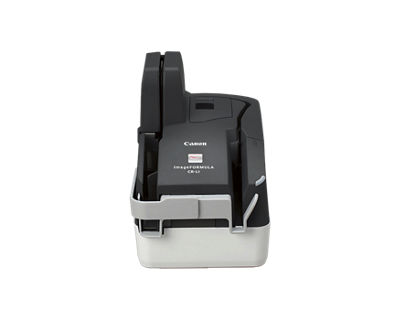

Model Name imageFORMULA CR-L1
Type Compact Check Transport
Document Feeding Automatic
Document Size Width: 2.1"- 4.3"
Length: : 2.1"- 4.3" 3.7" - 9.0"
Long Document Mode Up to 78.8
Document Weight 17 - 40 lb. Bond / Thickness: 0.003" - 0.008"
Feeder Capacity 50 Sheets
Grayscale 256-level, 16-level
Color 24-bit
Light Source RGB LED
Scanning Modes Error Diffusion, Fine Text Filtering
Output Resolution 100/120/200/300 dpi
Scanning Speeds Black/White: Up to 45 cpm* /Grayscale: Up to 45 cpm*/Color: Up to 20 cpm*/MICR: E13B/CMC-7/OCR: E13B/OCR-A/OCR-B
Interface Hi-Speed USB 2.0
Dimensions (H x W x D) 5.5" x 8.8" x 7.4" in. (with trays closed)
Weight Approx. 4.6 lb.
Power Consumption Up to 15.8 W in Scanning, 2.3 W in Sleep Mode and 0.1 W in Power-Off / ENERGY STAR® Compliant: Yes
Bundled Software Ranger™ driver with IQA, Canon Scanning Utility
Supported Operating Systems Windows 7 (SP1 or later) 32-bit and 64-bit; Windows 10 32-bit and 64-bit (SP1 or later); Windows Server 2008 R2 or later; Window Server 2016 / API Support: Canon Common API SDK, Canon .NET SDK, Ranger API
Options eCarePAK for CR-L1
Other Features Automatic Page Size Detection, Deskew, Infrared Double Feed Detection, Built-in Physical Printer, Virtual Endorsement,** Device Logs for Troubleshooting and Maintenance
