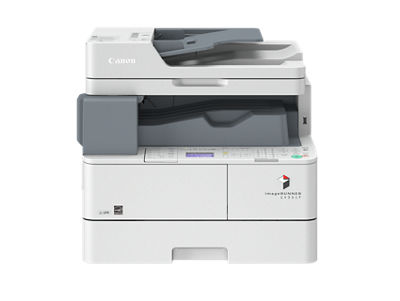

imageRUNNER 1435i


Get started with these quick links.


DOWNLOADS

Language
Type
Our software & drivers for your product are specific to your operations system. We've detected your operating system as {{os}}. If you need software or drivers for a different operating system make sure to select the correct operating system & version with the dropdowns below. Not all our software & drivers are compatible with all operating systems and versions.
of
There are no results for the OS Version you selected.
Date 06.23.15
File Size 10.376 MB
Date 06.23.15
File Size
Date 06.23.15
File Size 1.598 MB
image icon
Canon PRINT Business - iOS
Easily print from and scan to your iCloud accounts right from your smartphone or tablet with the Canon PRINT Business app. Available for select imageRUNNER ADVANCE and imageCLASS printers.
image icon
Canon PRINT Business - Android
Easily print from and scan to your Dropbox, Google Drive accounts right from your smartphone or tablet with the Canon PRINT Business app. Available for select imageRUNNER ADVANCE and imageCLASS printers.

SETUP & TROUBLESHOOTING

PRODUCT INFO

imageRUNNER 1400 Series Spec Sheet

imageRUNNER 1435i

MAIN UNIT
SYSTEM TYPEDigital Multifunction Imaging System
FUNCTIONSCopy, Print, Scan, Send
OPERATION PANEL5-line LCD
MEMORYRAM 512 MB; Standard USB Port
NETWORK INTERFACE CONNECTIONStandard: 1000Base-T, 100Base-TX, 10Base-T
Other: USB2.0 x1 (Host), USB1.1 x1(Host), USB (Device)
COPY SPEEDLetter: Up to 37 ppm Legal: Up to 25 ppm
PRINT SPEEDLetter: Up to 37 ppm Legal: Up to 25 ppm
FIRST-COPY-OUT TIME (LETTER)As fast as 6.9 Seconds
FIRST-PRINT-OUT TIME (LETTER)As fast as 5.0 Seconds
PAPER SOURCES (20 lb. Bond)Standard: 500-sheet Cassette 100-sheet Bypass
Optional: 500-sheet Cassette
Maximum: 1,100 Sheets
OUTPUT CAPACITY (20 lb. Bond)Maximum: 100 Sheets
OUTPUT PAPER SIZESCassette: Letter, Legal
Bypass: Letter, Legal, Statement, Executive, Custom Size (3” x 5” to 8-1/2” x 14”), Envelope (C5/DL/ COM-10/Monarch)
ACCEPTABLE PAPER WEIGHTSCassette: 17 lb. Bond to 24 lb. Bond (64 to 90 g/m2)
Bypass: 16 lb. Bond to 34 lb. Bond (60 to 128 g/m2
WARM-UP TIMEFrom Power On: 20 Seconds or Less
From Sleep: 7.8 Seconds or Less
POWER REQUIREMENTS / PLUG120-127 V AC, 60 Hz, 7.8 A/NEMA 5-15P
POWER CONSUMPTIONMaximum: 1,500 W
Sleep Mode: 2.0 W or Less
DIMENSIONS (W X D X H)18-3/4” x 21-1/2” x 18” (475.3 mm x 545 mm x 457 mm)
INSTALLATION SPACE (WXD)30-3/8” x 18” (772.1 mm x 457 mm) (when the Multi-purpose Tray is extended)
WEIGHTApprox. 52.3 lb. (23.74 kg)

IMAGE READER UNIT
SCAN RESOLUTIONUp to 600 x 600 dpi
ACCEPTABLE ORIGINALS (GLASS)Sheet, Book, 3-Dimensional objects up to 4.4 lb. (2 kg)
MAXIMUM ORIGINAL SIZEUp to 8-1/2” x 14”

DOCUMENT FEEDER
SCAN METHODDuplexing Automatic Document Feeder
ACCEPTABLE ORIGINALSPaper Sizes: 5-1/2” x 5” to 8-1/2” x 14”
Paper Weights:
Simplex: 13 lb. to 28 lb. Bond (50 to 105 g/m2)
Duplex: 17 lb. to 28 lb. Bond (64 to 105 g/m2)
SCAN SPEED (BW / COLOR; LETTER)Simplex: Up to 29 ipm (BW)/10 ipm (Color)
Duplex: Up to 10 ipm (BW)/6 ipm (Color)
PAPER CAPACITY (20 lb. Bond): Up to 50 Sheets (20 lb. Bond)

COPY SPECIFICATIONS
MULTIPLE COPIES1 to 999
COPY EXPOSUREAutomatic or Manual (17 Levels)
MAGNIFICATION25% - 400% (1% Increments) from Platen Glass
PRESET REDUCTIONS25%, 50%, 64%, 78%
PRESET ENLARGEMENTS129%, 200%, 400%
BASIC COPY FEATURESPreset R/E Ratios by Area, Two-Sided, Exposure Adjustment, Original Type Selection, Setting Confirmation/Cancel, Standard Keys, Reset, ID Management, Counter Check
SPECIAL COPY FEATURESID Card Copy, Frame Erase, Mode Memory, Sharpness, Image Combination, Different Size Original

PRINT SPECIFICATIONS
PROCESSORCanon Dual Custom Processor (Shared)
ENGINE RESOLUTION600 x 600 dpi; 1200 x 600 dpi (Enhanced)
PDL SUPPORTStandard: UFR II LT
Standard (1435iF/1435P): PCL 5e/6, and Adobe PS 3
Optional: Barcode Printing Kit
PRINT DRIVERS SUPPORTED OSUFR II LT, PCL 5e/6, Adobe PS 3, Windows® (XP/Windows Vista®/7/8/8.1), Windows Server (2003/2003R2/2008 /2008 R2/ 2012/2012 R2), Windows Terminal Server (2003/2003R2/2008/2008 R2/2012/2012 R2), Microsoft Clustering Server 2003/2003R2/2008/ 2008 R2/2012/2012 R2),Microsoft App-V, Citrix (Presentation Server 4.5, XenApp 5.0/6.0/6.5/7.5, XenDesktop 4.0/5.0/5.5/5.6/7.0/7.1/7.5), VMware (vSphere 4/5/5.1), SAP (PS3, PCL), Macintosh® (OS X 10.5.8 or later) (UFR II LT, PS 3)
DIRECT PRINT SUPPORT

Standard: TIFF, JPEG
Standard:: PDF
Optional: PDF (with optional USB Direct Print Kit or PS Printer Kit)

PRINT FEATURESSecured Print, Watermark, Page Border, Header/Footer, Page Layout, Two-Sided Printing, Collating, Booklet Printing, Grouping, Printing on Transparencies, Front/ Back Covers, Objective, Toner Reduction, Poster Printing

SCAN SPECIFICATIONS
NETWORK TWAIN SCANStandard
NETWORK SCAN UTILITYScanGear MF

UNIVERSAL SEND SPECIFICATIONS
SENDING METHODE-mail, USB, File Server (FTP, SMB)
COLOR MODEColor: 300 dpi, 200 dpi, 150 dpi
BW: 300 dpi, 150dpi
SCAN RESOLUTION600 x 600 dpi, 400
ADDRESS BOOK CAPACITYMax. 300 Destinations (Incl. 19 One-Touch Buttons)
COMMUICATION PROTOCOLFile: FTP (TCP/IP), SMB (TCP/IP)
E-mail: SMTP, POP3
FILE FORMATStandard: TIFF, JPEG, PDF, PDF (Compact), PDF (Compact/OCR), PDF (OCR)
Optional: Encrypted PDF, Digital Signature PDF
UNIVERSAL SEND FEATURESTwo Sided Original, Original Type Selection, Density Adjustment, Sharpness, Subject/Message, Reply-to, E-mail Priority, Senders Name

STORE SPECIFICATIONS
STANDARDUSB Memory

SECURITY SPECIFICATIONS
STANDARDDepartment ID Management, IPv6, Restricting Features (Restricting New Addresses on Address Book, Allow Fax Driver TX, Restrict Recall, Confirm Entered Fax Numbers, Restrict Sequential Broadcast, Restrict USB Interface), Memory Lock, MAC/IP Address Filtering, SMTP Authentication POP Authentication before SMTP, IEEE802.1x, Authentication Feature for Send Operation (ASend), Secured Print, SNMP v1/v3, SSL Encrypted Communication, Fax Forwarding, Fax Destination Confirmation, USB Block, TLS Support for E-mail , Fax TX Archive
OPTIONALEncrypted PDF, Device Signature PDF, uniFLOW

ENVIRONMENTAL INFORMATION
ENERGY STAR® Qualified
Rated EPEAT® Silver
EU RoHS Compliant
Blue Angel
WEEE Directive


CONSUMABLES
TONERGPR-54 Toner
TONER YIELD (ESTIMATED @ 6% COVERAGE)Black: 17, 600 Copies/Case

FOOTNOTES
* Duplexing Automat
