PRODUCT INFO

imageRUNNER 1435+ Series Brochure

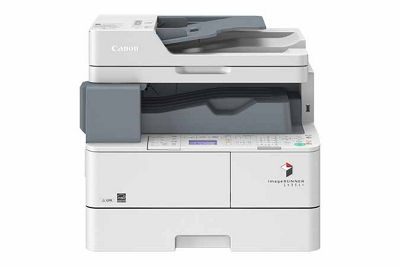

imageRUNNER 1435i+

MAIN UNIT
TYPEDigital Multifunction Imaging System
CORE FUNCTIONSPrint, Copy, Scan, Send
PROCESSORCanon Dual Custom Processor (Shared)
OPERATION PANEL5-line LCD
MEMORYRAM 512 MB, Standard USB Port
INTERFACE CONNECTIONNetwork:1000Base-T/100Base-TX/10Base-T
Optional:USB2.0 x1 (Host), USB1.1 x1 (Host),USB (Device)
PAPER SOURCES (LTR, 20LB BOND)Standard:500-sheet Paper Cassette,100-sheet Stack Bypass
Optional:500-sheet CASSETTE MODULE-AC1
Maximum:1,100 Sheets
PAPER OUTPUT CAPACITY (LTR, 20LB BOND)Maximum:100 Sheets
SUPPORTED MEDIA SIZES Cassette:Letter, Legal
Bypass:Letter, Legal, Statement, Executive,Custom size (3" x 5" to 8-1/2" x 14"), Envelope (C5/DL/ COM-10/Monarch)
SUPPORTED MEDIA WEIGHTSCassette:17 lb. Bond to 24 lb. Bond (64 to 90 g/m2)
Bypass:16 lb. Bond to 34 lb. Bond (60 to 128 g/m2)
COPY SPEED (BW)Up to 37 ppm (Letter);Up to 30 ppm (Legal)
PRINT SPEED (BW)Up to 37 ppm (Letter);Up to 30 ppm (Legal)
WARM-UP TIMEFrom Power On:20 Seconds or Less1
From Sleep Mode:7.8 Seconds or Less
DIMENSIONS (W X D X H)18-3/4" x 21-1/2" x 18"(475.3 mm x 545 mm x 457 mm)
INSTALLATION SPACE (WXD)30-3/8" x 18" (772.1 mm x 457 mm)when multipurpose tray is extended
WEIGHT2Approx. 52.3 lb. (23.74 kg)

PRINT SPECIFICATIONS
FIRST-PRINT-OUT TIME (LTR)As fast as 5 Seconds
PRINT RESOLUTION (dpi)600 x 600; 1200 x 600 (Enhanced)
STANDARD PAGE DESCRIPTION LANGUAGESUFR II LT, PCL®5e/6
Optional:Adobe® PS® 3
Optional:Barcode Printing Kit
DIRECT PRINT SUPPORT Standard:TIFF, JPEG
Optional:  PDF (with optional USB Direct Print Kit or PS Printer Kit)
Available from USB, Advanced Box, Remote UI,and Web Access3
OPERATING SYSTEM UFR II LT, PCL 5e/6, Adobe PS 3, Windows®(XP/Windows Vista®/7/8/8.1), Windows Server (2003/2003R2/2008/2008 R2/ 2012/2012 R2),Windows Terminal Server (2003/2003R2/2008/2008 R2/2012/2012 R2), Microsoft ClusteringServer 2003/2003R2/2008/ 2008 R2/2012/2012 R2), Microsoft App-V, Citrix (Presentation Server 4.5, XenApp 5.0/6.0/6.5/7.5, XenDesktop 4.0/5.0/5.5/5.6/7.0/7.1/7.5), VMware (vSphere 4/5/5.1), SAP (PS3, PCL), Macintosh®(OS X 10.5.8 or later) (UFR II LT, PS 3)
PRINT FEATURESSecured Print, Watermark, Page Border, Header/Footer, Page Layout, Two-Sided Printing, Collating, Booklet Printing, Grouping, Printing on Transparencies, Front/Back Covers, Objective, Toner Reduction, Poster Printing

COPY SPECIFICATIONS
FIRST-COPY-OUT TIME (LTR)As fast as 6.9 Seconds (via Platen)
COPY RESOLUTION (dpi)Reading/Printing:Up to 600 x 600
COPY SPECIFICATIONSAutomatic or Manual (9 Levels)
MULTIPLE COPIESUp to 999
MAGNIFICATION25% - 400% (1% Increments) from Platen Glass
PRESET REDUCTIONS25%, 50%, 64%, 78%
PRESET ENLARGEMENTS129%, 200%, 400%
BASIC COPY FEATURESPreset R/E Ratios by Area, Two-Sided, Exposure Adjustment, Original Type Selection, Setting Confirmation/Cancel, Standard Keys, Reset, ID Management, Counter Check
SPECIAL COPY FEATURESID Card Copy, Frame Erase, Mode Memory, Sharpness, Image Combination, Different Size Original

SCAN SPECIFICATIONS
TYPEDuplexing Automatic Document Feeder
DOCUMENT FEEDER PAPER CAPACITYUp to 50 Sheets (20 lb. Bond)
MAXIMUM ORIGINAL SIZEUp to 8-1/2" x 14"
DOCUMENT FEEDER SUPPORTED MEDIA SIZES5-1/2" x 5" to 8-1/2" x 14"
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTSimplex:13 lb. to 28 lb. Bond (50 to 105 g/m2)
Duplex:17 lb. to 28 lb. Bond (64 to 105 g/m2)
PLATEN ACCEPTABLE ORIGINALSSheet, Book, 3-Dimensional ObjectsWeight Up to 4.4 lb. (2 kg)
NETWORK TWAIN SCANStandard
NETWORK SCAN UTILITYScanGear MF
SCAN RESOLUTIONUp to 600 x 600
SCAN SPEED (LTR) 300 dpiSimplex:Up to 29 ipm (BW)/10 ipm (Color)
Duplex:Up to 10 ipm (BW)/6 ipm (Color)

SEND SPECIFICATIONS
DESTINATIONEmail, USB, File Server (FTP, SMB)
COLOR MODEColor, BW
SCAN RESOLUTIONColor:300 dpi, 200 dpi, 150 dpiBW:300 dpi, 150dpi
ADDRESS BOOKMax. 300 Destinations (Incl. 19 One-Touch Buttons)
COMMUICATION PROTOCOLFile:FTP (TCP/IP), SMB (TCP/IP)Email:SMTP, POP3
FILE FORMATStandard:TIFF, JPEG, PDF, PDF (Compact),PDF (Compact/OCR), PDF (OCR),Encrypted PDF, Digital Signature PDF
UNIVERSAL SEND FEATURESTwo Sided Original, Original Type Selection, Density Adjustment, Sharpness, Subject/Message, Reply-to,Email Priority, Senders Name

STORE SPECIFICATIONS
MEMORY MEDIAStandard: USB

SECURITY SPECIFICATIONS
AUTHENTICATIONStandard:Department ID Management, IPv6, Restricting Features (Restricting New Addresses on Address Book, Allow Fax Driver TX, Restrict Recall, Confirm Entered Fax Numbers, Restrict Sequential Broadcast, Restrict USB Interface),Memory Lock, MAC/IP Address Filtering, SMTP Authentication POP Authentication before SMTP, IEEE802.1x, Authentication Feature for Send Operation (AuSend), Secured Print, SNMP v1/v3, SSL Encrypted Communication, Fax Forwarding, Fax Destination Confirmation, USB Block, TLS Support for Email, Fax TX Archive, Encrypted PDF, Digital Signature PDF
Optional:uniFLOW

ENVIRONMENTAL SPECIFICATIONS
POWER REQUIREMENTS120-127 V, 60 Hz, 7.8 A
PLUG (MAIN UNIT)NEMA 5-15P
POWER CONSUMPTIONMaximum:1,500 W
Sleep Mode:2.0 W or Less4
STANDARDSENERGY STAR® Certified
Rated EPEAT® Silver5
WEEE Directive5

CONSUMABLES
TONERGPR-54 Toner
TONER YIELD (ESTIMATED @ 6% COVERAGE)Black: 17,600 Copies/Case

FOOTNOTES
1 Time from device power-on until copy ready(not print reservation).
2 Includes consumables.
3 PDF print from Web sites is supported.
4 2.0 W sleep mode not available in all circumstancesdue to certain settings.
5 For current EPEAT rating (Gold/Silver/Bronze),please visit www.epeat.net.
