PRODUCT INFO
imageRUNNER 1435+ Series Brochure

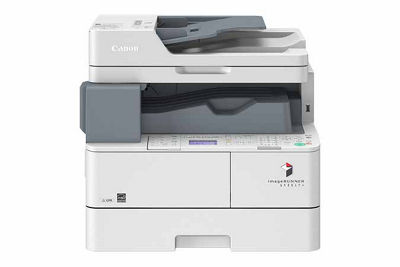

imageRUNNER 1435iF+ | |
MAIN UNIT | |
TYPE | Digital Multifunction Imaging System |
CORE FUNCTIONS | Print, Copy, Scan, Send, Fax |
PROCESSOR | Canon Dual Custom Processor (Shared) |
OPERATION PANEL | 5-line LCD |
MEMORY | RAM 512 MB, Standard USB Port |
INTERFACE CONNECTION | Network:1000Base-T/100Base-TX/10Base-T Optional:USB2.0 x1 (Host), USB1.1 x1 (Host),USB (Device) |
PAPER SOURCES (LTR, 20LB BOND) | Standard:500-sheet Paper Cassette,100-sheet Stack Bypass Optional:500-sheet CASSETTE MODULE-AC1 Maximum:1,100 Sheets |
PAPER OUTPUT CAPACITY (LTR, 20LB BOND) | Maximum:100 Sheets |
SUPPORTED MEDIA SIZES | Cassette:Letter, Legal Bypass:Letter, Legal, Statement, Executive,Custom size (3" x 5" to 8-1/2" x 14"), Envelope (C5/DL/ COM-10/Monarch) |
SUPPORTED MEDIA WEIGHTS | Cassette:17 lb. Bond to 24 lb. Bond (64 to 90 g/m2) Bypass:16 lb. Bond to 34 lb. Bond (60 to 128 g/m2) |
COPY SPEED (BW) | Up to 37 ppm (Letter);Up to 30 ppm (Legal) |
PRINT SPEED (BW) | Up to 37 ppm (Letter);Up to 30 ppm (Legal) |
WARM-UP TIME | From Power On:20 Seconds or Less1 From Sleep Mode:7.8 Seconds or Less |
DIMENSIONS (W X D X H) | 18-3/4" x 21-1/2" x 18"(475.3 mm x 545 mm x 457 mm) |
INSTALLATION SPACE (WXD) | 30-3/8" x 18" (772.1 mm x 457 mm)when multipurpose tray is extended |
WEIGHT2 | Approx. 52.3 lb. (23.74 kg) |
PRINT SPECIFICATIONS | |
FIRST-PRINT-OUT TIME (LTR) | As fast as 5 Seconds |
PRINT RESOLUTION (dpi) | 600 x 600; 1200 x 600 (Enhanced) |
STANDARD PAGE DESCRIPTION LANGUAGES | UFR II, PCL®5e/6, Adobe® PS® 3 Optional:Barcode Printing Kit |
DIRECT PRINT SUPPORT | Standard: TIFF, JPEG, PDF Available from USB, Advanced Box, Remote UI,and Web Access3 |
OPERATING SYSTEM | UFR II LT, PCL 5e/6, Adobe PS 3, Windows®(XP/Windows Vista®/7/8/8.1), Windows Server (2003/2003R2/2008/2008 R2/ 2012/2012 R2),Windows Terminal Server (2003/2003R2/2008/2008 R2/2012/2012 R2), Microsoft ClusteringServer 2003/2003R2/2008/ 2008 R2/2012/2012 R2), Microsoft App-V, Citrix (Presentation Server 4.5, XenApp 5.0/6.0/6.5/7.5, XenDesktop 4.0/5.0/5.5/5.6/7.0/7.1/7.5), VMware (vSphere 4/5/5.1), SAP (PS3, PCL), Macintosh®(OS X 10.5.8 or later) (UFR II LT, PS 3) |
PRINT FEATURES | Secured Print, Watermark, Page Border, Header/Footer, Page Layout, Two-Sided Printing, Collating, Booklet Printing, Grouping, Printing on Transparencies, Front/Back Covers, Objective, Toner Reduction, Poster Printing |
COPY SPECIFICATIONS | |
FIRST-COPY-OUT TIME (LTR) | As fast as 6.9 Seconds (via Platen) |
COPY RESOLUTION (dpi) | Reading/Printing:Up to 600 x 600 |
COPY SPECIFICATIONS | Automatic or Manual (9 Levels) |
MULTIPLE COPIES | Up to 999 |
MAGNIFICATION | 25% - 400% (1% Increments) from Platen Glass |
PRESET REDUCTIONS | 25%, 50%, 64%, 78% |
PRESET ENLARGEMENTS | 129%, 200%, 400% |
BASIC COPY FEATURES | Preset R/E Ratios by Area, Two-Sided, Exposure Adjustment, Original Type Selection, Setting Confirmation/Cancel, Standard Keys, Reset, ID Management, Counter Check |
SPECIAL COPY FEATURES | ID Card Copy, Frame Erase, Mode Memory, Sharpness, Image Combination, Different Size Original |
SCAN SPECIFICATIONS | |
TYPE | Duplexing Automatic Document Feeder |
DOCUMENT FEEDER PAPER CAPACITY | Up to 50 Sheets (20 lb. Bond) |
MAXIMUM ORIGINAL SIZE | Up to 8-1/2" x 14" |
DOCUMENT FEEDER SUPPORTED MEDIA SIZES | 5-1/2" x 5" to 8-1/2" x 14" |
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHT | Simplex:13 lb. to 28 lb. Bond (50 to 105 g/m2) Duplex:17 lb. to 28 lb. Bond (64 to 105 g/m2) |
PLATEN ACCEPTABLE ORIGINALS | Sheet, Book, 3-Dimensional ObjectsWeight Up to 4.4 lb. (2 kg) |
NETWORK TWAIN SCAN | Standard |
NETWORK SCAN UTILITY | ScanGear MF |
SCAN RESOLUTION | Up to 600 x 600 |
SCAN SPEED (LTR) 300 dpi | Simplex:Up to 29 ipm (BW)/10 ipm (Color) Duplex:Up to 10 ipm (BW)/6 ipm (Color) |
SEND SPECIFICATIONS | |
DESTINATION | Email, USB, File Server (FTP, SMB) |
COLOR MODE | Color, BW |
SCAN RESOLUTION | Color:300 dpi, 200 dpi, 150 dpiBW:300 dpi, 150dpi |
ADDRESS BOOK | Max. 300 Destinations (Incl. 19 One-Touch Buttons) |
COMMUICATION PROTOCOL | File:FTP (TCP/IP), SMB (TCP/IP)Email:SMTP, POP3 |
FILE FORMAT | Standard:TIFF, JPEG, PDF, PDF (Compact),PDF (Compact/OCR), PDF (OCR),Encrypted PDF, Digital Signature PDF |
UNIVERSAL SEND FEATURES | Two Sided Original, Original Type Selection, Density Adjustment, Sharpness, Subject/Message, Reply-to,Email Priority, Senders Name |
FAX SPECIFICATIONS | |
MAXIMUM NUMBER OF CONNECTION LINES | One |
MODEM SPEED | Super G3:33.6 Kbps G3:14.4 Kbps |
COMPRESSION METHOD | MH, MR, MMR, JBIG |
RESOLUTION | 400 x 400, 200 x 400, 200 x 200, 200 x 100 |
SENDING / RECORDING SIZE | Letter, Legal, Statement |
FAX FEATURES | Job Forwarding, Adjusting Density, Sharpness, Specifying the Sender’s Name, Selecting the Telephone Line Type, Two-Sided Original, TX Archive, Distinctive Ring Detection |
STORE SPECIFICATIONS | |
MEMORY MEDIA | Standard: USB |
SECURITY SPECIFICATIONS | |
AUTHENTICATION | Standard:Department ID Management, IPv6, Restricting Features (Restricting New Addresses on Address Book, Allow Fax Driver TX, Restrict Recall, Confirm Entered Fax Numbers, Restrict Sequential Broadcast, Restrict USB Interface),Memory Lock, MAC/IP Address Filtering, SMTP Authentication POP Authentication before SMTP, IEEE802.1x, Authentication Feature for Send Operation (AuSend), Secured Print, SNMP v1/v3, SSL Encrypted Communication, Fax Forwarding, Fax Destination Confirmation, USB Block, TLS Support for Email, Fax TX Archive, Encrypted PDF, Digital Signature PDF Optional:uniFLOW |
ENVIRONMENTAL SPECIFICATIONS | |
POWER REQUIREMENTS | 120-127 V, 60 Hz, 7.8 A |
PLUG (MAIN UNIT) | NEMA 5-15P |
POWER CONSUMPTION | Maximum:1,500 W Sleep Mode:2.0 W or Less4 |
STANDARDS | ENERGY STAR® Certified Rated EPEAT® Silver5 WEEE Directive5 |
CONSUMABLES | |
TONER | GPR-54 Toner |
TONER YIELD (ESTIMATED @ 6% COVERAGE) | Black: 17,600 Copies/Case |
FOOTNOTES | |
1 Time from device power-on until copy ready(not print reservation). 2 Includes consumables. 3 PDF print from Web sites is supported. 4 2.0 W sleep mode not available in all circumstancesdue to certain settings. 5 For current EPEAT rating (Gold/Silver/Bronze),please visit www.epeat.net. |
