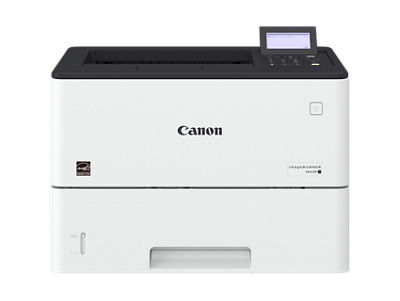

imageRUNNER 1643P


Get started with these quick links.


DOWNLOADS

Language
Type
Our software & drivers for your product are specific to your operations system. We've detected your operating system as {{os}}. If you need software or drivers for a different operating system make sure to select the correct operating system & version with the dropdowns below. Not all our software & drivers are compatible with all operating systems and versions.
of
There are no results for the OS Version you selected.
image icon
Canon PRINT Business - iOS
Easily print from and scan to your iCloud accounts right from your smartphone or tablet with the Canon PRINT Business app. Available for select imageRUNNER ADVANCE and imageCLASS printers.
image icon
Canon PRINT Business - Android
Easily print from and scan to your Dropbox, Google Drive accounts right from your smartphone or tablet with the Canon PRINT Business app. Available for select imageRUNNER ADVANCE and imageCLASS printers.

SETUP & TROUBLESHOOTING

PRODUCT INFO

imageRUNNER 1643 Series Brochure

imageRUNNER 1643P

MAIN UNIT

TYPE
Monochrome Laser Printer
CORE FUNCTIONS
Print
PROCESSOR
Canon Dual Custom Processor2 (Shared)
OPERATION PANEL
5-Line LCD Panel
MEMORY
1.0 GB RAM
INTERFACE CONNECTION2
1000Base-T/100Base-TX/10-Base-T
Others (Standard): USB 2.0 (Host) x3, USB 2.0 (Device) x1
PAPER SOURCES (LETTER, 20 LB. BOND)
Standard: 550-sheet Paper Cassette, 100-sheet Stack Bypass
Optional: 550-sheet PAPER FEEDER PF-C1 (up to 3) Maximum: 2,300 Sheets
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)
Maximum: 150 Sheets

SUPPORTED MEDIA SIZES

Cassette: Letter, Legal, Statement, Executive Bypass: Letter, Legal, Statement, Executive, Custom size
(3" x 5" to 8-1/2" x 14"), Envelope (C5/DL/ COM-10/Monarch)
SUPPORTED MEDIA WEIGHTS
Cassette: 16 lb. Bond to 32 lb. Bond (60 to 120 g/m2)
Bypass: 16 lb. Bond to 73 lb. Cover (60 to 199 g/m2)
PRINT SPEED (BW AND COLOR)
Up to 45 ppm (Letter); Up to 36 ppm (Legal)
WARM-UP TIME
From Power On: 30 Seconds or Less3
From Sleep Mode: 3 Seconds or Less
DIMENSIONS (W x D x H)
16-1/8” x 14-13/16” x 10-13/16” (409 mm x 376 mm x 275 mm)
INSTALLATION SPACE (W x D x H)
24-5/16” x 43-7/16” (617 mm x 1104 mm)
WEIGHT4
Approx. 25.3 lb. (11.5 kg)

PRINT SPECIFICATIONS

FIRST-PRINT-OUT TIME (LTR)
Approx. 5.7 Seconds
PRINT RESOLUTION (dpi)
600 × 600
STANDARD PAGE DESCRIPTION LANGUAGES
UFR II LT, PCL®5e/6, Adobe® PS® 3 (Standard on 1643iF/1643P, optional on 1643i) Optional: Barcode Printing Kit
DIRECT PRINT
Supported File Types:
TIFF, JPEG, PDF and XPS (only LPR) Available from USB memory, LPR
OPERATING SYSTEM
Windows 10/8.1/7 (32/64 bit), Windows Server (2019/2016/2012 R2 (64 bit)/2012 (64 bit)/ 2008 R2 (64 bit) /2008 (32/64 bit), Mac® (OS X 10.6 and later => 10.9 , 10/14) Linux (Web Distribution)
PRINT FEATURES
Suspend Job Timeout, Profile Settings, Secure Print, Header/ Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Front/ Back Covers, Toner Reduction, Poster Printing

STORE SPECIFICATIONS

MEMORY MEDIA
Standard: USB

SECURITY SPECIFICATIONS

AUTHENTICATION
Standard: Department ID
Optional: uniFLOW and uniFLOW Online
NETWORK
Standard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6
DOCUMENT
Standard: Secure Print

ENVIRONMENTAL SPECIFICATIONS

POWER REQUIREMENTS
120-127 V, 60 Hz, 7.1 A
PLUG (MAIN UNIT)
NEMA 5-15P
POWER CONSUMPTION
Maximum: Approx. 1370W
Sleep Mode: 1.9 W5
Typical Electricity Consumption (TEC) Rating6 0.50 kWh
STANDARDS
ENERGY STAR® Certified
Rated EPEAT® Silver1

CONSUMABLES

TONER
Toner T06 Black
TONER YIELD (ESTIMATED @ 5% COVERAGE)
20,500 Images (Estimated Yield @ ISO 19752 Coverage)

FOOTNOTES

  1. For current EPEAT rating (Gold/Silver/Bronze), please visit www.epeat.net.
  2. imageRUNNER 1643P model does not have direct connection capabilities, and does not come standard with Wi-Fi.
  3. Time from device power-on until copy ready (not print reservation).
  4. Includes consumables.
  5. 1.9 W Sleep mode not available in all circumstances due to certain settings.
  6. Based on ENERGY STAR Product Specification for Imaging Equipment Version 3.0.
NOTE: Check for availability and details for uniFLOW solutions.
