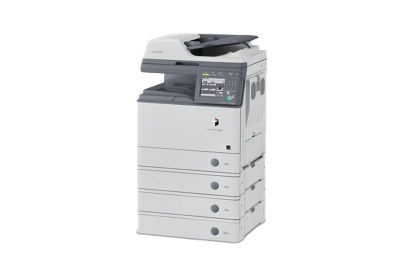

imageRUNNER 1730iF

Get started with these quick links.

DOWNLOADS

Filter & Sort
Download Type
<p><span class="h2"><b><span class="h6">Find Software & Drivers</span></b></span></p> <p>Software & drivers are specific to your operating system. Not all software &amp; drivers are compatible with operating systems and versions.</p>
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above.
Date 11.17.14
File Size 4.74 MB
Date 11.17.14
File Size 187.0 MB

SETUP & TROUBLESHOOTING

PRODUCT INFO

Model Name imageRUNNER 1730iF
Type Digital Multifunction Imaging System Functions: Standard: Copy, Print (UFR II LT, PCL, PostScript® 3 Emulation), Scan, Send, Fax Operation Panel: 5.7" QVGA Black-and-White LCD Touch-Screen
Image Server Memory Standard/ Maximum: 512MB RAM
Network Interface Connection: Ethernet 10/100Base-TX
Other Interface: Standard: USB 2.0 (Host)x1, USB 2.0 (Device)x1
Letter Up to 32 ppm
First Copy Time 5.0 Seconds
Multiple Copies 1 to 999
Magnification 25% - 400% (1% Increments)
Preset Reductions 25%, 50%, 64%, 78%
Preset Enlargements 129%, 200%, 400%
Standard Paper Capacity (20 lb. Bond): 550-sheet Paper Cassette
100-sheet Stack Bypass
Optional: 550-sheet Paper Cassette (up to three)
Maximum Paper Capacity 2,300 Sheets

Output Sizes

Cassette Cassette 1/3/4: Legal, Letter, Statement, Executive
Cassette 2: Legal, Letter, Statement, Executive, Envelopes (COM10 No.10/Monarch/ DL/ISO-B5/ISO-C5)&Delta;*
Bypass Legal, Letter, Statement, Executive, Envelopes (COM10 No.10/Monarch/DL/ ISO-B5/ISO-C5), Custom Size [3-15/16" to 8-1/2" x 5-9/16" to 14-1/8" (99mm to 216mm x 140mm to 356mm)]

Acceptable Paper Weights

Cassette 17 lb. Bond to 28 lb. Bond
Bypass 17 lb. Bond to 34 lb. Bond
Duplexing Paper Size: Standard Automatic Trayless Duplexing (Statement to Legal)
Paper Weight: 17 lb. Bond to 28 lb. Bond
Warm Up Time From Power On: 30 Seconds or Less
From Sleep Mode: 10 Seconds or Less
Exposure Control Automatic or Manual (9 Levels)
Power Requirements 120V AC, 60Hz, 6.2A
Plug: NEMA 5-15P
Power Consumption: Maximum: 1.5kW or Less; Sleep Mode: 1W
Dimension 24-7/8" x 22-1/8" x 19-3/4"
Installation Space (W x D): 37-1/8" x 37-3/4" (with no optional equipment attached)
50-1/4" x 37-3/4" (with the optional Staple Finisher-H1 attached)
Weight Approximately 97.7 lb.**
Estimated Toner Yield 15,100 Copies/Bottle (Estimated @ 6% Coverage)

Feeders

Description Duplexing Automatic Document Feeder
Acceptable Originals Letter, Statement-R, Legal
Scanning Speed 32/32 ipm (300 dpi)
Paper Weights BW Originals: 13 lb. Bond to 34 lb. Bond
Color Originals: 17 lb. Bond to 34 lb. Bond
Description Cassette Module-Y1*
Acceptable Originals Legal, Letter, Statement, Executive
Acceptable Paper Type: Plain, Recycled, Color, 3-hole Punch, Heavy Paper (24 lb. Bond to 28 lb. Bond)
Capacity 550 Sheets x 1 Cassette (20 lb. Bond)
Paper Weights 17 lb. Bond to 28 lb. Bond
Dimensions 4-3/4" x 21-1/4" x 19-3/4"&loz;&loz;
Weight Approximately 17 lb
