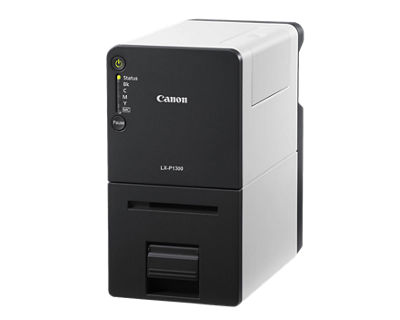

LX-P1300 Pigment-Based Inkjet Label Printer
Get started with these quick links.
DOWNLOADS
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows Server 2025
- Windows NT
- Linux
SETUP & TROUBLESHOOTING
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
Printer
Printing Method | Pigment-based Inkjet |
Print Speed (up to) | First Print Out Time: 2" x 3" Label: 10 seconds or less1 Default Print Speed: 120 mm/second (4.7 inches/second)1 Range: 50 - 120 mm/s1 Preset Options: 120, 80, 70, 60, 50 mm/s |
Number of Nozzles | 2,816 dots |
Print Resolution (Up to) | 1200x1200 dpi |
Ink Compatibility | 4 (1 x Black, 1 x Cyan, 1 x Magenta, 1 x Yellow) |
Paper Sizes | Width: 28.4 - 63.0 mm (Including Liner)#60;br/>Length: 25.4 - 400.0 mm (Including Liner) |
Maximum Printable Area | Width: 56.0 mm Length: 397.0 mm |
Minimum Margin | Top/Bottom Margin: 1.5 mm Left/Right Margin: 3.5 mm |
Paper Thickness | 0.145 - 0.255 mm |
Paper Compatibility | Label Roll Media with Roll Holder (IJ Coated: Matte or Glossy) |
Roll Paper Maximum Outer Diameter | Outer Diameter: Up to 75 mm, Core/Inner Diameter: Up to 25.4 m |
Body Durability | 300,000 Sheets / 5 Years2 |
Estimated Output Number | Approx. 2,000 Sheets per cartridge set2 |
General
OS Compatibility | Windows 10 (64/32 bit), 8.1 (64/32 bit), 7 SP1 (64/32 bit)3 |
Standard Interface | USB 2.0 Ethernet (10/100/1000Base-T) |
Power Source | AC 100-240v, 50/60 Hz |
Power Consumption (approx.) | Operating /Maximum: Approx. 22.0 W (Average) Sleep Mode: Approx. 6.0 W or Less |
Dimension (W x D x H) | 5.3" (W) x 9.8" (D) x 9.8" (H) |
Weight | 11.02 lbs. |
Operating Temperature: | Temperature: 41° - 95°F (5° - 35°C) |
Operating Humidity: | Humidity: 10-90% RH (Non-Condensing) |
Noise | Acoustic Information Operating Noise (Max.): 50dB or less4 Standby Noise: 30dB or less4 |
Warranty | 1 Year Warranty5 |
Auto Cutter Unit | Built-In |
Cartridge Fill Volume | Black / Cyan / Magenta / Yellow: 14.5 ml |
Maintenance Cartridge Info & Fill Volume | WT-X201 Maintenance Cartridge2 Approx. 24,000 Sheets2 |
Operational Method | LCD: No Buttons/LEDs: 2 Buttons / 7 LEDs |
Optional Hardware Module | RH-L02 Roll Holder |
Certifications/Standards | RoHS Compliance |
CANON LX-SERIES LABEL PRINTER LIMITED WARRANTY
The limited warranty set forth below is given by Canon U.S.A., Inc. ("Canon") with respect to the Canon LX-D5500/LX-P5510/LX-P1300/LX-D1300 Inkjet Label Printer packaged with this limited warranty and Canon branded accessories and options designed for use with the Canon LX-D5500 LX-P5510/LX-P1300/LX-D1300 Inkjet Label Printer (collectively, the "Product"). Canon warrants the Product to be free from defects in workmanship and materials under normal use and service for a period of one (1) year after delivery to the original purchaser (“Purchaser”) by Canon or its authorized dealer. During the relevant warranty period, Canon shall, in its sole discretion and without charge, repair or replace any defective part with a new or comparable rebuilt part or replace the Product with a new or rebuilt Product. Warranty replacement shall not extend the warranty period of the defective Product. This warranty does not cover consumable parts or consumables, such as paper and ink cartridges, as to which there shall be no warranty or replacement.
For remote diagnostic assistance for operation and support of the Product, call:
- Your local Service Provider; or
- 1-855-852-2666, Monday through Friday from 8 a.m. to 8 p.m. ET (excluding Canon holidays).
You must cooperate with Canon in remotely diagnosing the Product’s malfunction. Canon may attempt to correct the malfunction remotely, with your assistance. If Canon cannot fix your Product’s malfunction through remote diagnostics, Canon shall schedule an on-site service call by an independent authorized Canon Service Provider (the "Service Provider") or Canon will send you a replacement part for any defective user replaceable item. You will be charged at the then-current service call rates of Canon or the Service Provider if the defects in the Product are not covered by this limited warranty, or if the applicable warranty period for the Product has expired or warranty coverage has not been sufficiently established by appropriate documentation.
This warranty shall only apply if this Product is used in conjunction with compatible computers, peripheral equipment and software, as to which items Canon shall have no responsibility. NON-CANON BRAND COMPUTERS, PERIPHERAL EQUIPMENT AND SOFTWARE WHICH MAY BE DISTRIBUTED WITH THE PRODUCT ARE SOLD AS IS, WITHOUT WARRANTY OF ANY KIND BY CANON, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The sole warranty, if any, with respect to such non-Canon brand item is given by the manufacturer or producer thereof.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, RELATING TO THE USE OR PERFORMANCE OF THE PRODUCT. NO OTHER EXPRESS WARRANTY OR GUARANTY, EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THE PRODUCT SHALL BIND CANON OR ANY SERVICE PROVIDER. NO WARRANTY IS GIVEN ON ANY USED PRODUCT.
THIS WARRANTY SHALL BE VOID AND OF NO FORCE AND EFFECT IF THE PRODUCT IS DAMAGED AS A RESULT OF (A) ABUSE, NEGLECT, MISHANDLING, ALTERATION, ELECTRIC CURRENT FLUCTUATION OR ACCIDENT, (B) IMPROPER USE, INCLUDING FAILURE TO FOLLOW OPERATING OR MAINTENANCE INSTRUCTIONS IN, OR ENVIRONMENTAL CONDITIONS PRESCRIBED IN, CANON’S USER'S GUIDE OR OTHER DOCUMENTATION FOR THE PRODUCT, (C) REPAIR BY OTHER THAN SERVICE REPRESENTATIVES QUALIFIED BY CANON WHO ARE ACTING IN ACCORDANCE WITH CANON’S SERVICE BULLETINS (D) USE OF SUPPLIES OR PARTS (OTHER THAN THOSE DISTRIBUTED BY CANON), INCLUDING NON-CANON INK CARTRIDGES OR REFILLED INK CARTRIDGES, WHICH DAMAGE THE PRODUCT OR CAUSE ABNORMALLY FREQUENT SERVICE CALLS OR SERVICE PROBLEMS OR (E) USE OF THE PRODUCT WITH NON-COMPATIBLE COMPUTERS, PERIPHERAL EQUIPMENT OR SOFTWARE, INCLUDING THE USE OF THE PRODUCT IN ANY SYSTEM CONFIGURATION NOT RECOMMENDED IN ANY USER'S GUIDE OR OTHER DOCUMENTATION FOR THE PRODUCT. NOR DOES THIS WARRANTY EXTEND TO ANY PRODUCT ON WHICH THE ORIGINAL IDENTIFICATION MARKS OR SERIAL NUMBERS HAVE BEEN DEFACED, REMOVED, OR ALTERED.
ANY SYSTEM SOFTWARE (WHETHER FACTORY LOADED ON THE PRODUCT OR CONTAINED ON THE SOFTWARE MEDIA ENCLOSED WITH, OR ACCOMPANYING, THE PRODUCT), AND ANY UTILITY SOFTWARE, DISTRIBUTED WITH OR FOR THE PRODUCT, IS SOLD “AS IS” AND WITHOUT WARRANTY BY CANON. THE SOLE WARRANTY WITH RESPECT TO SUCH SOFTWARE IS CONTAINED IN THE SOFTWARE MANUFACTURER'S LICENSE AGREEMENT DISTRIBUTED THEREWITH, INCLUDING ANY LIMITATIONS AND DISCLAIMERS THEREON. PLEASE CONTACT CANON IMMEDIATELY IF YOU HAVE NOT RECEIVED A COPY OF THE SOFTWARE MANUFACTURER'S LICENSE AGREEMENT.
NEITHER CANON NOR ANY SERVICE PROVIDER SHALL BE LIABLE FOR PERSONAL INJURY OR PROPERTY DAMAGE (UNLESS CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON OR ANY SERVICE PROVIDER), LOSS OF REVENUE OR PROFIT, FAILURE T0 REALIZE SAVINGS OR OTHER BENEFITS, LOSS OR CORRUPTION OF DATA INCLUDING, WITHOUT LIMITATION, DATA STORED ON THE PRODUCT'S HARD DISK DRIVE, EXPENDITURES FOR SUBSTITUTE EQUIPMENT OR SERVICES, LOSS OR CORRUPTION OF DATA, STORAGE CHARGES OR OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED AND EVEN IF CANON OR ANY SERVICE PROVIDER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST CANON OR ANY SERVICE PROVIDER BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, THE PURCHASER ASSUMES ALL RISKS AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PERSONS AND PROPERTY OF THE PURCHASER OR OTHERS, ARISING OUT OF THE POSSESSION, USE, MISUSE OR INABILITY TO USE THE PRODUCT SOLD BY CANON NOT CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON OR ANY SERVICE PROVIDER. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE PURCHASER, AND STATES SUCH PURCHASER'S EXCLUSIVE REMEDY.
CONDITIONS OF WARRANTY
Defective parts must be returned to Canon or a Service Provider with all necessary documentation and will become the property of Canon.
THIS WARRANTY APPLIES TO PRODUCTS SOLD AND USED IN THE U.S.A. ONLY.
