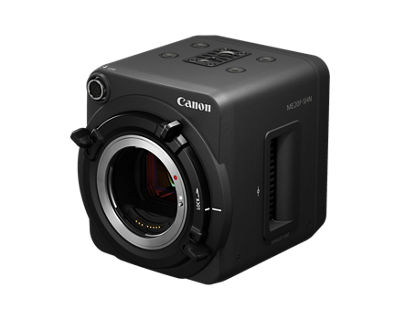

ME20F-SHN
Get started with these quick links.
DOWNLOADS
2. Select the Version
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows Server 2025
- Windows NT
- Linux
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above.
File Name
Network Camera ME20F-SHN Setup Guide
File Name
Mobile Camera Viewer Operation Guide
File Name
Camera Management Tool User Manual
File Name
Camera Management Tool User Manual
File Name
Mobile Camera Viewer Operation Guide
File Name
Before Using This Camera
Camera Connect
Canon Camera Connect is an application to transfer images shot with compatible Canon cameras to smartphone/tablet.
Digital Photo Professional Express
Canon Digital Photo Professional Express (Canon DPP Express) is an iPad/iPhone application to color edit RAW images with intuitive touch operation to be converted to JPEG file afterwards.
image.canon
image.canon is a cloud service designed to ease your imaging workflow, whether you are a professional, enthusiast, or casual user.
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
Tech. Specs. Detailed PDF | View Full Details of Technical Specifications |
Sensor | 35mm Full Frame CMOS |
Total Pixels | Approx. 2.59M (2160 x 1200) |
Effective Pixels | Approx. 2.26M (2000 x 1128) |
Resolution | 1920 x 1080, 1280 x 720 |
Pixel Size | 19um x 19um |
Min. Sub. Illum. | 0.0005 lux or less (at 75dB, F1.2, 29.97P, 50IRE) |
Color Filter Array | RGB Primary Color Filter Bayer Array |
Canon EF Lenses | Select EF, EF-S and Cinema (EF-mount) Lenses |
GEN LOCK | N/A |
Microphone | 3.5mm stereo mini jack (plug-in power mic supported) |
Remote Control | Remote A: 2.5mm stereo mini jack RS-232 (Canon OK Protocol) Ethernet (Canon Webview Protocol) |
External Device I/O Terminal Block | Input x 1, Output x 1, RS-422/RS-485 x 1 (Pass-through only) |
3G/HD-SDI | Terminal 1 (On screen display optional) - 3G-SDI: SMPTE 424, SMPTE 425, SMPTE ST 299-2 - HD-SDI: SMPTE 292, SMPTE ST 299-1 - Resolution: 1080P/1080i/720P Frame Rates - 1920 x 1080: 59.94P/59.94i/50P/50i/29.97P/25P/23.98P - 1280 x 720: 59.94P/50P/29.97P/25P/23.98P |
HDMI | Terminal 1 (On screen display optional) Resolution: 1080P/1080i/720P/576P*/480P* Frame Rates 1920 x 1080: 59.94P/59.94i/50P/50i/29.97P/25P/23.98P, 1280 x 720: 59.94P/50P * 480P/576P video signal is output only when a monitor that supports only 480P/576P is connected to the camera. |
Ethernet | LAN x 1 (RJ45, 100Base-TX (auto/full duplex/half-duplex)) MJPEG, MPEG4-AVC/H.264 Streaming Camera Controls over IP Resolution: 1920 x 1080 Frame Rates: MJPEG: 0.1 - 30fps H.264: 1/2/3/5/6/10/15/30 Target bit rate: Selection range 64-16384 kbps Protocols: IPv4, IPv6, TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF Profile S/G, WV-HTTP (Canon proprietary) |
Auto Exposure (AE) | Iris, Gain, Shutter and ND filter operating together, AE shift/AE response selectable, AGC limit can be set from 36dB to 75dB (3dB intervals) |
Manual | Iris: Iris: 1/2 stops or 1/3 stops (push auto iris can be set to an assign button), Gain: 0dB to 75dB @3dB intervals (approx. ISO 4,560,000 equivalent at 75dB) Shutter: 1/3 to 1/2000 (selections depend on system frequency and frame rate) |
Focus Control | Manual focus, One-shot AF (can be set to assign button) |
White Balance | AWB (2,000K-15,000K), Daylight, Tungsten, Custom Set A, Custom Set B, Color Temperature |
Optical Filters | ND filters: 1/8 & 1/64 Built-in (auto or manual activation) IR cut filter: On/Off (manual activation) |
Digital Teleconverter | 2x, 3x, 4x |
Custom Picture Setting | EOS Standard, Wide DR, Canon Log, Custom 1-6 |
Other Functions | Auto black balance, color bar, test tone (interlocking with color bar), assign buttons, peripheral illumination correction, focus limit, crop for EF-S lens, scan reverse, flicker reduction, noise reduction, time display, hour meter |
Terminals | Terminal block 2-pin jack and Ethernet port (PoE+) |
Input | Terminal block 2-pin jack: DC +11V , +17V Ethernet: PoE IEEE802.3at Type 2 compliant (PoE+) |
Consumption | Power consumption approx. PoE+ 18W, DC 16W |
Operating Temperature | Approx. 0 - 40 °C (32-104 °F) |
Dimensions | 4.0 x 4.6 x 4.4 in. (102 x 116 x 113mm) |
Weight | Approx. 2.4 lbs. (1,100g) |
Included in the Box | ME20F-SHN, 2-pin DC Power Contact, Body Cap |
Related Accessories | Canon RC-V100 Remote Controller, Canon EF Lenses |
