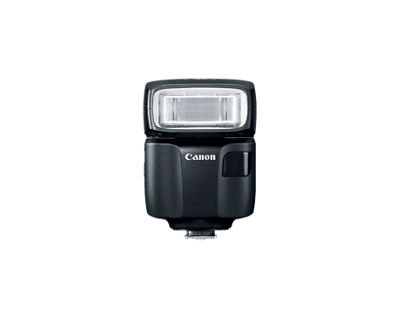

Speedlite EL-100 Flash

Get started with these quick links.

DOWNLOADS

Filter & Sort
Download Type
<p><span class="h2"><b><span class="h6">Find Software & Drivers</span></b></span></p> <p>Software & drivers are specific to your operating system. Not all software &amp; drivers are compatible with operating systems and versions.</p>
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above.
Date 09.13.18
File Size 1.59 MB
Date 09.13.18
File Size 230.93 KB



Software Development Kit

The Canon EOS Digital Camera Software Development Kit (EDSDK) and the Camera Control API (CCAPI) are available on select Canon cameras1 and enables developers to integrate select Canon cameras directly into their software application solutions, giving them access to remote control and communication functionality of the camera. The EDSDK supports USB communication on Windows, Macintosh, and Linux operating systems, while the CCAPI uses Wi-Fi (Ethernet on select cameras) and can be used with almost any OS.

The EDSDK and CCAPI (along with other SDKs and APIs) are provided free of charge and more information can be found at https://www.usa.canon.com/support/sdk.

1. Compatibility list available on Canon Developer Community website



SETUP & TROUBLESHOOTING

Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.

PRODUCT INFO

Flash

Type Shoe-mount E-TTL II/E-TTL autoflash Speedlites
Compatible Cameras Type-A EOS cameras (E-TTL II/E-TTL autoflash)
Guide Number The Guide No. is approximately 68.9 ft./21.0m at ISO 100 and 24mm flash coverage.

The maximum Guide No. is approximately 85.3 ft./26.0m at ISO 100 and 50mm flash coverage.
Number of Flashes When using AA/LR6 alkaline batteries
Approx. 58400 times

When using AA/HR6 Ni-MH batteries
Approx. 69480 times

Nominal min. time when using 1900mAh type AA/HR6 Ni-MH batteries.
Based on Canon Testing Standards.
Recycling Time When using AA/LR6 alkaline batteries
Normal flash: Approx. 0.15.8 sec.
Quick flash: Approx. 0.15.3 sec.

When using AA/HR6 Ni-MH batteries
Normal flash: Approx. 0.13.1 sec.
Quick flash: Approx. 0.12.7 sec.

Nominal min. time when using 1900mAh type AA/HR6 Ni-MH batteries.
Based on Canon Testing Standards.
Flash Range Examples of effective flash range (50mm flash coverage, f/1.4 aperture, ISO 100)
  1. Normal Flash:
    Approx. 2.361.0 ft./0.718.6m
  2. Quick Flash (at Guide No. **.* ft./**.*m):
    Approx. **.***.* ft./**.***.*m
  3. High-speed Sync (at 1/250 sec. shutter speed):
    Approx. 2.329.9 ft./0.79.1m
AF Assist Beam Compatible AF System:
Phase-difference AF in viewfinder shooting, Quick mode in Live View shooting and movie shooting

Effective Range (Approx.):
At center: 13.1 ft./4.0m
With the illumination angle at 24mm, without bounce.
Custom Functions 3 Custom Functions
Power Source Two AA/LR6 alkaline batteries
  • AA/HR6 Ni-MH batteries also usable.
  • Lithium batteries cannot be used.
Dimensions Approx. 2.54 x 3.61 x 2.79 in./64.6 x 91.7 x 71.0mm
Weight Approx. 6.70 oz./190g (excluding batteries)
