PRODUCT INFO

Product

Product Category Field Lens

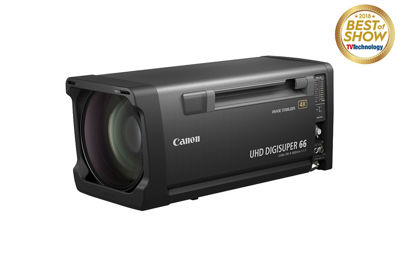

Product Series UHD-DIGISUPER 66 (UJ66x9B)

Image Composition

Object Image Format 2/3 inch
Aspect Ratio 16:9
Zoom Ratio 66x
Focal Length Range 9.0 , 600 mm
Focal Length Range with Extender 18.0 , 1200 mm (with 2x Extender)
Angular Field of View 56.1&deg × 33.4&deg at 9mm
0.92&deg × 0.52&deg at 600mm
Angular Field of View with Extender 29.9° × 17.1&deg at 18mm (with 2x Extender)
0.46° × 0.26° at 1200mm (with 2x Extender)

Optical Brightness

Maximum Relative Aperture (F-Number) 1:1.7 at 9 - 340 mm
1:3.0 at 600 mm
Maximum Relative Aperture (F-Number) with Extender 1:3.4 at 18 - 680 mm (with 2x Extender)
1:6.0 at 1200 mm (with 2x Extender)

Scene Composition

MOD From Front of Lens 3.0 Meter
Scene Object Dimensions at MOD 287.9 x 161.9 cm at 9 mm
4.4 x 2.5 cm at 600 mm
Scene Object Dimensions at MOD with Extender 144.0 x 81.0 cm at 18 mm (with 2x Extender)
2.2 x 1.3 cm at 1200 mm (with 2x Extender)

Physical Attributes

Width 9.9in (250.6mm)
Height 10.1in (255.5mm)
Dimensions 24in (610mm)
Weight 51.1 lbs (23.2kg)
