PRODUCT INFO

Product

Product Category Field Lens

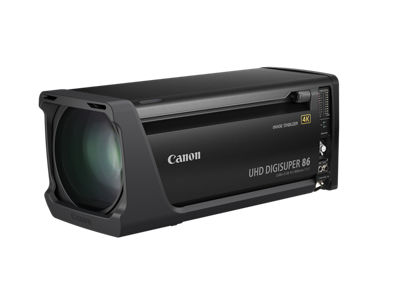

Product Series UHD-DIGISUPER 86 (UJ86x9.3B)

Image Composition

Object Image Format 2/3 inch
Aspect Ratio 16:9
Zoom Ratio 86X
Focal Length Range 9.3 , 800mm
Focal Length Range with Extender 18.6 , 1600mm (with 2x Extender)
Angular Field of View 54.6&deg × 32.4&deg at 9.3mm0.69&deg × 0.39&deg at 800mm
Angular Field of View with Extender 28.9&deg × 16.5&deg at 18.6mm (with 2x Extender)
0.34&deg × 0.19&deg at 1600mm (with 2x Extender)

Optical Brightness

Maximum Relative Aperture (F-Number) 1:1.7 at 9.3 , 340mm1:4.0 at 800mm
Maximum Relative Aperture (F-Number) with Extender 1:3.4 at 18.6 , 680mm (with 2x Extender)
1:8.0 at 1600mm (with 2x Extender)

Scene Composition

MOD From Front of Lens 3.0 Meter
Scene Object Dimensions at MOD 271.9 × 152.9cm at 9.3mm3.3 × 1.9cm at 800mm
Scene Object Dimensions at MOD with Extender 136.0 × 76.5cm at 18.6mm (with 2x Extender)
1.7 × 1.0cm at 1600mm (with 2x Extender)

Physical Attributes

Width 9.9in (250.6mm)
Height 10.1in (255.5mm)
Length 25in (637.4mm)
Weight 59.5 lbs (27kg)
