PRODUCT INFO

Product

Product Category Field Lens

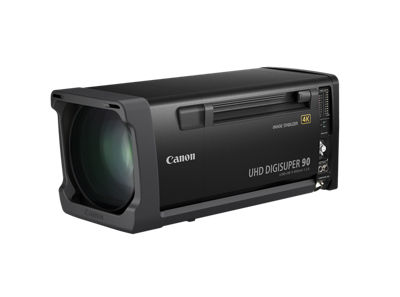

Product Series UHD-DIGISUPER 90 (UJ90x9B)

Image Composition

Object Image Format 2/3 inch
Aspect Ratio 16:9
Zoom Ratio 90X
Focal Length Range 9 , 810mm
Focal Length Range with Extender 18 , 1620mm (with 2x Extender)
Angular Field of View 56.1&deg × 33.4&deg at 9mm
0.68&deg × 0.38&deg at 810mm
Angular Field of View with Extender 29.9&deg × 17.1&deg at 18mm (with 2x Extender)
0.34&deg × 0.19&deg at 1620mm (with 2x Extender)

Optical Brightness

Maximum Relative Aperture (F-Number) 1:2.4 at 9 , 486mm
1:4.0 at 810mm
Maximum Relative Aperture (F-Number) with Extender 1:4.8 at 18 , 972mm (with 2x Extender)
1:8.0 at 1620mm (with 2x Extender)

Scene Composition

MOD From Front of Lens 3.0 Meter
Scene Object Dimensions at MOD 287.9 × 161.9cm at 9mm
3.3 × 1.9cm at 810mm
Scene Object Dimensions at MOD with Extender 144.0 × 81.0cm at 18mm (with 2x Extender)
1.7 × 1.0cm at 1620mm (with 2x Extender)

Physical Attributes

Width 9.9in (250.6mm)
Height 10.1in (255.5mm)
Length 24in (610mm)
Weight 51.2 lbs (23.2kg)
