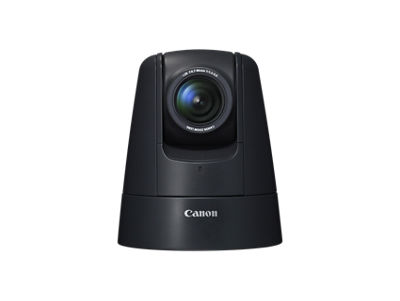

VB-H47
Get started with these quick links.
DOWNLOADS
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows NT
- macOS 15
- Linux
Locating and installing your download
 |
Chrome |
- A grey bar will appear at the bottom of your browser window which will contain your download. To install your download click on the name of the downloaded file. Alternatively you can click 'Show all downloads...' to view the list of all recently downloaded files
- If the grey bar is not visible you can also access the list of recently downloaded files by clicking the 3 small horizontal lines
located on the right of the address bar - Select 'Downloads' from the menu and the list of recently downloaded files will open
- From this list you can also install the download by clicking on the file name
- To open the folder on your computer that contains your downloaded files please select the 'Open downloads folder' link on the right of the page
- The folder that contains your download will now be open
 |
Safari |
- Mac Users - Click the down arrow
in the top right of the browser - Windows Users - Click the gear wheel
in the top right of the browser - Click the small image of the magnifying glass
next to your download - The folder that contains your download will now be opened
 |
Firefox |
- Click the down arrow in the top right of the browser
- Windows Users - Click the small image of the folder
next to your download - Mac Users - Click the small image of the magnifying glass next to your download
- The folder that contains your download will now be opened
 |
Internet Explorer |
- Click the gear wheel in the top right of the browser
- Select 'View Download' from the menu
- Select 'Location' next to your download
- The folder that contains your download will now be opened
 |
Microsoft Edge |
- Click the three dots icon in the top right of the browser
- Select 'Downloads' from the menu
- Select 'Open folder' next to your download
- The folder that contains your download will now be opened
There are no copying instructions for this browser
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
| IMAGE SENSOR | 1/2.8 type CMOS |
| NUMBER OF EFFECTIVE PIXELS | Approx. 2.0 million pixels |
| SCANNING METHOD | Progressive |
| LENS | 20x optical zoom lens with auto focus |
| FOCAL LENGTH | 4.7 (W) 94 mm (T) |
| F-NUMBER | F1.6 (W) F3.5 (T) |
| DIGITAL ZOOM | 16X |
| HORIZONTAL VIEWING ANGLE (16:9) | Horizontal: 62.4° (W) 3.3° (T) |
| VERTICAL VIEWING ANGLE (16:9) | Vertical: 36.3° (W) 1.9° (T) |
| DAY/NIGHT MODE | Auto/Day Mode/Night Mode |
| I/R CUT FILTER | Automatically removable infrared-cut filter |
| MIN. SUBJECT ILLUMINATION - DAY (COLOR) | 0.02 lux (F1.6, shutter speed 1/30 sec., 50IRE) |
| MIN. SUBJECT ILLUMINATION - NIGHT (MONOCHROME) | 0.003 lux (F1.6, shutter speed 1/30 sec., 50IRE) |
| FOCUS MODES | Auto/One-shot AF/Manual/Fixed at infinity |
| AF RESPONSE SPEED | High, Normal, and Low |
| SHOOTING DISTANCE | Day Mode: 0.3 m (12 in.) infinity (W), 1.0 m (3.3 ft.) infinity (T) Night Mode: 1.0 m (3.3 ft.) infinity (W), 1.5 m (4.9 ft.) infinity (T) |
| SHUTTER SPEED | 1 - 1/16000 sec. |
| EXPOSURE MODES | Auto/Auto (Flickerless)/Auto (Shutter-priority AE)/Auto (Aperture-priority AE)/Manual |
| WHITE BALANCE | Auto/Light Source (Daylight Fluorescent/White Fluorescent/WarmFluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp)/Manual(One-shot WB/R Gain/B Gain) |
| METERING MODES | Center-Weighted/Average/Spot/Specify Area |
| EXPOSURE COMPENSATION | 13 levels |
| WDR | Available |
| SMART SHADE CONTROL | Available |
| HAZE COMPENSATION | Available |
| AGC LIMIT | Available |
| IMAGE STABILIZER | Digital (2 Levels) |
| MOTION ADAPTIVE NOISE REDUCTION | Available |
| CLEAR IR | n/a |
| PAN ANGLE RANGE | 340° (±170°) |
| TILT ANGLE RANGE | 100° (ceiling-mounted position: -90° - +10°) |
| ROTATION ANGLE RANGE | N/A |
| IR ILLUMINATION RANGE | N/A |
| MOVING SPEED | Pan: Max. 150°/sec., Tilt: Max. 150°/sec. |
| VIDEO COMPRESSION METHOD | JPEG, H.264, H.265 |
| BIT RATE CONTROL | CBR (Constant Bit Rate), VBR (Variable Bit Rate), MBR (Maximum Bit Rate) |
| VIDEO SIZE | JPEG, H.264, H.265: 1920 x 1080, 1280 x 720, 960 x 540, 640 x 360, 480 x 270, 320 x 180 1280 x 960, 640 x 480, 320 x 240 |
| VIDEO QUALITY | JPEG, H.264, H.265: 10 levels |
| FRAME RATE | System frequency 60 Hz: 1, 5, 7.5, 10, 15, 30, 60 fps System frequency 50 Hz: 1, 2.5, 5, 6.25, 10, 12.5, 25, 50 fps |
| MAXIMUM FRAME RATE | 60 fps |
| I-FRAME INTERVAL | Available |
| SIMULTANIOUS CLIENT ACCESS | Max. 30 Clients + 1 Admin Client H.264: Max. 10 Clients H.265: Max. 10 Clients |
| CAMERA CONTROL | Administrator, Authorized user, Guest user |
| ACCESS CONTROL | User authority (user name and password), Host Access Restrictions (IPv4, IPv6) |
| ENCRYPTED COMMUNICATIONS | SSL/TLS |
| IEEE 802.1X | EAP-TLS, EAP-TTLS, EAP-PEAP |
| ONVIF Version | Profile-S, Profile-G, Profile-T |
| IPv4 PROTOCOL | TCP/IP, UDP, HTTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, ONVIF, WV-HTTP (Canon proprietary) |
| IPv6 PROTOCOL | TCP/IP, UDP, HTTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, ONVIF, WV-HTTP (Canon proprietary) |
| AUTO IP (LINK-LOCAL) | Yes |
| AUDIO COMPRESSION METHOD | G.711 -law (64 kbps), AAC (16/48 KHz, 16/32/64/96/128 Kbps) |
| AUDIO COMMUNICATION METHOD | Full-duplex (two-way)/half-duplex RTP, Sound Transfer Protocol by Canon |
| AUDIO FILE PLAYBACK | Available |
| PRIVACY MASK | Number of registration: Max. 8 places, Number of mask colors: 1 (select from 9 colors) |
| VIEW RESTRICTION | Available |
| PRESETS | Number of registers: Max. 64 positions (+Home Position) Number of Preset Tour Route: Max. 5 |
| INTELLIGENT FUNCTION - VIDEO | Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection, Intrusion Detection, Face Detection |
| INTELLIGENT FUNCTION - DETECTION SETTINGS | Max. 15 |
| INTELLIGENT FUNCTION - VOLUME | Volume Detection |
| EVENT TRIGGER TYPE | External Device Input, Intelligent Function, Timer, Day/Night Mode Switching Number of Linked Events: 2 Linked Event Conditions: OR, AND (whether or not there is a sequence to events) |
| IMAGE UPLOAD | FTP/FTPS/HTTP/HTTPS/SMTP/SMTPS (e-mail) |
| EVENT NOTIFICATION | HTTP/HTTPS/SMTP/SMTPS (e-mail) |
| ON-SCREEN DISPLAY | Available |
| IMAGE CROPPING FUNCTION | Digital PTZ |
| ENHANCED DIGITAL ZOOM | Available |
| DAYLIGHT SAVING TIME | Available |
| CUSTOM SETTINGS | Available |
| NETWORK TERMINAL | LAN x 1 (RJ45, 100Base-TX (auto)) |
| AUDIO INPUT TERMINAL | 3.5 mm (0.14 in.) mini-jack connector (monaural) LINE IN or MIC IN |
| AUDIO OUTPUT TERMINAL | 3.5 mm (0.14 in.) mini-jack connector (monaural) LINE OUT |
| EXTERNAL DEVICE I/O TERMINAL | Input x 2, Output x 2 |
| ANALOG VIDEO OUT | N/A |
| MEMORY CARD TYPE | SD Memory Card, SDHC Memory Card, SDXC Memory Card Supported. Class 10 recommended. |
| TEMPERATURE | Temperature: -10°C - +50°C (+14°F - +122°F) |
| HUMIDITY | Humidity: 5% - 85% (without condensation) |
| TEMPERATURE | Temperature: -30°C +60°C (-22°F +140°F) |
| HUMIDITY | 5% 90% (without condensation) |
| PoE | PoE power supply via LAN connector (IEEE802.3af compliant) |
| AC ADAPTER | PA-V17 or PA-V18(100 - 240 V AC) (sold separately) |
| EXTERNAL POWER SOURCE | 12 V DC |
| WITH PoE | Max. approx. 9.1 W |
| WITH AC ADAPTER | AC Adapter PA-V18: Max. approx. 9.2 W (100 V AC) Max. approx. 9.7 W (240 V AC) |
| WITH 12VDC | 7.9 W |
| DIMENSIONS | (f x H) f132 x 155mm (f5.20 x 6.10 in.) |
| MOUNTING POSITION | Ceiling |
| HEATER | N/A |
| WEIGHT | 1100 g (2.43 lb.) |
| OUTDOOR READY | No |
| IP RATING | N/A |
| VANDAL RESISTANT | No |
| IMPACT RESISTANCE | N/A |
| Certifications and Compatibility | EN 55032 class A, FCC part15 subpart B class A, ICES-003 class A, VCCI class A, RCM AS/NZS EN55032 class A, CNS13438 class A, EN 55035, IEC EN 63000:2018, CNS15663 IEC/EN 62368-1 3'rd ed., UL 62368-1 3'rd ed. |
