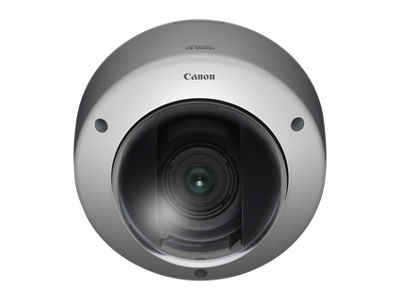

VB-M620D
Get started with these quick links.
DOWNLOADS
2. Select the Version
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows Server 2025
- Windows NT
- Linux
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above.
File Name
Camera Management Tool User Manual
File Name
Camera Management Tool User Manual
File Name
Camera Management Tool User Manual
File Name
Data Size and Bit Rate Estimates
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
IMAGE SENSOR | 1/3 type CMOS (primary color filter) |
NUMBER OF EFFECTIVE PIXELS | Approx. 1.3 million pixels |
ANALOG VIDEO RESOLUTION | N/A |
ANALOG VIDEO STANDARD | N/A |
ANALOG S/N RATIO | N/A |
SCANNING METHOD | Progressive |
LENS | 3x optical (4x digital) zoom lens (electric drive) |
FOCAL LENGTH | 2.8 (W) - 8.4mm (T) |
F-NUMBER | F1.2 (W) - F2.0 (T) |
HORIZONTAL VIEWING ANGLE | 111.0 ° (W) - 36.5 ° (T) |
VERTICAL VIEWING ANGLE | 60.1 ° (W) - 20.5 ° (T) |
DAY/NIGHT SWITCH | Auto/Manual |
I/R CUT FILTER | Removable |
MIN. SUBJECT ILLUMINATION - DAY (COLOR) | 0.3 lux (F1.2, shutter speed 1/30 sec., SSC off , 50IRE)
0.02 lux (F1.2, shutter speed 1/2 sec., SSC off , 50IRE) 0.008 lux (F1.2, shutter speed 1/2 sec., SSC on, 50IRE) |
MIN. SUBJECT ILLUMINATION - NIGHT (MONOCHROME) | 0.015 lux (F1.2, shutter speed 1/30 sec., SSC off , 50IRE)
0.001 lux (F1.2, shutter speed 1/2 sec., SSC off , 50IRE) 0.0005 lux (F1.2, shutter speed 1/2 sec., SSC on, 50IRE) |
FOCUS | One-shot AF/Manual/Fixed at infinity |
SHOOTING DISTANCE | Day Mode: 0.3m (12 in.) - infinity
Night Mode: 1.0m (3.3 ft.) - infinity |
SHUTTER SPEED | 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000/ 1/16000 sec. |
EXPOSURE | Auto/Auto (Flickerless)/Auto (Shutter-priority AE)/ Manual (Shutter Speed, Aperture, Gain) |
WHITE BALANCE | Auto/Light Source (Daylight Fluorescent/White Fluorescent/Warm Fluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp)/Manual (One-shot WB, R Gain, B Gain) |
METERING MODE | Center-Weighted/Average/Spot |
EXPOSURE COMPENSATION | 9 levels |
SMART SHADE CONTROL | Auto / Manual / Disable
Auto: 3 Levels Manual: 7 Levels |
AGC LIMIT | 5 levels |
IMAGE STABILIZER | N/A |
PAN ANGLE RANGE | 350 ° (±175 ° ) |
TILT ANGLE RANGE | 150 ° (±75 ° ) |
ROTATION ANGLE RANGE | 350 ° (±175 ° ) |
MOVING SPEED | Pan: 17.1
°
/sec., Tilt: 12.6
°
/sec., Rotation: 25.9
°
/sec.
- When the Camera Angle Setting Tool is used |
VIDEO COMPRESSION METHOD | JPEG, H.264 |
VIDEO SIZE | JPEG, H.264: 1280 x 720, 640 x 360, 320 x 180 1280 x 960, 640 x 480, 320 x 240 |
VIDEO QUALITY | JPEG, H.264: 5 levels |
FRAME RATE | JPEG: 0.1 - 30 fps
H.264: 1/2/3/5/6/10/15/30 fps |
MAXIMUM FRAME RATE | 1280 x 960: 30 fps |
I-FRAME INTERVAL | 0.5/1/1.5/2/3/4/5 sec. |
SIMULTANEOUS CLIENT ACCESS | Max. 30 Clients + 1 Admin Client - H.264: Max. 10 Clients |
CAMERA CONTROL | Administrator, Authorized user, Guest user Max. 50 user names and passwords registered for authorized users. |
ACCESS CONTROL | User authority (user name and password), Host Access Restrictions (IPv4,IPv6) |
ENCRYPTED COMMUNICATIONS | SSL/TLS, IPsec (Auto Key Exchange/Manual) |
IEEE 802.1X | EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP |
ONVIF Version | ONVIF Ver. 2.4 / Profile S |
IPv4 PROTOCOL | TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF |
IPv6 PROTOCOL | TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client),ICMPv6, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF |
AUTO IP | Available |
AUDIO COMPRESSION METHOD | G.711 µ-law (64 kbps) |
AUDIO COMMUNICATION METHOD | Full-duplex (two-way) - Echo cancellation function compliant |
AUDIO FILE PLAYBACK | Available (audio files can be played back when an event is triggered by the intelligent function or external device input.) |
PRIVACY MASK | Number of registration: Max. 8 places, Number of mask colors: 1 (select from 9 colors) |
VIEW RESTRICTION | N/A |
PRESETS | Max. 20 positions (Digital) |
INTELLIGENT FUNCTION - VIDEO | moving object detection, abandoned object detection, removed object detection, camera tampering detection, and passing detection |
INTELLIGENT FUNCTION - DETECTION SETTINGS | Max. 15 |
INTELLIGENT FUNCTION - VOLUME | Volume Detection |
EVENT TRIGGER TYPE | External Device Input, Intelligent Function (Video), Intelligent Function (Volume), Timer |
IMAGE UPLOAD | FTP/HTTP/SMTP (e-mail)
Temporary storage memory in camera: Max. approx. 5 MB Frame Rate: Max. 10 fps (JPEG) Max. 30 fps (H.264) |
EVENT NOTIFICATION | HTTP/SMTP (e-mail) |
ON-SCREEN DISPLAY | Available |
IMAGE CROPPING FUNCTION | Digital PTZ
Cropping sizes: 640 x 360/512 x 288/384 x 216/256 x 144/128 x 72/640 x 480/512 x 384/384 x 288/256 x 192/128 x 96 |
DAYLIGHT SAVINGS TIME | Available |
CUSTOM SETTINGS | N/A |
NETWORK TERMINAL | LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex)) |
AUDIO INPUT TERMINAL | F3.5mm (F0.14 in.) mini-jack connector (monaural)
- Connect via an audio interface cable (included) Switch LINE IN/MIC IN in the setting page. LINE IN x 1 (connect to an amplifier microphone) or MIC IN x 1 (connect to a microphone w/o amplifier) |
AUDIO OUTPUT TERMINAL | F3.5mm (F0.14 in.) mini-jack connector (monaural)
- Connect via an audio interface cable (included) LINE OUT x 1 (connect to an amplifier speaker) |
EXTERNAL DEVICE I/O TERMINAL | Input x 2, Output x 2 |
ANALOG VIDEO OUT | N/A |
MEMORY CARD | SD Memory Card, SDHC Memory Card, SDXC
Memory Card Compatible. Frame Rate: Max. 1 fps (JPEG), Max. 30fps (H.264) |
TEMPERATURE | Temperature: -10 ° C - +50 ° C (+14 ° F - +122 ° F) |
HUMIDITY | Humidity: 5% - 85% (without condensation) |
PoE | PoE power supply via LAN connector (IEEE802.3af compliant) |
AC ADAPTER | PA-V17 or PA-V18(100 - 240 V AC) (sold separately) |
EXTERNAL POWER SOURCE | 24 V AC/12 V DC |
WITH PoE | Max. approx. 7.8 W |
WITH AC ADAPTER | PA-V17: Max. approx. 9.8W (100 VAC)
PA-V17: Max. approx. 10.2 (240 VAC) PA-V18 Max. approx. 9.4W (100 VAC) PA-V18: Max. approx. 9.2W (240 VAC) |
WITH 12VDC | Max. approx. 8.3 W |
WITH 24VAC | Max. approx. 7.5 W |
DIMENSIONS | (F x H) F186 x 140mm (F 7.32 x 5.51 in.) |
MOUNTING POSITION | Horizontal / Vertical |
HEATER | N/A |
WEIGHT | Approx. 1190 g (2.624 lb.) |
OUTDOOR READY | No |
IP RATING | |
VANDAL RESISTANT | No |
IMPACT RESISTANCE |
