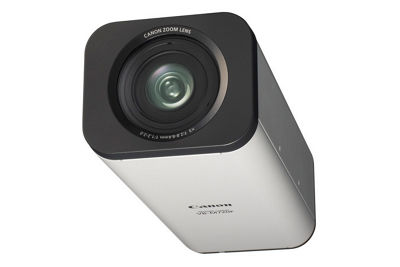

VB-M720F
Get started with these quick links.
DOWNLOADS
Firmware Results
0 of 0
Results will appear after selecting an Operating System and Version above.
2. Select the Version
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows Server 2025
- Windows NT
- Linux
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above.
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
IMAGE SENSOR | 1/3 type CMOS (primary color filter) |
NUMBER OF EFFECTIVE PIXELS | Approx. 1.3 million pixels |
ANALOG VIDEO RESOLUTION | N/A |
ANALOG VIDEO STANDARD | N/A |
ANALOG S/N RATIO | N/A |
SCANNING METHOD | Progressive |
LENS | 3x optical (4x digital) zoom lens (electric drive) |
FOCAL LENGTH | 2.8 (W) - 8.4mm (T) |
F-NUMBER | F1.2 (W) - F2.0 (T) |
HORIZONTAL VIEWING ANGLE | 112.6 ° (W) - 36.7 ° (T) |
VERTICAL VIEWING ANGLE | 60.8 ° (W) - 20.6 ° (T) |
DAY/NIGHT SWITCH | Auto/Manual |
I/R CUT FILTER | Removable |
MIN. SUBJECT ILLUMINATION - DAY (COLOR) | 0.3 lux (F1.2, shutter speed 1/30 sec., SSC off , 50IRE)
0.02 lux (F1.2, shutter speed 1/2 sec., SSC off , 50IRE) 0.008 lux (F1.2, shutter speed 1/2 sec., SSC on, 50IRE) |
MIN. SUBJECT ILLUMINATION - NIGHT (MONOCHROME) | 0.015 lux (F1.2, shutter speed 1/30 sec., SSC off , 50IRE)
0.001 lux (F1.2, shutter speed 1/2 sec., SSC off , 50IRE) 0.0005 lux (F1.2, shutter speed 1/2 sec., SSC on, 50IRE) |
FOCUS | One-shot AF/Manual/Fixed at infinity |
SHOOTING DISTANCE | Day Mode: 0.3m (12 in.) - infinity
Night Mode: 1.0m (3.3 ft.) - infinity |
SHUTTER SPEED | 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/16000 sec. |
EXPOSURE | Auto/Auto (Flickerless)/Auto (Shutter-priority AE)/ Manual (Shutter Speed, Aperture, Gain) |
WHITE BALANCE | Auto/Light Source (Daylight Fluorescent/White Fluorescent/Warm Fluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp)/Manual(One-shot WB/R Gain/B Gain) |
METERING MODE | Center-Weighted/Average/Spot |
EXPOSURE COMPENSATION | 9 levels |
SMART SHADE CONTROL | Auto / Manual / Disable
Auto: 3 Levels Manual: 7 Levels |
AGC LIMIT | 5 levels |
IMAGE STABILIZER | N/A |
PAN ANGLE RANGE | N/A |
TILT ANGLE RANGE | N/A |
ROTATION ANGLE RANGE | N/A |
MOVING SPEED | N/A |
VIDEO COMPRESSION METHOD | JPEG, H.264 |
VIDEO SIZE | JPEG, H.264: 1280 x 720, 640 x 360, 320 x 180 1280 x 960, 640 x 480, 320 x 240 |
VIDEO QUALITY | JPEG, H.264: 5 levels |
FRAME RATE | JPEG: 0.1 - 30 fps
H.264: 1/2/3/5/6/10/15/30 fps |
MAXIMUM FRAME RATE | 1280 x 960: 30 fps |
I-FRAME INTERVAL | 0.5/1/1.5/2/3/4/5 sec. |
SIMULTANIOUS CLIENT ACCESS | Max. 30 Clients + 1 Admin Client - H.264: Max. 10 Clients |
CAMERA CONTROL | Administrator, Authorized user, Guest user Max. 50 user names and passwords registered for authorized users. |
ACCESS CONTROL | User authority (user name and password), Host Access Restrictions (IPv4,IPv6) |
ENCRYPTED COMMUNICATIONS | SSL/TLS, IPsec (Auto Key Exchange/Manual) |
IEEE 802.1X | EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP |
ONVIF Version | ONVIF Ver. 2.4 / Profile S |
IPv4 PROTOCOL | TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client),
DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF |
IPv6 PROTOCOL | TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client),ICMPv6, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF |
AUTO IP | Available |
AUDIO COMPRESSION METHOD | G.711 µ-law (64 kbps) |
AUDIO COMMUNICATION METHOD | Full-duplex (two-way) - Echo cancellation function compliant |
AUDIO FILE PLAYBACK | Available (audio files can be played back when an event is triggered by the intelligent function or external device input.) |
PRIVACY MASK | Number of registration: Max. 8 places, Number of mask colors: 1 (select from 9 colors) |
VIEW RESTRICTION | N/A |
PRESETS | Max. 20 positions (Digital) |
INTELLIGENT FUNCTION - VIDEO | Moving object detection, abandoned object detection, removed object detection, camera tampering detection, and passing detection |
INTELLIGENT FUNCTION - DETECTION SETTINGS | Max. 15 |
INTELLIGENT FUNCTION - VOLUME | Volume Detection |
EVENT TRIGGER TYPE | External Device Input, Intelligent Function (Video), Intelligent Function (Volume), Timer |
IMAGE UPLOAD | FTP/HTTP/SMTP (e-mail)
Temporary storage memory in camera: Max. approx. 5 MB Frame Rate: Max. 10 fps (JPEG) Max. 30 fps (H.264) |
EVENT NOTIFICATION | HTTP/SMTP (e-mail) |
ON-SCREEN DISPLAY | Available |
IMAGE CROPPING FUNCTION | Digital PTZ
Cropping sizes: 640 x 360/512 x 288/384 x 216/256 x 144/128 x 72/640 x 480/512 x 384/384 x 288/256 x 192/128 x 96 |
DAYLIGHT SAVING TIME | Available |
CUSTOM SETTINGS | N/A |
NETWORK TERMINAL | LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex)) |
AUDIO INPUT TERMINAL | F3.5mm (F0.14 in.) mini-jack connector (monaural)
Switch LINE IN/MIC IN in the setting page. LINE IN x 1 (connect to an amplifier microphone) or MIC IN x 1 (connect to a microphone w/o amplifier) |
AUDIO OUTPUT TERMINAL | F3.5mm (F0.14 in.) mini-jack connector (monaural)
LINE OUT x 1 (connect to an amplifier speaker) |
EXTERNAL DEVICE I/O TERMINAL | Input x 2, Output x 2 |
ANALOG VIDEO OUT | N/A |
MEMORY CARD | SD Memory Card, SDHC Memory Card, SDXC Memory Card Compatible.
Frame Rate: Max. 1 fps (JPEG), Max. 30fps (H.264) |
TEMPERATURE | Temperature: -10 ° C - +50 ° C (+14 ° F - +122 ° F) |
HUMIDITY | Humidity: 5% - 85% (without condensation) |
PoE | PoE power supply via LAN connector (IEEE802.3af compliant) |
AC ADAPTER | PA-V17 or PA-V18(100 - 240 V AC) (sold separately) |
EXTERNAL POWER SOURCE | 24 V AC/12 V DC |
WITH PoE | Max. approx. 6.9 W |
WITH AC ADAPTER | PA-V17: Max. approx. 8.5W (100 VAC)
PA-V17: Max. approx. 8.7 (240 VAC) PA-V18 Max. approx. 7.5W (100 VAC) PA-V18: Max. approx. 7.8W (240 VAC) |
WITH 12VDC | Max. approx. 7.0 W |
WITH 24VAC | Max. approx. 6.5 W |
DIMENSIONS | (H x W x D ) 65 x 80 x 192 mm (2.56 x 3.15 x 7.56 in.) |
MOUNTING POSITION | Horizontal / Vertical |
HEATER | N/A |
WEIGHT | Approx. 670g (1.48 lb.) |
OUTDOOR READY | No |
IP RATING | N/A |
VANDAL RESISTANT | No |
IMPACT RESISTANCE | N/A |
