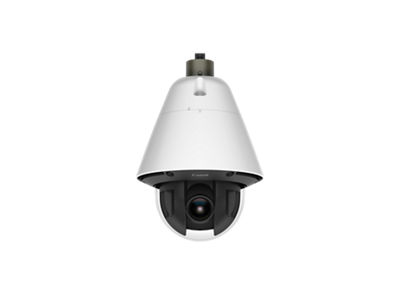

VB-R10VEs
Get started with these quick links.
DOWNLOADS
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows NT
- Linux
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
IMAGE SENSOR | 1/3" CMOS (RGB) |
NUMBER OF EFFECTIVE PIXELS | Approx. 1.3 million pixels |
ANALOG VIDEO RESOLUTION | |
ANALOG VIDEO STANDARD | |
ANALOG S/N RATIO | |
SCANNING METHOD | Progressive Scan |
LENS | 30x optical zoom lens with auto focus |
FOCAL LENGTH | 4.4 (W) - 132 mm (T) |
F-NUMBER | F1.4 (W) - F4.6 (T) |
DIGITAL ZOOM | 20x |
HORIZONTAL VIEWING ANGLE | 58.4° (W) - 2.1° (T) |
VERTICAL VIEWING ANGLE | 34.1° (W) - 1.2° (T) |
DAY/NIGHT SWITCH | Yes |
I/R CUT FILTER | Automatically removable infrared-cut filter |
MIN. SUBJECT ILLUMINATION - DAY (COLOR) | 0.03 lux (F1.4, shutter speed 1/30 sec., when smart shade control is off, 50IRE) |
MIN. SUBJECT ILLUMINATION - NIGHT (MONOCHROME) | 0.002 lux (F1.4, shutter speed 1/30 sec., when smart shade control is off, 50IRE) |
FOCUS MODES | Auto/One-shot AF/Manual/Fixed at infinity |
SHOOTING DISTANCE | Day Mode: 0.3 m (12 in.) - infinity (W), 2.0m (6.6 ft.) - infinity (T)
Night Mode: 1.0 m (3.3 ft.) - infinity (W), 2.0 m (6.6 ft.) - infinity (T) |
SHUTTER SPEED | 1 - 1/16000 sec. |
EXPOSURE MODES | Auto/Auto (Flickerless)/Auto (Shutter-priority AE)/Manual (Shutter Speed, Aperture, Gain) |
WHITE BALANCE | Auto/Light Source/Manual
Light Source: Daylight Fluorescent/White Fluorescent/Warm Fluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp Manual: One-shot WB/R Gain/B Gain |
METERING MODES | Center-Weighted/Average/Spot |
EXPOSURE COMPENSATION | 9 levels |
SMART SHADE CONTROL | Auto/Manual/Disable
Auto: 3 levels Manual: 7 levels |
HAZE COMPENSATION | Auto/Manual/Disable
Auto: 3 levels Manual: 7 levels |
AGC LIMIT | 6 levels |
IMAGE STABILIZER | Digital (2 Levels) |
PAN ANGLE RANGE | 360 ° continuous panning |
TILT ANGLE RANGE | 180 ° (ceiling-mounted position: 0 ° - 180 ° ) |
ROTATION ANGLE RANGE | |
IR ILLUMINATION RANGE | |
MOVING SPEED | Pan: Max. 450
°
/sec.
Tilt: Max. 450 ° /sec. |
VIDEO COMPRESSION METHOD | JPEG, H.264 |
BIT RATE CONTROL | Target Bit Rate: 64-16384 kbps |
VIDEO SIZE | JPEG, H.264: 1280 x 720, 640 x 360, 320 x 180 1280 x 960, 640 x 480, 320 x 240 |
VIDEO QUALITY | JPEG, H.264: 10 levels |
FRAME RATE | JPEG: 0.1 - 30 fps
H.264: 1/2/3/5/6/10/15/30 fps |
MAXIMUM FRAME RATE | 1280 x 960 : 30fps |
ADSR: AREA-SPECIFIC DATA SIZE REDUCTION | Number of Specified Areas: Max. 8 windows |
I-FRAME INTERVAL | 0.5/1/1.5/2/3/4/5 sec. |
SIMULTANEOUS CLIENT ACCESS | Max. 30 Clients + 1 Admin Client - H.264: Max. 10 Clients |
CAMERA CONTROL | Administrator, Authorized user, Guest user (level of control varies depending on user) |
ACCESS CONTROL | User authority (user name and password), Host Access Restrictions (IPv4, IPv6) |
ENCRYPTED COMMUNICATIONS | SSL/TLS, IPsec |
IEEE 802.1X | EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP |
ONVIF Version | Ver. 2.4.2, Profile G, Profile S |
IPv4 PROTOCOL | TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), mDNS,ARP, ICMP, POP3 (Client), NTP (Client), SMTP authentication (POP before SMTP, SMTP-AUTH), AutoIP, RTP/RTCP, RTSP, SSL/TLS, IPsec, WV-HTTP (Canon proprietary), ONVIF (Profile S, Profile G) |
IPv6 PROTOCOL | TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client), mDNS, ICMPv6, POP3 (Client), NTP (Client), SMTP authentication (POP before SMTP, SMTP-AUTH), RTP/RTCP, RTSP,SSL/TLS, IPsec, WV-HTTP (Canon proprietary), ONVIF (Profile S, Profile G) |
AUTO IP (LINK-LOCAL) | Yes |
AUDIO COMPRESSION METHOD | N/A |
AUDIO COMMUNICATION METHOD | N/A |
AUDIO FILE PLAYBACK | N/A |
PRIVACY MASK | Number of registration: Max. 8 places, Number of mask colors: 1 (select from 9 colors) |
VIEW RESTRICTION | Available |
PRESETS | Number of registers: Max. 256 positions (+Home Position)
Items to Reg.: Pan/Tilt/Zoom, Exposure, Smart Shade Control, Focus, White Balance, Video Quality Adjustment, Day/Night, Haze Compensation Number of Preset Tour Route: Max. 5 |
INTELLIGENT FUNCTION - VIDEO | Detection Types: Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection, Intrusion Detection, and Auto Tracking |
INTELLIGENT FUNCTION - AUDIO | N/A |
INTELLIGENT FUNCTION - DETECTION SETTINGS | Max. 15 |
EVENT TRIGGER TYPE | Intelligent Function (Video), Timer, Day/Night Switch |
IMAGE UPLOAD | FTP/HTTP/SMTP (e-mail) |
EVENT NOTIFICATION | HTTP/SMTP (e-mail) |
ON-SCREEN DISPLAY | Available |
IMAGE CROPPING FUNCTION | N/A |
DAYLIGHT SAVINGS TIME | Available |
CUSTOM SETTINGS |
NETWORK TERMINAL | LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex)) |
AUDIO INPUT TERMINAL | N/A |
AUDIO OUTPUT TERMINAL | N/A |
EXTERNAL DEVICE I/O TERMINAL | N/A |
ANALOG VIDEO OUT | N/A |
MEMORY CARD TYPE | SD Memory Card, SDHC Memory Card, SDXC Memory Card Compatible |
MEMORY CARD RECORDED CONTENT | Log, Video (Event, Manual, ONVIF, Timer, Upload) |
MEMORY CARD RECORDED FRAME RATE | Frame Rate: Max. 1 fps (JPEG) Max. 30 fps (H.264) |
TEMPERATURE | Operating Temperature Range (including direct sun exposure) :
AC: -50°C - +55°C (-58°F - +131°F) PoE+: -35°C - +55°C (-31°F - +131°F) DC, PoE: -10°C - +55°C (+14°F - +131°F) Start-up Temperature Range (including direct sun exposure) : AC, PoE+: -30°C - +55°C (-22°F - +131°F) DC, PoE: -10°C - +55°C (+14°F - +131°F) |
HUMIDITY | 5% - 85% RH (without condensation) |
TEMPERATURE | -30 ° C - +60 ° C (-22 ° F - +140 ° F) |
HUMIDITY | 5% - 90% RH (without condensation) |
PoE | PoE power supply via LAN connector (IEEE802.3at Type1 PoE/Type2 PoE+ compliant) |
AC ADAPTER | PA-V18 (100 - 240 V AC) (sold separately) |
EXTERNAL POWER SOURCE | 24 V AC/12 V DC |
WITH PoE | Max. approx. 10.1 W |
WITH AC ADAPTER | Adapter PA-V18: Max. approx. 12.7 W (100 V AC)
Max. approx. 12.8 W (240 V AC) |
WITH 12VDC | Max. approx. 11.0 W |
WITH PoE + | Max. approx. 20.8 W |
WITH 24VAC | Max. approx. 33.2 W |
DIMENSIONS | (F x H) F229 x 324 mm (F9.02 x 12.76 in.) |
MOUNTING POSITION | Ceiling mount/Surface mount |
HEATER | Built-In |
WEIGHT | Approx. 3420 g (7.54 lb.) |
OUTDOOR READY | Yes |
IP RATING | IP66 rated |
VANDAL RESISTANT | Yes |
IMPACT RESISTANCE | IK10 (20J) |
