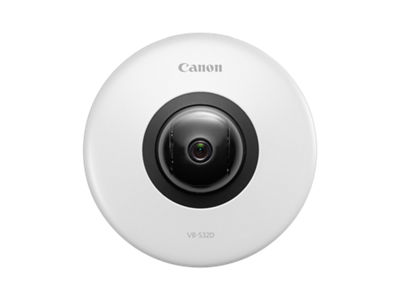

VB-S32D
Get started with these quick links.
DOWNLOADS
2. Select the Version
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows Server 2025
- Windows NT
- Linux
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above.
File Name
Before Using This Camera
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
IMAGE SENSOR | 1/2.8 type CMOS |
NUMBER OF EFFECTIVE PIXELS | Approx. 2.1 million pixels |
SCANNING METHOD | Progressive |
LENS | 3.5x optical zoom lens with auto focus |
FOCAL LENGTH | 2.25 (W) 7.88 mm (T) |
F-NUMBER | F1.4 (W) F2.6 (T) |
DIGITAL ZOOM | 4X |
HORIZONTAL VIEWING ANGLE (16:9) | 79.0° (W) 20.9° (T) |
VERTICAL VIEWING ANGLE (16:9) | 41.0° (W) 11.7° (T) |
DAY/NIGHT MODE | Auto/Day Mode/Night Mode |
I/R CUT FILTER | Digital Night mode |
MIN. SUBJECT ILLUMINATION - DAY (COLOR) | 0.15 lux (F1.4, shutter speed 1/30 sec., 50IRE) |
MIN. SUBJECT ILLUMINATION - NIGHT (MONOCHROME) | 0.10 lux (F1.4, shutter speed 1/30 sec., 50IRE) |
FOCUS MODES | Auto/One-shot AF/Manual/Fixed at infinity |
AF RESPONSE SPEED | High, Normal, and Low |
SHOOTING DISTANCE | Day Mode: 0.3 m (12 in.) infinity Night Mode: 1.0 m (3.3 ft.) infinity |
SHUTTER SPEED | 1/25 - 1/8000 sec. |
EXPOSURE MODES | Auto/Auto (Flickerless)/Auto (Flickerless2)/Auto (Shutter-priority AE)/Manual |
WHITE BALANCE | Auto/Light Source (Daylight Fluorescent/White Fluorescent/WarmFluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp)/Manual(One-shot WB/R Gain/B Gain) |
METERING MODES | Center-Weighted/Average/Spot/Specify Area |
EXPOSURE COMPENSATION | 13 levels |
WDR | n/a |
SMART SHADE CONTROL | Available |
HAZE COMPENSATION | Available |
AGC LIMIT | Available |
IMAGE STABILIZER | n/a |
MOTION ADAPTIVE NOISE REDUCTION | Available |
CLEAR IR | n/a |
PAN ANGLE RANGE | 350° (±175°) |
TILT ANGLE RANGE | 90° (ceiling-mounted position: -90° -0°) |
ROTATION ANGLE RANGE | N/A |
IR ILLUMINATION RANGE | N/A |
MOVING SPEED | Pan: Max. 120°/sec., Tilt: Max. 120°/sec. |
VIDEO COMPRESSION METHOD | JPEG, H.264, H.265 |
BIT RATE CONTROL | CBR (Constant Bit Rate), VBR (Variable Bit Rate), MBR (Maximum Bit Rate) |
VIDEO SIZE | JPEG, H.264, H.265: 1920 x 1080, 1280 x 720, 960 x 540, 640 x 360, 480 x 270, 320 x 180 1280 x 960, 640 x 480, 320 x 240 |
VIDEO QUALITY | JPEG, H.264, H.265: 10 levels |
FRAME RATE | System frequency 60 Hz: 1, 5, 7.5, 10, 15, 30 fps System frequency 50 Hz: 1, 2.5, 5, 6.25, 10, 12.5, 25 fps |
MAXIMUM FRAME RATE | 30 fps |
ADSR: AREA-SPECIFIC DATA SIZE REDUCTION | Number of Specified Areas: Max. 8 windows |
I-FRAME INTERVAL | Available |
SIMULTANIOUS CLIENT ACCESS | Max. 30 Clients + 1 Admin Client H.264: Max. 10 Clients H.265: Max. 10 Clients |
CAMERA CONTROL | Administrator, Authorized user, Guest user |
ACCESS CONTROL | User authority (user name and password), Host Access Restrictions (IPv4, IPv6) |
ENCRYPTED COMMUNICATIONS | SSL/TLS |
IEEE 802.1X | EAP-TLS, EAP-TTLS, EAP-PEAP |
ONVIF Version | Profile-S, Profile-G, Profile-T |
IPv4 PROTOCOL | TCP/IP, UDP, HTTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, ONVIF, WV-HTTP (Canon proprietary) |
IPv6 PROTOCOL | TCP/IP, UDP, HTTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, ONVIF, WV-HTTP (Canon proprietary) |
AUTO IP (LINK-LOCAL) | Yes |
AUDIO COMPRESSION METHOD | G.711 -law (64 kbps), AAC (16/48 KHz, 16/32/64/96/128 Kbps) |
AUDIO COMMUNICATION METHOD | Audio Reception Only |
AUDIO FILE PLAYBACK | n/a |
PRIVACY MASK | Number of registration: Max. 8 places |
VIEW RESTRICTION | Available |
PRESETS | Number of registers: Max. 64 positions (+Home Position) |
INTELLIGENT FUNCTION - VIDEO | Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection, Intrusion Detection, Face Detection |
INTELLIGENT FUNCTION - DETECTION SETTINGS | Max. 15 |
INTELLIGENT FUNCTION - AUDIO | Volume Detection |
EVENT TRIGGER TYPE | External Device Input, Intelligent Function, Timer, Day/Night Mode Switching Number of Linked Events: 2 Linked Event Conditions: OR, AND (whether or not there is a sequence to events) |
IMAGE UPLOAD | FTP/FTPS/HTTP/HTTPS/SMTP/SMTPS (e-mail) |
EVENT NOTIFICATION | HTTP/HTTPS/SMTP/SMTPS (e-mail) |
ON-SCREEN DISPLAY | Available |
IMAGE CROPPING FUNCTION | Digital PTZ |
ENHANCED DIGITAL ZOOM | n/a |
DAYLIGHT SAVING TIME | Available |
CUSTOM SETTINGS | Available |
NETWORK TERMINAL | LAN x 1 (RJ45, 100Base-TX (auto)) |
AUDIO INPUT TERMINAL | 3.5 mm (0.14 in.) mini-jack connector (monaural)LINE IN or MIC IN |
AUDIO OUTPUT TERMINAL | n/a |
EXTERNAL DEVICE I/O TERMINAL | Input x 1, Output x 1 |
ANALOG VIDEO OUT | N/A |
MEMORY CARD TYPE | microSD Memory Card, microSDHC Memory Card, microSDXC Memory Card Supported. Class 10 recommended. |
TEMPERATURE | Temperature: -10°C - +45°C (+14°F - +113°F) |
HUMIDITY | Humidity: 5% - 85% (without condensation) |
TEMPERATURE | Temperature: -30°C +60°C (-22°F +140°F) |
HUMIDITY | 5% 90% (without condensation) |
PoE | PoE power supply via LAN connector (IEEE802.3at Type1 compliant) |
WITH PoE | Max. approx. 6.7 W |
DIMENSIONS | ( x H) 120 x 54 mm (4.72 x 2.13 in.) |
MOUNTING POSITION | Ceiling Mount |
HEATER | N/A |
WEIGHT | 270 g (9.6 oz.) |
OUTDOOR READY | No |
IP RATING | N/A |
VANDAL RESISTANT | No |
IMPACT RESISTANCE | N/A |
Certifications and Compatibility | EN 55032 class A, FCC part15 subpart B class A, ICES-003 class A, VCCI class A, RCM AS/NZS EN55032 class A, CNS13438 class A, KS C 9832 class A, EN 55035, KS C 9835, IEC EN 63000:2018, CNS15663 IEC/EN 62368-1 3'rd ed., UL 62368-1 3'rd ed. |
