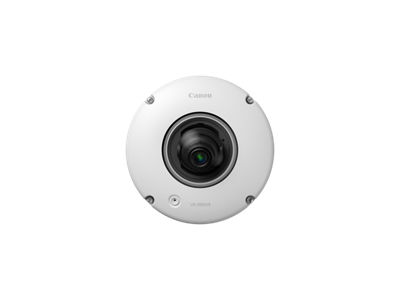

VB-S800VE
Get started with these quick links.
DOWNLOADS
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows NT
- Linux
Locating and installing your download
 |
Chrome |
- A grey bar will appear at the bottom of your browser window which will contain your download. To install your download click on the name of the downloaded file. Alternatively you can click 'Show all downloads...' to view the list of all recently downloaded files
- If the grey bar is not visible you can also access the list of recently downloaded files by clicking the 3 small horizontal lines
located on the right of the address bar - Select 'Downloads' from the menu and the list of recently downloaded files will open
- From this list you can also install the download by clicking on the file name
- To open the folder on your computer that contains your downloaded files please select the 'Open downloads folder' link on the right of the page
- The folder that contains your download will now be open
 |
Safari |
- Mac Users - Click the down arrow
in the top right of the browser - Windows Users - Click the gear wheel
in the top right of the browser - Click the small image of the magnifying glass
next to your download - The folder that contains your download will now be opened
 |
Firefox |
- Click the down arrow in the top right of the browser
- Windows Users - Click the small image of the folder
next to your download - Mac Users - Click the small image of the magnifying glass next to your download
- The folder that contains your download will now be opened
 |
Internet Explorer |
- Click the gear wheel in the top right of the browser
- Select 'View Download' from the menu
- Select 'Location' next to your download
- The folder that contains your download will now be opened
 |
Microsoft Edge |
- Click the three dots icon in the top right of the browser
- Select 'Downloads' from the menu
- Select 'Open folder' next to your download
- The folder that contains your download will now be opened
There are no copying instructions for this browser
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
| IMAGE SENSOR | 1/3" CMOS (RGB) |
| NUMBER OF EFFECTIVE PIXELS | Approx. 2.1 million pixels |
| SCANNING METHOD | Progressive Scan |
| LENS | Fixed focal length lens |
| FOCAL LENGTH | 2.7 mm |
| F-NUMBER | F1.6 |
| DIGITAL ZOOM | 4x |
| HORIZONTAL VIEWING ANGLE1 | 93.8° |
| VERTICAL VIEWING ANGLE | 58.7° |
| DAY/NIGHT SWITCH | Yes |
| I/R CUT FILTER | Digital Night Mode |
| MIN. SUBJECT ILLUMINATION - DAY (COLOR) | 0.5 lux (F1.6, shutter speed 1/30 sec.) |
| MIN. SUBJECT ILLUMINATION - NIGHT (MONOCHROME) | 0.3 lux (F1.6, shutter speed 1/30 sec.) |
| FOCUS MODES | N/A |
| SHOOTING DISTANCE | 0.5m (1.6 ft.) - infinity |
| SHUTTER SPEED | 1 - 1/16000 sec. |
| EXPOSURE | Auto/ Auto (Flickerless)/ Auto (Flickerless2) Auto (shutter-priority AE)/ Manual (Shutter Speed, Gain) |
| WHITE BALANCE | Auto/Light Source (Daylight Fluorescent/White Fluorescent/Warm Fluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp)/ Manual (One-shot WB / R Gain/ B Gain) |
| METERING MODE | Center-Weighted/Average/Spot |
| EXPOSURE COMPENSATION | 9 levels |
| SMART SHADE CONTROL | Auto: 3 Levels
Manual: 7 Levels |
| HAZE COMPENSATION | Auto: 3 Levels
Manual: 7 Levels |
| AGC LIMIT | 6 levels |
| IMAGE STABILIZER | N/A |
| MOTION ADAPTIVE NOISE REDUCTION | Available |
| CLEAR IR | N/A |
| PAN ANGLE RANGE | 350° (±175°) |
| TILT ANGLE RANGE | 90° (ceiling-mounted position: -90° - 0°) |
| ROTATION ANGLE RANGE | 180° (±90°) |
| IR ILLUMINATION RANGE | N/A |
| MOVING SPEED | N/A |
| VIDEO COMPRESSION METHOD | JPEG, H.264 |
| BIT RATE CONTROL | Target Bit Rate: 64-16384 kbps |
| VIDEO SIZE | JPEG, H.264: 1920 x 1080, 960 x 540, 480 x 270 1280 x 720, 640 x 360, 320 x 180 1280 x 960, 640 x 480, 320 x 240 |
| SIMULTANEOUS VIDEO STREAMS | 2x H.264, 2x MJPEG, 1x H.264 1x MJPEG |
| VIDEO QUALITY | JPEG, H.264: 10 levels |
| FRAME RATE | JPEG: 0.1 - 30 fps H.264: 1/2/3/5/6/10/15/30 fps |
| MAXIMUM FRAME RATE | JPEG, H.264 (1920 x 1080): 30fps |
| ADSR: AREA-SPECIFIC DATA SIZE REDUCTION | Number of Specified Areas: Max. 8 windows |
| I-FRAME INTERVAL | 0.5/1/1.5/2/3/4/5 sec. |
| SIMULTANEOUS CLIENT ACCESS | Max. 30 Clients + 1 Admin Client - H.264: Max. 10 Clients |
| CAMERA CONTROL | Administrator, Authorized user, Guest user |
| ACCESS CONTROL | User authority (user name and password), Host Access Restrictions (IPv4, IPv6) |
| ENCRYPTED COMMUNICATIONS | SSL/TLS, IPsec (Auto Key Exchange/Manual) |
| IEEE 802.1X | EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP |
| ONVIF Version | ONVIF Profile S |
| IPv4 PROTOCOL | TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP (Canon proprietary) |
| IPv6 PROTOCOL | TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP (Canon proprietary) |
| AUTO IP | Yes |
| AUDIO COMPRESSION METHOD | G.711 µ-law (64 kbps) |
| AUDIO COMMUNICATION METHOD | Full-duplex (two-way)/half-duplex (One-way communication) RTP, Sound Transfer Protocol by Canon |
| AUDIO FILE PLAYBACK | Available |
| PRIVACY MASK | Number of registration: Max. 8 places, Number of mask colors: 1 (select from 9 colors) |
| VIEW RESTRICTION | N/A |
| PRESETS | Max. 20 positions (Digital) |
| INTELLIGENT FUNCTION - VIDEO | Moving object detection, abandoned object detection, removed object detection, camera tampering detection, passing detection and intrusion detection |
| INTELLIGENT FUNCTION - AUDIO | Volume Detection |
| INTELLIGENT FUNCTION - DETECTION SETTINGS | Max. 15 |
| EVENT TRIGGER TYPE | External Device Input, Timer, Intelligent Function (Video), Intelligent Function (Audio), Day/Night Switch |
| IMAGE UPLOAD | FTP/HTTP |
| EVENT NOTIFICATION | HTTP/SMTP (e-mail) |
| ON-SCREEN DISPLAY | Available |
| IMAGE CROPPING FUNCTION | Digital PTZ Cropping sizes: 640 x 360/512 x 288/384 x 216/256 x 144/128 x 72 640 x 480/512 x 384/384 x 288/256 x 192/128 x 96 |
| ENHANCED DIGITAL ZOOM | N/A |
| DAYLIGHT SAVINGS TIME | Available |
| CUSTOM SETTINGS | Available |
| NETWORK TERMINAL | LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex)) |
| AUDIO INPUT TERMINAL | Built-in Microphone Sensitivity: -40 dB (0 dB=1 V/Pa) S/N Ratio: 62 dB or greater Frequency Response: 50 Hz - 16 kHz |
| AUDIO OUTPUT TERMINAL | F3.5 mm (F0.14 in.) mini-jack connector (monaural) LINE OUT (connect to an amplifier speaker) |
| EXTERNAL DEVICE I/O TERMINAL | Input x 1, Output x 1 |
| ANALOG VIDEO OUT | N/A |
| MEMORY CARD TYPE | MicroSD Memory Card, MicroSDHC Memory Card, MicroSDXC Memory Card Compatible. |
| MEMORY CARD RECORDED CONTENT | Log, Video (Event, Manual, ONVIF, Timer, Upload) |
| MEMORY CARD RECORDED FRAME RATE | Frame Rate: Max. 1 fps (JPEG) Max. 30 fps (H.264) |
| TEMPERATURE | Operating Temperature Range -25°C - +50°C (-13°F - +122°F) |
| HUMIDITY | Humidity: 5% - 85% RH (without condensation) |
| TEMPERATURE | -30°C - +60°C (-22°F - +140°F) |
| HUMIDITY | 5% - 90% RH (without condensation) |
| PoE | PoE: PoE power supply via LAN connector (IEEE802.3af compliant) |
| AC ADAPTER | N/A |
| EXTERNAL POWER SOURCE | N/A |
| WITH PoE | Max. 3.9 W |
| WITH AC ADAPTER | N/A |
| WITH 12VDC | N/A |
| WITH PoE + | - |
| WITH 24VAC+ | N/A |
| DIMENSIONS | (F x H) F132 x 65 mm (F5.20 x 2.56 in.) - Camera only |
| MOUNTING POSITION | Ceiling mount/Wall mount |
| HEATER | No |
| WEIGHT | Approx. 600 g (21.2 oz.) (T.B.D.) |
| OUTDOOR READY | Yes * Dome may cloud when installed under direct sunlight |
| IP RATING | IP66 |
| VANDAL RESISTANT | Yes |
| IMPACT RESISTANCE | IK10 (20J) |
