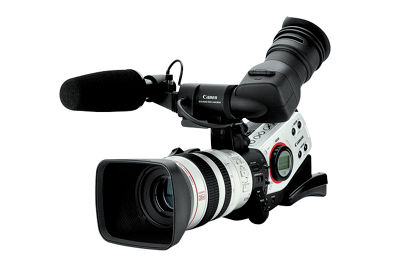

XL2
Get started with these quick links.
DOWNLOADS
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows NT
of
There are no results for the OS Version you selected.
File Name
CONSOLE_V1-1_ENG.pdf
File Name
XL2 Instruction Manual
File Name
Console Software Operations Manual
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
Standard Definition or High Definition | Standard Definition |
Power Supply (rated) | 7.2V DC (battery pack) |
Power Consumption (While recording AF="ON") | 7.1W (recording with AF, 20x zoom XL 5.4-108 L IS mounted) |
Television System | EIA standard (525 lines, 60 fields) NTSC color signal |
Video Recording system | Two rotating heads, helical scan azimuth recording, DV System (Consumer digital VCR SD system) digital component recording |
Audio Recording system | PCM digital recording: 16 bit (48 kHz/2 channels); 12 bit (32 kHz/4 channels) Synchronous 4-channel recording is possible |
Image Sensor | Size 1/3", approx. 680,000 pixels (total), Progressive Scan CCD x3 (charge-coupled device) with horizontal pixel shift |
Total Pixels | 16:9 target area: approx. 460,000 pixels (962 x 480) x3 CCD, 0.289" diagonal 4:3 target area: approx. 350,000 pixels (720 x 480) x3 CCD, 0.236" diagonal |
Tape Format | Video cassettes bearing the MiniDV mark |
Tape Speed | SP: 0.74 ips (18.81mm/second), LP; 0.49 ips (12.56 mm/seco |
Maximum Recording Time (with an 80-min. cassette) | SP; 80 min. |
Maximum recording Time | LP; 120 min. |
Fast Forward/Rewind Time | Approx. 2 minutes and 20 seconds (using 60-minute tape) |
Lens Mount | XL interchangeable lens system |
Focusing System | TTL autofocus. Manual focusing possible (20x zoom XL 5.4-108mm L IS installed) |
Minimum Focusing Distance | 20mm (Wide macro), 1m (entire zoom range): (20x zoom XL 5.4-108mm L IS installed) |
Minimum Illumination | 60i, 1/60 shutter speed = 5.5 lux; 30P, 1/30 shutter speed = 6.5 lux; 24P, 1/48 shutter speed = 10 lux |
Recommended Illumination | More than 100 lx |
Filter Diameter | 72mm (XL lens) |
Viewfinder | 2.0-inch TFT color LCD; Approx. 200,000 pixels, RGB delta configuration |
Microphone | Stereo electric condenser microphone |
DV Terminal | 4-pin connector (complies with IEEE1394); input/output switching |
Video Terminal | RCA pin jack; input/output switching/BNC jack; input/output switching 1 Vp-p/75 ohms unbalanced |
Output Levels | Max. -10 dBv (for 47 kohm load)/3 kohm unbalanced |
S-video Terminal | 4-pin mini-DIN; input/output switching 1 Vp-p/75 ohms (Y signal), 0.286 Vp-p/75 ohms (C signal) |
Audio Terminal | RCA pin jack (L/R) 2 systems; input/output switching |
Audio | Auto Mode, Gain 18dB |
Microphone Terminal | 3.5mm stereo mini-jack unbalanced -55 dBv (Auto), -67 dBv (Manual/Vol Max)/600 ohms |
Input Levels | During input; Min. -10 dBv/47 kohms unbalanced |
Operating Temperature range | 32-104° F (0-40° C) |
Dimensions | 8.9 x 8.7 x 19.5 in. (225 x 220 x 496mm) |
Weight (not including lens and battery pack) | 5.3 lbs. (2410g) |
Weight | 7.8 lbs. (3545g) |
