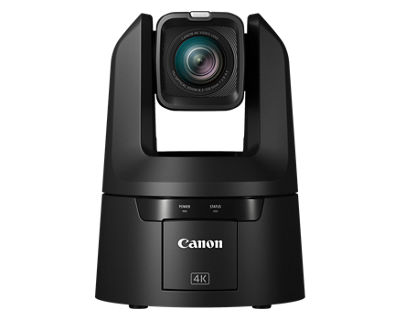

CR-N700
Get started with these quick links.
DOWNLOADS
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows Server 2025
- Windows NT
- Linux
Locating and installing your download
 |
Chrome |
- A grey bar will appear at the bottom of your browser window which will contain your download. To install your download click on the name of the downloaded file. Alternatively you can click 'Show all downloads...' to view the list of all recently downloaded files
- If the grey bar is not visible you can also access the list of recently downloaded files by clicking the 3 small horizontal lines
located on the right of the address bar - Select 'Downloads' from the menu and the list of recently downloaded files will open
- From this list you can also install the download by clicking on the file name
- To open the folder on your computer that contains your downloaded files please select the 'Open downloads folder' link on the right of the page
- The folder that contains your download will now be open
 |
Safari |
- Mac Users - Click the down arrow
in the top right of the browser - Windows Users - Click the gear wheel
in the top right of the browser - Click the small image of the magnifying glass
next to your download - The folder that contains your download will now be opened
 |
Firefox |
- Click the down arrow in the top right of the browser
- Windows Users - Click the small image of the folder
next to your download - Mac Users - Click the small image of the magnifying glass next to your download
- The folder that contains your download will now be opened
 |
Internet Explorer |
- Click the gear wheel in the top right of the browser
- Select 'View Download' from the menu
- Select 'Location' next to your download
- The folder that contains your download will now be opened
 |
Microsoft Edge |
- Click the three dots icon in the top right of the browser
- Select 'Downloads' from the menu
- Select 'Open folder' next to your download
- The folder that contains your download will now be opened
There are no copying instructions for this browser
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
| Tech. Specs. Detailed PDF | View Full Details of Technical Specifications |
| Color | Satin Black / Titanium White |
| Image Sensor | Type 1.0 (1.0 in.) single-plate CMOS sensor Total pixels: approx. 13.40 megapixels Effective pixels: approx. 8.29 megapixels (3840 x 2160) |
| Lens | f=8.3 - 124.5 mm, F/2.8 - 4.5, 15x optical zoom, 9-bladed iris diaphragm 35mm equivalent focal length: approx. 25.5 (W) - 382.5 mm (T) |
| Zoom | Optical: 15x Digital: 20x Advanced Zoom (FHD): 30x |
| Lens Configuration | 14 groups of 18 elements (using 2-sided aspherical lenses and super-UD lenses) |
| Minimum Focusing Distance | 1 cm at wide end, 60 cm across entire zooming range |
| Angle of View | Horizontal: 73.0 (W) - 5.7° (T) Vertical: 45.2° (W) - 3.2° (T) |
| Shutter Speed | 1/3 - 1/2000 sec. (specific values depend on the frame frequency) |
| Iris | Manual/Automatic aperture |
| ND Filter | 3 levels: ND1 (ND: 1/4), ND2 (ND: 1/16), ND3 (ND: 1/64) Material: Glass (with sunlight burn-in protection) Turret switched, motor-driven. |
| White Balance | AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), color temperature setting (2,000 K - 15,000 K), Manual |
| Focus | Focus modes: Manual, AF-boosted MF, Continuous AF, Face Detection & Tracking, Face only AF, Eye Detection. AF type: Dual Pixel CMOS AF, Contrast AF |
| Gamma | BT.709 Normal, BT.709 Wide DR, BT.709 Standard, Canon Log 3, HDR (PQ), HDR(HLG) |
| Image Stabilizer | Optical |
| Pan and Tilt | Pan operation range: Horizontal ±170° Pan operation speed: 0.1° - 100°/sec. Tilt operation range: Vertical -30° - +90° Tilt operation speed: 0.1° - 100°/sec. |
| 3G-SDI | 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit) 1280 x 720: 59.94p/50.00P (4:2:2 10bit) |
| 12G-SDI | 3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit) 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit) 1280 x 720: 59.94p/50.00P (4:2:2 10bit) 720 x 576: 50.00i (4:2:2 10bit) 720 x 480: 59.94i (4:2:2 10bit) |
| HDMI | 3840 x 2160: 59.94P/50.00P/29.97P/25.00P/23.98P (4:2:2 10bit) 1920 x 1080: 59.94P/59.94i/50.00P/50.00i/29.97P/25.00P/23.98P (4:2:2 10bit) 1280 x 720: 59.94p/50.00P (4:2:2 10bit) 720x576: 50.00P (4:2:2 10bit) 720x480: 59.94P (4:2:2 10bit) |
| IP | 3840 x 2160: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 59.94fps, 50.00fps, 29.97 fps, 25.00fps, 23.98fps, 14.99 fps, 12.50fps, 11.99fps, 5.99fps, 5.00 fps (4:2:0 8 bit) |
| Supported Video and Control Protocols | XC Protocol, RTSP/RTP, NDI|HX, SRT (Supports Adaptive Bitrate), FreeD (Supports up to 4 destinations), RTMP/RTMPS, Standard Protocol Communication (Serial), Standard Protocol Communication (IP) |
| Number of Presets | Max. 100 (including home position) |
| Communication Control | LAN, Wi-Fi, Serial, IR |
| Network Terminal | LAN x 1, RJ45, 1000Base-T |
| 12G/3G-SDI OUT Terminal | BNC jack x1 12GSDI & x1 3G-SDI, 0.8 Vp-p/75 SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST 272, SMPTE ST 299 compliant Embedded audio, Time code (VITC/LTC) |
| GEN-LOCK Terminal | BNC jack x 1, 1.0 Vp-p/75 |
| Time Code Terminal | BNC jack x 1, 1.3 Vp-p/50 or less |
| RS-422 Terminal | RJ45 connector x 1 |
| Audio Input 1 / Input 2 Terminals | INPUT (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 /Att.: 20 dB Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 k or more Supply Voltage: 48 V DC (Bias resistance: 6.8 k) |
| Mic Terminal | 3.5 mm stereo mini jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k) |
| Media Slot | SD Card x1, microSD card slot x 1, future expansion, recording unavailable |
| Operating Environment | Temperature: 0°C - +40°C (+32°F - +104°F) Humidity: 10% - 90% (without condensation) |
| Storage Environment | Temperature: 0°C - +40°C (+32°F - +104°F) Humidity: 10% - 90% (without condensation) |
| Power Supply | PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant) External power source: 12 V DC (4-pin XLR input) |
| Dimensions (W x H x D) | Approx. 200 x 269 x 208 mm (7.87 x 10.59 x 8.19 in.) (excluding protrusions) |
| Quietness | NC30 or Lower |
| Supported Controllers | Hardware: RC-IP100, RC-IP1000 Software: Remote Camera Control Application |
