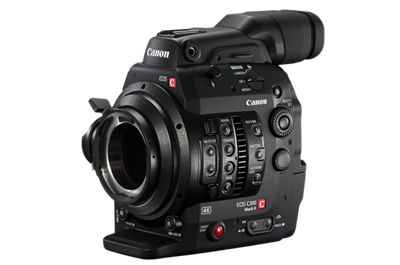

EOS C300 Mark II PL
Get started with these quick links.
DOWNLOADS
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows NT
of
There are no results for the OS Version you selected.
File Name
EOS C300 Mark II PL Read This First
File Name
CINEMA EOS System Expansion User Guide
RECOMMENDED
SETUP & TROUBLESHOOTING
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
Tech. Specs. Detailed PDF | View Full Details of Technical Specifications |
Sensor | CMOS sensor (single-panel) equivalent to Super 35 mm |
Total Pixels | Approx. 9.84 megapixels (4206 x2340) |
Number of effective pixels | Approx. 8.85 megapixels (4096 x 2160): When 4096 x 2160 or 2048 x 1080 is selected as the resolution Approx. 8.29 megapixels (3840 x 2160): When 3840 x 2160 or 1920 x 1080 is selected as the resolution |
Lens Mount | PL mount |
Exposure Modes | (1) Manual exposure based on shutter setting, iris setting, ISO/gain setting, and ND filter setting (2) Push auto iris control, auto iris control (Light metering system selection, shift possible) |
Shutter Setting | Speed, Angle, Clear Scan, Slow, or Off mode selected Either 1/3 or 1/4 steps selected as speed increment |
lris Setting | 1/2-stop, 1/3-stop or fine setting selected (1) Push auto iris control (2) Auto iris control * * Available only with some EF lenses |
ISO | 1 step, 1/3 step settings [*100 - 160 - 25600 -*102400 *When the sensitivity is expanded |
Gain | Normal [*-6dB - -2dB - 42dB - *54db] Fine: Setting in 0.5d8 step increments possible * When the sensitivity is expanded |
ND Filter | 5 density settings (2,4,6,8(*), 10(*) stops) [(*) when expansion is selected] Motorized drive |
Focus Control | DAF (Dual Pixel CMOS AF) supported Manual focus, one-shot AF, continuous AF, AF-Boosted MF (*), face detection AF (Only lenses that support AF functions can be used in any of these modes.) *See Technical Description. |
LCD Monitor | 4" (10.1 cm diagonal) color wide-screen LCD with 16:9 aspect ratio Approx. 1.23 million dots (854 x RGB x 480), 100% field of view coverage |
Viewfinder | 0.46" (1.18 cm on the diagonal), color organic EL display with a widescreen 16:9 aspect ratio Approx. 1.17 million dots (1024 x RGB x 576), 100% field of view ratio |
White Balance | Kelvin setting (setting range: 2000K to 15000K), daylight, tungsten, settings (A/B) |
Frame Rate | 59.94 Hz, 50.00 Hz, 24.00 Hz 59.94 Hz mode 59.94i / 59.94P / 29.97P / 23.98P 50.00 Hz mode 50.00i / 50.00P / 25.00P 24.00 Hz mode 24.00P |
CFast Card | Movie recording, custom picture settings, metadata 2-slot |
SD Card | Recording of movies and photos (JPEG), custom pictures, metadata, menus and other data possible |
Video Compression Formats | MPEG-4 AVC/H.264 |
Audio Recording System | Linear PCM (16bit/24bit- 48 kHz - 4ch) |
File Format | MXF |
Bit Rate | 410/310/225/210/160Mbps Intra-frame 50Mbps Long GOP 35 or 24Mbps Long GOP (for proxy recording on SD cards) |
CFast Card | Intraframe recording Resolution : 4096x2160 / 3840x2160 / 2048x1080 / 1920x1080 Color Sampling: YCC422 10bit/(*)RG8444 (12bit/10bit) (*) Only with 2048x1080 or 1920x1080; 29.97P, 23.98P, 25.00P and 24.00P Long GOP recording Resolution : 2048x1080 / 1920x1080 Color Sampling: YCC422 10bit |
SD Card | Movies: Long GOP recording only (*) Resolution : 2048x1080 / 1920x1080 Color Sampling: YCC420 8bit Photo: JPEG Resolution : 2048x1080 / 1920x1080 (*) Proxy recording using low bit rate |
Count-Up | Drop frame(*) or non-drop frame |
Operation Mode | Rec run, free run, regeneration (*) Only in the 59.94 Hz mode |
Zoom Remote Controller | Canon RC-V100 |
Special Rec | Slow & Fast motion recording (max. 120 fps supported), frame recording, pre-recording, interval recording |
Other | Relay recording, double slot recording, 4K RAW output, custom picture settings, color bar, peaking display, zebra display, My Menu settings, waveform monitor display, edge monitor display, customized functions, function assignment buttons (1 to 11), key lock, marker displays, Enlarged display, custom display Browser remote control using WFT unit, peripheral illumination correction, monaural microphone, fan control, magnification chromatic aberration compensation, GPS information recording, etc. |
Playback Operations | Normal playback, fast forward (at speeds of 5x, 15x, 60x), fast reverse (at speeds of 5x, 15x, 60x), frame forward, frame reverse, forward skip, reverse skip, rec review |
Clip Display | 3x4 (clip) index screen [Original, OK mark, check mark, shot mark, expand, proxy, photo (SD card) index displays available] |
Clip Information Displays | Clip metadata display, custom picture data display |
Edit | Clip deletion, clip copying |
Body | |
Input | GENLOCK terminal (also serves as SYNC OUT terminal), TIME CODE terminal (input output switching), REMOTE terminal, MIC terminal, AUDIO terminal INPUT terminal (XLR) x 2, VIDEO terminal |
Output | MON. terminal, REC OUT terminal, HDMI OUT terminal, headphones terminal, SYNC OUT terminal (also serves as GENLOCK terminal), TIME CODE terminal (input output switching), VIDEO terminal AUDIO terminal |
Input/output control | Expansion system terminal (WFT/other unit) |
Edit | Clip deletion, clip copying |
Monitor Unit |
Power Supply | 14.4V DC (battery pack), 16.7 V DC (DC-IN) |
Image Processing Platform | Dual Digic DV 5 |
Main Unit Weight | Approx. 4.4 lb (2000 g) |
Dimensions (W x H x D) | Approx. 5.9 x 7.2 x 7.2 in (149 x 183 x 183 mm)- with thumb rest |
