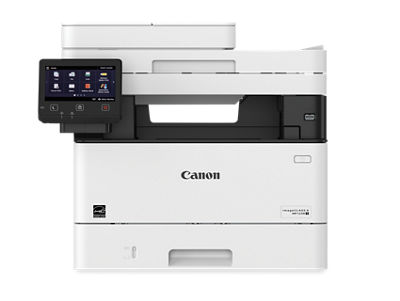

imageCLASS X MF1238 II
Get started with these quick links.
Protect your investment with our eCarePAK Extended Service Plans. Learn More
Purchase this product's accessories and more. Shop Now
Looking for help with your order? Order Help
DOWNLOADS
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows NT
Locating and installing your download
 |
Chrome |
- A grey bar will appear at the bottom of your browser window which will contain your download. To install your download click on the name of the downloaded file. Alternatively you can click 'Show all downloads...' to view the list of all recently downloaded files
- If the grey bar is not visible you can also access the list of recently downloaded files by clicking the 3 small horizontal lines
located on the right of the address bar - Select 'Downloads' from the menu and the list of recently downloaded files will open
- From this list you can also install the download by clicking on the file name
- To open the folder on your computer that contains your downloaded files please select the 'Open downloads folder' link on the right of the page
- The folder that contains your download will now be open
 |
Safari |
- Mac Users - Click the down arrow
in the top right of the browser - Windows Users - Click the gear wheel
in the top right of the browser - Click the small image of the magnifying glass
next to your download - The folder that contains your download will now be opened
 |
Firefox |
- Click the down arrow in the top right of the browser
- Windows Users - Click the small image of the folder
next to your download - Mac Users - Click the small image of the magnifying glass next to your download
- The folder that contains your download will now be opened
 |
Internet Explorer |
- Click the gear wheel in the top right of the browser
- Select 'View Download' from the menu
- Select 'Location' next to your download
- The folder that contains your download will now be opened
 |
Microsoft Edge |
- Click the three dots icon in the top right of the browser
- Select 'Downloads' from the menu
- Select 'Open folder' next to your download
- The folder that contains your download will now be opened
There are no copying instructions for this browser
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
-
WINDOWS
-
macOS X
-
ChromeOS
| Products | Windows 7 | Windows 8 | Windows 10 | Windows 10s | Windows 11 |
|---|---|---|---|---|---|
| imageCLASS X MF1238 II |
| Products | High Sierra V10.13 | Mojave V10.14 | Catalina V10.15 | Big Sur V11.0 | Monterey V12.0 | Ventura V13.0 | Sonoma V14 |
|---|---|---|---|---|---|---|---|
| imageCLASS X MF1238 II |
| Products | ChromeOS |
|---|---|
| imageCLASS X MF1238 II |
imageCLASS X MF1238 II | |
MAIN UNIT | |
| CORE FUNCTIONS | Standard: Print, Copy, Scan, Send, Fax |
| PROCESSOR | Canon Custom Processor |
| CONTROL PANEL | Color Touch Panel |
| MEMORY | 1 GB |
| STANDARD INTERFACE CONNECTION | USB 2.0 x2 (Host), USB 2.0 x1 (Device) High-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11b/g/n, Wi-Fi® Direct Connection |
| PAPER CAPACITY (LETTER, 20 LB. BOND) | Standard: 350 Sheets |
| PAPER SOURCES (LETTER, 20 LB. BOND) | Standard: 250-sheet Paper Cassette, 100-sheet |
| PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND) | Standard: 65 Sheets |
| SUPPORTED MEDIA TYPES | Cassettes: Thin, Plain, Recycled, Thick, Bond |
| SUPPORTED MEDIA SIZES | Cassettes: Letter, Legal, Statement, Executive Custom (Min. 4.1" x 5.8" to Max. 8.5" x 14") |
| SUPPORTED MEDIA WEIGHTS | Cassettes: 16 lb. Bond to 32 lb. Bond (60 to 120 g/m2 ) |
| WARM-UP TIME | From Power On: 14 Seconds or Less |
| DIMENSIONS (W x D x H) | Standard (Desktop): 17.9" x 18.3" x 15.5" (453 mm x 464 mm x 392 mm) |
| INSTALLATION SPACE (W x D x H) | Standard (Desktop): 17.9" x 34.8" x 26.2" (553 mm x 983 mm x 664 mm) |
| WEIGHT5 | Unit: Approx. 35.8 lb. (16.2 kg) |
| OPERATING SYSTEM | UFR II/PCL/PS: Windows® 7/Windows 8.1/ Windows 10/Windows Server 2008/Windows Server 2008 R2/Windows Server 2012/Windows Server 2012 R2/ Windows Server 2016/Mac OS X v10.8.5 (or later) |
PRINT SPECIFICATIONS | |
| PRINTING METHOD | Laser Beam Printing |
| PRINT SPEED (BW)6 | Up to 40 ppm (Letter); Up to 32 ppm (Legal) |
| FIRST PRINT OUT TIME | Approx. 5.3 Seconds |
| RECOMMENDED MONTHLY PAGE VOLUME | 750 - 4,000 Pages |
| PRINT RESOLUTION (dpi) | 600 x 600 |
| STANDARD PAGE DESCRIPTION LANGUAGES | UFR II, PCL®6, PCL®5, Adobe PostScript 3® |
| DOUBLE-SIDED PRINTING | Automatic (Standard) |
| DIRECT PRINT | Available from USB Memory (JPEG, TIFF, PDF) |
| PRINTING FROM MOBILE AND CLOUD-BASED SERVICES1 | Apple® AirPrint®, Canon PRINT Business, Mopria™ Print Service, uniFLOW Secure Mobile Printing7 |
| FONTS | PCL: 93 Fonts |
| PRINT FEATURES | Secure Print, Page Border, Header/Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations |
COPY SPECIFICATIONS | |
| COPY SPEED | Up to 40 ppm (Letter); Up to 32 ppm (Legal) |
| FIRST-COPY-OUT TIME (LETTER) | Approx. 6.2 Seconds |
| COPY RESOLUTION (dpi) | 600 x 600 |
| COPY SIZE | Platen: Up to Letter |
| MULTIPLE COPIES | Up to 999 Copies |
| MAGNIFICATION | 25% - 400% (1% Increments) |
| PRESET REDUCTIONS | 25%, 50%, 64%, 78% |
| PRESET ENLARGEMENTS | 129%, 200%, 400% |
| COPY FEATURES | Paper Setting, Favorite Settings, Two-sided, Original Type Selection, Cancel, N-on-1, Density Adjustment, Sharpness, Erase Frame, Collate, Copy ID Card |
SCAN SPECIFICATIONS | |
| TYPE | Single-Pass Duplexing Automatic Document Feeder |
| DOCUMENT FEEDER PAPER CAPACITY | 50 Sheets (20 lb. Bond) |
| DOCUMENT FEEDER SUPPORTED MEDIA SIZES | Legal, Letter, Statement |
| DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS | Single and Double-sided scanning: 13-28 lb. Bond (50-105 g/m2 ) |
| PLATEN ACCEPTABLE ORIGINALS | Sheet, Book |
| PULL SCAN | ScanGear MF for TWAIN, WIA, and ICA |
| SCAN RESOLUTION (dpi) | 300 x 600, 600 x 600 |
| SCAN-TO-MOBILE DEVICES | Canon PRINT Business |
| SCAN SPEED (LETTER) (BW/COLOR) | Single-sided: 13/38 ipm (300 x 300 dpi) (Color/BW) |
| MEMORY MEDIA | Standard USB Memory (JPEG, TIFF, PDF) |
SEND SPECIFICATIONS | |
| DESTINATION | Email/Internet FAX (SMTP), SMB, FTP, Super G3 FAX |
| ADDRESS BOOK | LDAP (50)/Local (300)/Speed Dial (281) |
| SEND RESOLUTION (dpi) | 600 x 600 (Pull Scan), 196 x 204 (iFax), 300 x 300 (Other) |
| COMMUNICATON PROTOCOL | File: FTP, SMB |
| FILE FORMAT | Standard: TIFF, JPEG, PDF (Compact, Searchable) |
FAX SPECIFICATIONS | |
| MODEM SPEED | Super G3: 33.6 Kbps |
| COMPRESSION METHOD | MH, MR, MMR, JBIG |
| RESOLUTION (dpi) | 400 x 400, 200 x 400, 200 x 200, 200 x 100 |
| SENDING/RECORDING SIZE | Statement to Legal |
| FAX MEMORY | Up to 512 Pages |
| SPEED DIALS | Max. 281 Dials |
| GROUP DIALS/DESTINATIONS | Max. 299 Dials |
| SEQUENTIAL BROADCAST | Max. 310 Addresses |
| MEMORY BACKUP | Yes |
| FAX FEATURES | RX Mode, Resolution, Two-sided Original, Density, Sharpness, Favorite Settings, Duplex Fax |
SECURITY SPECIFICATIONS | |
| AUTHENTICATION | Standard: Embedded Universal Login Manager, Department ID Authentication |
| DATA | Standard: Verify System at Startup |
| NETWORK | Standard: IP/MAC Address Filtering, IPSEC, TLS 1.3, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP |
| DOCUMENT | Standard: Secure Print, High Compression PDF, Searchable PDF |
| WI-FI AUTHENTICATION METHODS | Wi-Fi Infrastructure Mode: WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES) |
ENVIRONMENTAL SPECIFICATIONS | |
| OPERATING ENVIRONMENT | Temperature: 50 to 86º F |
| POWER REQUIREMENTS | AC 120-127 V:6.5 A, 60 Hz |
| POWER CONSUMPTION | Maximum: Approx. 1330 W |
| STANDARDS | ENERGY STAR® Qualified, Currently rated EPEAT Silver3 |
CONSUMABLES | |
| TONER | Toner T08 Black - Yields 11,000 Pages |
